Wiring a winch on a Jeep is a practical skill that helps you get out of tough spots, like mud, sand, or steep trails. Many Jeep owners install a winch for off-roading and recovery.
If you wire it wrong, your winch might not work or could even cause electrical damage. This guide will help you wire a winch step-by-step, using simple English and clear instructions.
By the end, you’ll know exactly what tools you need, how to connect everything safely, and how to avoid common mistakes.
What You Need Before Starting
Before you begin, gather these tools and parts:
- Winch kit (with cables and mounting hardware)
- Socket set and wrench
- Wire cutters and crimping tool
- Electrical tape
- Battery terminal cleaner
- Safety gloves
- Zip ties
You also need to check your Jeep’s battery. A standard winch draws about 400 amps under heavy load.
Make sure your battery has enough power most experts recommend a 650 CCA (Cold Cranking Amps) battery or higher.
Step-by-step Wiring Process

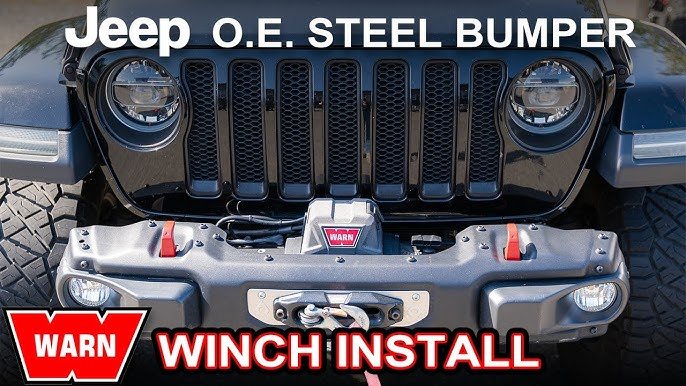

1. Mount The Winch
Find a winch-compatible bumper or mounting plate. Place the winch in the center, making sure it’s secure. Tighten bolts using a torque wrench. Double-check that the winch is not loose.
2. Prepare The Electrical Connections
Every winch has three main cables:
- Positive cable (red)
- Negative cable (black)
- Control cable
Clean the battery terminals before attaching anything. Dirty terminals can cause weak connections and reduce winch power.
3. Connect The Power Cables
Attach the red cable to the winch’s positive terminal. Run this cable to your Jeep’s battery positive post. Use zip ties to keep the cable away from hot engine parts and moving components.
Connect the black cable to the winch’s negative terminal. Run it to the battery’s negative post. Make sure these cables are not kinked or pinched.

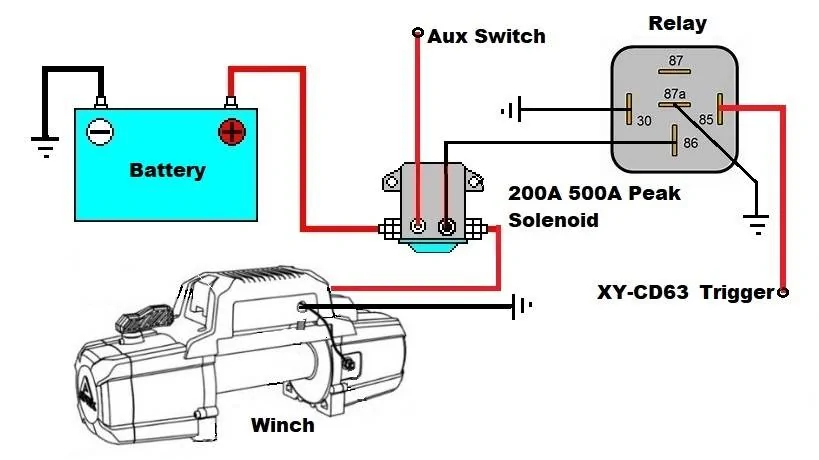

4. Install The Winch Solenoid
Most modern winches use a solenoid box. This box controls power flow and prevents overheating. Mount the solenoid near the winch, preferably on the bumper or firewall. Connect the control cable from the winch to the solenoid.
Here’s a comparison of solenoid mounting locations:
| Location | Protection | Ease of Access |
|---|---|---|
| Bumper | Low | High |
| Firewall | High | Medium |
| Inside Engine Bay | High | Low |
Choose the location that suits your needs and Jeep model.
5. Connect The Remote Control
Your winch comes with a remote cable or wireless remote. Plug the remote cable into the solenoid. If you’re using a wireless system, follow the manufacturer’s pairing instructions.
6. Secure And Test All Connections
Use zip ties to secure cables. Wrap exposed metal with electrical tape. Double-check all connections. Now, test the winch: turn it on and run the cable out and in. If it moves smoothly, your wiring is correct.
If the winch doesn’t work, check for:
- Loose terminals
- Corroded battery posts
- Damaged cables
7. Add Safety Features
Consider adding a circuit breaker between the winch and battery. This prevents electrical fires in case of a short circuit. A 500-amp breaker is standard for most winches.
Here’s a simple table showing popular circuit breaker ratings:
| Breaker Rating (Amps) | Suitable Winch Size (lbs) | Safety Level |
|---|---|---|
| 300 | Up to 8,000 | Low |
| 500 | Up to 12,000 | Medium |
| 600 | Over 12,000 | High |
8. Final Inspection
After wiring, inspect for:
- Cable rubbing against sharp edges
- Uncovered terminals
- Loose mounting bolts
A quick check prevents future problems and keeps your Jeep safe.
Common Mistakes To Avoid
- Wrong cable size: Always use cables rated for your winch’s amperage. Thin cables can overheat and melt.
- Skipping battery check: A weak battery can’t power the winch. Test your battery before installation.
- Poor cable routing: Keep cables away from moving engine parts and exhaust pipes.
- Ignoring circuit protection: Not using a breaker or fuse risks electrical fires.
Most beginners forget to clean battery terminals. Corrosion lowers winch power and may cause the winch to stop working.
Another mistake is using the winch when the Jeep engine is off. The winch can drain the battery very quickly.
Winch Wiring Example
Let’s look at a real-world example. Suppose you install a 12,000 lb winch on your Jeep Wrangler.
You use a 500-amp circuit breaker and 2-gauge cables. You mount the solenoid on the bumper for easy access.
After wiring, the winch pulls the Jeep out of mud in 30 seconds, using about 420 amps. The battery voltage drops from 12.
7V to 11. 9V during operation.
This setup is safe, reliable, and works well for most off-road recovery situations.
Maintenance Tips
- Inspect cables every month for wear and tear.
- Clean battery terminals with a wire brush.
- Replace damaged cables immediately.
- Test the winch after every off-road trip.
Regular maintenance helps your winch work well and last longer.
Winch Wiring Cost Comparison
Here’s a quick comparison of typical costs for wiring a winch on a Jeep:
| Item | Average Price (USD) | Quality |
|---|---|---|
| Winch Kit | $400-$700 | High |
| Cables | $40-$80 | Medium |
| Circuit Breaker | $30-$50 | High |
| Mounting Plate | $80-$150 | High |
You can save money by doing the work yourself. Always use quality parts for safety.
Frequently Asked Questions
How Long Does It Take To Wire A Winch On A Jeep?
Usually, wiring a winch takes 1 to 2 hours. If you’re new, plan for extra time to check and test each connection.
Can I Wire A Winch Without A Solenoid?
It’s possible but not recommended. Solenoids help control the winch and protect the electrical system from overload.
What Size Cables Should I Use For A Winch?
Use at least 2-gauge cables for winches up to 12,000 lbs. For bigger winches, use thicker cables.
Is It Safe To Wire A Winch By Myself?
Yes, if you follow safety steps and use the right tools. Wear gloves and keep cables away from hot engine parts.
Where Can I Find Official Winch Wiring Diagrams?
Many brands provide diagrams online. For reliable info, see Warn Industries.
Wiring a winch on your Jeep is a smart upgrade for off-roading. With careful planning and safe wiring, your winch will help you recover from tough situations.
Always check your work, use quality parts, and keep your cables clean. This way, your Jeep and winch will stay ready for any adventure.
