If your Jeep Wrangler's third brake light is broken or missing, replacing it is more than just a style upgrade. This light is a legal requirement in many states and helps other drivers see your vehicle more easily, especially when stopping.
Installing a new third brake light on your Jeep Wrangler can sound tricky, but with the right guidance, it’s a job most people can do at home—even if you’re not a car expert.
This guide will walk you through every step, highlight common mistakes, and show you how to choose the right part.
Why The Third Brake Light Matters

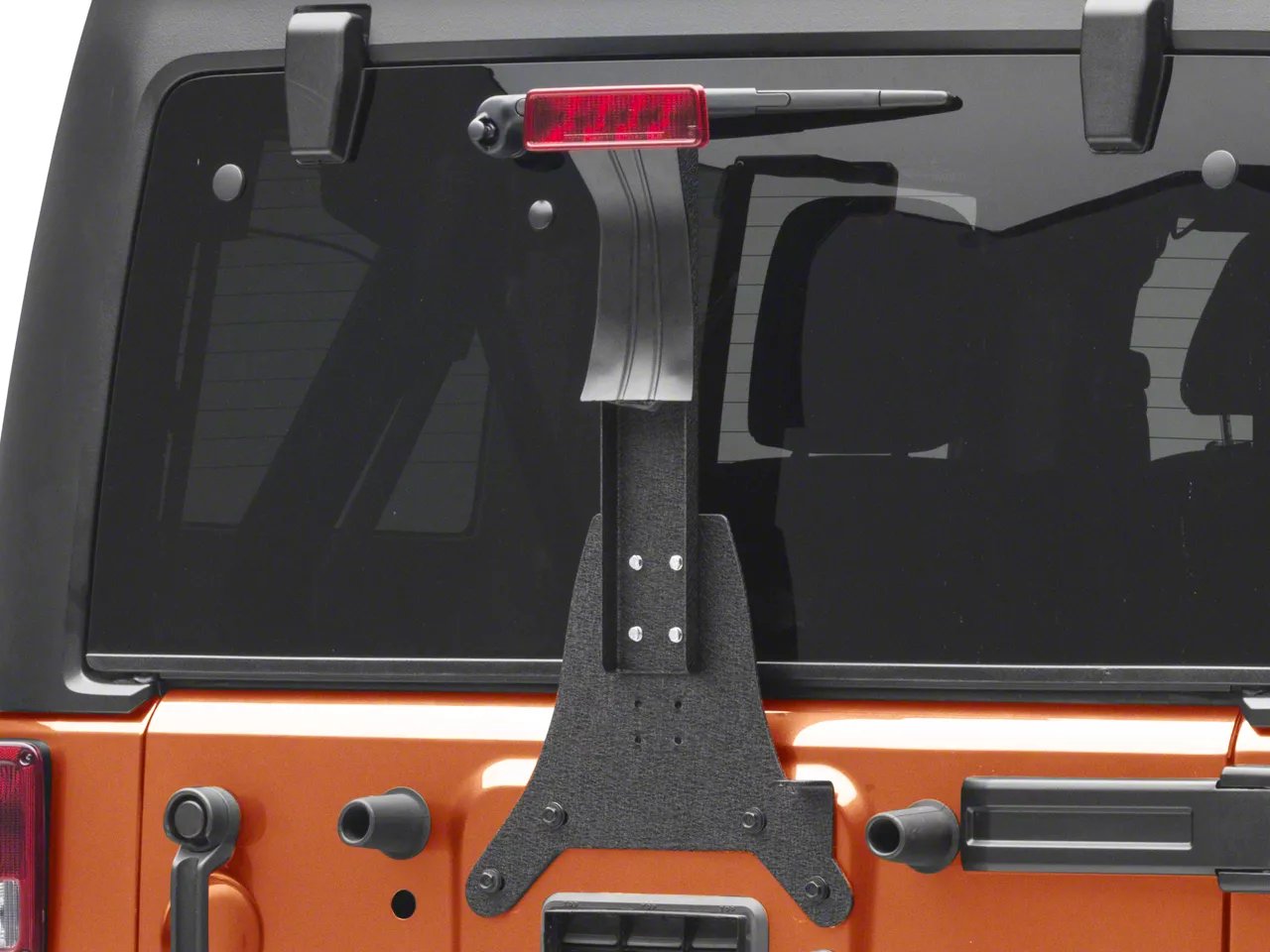

The third brake light, also called the center high mount stop lamp (CHMSL), sits above the rear tire or at the top of the tailgate. It’s designed to catch the eye of drivers behind you, reducing rear-end collisions. According to the National Highway Traffic Safety Administration, vehicles with a working third brake light have 4.3% fewer rear-end crashes. For Jeep Wranglers, this light is often exposed, so it can break or get damaged more easily than other vehicles.
Choosing The Right Third Brake Light
Before starting, make sure you have the correct light for your Jeep Wrangler model. Not all third brake lights fit every Wrangler, so check your year and version (YJ, TJ, JK, JL, etc.). Some lights are made for stock tires, while others fit larger, aftermarket tires. Here’s how different options compare:
| Model Year | Light Type | Mount Location | Fits Stock Tires? | Fits Oversized Tires? |
|---|---|---|---|---|
| 2007-2018 JK | LED ring | Spare tire mount | Yes | Yes |
| 2018-2024 JL | Bar style | Above tire | Yes | No |
| 1997-2006 TJ | OEM style | Tailgate | Yes | No |
When shopping, focus on these:
- Brightness: LED lights are brighter and last longer.
- Water Resistance: Look for IP67 or higher ratings.
- Compatibility: Check fitment for tire size and bolt pattern.
Non-obvious insight: Many aftermarket lights require new wiring or adapters. Double-check if your kit comes with all needed parts, or you may have to order extra connectors.
Tools And Supplies You’ll Need
Getting ready saves time and headaches. Here’s a checklist:
- Replacement third brake light
- Screwdrivers (Phillips and flathead)
- Wrench set (usually 13mm or 15mm for Wrangler)
- Wire stripper and crimper
- Electrical tape or heat shrink tubing
- Zip ties
- Cleaning cloth
Some kits include all hardware. If your new light uses LED technology, you may need a resistor or adapter to avoid warning lights on the dashboard.
Step-by-step Installation Guide
Let’s get practical. These steps cover most Jeep Wrangler models. Always read your light’s instructions for details.
1. Remove The Spare Tire
Use your wrench to loosen and remove the three nuts holding the spare tire. Place the tire aside.
2. Detach The Old Brake Light
Unscrew the bolts or clips holding the old third brake light. Some models have a plug you can disconnect; others use wire crimps.
3. Clean The Mounting Surface
Dirt can block the light or stop a good connection. Wipe the mount with a cloth.
4. Install The New Light

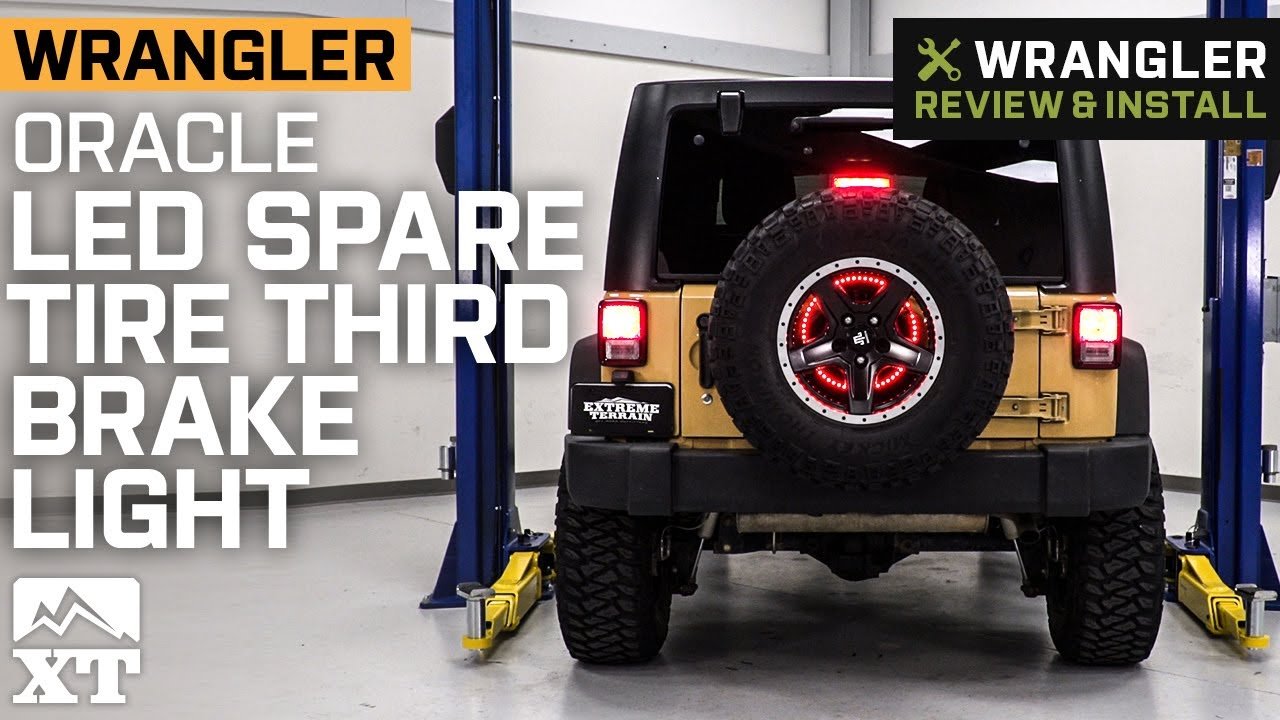

Position the new light. For LED ring styles, slip it over the mount and align the holes.
For bar types, screw the bracket onto the tailgate.
5. Connect The Wiring
If your light has a plug, simply attach it. If not, use wire strippers to prep the wires.
Connect red to red and black to black (or follow your kit’s instructions). Secure with crimp connectors and wrap with electrical tape.
6. Secure The Light
Tighten all bolts or screws. Make sure the light doesn’t wobble.
7. Reinstall The Spare Tire
Place the tire back and tighten the nuts. Check that the light is visible and not blocked.
8. Test The Brake Light
Ask a friend to press the brake pedal, or wedge something on it. Check if the light turns on. If not, double-check connections.
Non-obvious insight: Some LED lights may cause a “bulb out” error on your dashboard. If this happens, install a resistor (usually included in high-quality kits) between the wires.
Common Mistakes To Avoid
Many beginners make these errors:
- Wrong part selection: Buying a light for the wrong Wrangler model.
- Poor wiring: Not securing connections, leading to water damage.
- Over-tightening: Cracking the mount or damaging the light.
- Blocking the light: Mounting too close to the tire, reducing visibility.
Always take your time, and double-check every step.
Jeep Wrangler Third Brake Light Vs. Other Vehicles
Jeep Wranglers have unique mounting and wiring compared to sedans and trucks. Here’s a quick comparison:
| Vehicle Type | Light Location | Installation Difficulty | Common Issues |
|---|---|---|---|
| Jeep Wrangler | Spare tire/tailgate | Moderate | Blocked by oversized tire |
| Sedan | Rear window | Easy | Wire corrosion |
| Pickup Truck | Cab roof | Moderate | Water leaks |
Wranglers require careful part selection because many owners use larger tires. Always check visibility after installation.
Extra Tips For A Trouble-free Install
- Use dielectric grease on connectors to prevent corrosion.
- If you drive off-road, choose a light with a shock-resistant rating.
- Run wires through factory grommets to avoid water leaks.
- Zip-tie wires away from moving parts.
If you want more Jeep-specific technical details, check out Jeep’s official site.
Frequently Asked Questions
How Long Does It Take To Install A Third Brake Light On A Jeep Wrangler?
Most people can finish the job in 30–60 minutes. If you’re new to car DIY, plan for about an hour.
Do I Need Special Tools For The Installation?
No, just basic hand tools like screwdrivers and wrenches. For wiring, wire strippers are helpful.
Will Installing An Led Third Brake Light Cause Warning Lights?
Sometimes yes. If your Jeep detects lower resistance from LEDs, you may see a “bulb out” warning. Adding a resistor fixes this.
Is It Legal To Drive Without A Third Brake Light?
In most states, driving without a third brake light is illegal and may result in a ticket. Always check local laws.
Can I Use The Third Brake Light With Aftermarket Wheels Or Tires?
Yes, but you may need a special mount or adapter to keep the light visible. Always check compatibility before buying.
Installing a new third brake light on your Jeep Wrangler doesn’t need to be stressful. With the right part, tools, and careful steps, you’ll improve safety and stay legal.
Take your time, follow the steps, and double-check your work. Your Jeep and your peace of mind will thank you.
