Every Jeep JK driver knows how important good headlights are, especially when driving off-road or at night. If your headlights are not aimed correctly, you might struggle to see the road or blind other drivers. Many people install new headlights or lift their Jeeps but forget to adjust the aim. This can lead to dangerous situations. Luckily, aiming Jeep JK headlights is a simple process if you know what to do.
This guide will walk you through each step to properly aim your Jeep JK headlights. You’ll learn what tools you need, how to set up your Jeep, and how to fine-tune the aim so you get the best visibility. Let’s make night driving safer and easier.
Why Headlight Aim Matters
Headlight alignment is more than just a detail. If your headlights are too high, you can blind other drivers. If they’re too low, you won’t see enough of the road ahead. According to the National Highway Traffic Safety Administration, misaligned headlights are a common cause of night accidents.
Many Jeep owners upgrade to LED or aftermarket headlights, which often have different beam patterns. Even a small change in ride height, like adding a lift kit or carrying heavy gear, can affect headlight aim. For safe driving and to pass inspections, correct aim is essential.
What You’ll Need
Before you start, gather these simple items:
- A Phillips screwdriver (for adjustment screws)
- Masking tape
- A tape measure
- A level surface (garage floor or driveway)
- A flat wall (garage door or wall at least 25 feet long)
- Your owner’s manual (if you want factory specs)
Most Jeep JKs use a Phillips screwdriver for aiming adjustments, but some models may need a Torx driver.
Preparing Your Jeep
For accurate results, your Jeep should be in its normal driving condition. Here’s how to set it up:
- Fill the gas tank at least half full.
- Remove any extra weight (tools, gear) unless you always carry it.
- Make sure tire pressure is correct.
- Park on a flat, level surface facing a wall about 25 feet away.
If your Jeep is lifted or loaded, aim with your typical setup for real-world accuracy.
Marking The Wall
Getting a clear reference point is key. Follow these steps to mark your target:
- Park the Jeep 25 feet from the wall, with the front facing straight.
- Turn on the headlights (low beam).
- Use masking tape to mark the horizontal center of each headlight beam on the wall. Also, mark the vertical center of the Jeep’s front.
- Use a tape measure to ensure the marks are at the same height from the ground as the center of your headlights.
Here’s a quick comparison of recommended headlight aim distance:
| Vehicle Type | Distance from Wall | Drop Below Headlight Center |
|---|---|---|
| Jeep JK | 25 feet | 2-4 inches |
| Small Car | 25 feet | 2 inches |
| Truck/SUV | 25 feet | 4 inches |

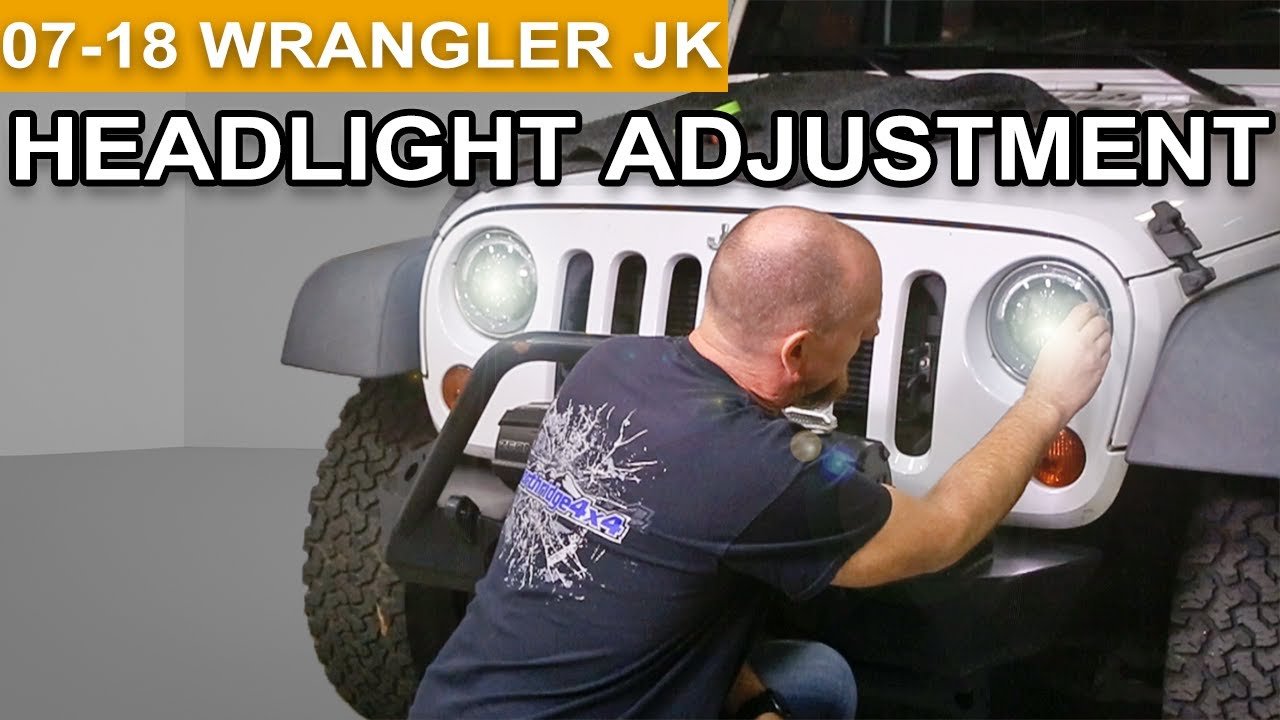

Adjusting Jeep Jk Headlights
The Jeep JK has two adjustment screws per headlight—one for vertical and one for horizontal aim. These are found behind the headlight housing, usually accessible from the engine bay.
- Vertical Adjustment: Find the vertical screw (usually on top or side of the headlight). Turn it to raise or lower the beam until the top of the most intense light is about 2–4 inches below the headlight center mark on the wall.
- Horizontal Adjustment: Find the horizontal screw (side of the headlight). Adjust so the beam centers on the vertical tape line you marked earlier.
Here’s a simple table showing adjustment screw directions:
| Screw Location | Turn Clockwise | Turn Counter-Clockwise |
|---|---|---|
| Vertical | Raises beam | Lowers beam |
| Horizontal | Moves beam right | Moves beam left |
Tip: Make small adjustments and recheck the pattern after each turn.
Checking Your Results
After adjusting, step back and observe the beam pattern. The cutoff line (where the bright part ends) should be sharp and just below the centerline. The right side can be slightly higher for better roadside visibility, but never above the headlight center.
Drive your Jeep on a dark road to confirm the pattern. If you see dark spots, glare, or the beam pointing too far left or right, repeat the adjustment.
A common mistake is rushing and not checking both sides. Always check both headlights, as one can move when you adjust the other.
Common Problems And Solutions
Problem: One beam is much higher or lower than the other.
Solution: Recheck your wall marks and the Jeep’s level. Sometimes, uneven tire pressure or a sloped driveway causes this.
Problem: Beams are too wide or cross each other.
Solution: Adjust the horizontal screws carefully. Crossing beams can blind oncoming drivers.
Problem: Light pattern is scattered or weak.
Solution: Clean your headlights and check for damaged bulbs or poor-quality replacements.
Here’s a quick comparison of factory vs aftermarket headlights for Jeep JKs:
| Type | Brightness (Lumens) | Beam Pattern |
|---|---|---|
| Factory Halogen | 700-1,200 | Wide, less focused |
| Aftermarket LED | 2,000-4,000 | Sharp cutoff, more focused |
Final Checks And Extra Tips
After aiming, tighten all screws and make sure the housing is secure. Avoid over-tightening as plastic parts can crack.
If you switch to different bulbs or add a lift kit later, check your aim again. Even small changes affect alignment. For more official details, you can check the NHTSA Headlights Guide.
Don’t forget to turn off your lights after finishing to avoid draining your battery.
Frequently Asked Questions
Why Do My Jeep Jk Headlights Keep Moving Out Of Alignment?
Loose screws, vibration from off-roading, or weak headlight housings can cause the aim to shift. Check and tighten all mounting points regularly.
How Often Should I Check My Headlight Aim?
You should check every few months, after installing new headlights, or if you notice poor night visibility. Also, check after adding a lift or heavy cargo.
Can I Use Automatic Headlight Aiming Tools?
Yes, but most Jeep JK owners use the manual wall method for accuracy. Automatic tools are faster but can be expensive.
Is It Legal To Aim My Own Headlights?
In most states, it’s legal if you follow factory specifications. However, some places require inspection at a certified garage.
What’s The Best Headlight Type For A Jeep Jk?
LED headlights offer brighter, more focused beams and longer life. Always choose options that are DOT-approved for road use.
Properly aimed headlights make a huge difference in safety and comfort. Take the time to adjust your Jeep JK headlights, and you’ll see the road more clearly and drive with confidence.
