If your Jeep JK feels unstable, pulls to one side, or the axle sits off-center after a lift, your track bar probably needs adjustment. This part keeps the axle aligned with your Jeep’s frame.
Even small changes in suspension height can shift the axle, causing uneven tire wear and poor handling. Adjusting the track bar yourself can fix these issues and save you money.
Here’s a clear, step-by-step guide to help you adjust your track bar safely and correctly, even if you’re new to DIY car work.
What Is A Track Bar And Why Adjust It?
The track bar (sometimes called a panhard bar) is a long, metal rod that connects the axle to the Jeep’s body. Its main job is to keep the axle centered under the vehicle.
When you lift your Jeep or change suspension parts, the angle of the track bar changes. This can push the axle off to one side.
A misaligned track bar can cause:
- The Jeep to “dog track” (move sideways)
- Uneven gaps between tires and fenders
- Steering that feels loose or pulls
- Fast or uneven tire wear
Adjusting the track bar brings the axle back to the center, improving stability and steering response.
Tools And Materials You’ll Need
Before starting, gather the right tools. Here’s a basic list:
- Floor jack and sturdy jack stands
- Lug wrench or impact gun
- Tape measure (preferably in inches and millimeters)
- Wrenches (usually 15mm, 18mm, or 21mm for Jeep JKs)
- Adjustable wrench (for some aftermarket bars)
- Pen or chalk (to mark measurements)
- Safety glasses and gloves
Some upgraded track bars are adjustable (with a threaded center section). Stock bars require removal and reinstallation if realignment is needed.
Step-by-step Guide To Adjusting The Track Bar
Follow these clear steps to adjust your Jeep JK’s track bar:
1. Park On A Level Surface
Always work on a flat, solid surface. Engage the parking brake and chock the wheels for safety.
2. Loosen Lug Nuts And Jack Up
If you need more space, loosen the front or rear tire lug nuts a little. Use the jack to lift the Jeep and place it securely on jack stands. Remove the wheels for better access.
3. Locate And Inspect The Track Bar
On the front axle, the track bar runs from the driver’s side frame to the passenger’s side axle. In the rear, it’s the opposite. Check for any signs of damage, worn bushings, or loose bolts.
4. Measure Axle Centering
Use the tape measure to check the gap between the tire and fender on each side. Write down both measurements. Even a difference of 0.25 inches means the axle is off-center.
Example:
If the left gap is 3. 5 inches and the right is 2.
9 inches, your axle is 0. 6 inches off-center.
5. Loosen Track Bar Bolts
Use your wrench to loosen (but not remove) the bolts at both ends of the track bar. If you have an adjustable bar, loosen the locking collar or jam nut in the middle.
6. Adjust The Track Bar

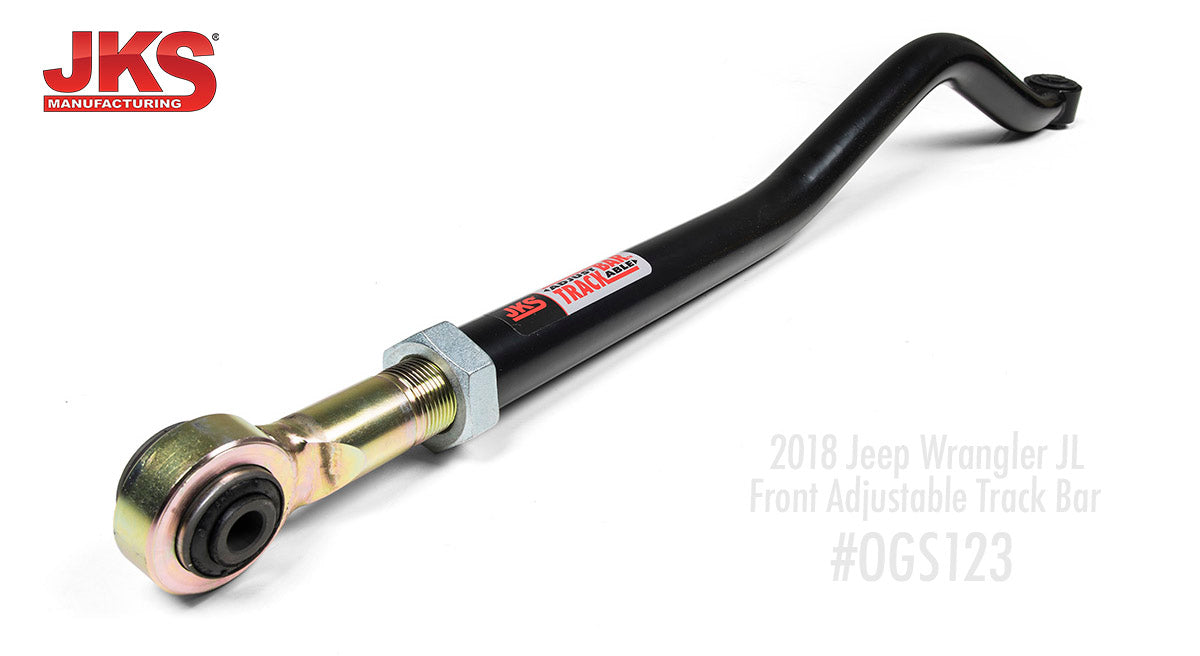

- For adjustable track bars: Turn the center section to extend or shorten the bar. A small turn makes a big difference—usually 1/8 inch at the threads moves the axle about 1/4 inch.
- For stock bars: You may need to remove one end, push the axle by hand, then reinstall the bar.
7. Recheck Measurements
After each adjustment, re-measure the gaps at each fender. Repeat adjusting until both sides are as equal as possible—within 1/16 inch is ideal.
8. Tighten Everything Down
Once the axle is centered, tighten all bolts to the manufacturer’s torque specs. For Jeep JKs, this is often 125 ft-lbs on track bar bolts. Double-check with a torque wrench.
9. Reinstall Wheels And Lower Jeep
Put the wheels back on, tighten the lug nuts, and carefully lower the Jeep. Tighten lug nuts to the correct torque.
10. Test Drive
Take a short, slow drive. Listen for any noises and check that the steering feels stable.
Recheck your fender gaps and torque on all bolts after the test drive.
Comparison: Stock Vs Adjustable Track Bars
Choosing the right track bar matters. Here’s a quick comparison:
| Feature | Stock Track Bar | Adjustable Track Bar |
|---|---|---|
| Adjustment | None (fixed length) | Easy, on-vehicle |
| Ideal For | Stock height | Lifts & changes |
| Cost | Lower | Higher |
| Durability | Basic | Heavy-duty options |
Common Mistakes To Avoid
Many first-timers make these errors:
- Measuring with the Jeep off the ground – Always measure with the weight on the suspension.
- Forgetting to torque bolts – Loose bolts can cause dangerous handling.
- Over-adjusting – Small changes go a long way.
- Ignoring bushing wear – Worn bushings make alignment impossible.
- Not rechecking after a test drive – Suspension can settle and shift.
Simple Data: Jeep Jk Track Bar Specs
Here are some key factory specs for quick reference:
| Component | Front | Rear |
|---|---|---|
| Bolt Torque | 125 ft-lbs | 125 ft-lbs |
| Stock Length | ~39.5 in | ~38.1 in |
| Bushing Size | 14mm | 14mm |
When To Seek Professional Help
If you notice clunking sounds, steering feels sloppy, or you’re unsure about any step, it’s wise to consult a professional. Safety comes first. Some shops use laser alignment tools to get perfect results.
For more technical details and official guidelines, visit the Jeep official site.
Frequently Asked Questions
How Do I Know If My Track Bar Needs Adjustment?
Look for uneven tire-to-fender gaps, steering that pulls, or if your Jeep feels unstable after suspension changes.
Can I Drive With A Misaligned Track Bar?
It’s possible, but unsafe. You risk uneven tire wear, poor handling, and potential damage to other suspension parts.
Do I Need An Alignment After Adjusting The Track Bar?
If you only adjust the track bar, a full alignment isn’t always needed. But if you’ve changed other suspension parts, a professional alignment is recommended.
How Often Should I Check My Track Bar?
Check it after any suspension modification, off-roading trip, or if you notice changes in steering feel.
What’s The Difference Between A Track Bar And A Sway Bar?
A track bar centers the axle side-to-side. A sway bar (anti-roll bar) controls body roll in turns. They serve different but important roles.
Adjusting your Jeep JK’s track bar is a simple job that makes a big difference. Take your time, measure carefully, and enjoy a smoother, safer ride.
