Adjusting your Jeep JL headlights can make a huge difference in how well you see the road at night—and how well other drivers see you. If your headlights are too low, you might not see obstacles ahead. If they’re too high, you can blind oncoming drivers. Many Jeep owners don’t realize how easy it is to fine-tune their headlights for safer, more comfortable driving. With the right steps, you can get it done in less than 30 minutes, with just a few basic tools.
Why Proper Headlight Adjustment Matters
Even from the factory, Jeep JL headlight alignment isn’t always perfect. After off-roading, installing a lift kit, or replacing a headlight, the aim can shift. This doesn’t just affect your vision—it can also break local laws. According to the National Highway Traffic Safety Administration, misaligned headlights are a leading cause of nighttime driving complaints.
Many drivers overlook the effect of vehicle load. If you carry heavy cargo or passengers, your headlights may point higher than intended. Checking alignment every few months, especially after making changes to your Jeep, is a smart habit.
What You’ll Need
Before you begin, gather these items:
- Phillips screwdriver (or 7mm socket for some models)
- Tape measure
- Masking tape
- Flat, level surface (garage wall or driveway)
- Your Jeep JL (with at least a half tank of gas)

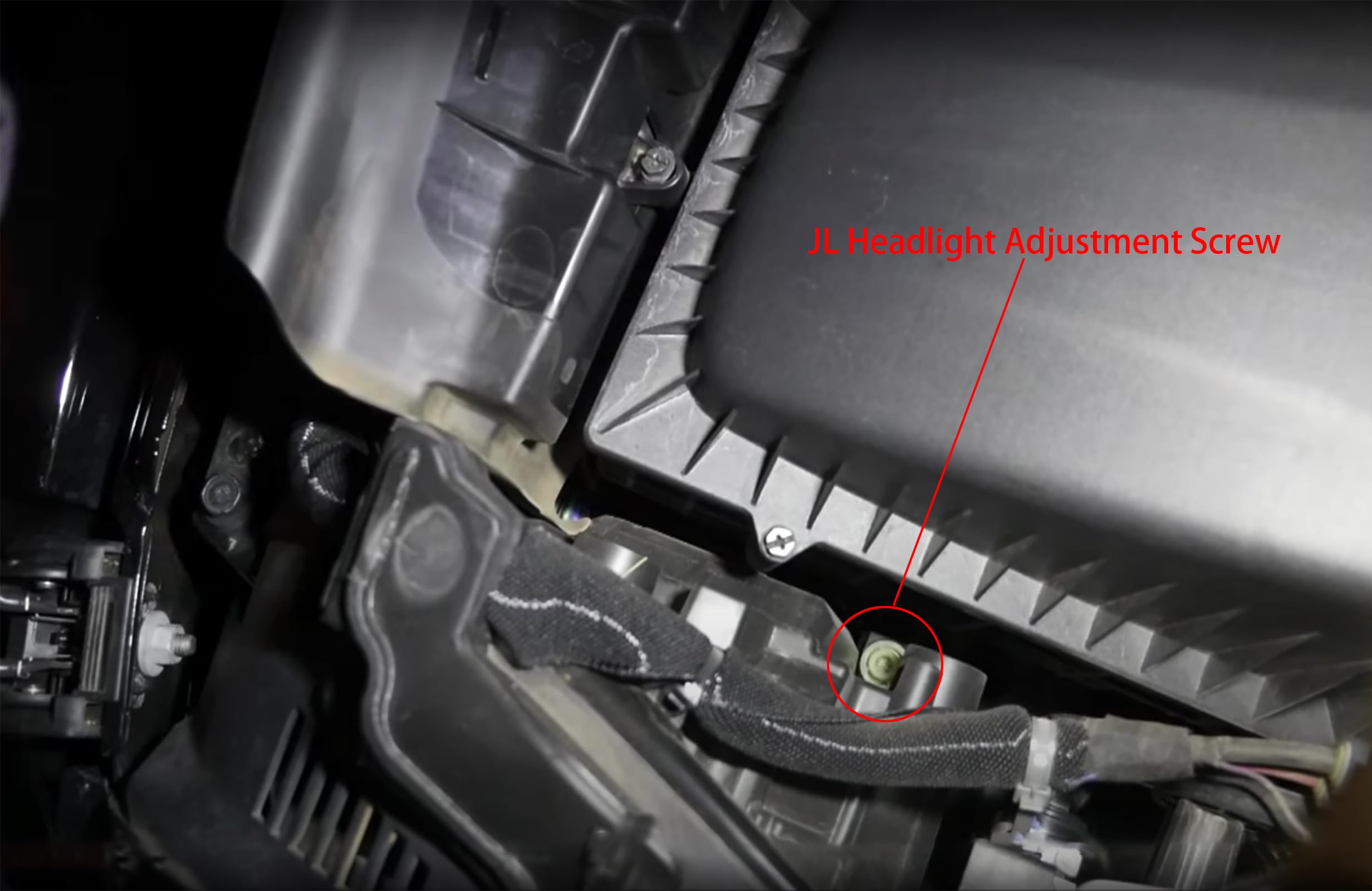

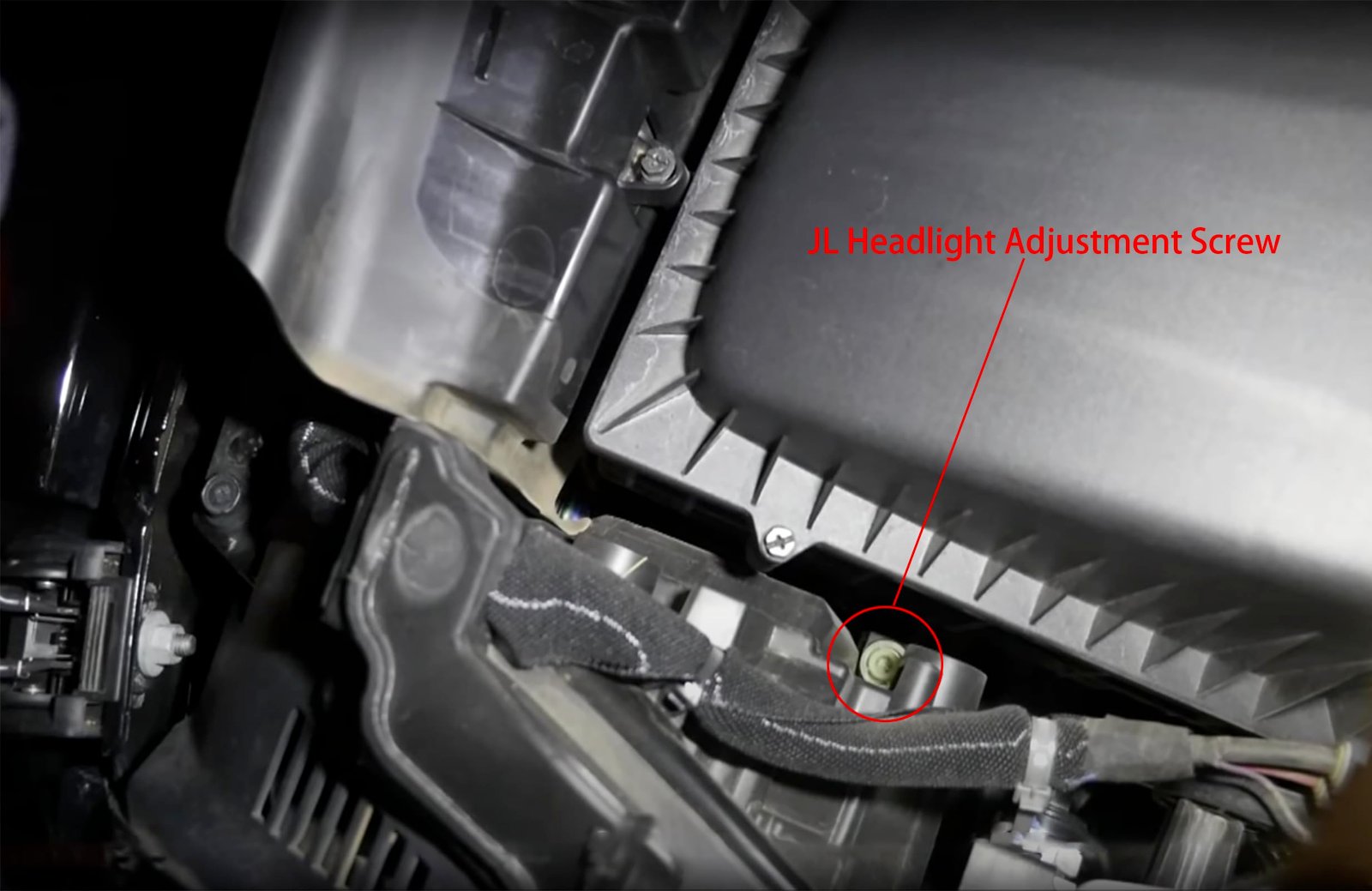

Most Jeep JL models have an easy-access adjustment screw behind the headlight housing. Always check your owner’s manual for exact locations.
Step-by-step Guide To Adjust Jeep Jl Headlights
Follow these steps for accurate adjustment:
1. Prepare Your Jeep
Park your Jeep on a flat surface about 25 feet from a wall. Make sure the tires are properly inflated and the vehicle is loaded as you would typically drive (include tools, gear, or passengers if common).
2. Mark The Wall
Turn on the headlights and use masking tape to mark two key points on the wall:
- Vertical line: Mark the centerline for each headlight.
- Horizontal line: Mark the height from the ground to the center of each headlight lens.
- Measure and Adjust
The top of the most intense part of each beam should be about 2 inches below the headlight’s center height on the wall. This is a common standard for US vehicles.
| Distance from Wall | Drop Below Headlight Center |
|---|---|
| 25 feet | 2 inches |
Use the Phillips screwdriver or socket to turn the vertical adjustment screw behind each headlight. Clockwise usually raises the beam; counterclockwise lowers it.
4. Check Left/right Aim
Most Jeep JLs have only vertical adjustment, but some aftermarket headlights allow horizontal alignment. The most focused part of each beam should be just to the right of the vertical tape line (for US roads).
| Beam Position | Suggested Location |
|---|---|
| Vertical | Center of Headlight |
| Horizontal | Just right of centerline |
5. Test On The Road
Take a short night drive. Check visibility and ensure you’re not blinding other drivers. Make minor adjustments if needed.
Common Mistakes And How To Avoid Them
1. Skipping The Measurement
Many owners guess instead of measuring. This often leads to uneven or unsafe alignment.
2. Adjusting On Uneven Ground
A sloped driveway can give you false results. Always use a level surface.
3. Ignoring Vehicle Load
Adjust with your normal cargo/passenger weight to get a true result.
4. Turning Only One Screw
Some headlights have two screws: one for vertical, one for horizontal. Know which is which for your Jeep model.
5. Not Checking Both High And Low Beams
While you adjust the low beam, check the high beam pattern. Sometimes, one affects the other.
Upgrades And Special Cases
If you’ve upgraded to LED or aftermarket headlights, alignment becomes even more important. These lights are brighter and can cause glare if aimed too high. Some aftermarket units offer both vertical and horizontal adjustment, giving you more control.
For lifted Jeeps, aim the headlights lower to compensate for the new angle. This keeps the light on the road, not in the eyes of oncoming drivers.
properly Aligned Jeep Jl Headlights Improve Both Safety And Style.
When To Seek Professional Help
If you notice a strange beam pattern, flickering, or can’t get the lights aimed properly, visit a certified mechanic or dealership. Some issues, like a damaged housing or faulty bulb, require expert tools.
According to the Insurance Institute for Highway Safety, even small alignment errors can reduce headlight effectiveness by up to 30%. Professional shops use laser alignment tools for the most precise results.
Frequently Asked Questions
How Often Should I Adjust My Jeep Jl Headlights?
Check your headlight alignment every 6 months or after any suspension change, collision, or bulb replacement. Off-roading can also knock lights out of alignment.
Can I Adjust Jeep Jl Headlights With Led Upgrades?
Yes. Most aftermarket LED headlights for the Jeep JL have the same adjustment screws. Just be careful—LEDs are brighter, so aim slightly lower to avoid glare.
What If My Headlights Still Seem Dim After Adjustment?
Check for dirty lenses, old bulbs, or wiring issues. Even perfect alignment won’t help if the lens is fogged or the bulb is weak.
Is It Legal To Adjust My Own Headlights?
In most US states, it’s legal to adjust your own headlights if you follow manufacturer guidelines. Some states require inspections, so check local laws. For more details, see the NHTSA guidelines.
Do I Need Special Tools To Adjust Jeep Jl Headlights?
No, just a Phillips screwdriver or a 7mm socket. Your owner’s manual will show the exact tool needed.
Adjusting your Jeep JL headlights is a simple job that can greatly improve your night driving safety. With a few careful steps, you can ensure your lights are aimed correctly—without a trip to the shop. Remember, a little attention now can prevent bigger problems on the road later. Safe travels!
