If you’ve added KC lights to your Jeep, you know they can make a huge difference when driving off-road or at night. But wiring them correctly is key to getting the best performance and avoiding electrical issues.
You might be wondering how to connect everything safely and without hassle. This guide will walk you through simple, step-by-step instructions to wire your KC lights like a pro. By the end, you’ll have your Jeep lighting up the trail with confidence and ease.
Keep reading to make sure your setup is both powerful and reliable.

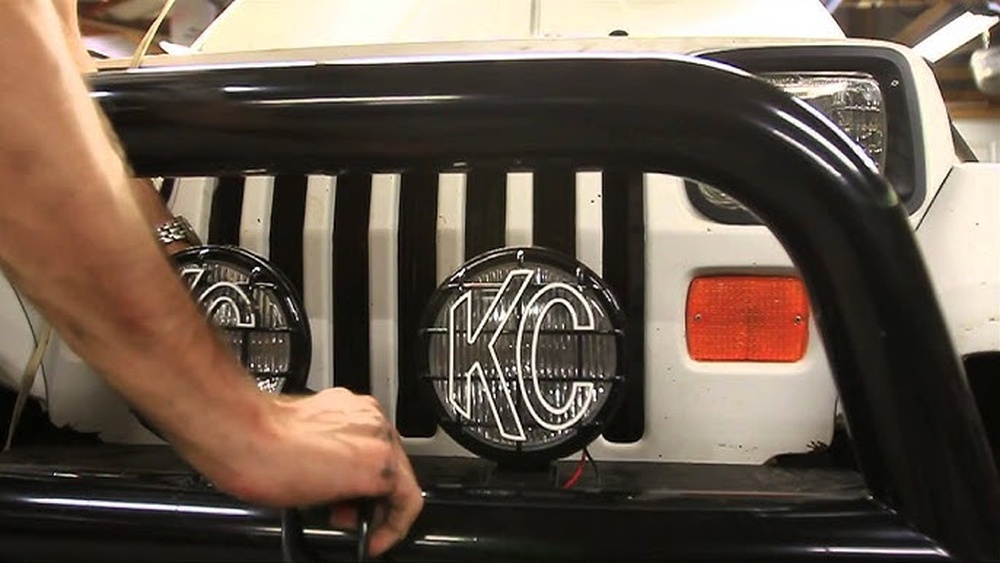

Credit: www.extremeterrain.com
Tools And Materials Needed
Wiring KC lights on a Jeep needs specific tools and materials. Having the right items makes the job easier and safer. This section lists everything required to complete the wiring process correctly.
Basic Hand Tools
Start with simple hand tools. A screwdriver set helps remove panels and secure connections. Wire strippers cut and strip wires cleanly. Pliers assist in bending or holding wires tightly. A socket wrench set is useful for bolts and nuts.
Electrical Components
Use quality electrical parts for best results. Automotive wire of proper gauge carries current safely. A fuse holder protects the circuit from overload. Relays control the high power needed by KC lights. Connectors and terminals join wires securely.
Additional Materials
Other materials improve wiring durability. Electrical tape insulates and protects wire joints. Heat shrink tubing seals connections against moisture. Zip ties organize and secure wiring paths. A wiring diagram guides the installation steps.
Credit: www.extremeterrain.com
Safety Precautions
Wiring KC lights on your Jeep requires care and attention. Safety comes first to avoid injury or damage. Follow these safety precautions to keep the process smooth and safe.
Turn Off The Jeep’s Battery
Always disconnect the battery before starting any wiring job. This prevents electric shock and short circuits. Use the negative terminal to disconnect the battery safely.
Wear Protective Gear
Wear gloves and safety glasses to protect your hands and eyes. Wires and tools can cause cuts or sparks. Safety gear reduces the risk of injury.
Use Proper Tools
Use the right tools like wire strippers, crimpers, and connectors. Avoid makeshift tools that can slip or damage wires. Proper tools make the job easier and safer.
Follow The Wiring Diagram
Use the correct wiring diagram for your Jeep and KC lights. Wrong wiring leads to malfunction or electrical problems. Double-check connections before powering the system.
Avoid Wet Conditions
Do not work in rain or wet areas. Water and electricity do not mix well. Moisture can cause shorts and corrosion in the wiring system.
Preparing The Jeep
Preparing your Jeep before wiring KC lights is crucial for a safe and smooth installation. This step makes sure you have the right spots and avoid electrical issues. Taking time now saves headaches later.
Start by finding the best mounting points. Then, disconnect the battery to work safely with the electrical system. Follow each step carefully for the best results.
Locate Mounting Points
Check your Jeep for sturdy areas to mount the KC lights. Look near the front bumper or roof rack. These spots support the weight and keep lights stable. Avoid places with thin metal or plastic.
Use the KC lights’ brackets as a guide. Hold them up to see where they fit best. Mark the spots with a pencil or tape. Make sure nothing blocks the lights’ view.
Disconnect Battery
Open your Jeep’s hood and find the battery. Use a wrench to remove the negative terminal first. This cuts power and stops sparks or shocks.
Keep the cable away from the battery to avoid contact. Now, you can safely work on wiring the lights. Reconnect the battery only after finishing all electrical connections.
Credit: www.kchilites.com
Wiring The Kc Lights
Wiring KC lights on your Jeep is a key step for better visibility. Proper wiring ensures the lights work safely and last longer. This section breaks down the wiring process into simple parts. Follow each step carefully for a smooth setup.
Identify Wiring Components
Start by locating all wiring parts. You need power wires, ground wires, a relay, and a switch. Power wires bring electricity from the battery to the lights. Ground wires complete the electrical circuit. The relay controls the high current safely. The switch lets you turn the lights on and off.
Connect Power And Ground Wires
Connect the power wire to the positive terminal of the battery. Use a fuse to protect the circuit from overload. Attach the ground wire to a clean metal part of the Jeep’s frame. This ensures a solid connection. Check that all connections are tight and secure.
Install Relay And Switch
Mount the relay close to the battery for easy access. Connect the relay to the power and ground wires. Run a wire from the relay to the KC lights. Install the switch inside the Jeep cabin. Connect the switch to the relay with the control wire. Test the switch to make sure the lights turn on and off smoothly.
Mounting The Lights
Mounting KC lights on your Jeep is an important step. Proper mounting ensures the lights work well and stay safe during off-road drives. This section covers how to position and secure the lights correctly. Follow these tips to get the best results.
Positioning The Lights
Place KC lights where they shine best. Common spots include the roof rack or front bumper. Make sure the lights do not block your view. Avoid placing them too low, or dirt and water will affect them. The goal is to have clear, wide light coverage.
Keep the lights balanced on both sides. This helps with even lighting and a neat look. Check for any obstacles that might block the light beam. Adjust the angle so the light points slightly downward to avoid blinding other drivers.
Securing The Lights
Use sturdy mounts or brackets made for KC lights. Tighten all bolts and screws firmly. Loose mounts can cause vibrations, damaging the lights or Jeep. Double-check the mounts after driving on rough roads.
Add rubber padding between the light and the mount. This reduces vibration and protects the paint. Use lock washers or thread-locking fluid to keep bolts from loosening. Secure wiring with clips or ties to prevent snagging or damage.
Testing The Setup
Testing the setup is a key step after wiring KC lights on your Jeep. It makes sure everything works well. This step saves time and effort later. You can spot wiring mistakes or loose connections early. Proper testing protects your vehicle’s electrical system from damage. Follow simple checks to confirm your lights function correctly.
Check Light Functionality
Turn on your Jeep’s ignition. Switch on the KC lights using the control switch. Watch each light carefully. All lights should glow bright and steady. Flickering or dim lights mean a problem. Check both high and low beam settings. Test the switch multiple times. This confirms the wiring responds well. Ensure the relay clicks when activated. If the relay is silent, wiring may be faulty.
Troubleshooting Common Issues
Lights not turning on? Inspect all wire connections. Loose or corroded terminals cause failure. Use a multimeter to check voltage at the light connectors. No voltage means power is blocked. Check the fuse box for blown fuses. Replace any faulty fuse with the correct rating. If lights flicker, test the ground wire. Poor grounding leads to unstable light performance. Tighten or replace ground wires as needed. Confirm the switch works by testing continuity. Replace any broken switches. A simple recheck often fixes most problems.
Tips For Maintenance
Maintaining your KC lights on a Jeep is important for long-lasting performance. Proper care keeps the lights bright and prevents damage. Small efforts now save big repairs later.
Clean connections and check wiring often. Dirt and corrosion reduce light power. Regular checks help spot problems early. This section shares easy tips for KC light care.
Cleaning The Lights And Lens
Wipe the lens with a soft cloth and mild soap. Avoid harsh chemicals that can damage the lens. Clean lenses give better light output and clearer vision.
Inspecting Wiring Connections
Look at all wire connections for looseness or corrosion. Tighten any loose screws and clean rust or dirt. Good connections prevent flickering and power loss.
Protecting Wires From Water
Use waterproof connectors or tape to cover exposed wires. Water can cause shorts and damage the wiring. Keep wires dry to avoid electrical problems.
Checking The Mounting Brackets
Ensure brackets are tight and hold the lights firmly. Loose brackets cause vibration, which can damage bulbs or wiring. Tight mounts keep lights stable on rough roads.
Testing The Lights Regularly
Turn on the lights before every trip. Check for dimness or flickering. Early detection helps fix issues before they get worse.
Frequently Asked Questions
How Do I Wire Kc Lights On A Jeep?
To wire KC lights, connect the positive wire to a switched power source. Ground the negative wire to the chassis. Use a relay and fuse for safety. Follow the wiring diagram provided with your KC lights for exact connections.
What Tools Are Needed To Wire Kc Lights On Jeep?
You need wire strippers, crimpers, a relay, fuse, electrical tape, and connectors. A multimeter helps verify connections. Use a screwdriver and drill if mounting brackets require installation. These tools ensure a safe and secure wiring setup.
Can I Wire Kc Lights Directly To The Jeep Battery?
Yes, but always use a fuse and relay. This prevents electrical shorts and protects the battery. Connect the positive wire through the fuse to the battery. Ground the negative wire to the Jeep’s frame for proper circuit completion.
How Long Does It Take To Wire Kc Lights On A Jeep?
Wiring KC lights typically takes 1 to 2 hours. Time varies by experience and Jeep model. Careful preparation and following instructions shorten installation time. Rushing can cause wiring errors or damage.
Conclusion
Wiring KC lights on your Jeep is simple with the right steps. Use the right tools and follow safety tips. Connect wires carefully to avoid any problems. Test your lights before driving at night. Enjoy better visibility on off-road trips.
Take your time and work patiently. This guide helps you add strong, bright lights to your Jeep. Keep your Jeep ready for any adventure ahead.
