If you’ve ever wanted to add fog lights to your Jeep JK, you know it’s not just about picking the right lights. The real challenge is wiring them correctly so they work safely and reliably.
Imagine driving through thick fog or heavy rain with clear, bright lights guiding your way—that’s exactly what you can achieve by doing this right. In this guide, you’ll get simple, step-by-step instructions to wire your fog lights without confusion or costly mistakes.
Keep reading, and soon your Jeep JK will be ready to tackle any weather with confidence.
Fog Light Basics
Fog lights help improve your Jeep JK’s visibility during poor weather. They shine low and wide to cut through fog, rain, or snow. These lights reduce glare and help you see the road better. Understanding the basics of fog lights makes wiring them easier and safer.
Knowing the types and benefits of fog lights helps you choose the right setup. Let’s explore the main types and why fog lights are useful on your Jeep JK.
Types Of Fog Lights
There are two main types of fog lights for Jeep JKs: halogen and LED. Halogen lights are affordable and easy to find. They provide warm, yellowish light that cuts through fog well. LEDs use less power and last longer. They offer bright, white light that improves visibility. Some Jeep JK owners prefer projector-style fog lights. These focus the beam better, reducing glare. You can pick the type that fits your needs and budget.
Benefits Of Fog Lights On Jeep Jk
Fog lights improve safety during bad weather. They help you see road edges and obstacles clearly. These lights make your Jeep JK more visible to other drivers. Fog lights also reduce eye strain by lowering glare. They add a rugged look that fits the Jeep style. Installing fog lights is a smart choice for off-road trips. They provide extra light in dusty or muddy conditions. Overall, fog lights increase your driving confidence and safety.
Credit: www.youtube.com
Tools And Materials Needed
Before wiring fog lights on your Jeep JK, gather the right tools and materials. Having everything ready makes the job easier and safer. Using correct items ensures proper installation and avoids damage.
Essential Tools
- Screwdrivers (Phillips and flathead) for removing panels and screws
- Wire strippers to remove insulation from wires cleanly
- Crimping tool for securing connectors to wires
- Multimeter to check electrical connections and voltage
- Socket wrench set for loosening and tightening bolts
- Electrical tape to protect and insulate wire joints
- Zip ties to organize and secure wiring
- Drill with bits for mounting brackets if needed

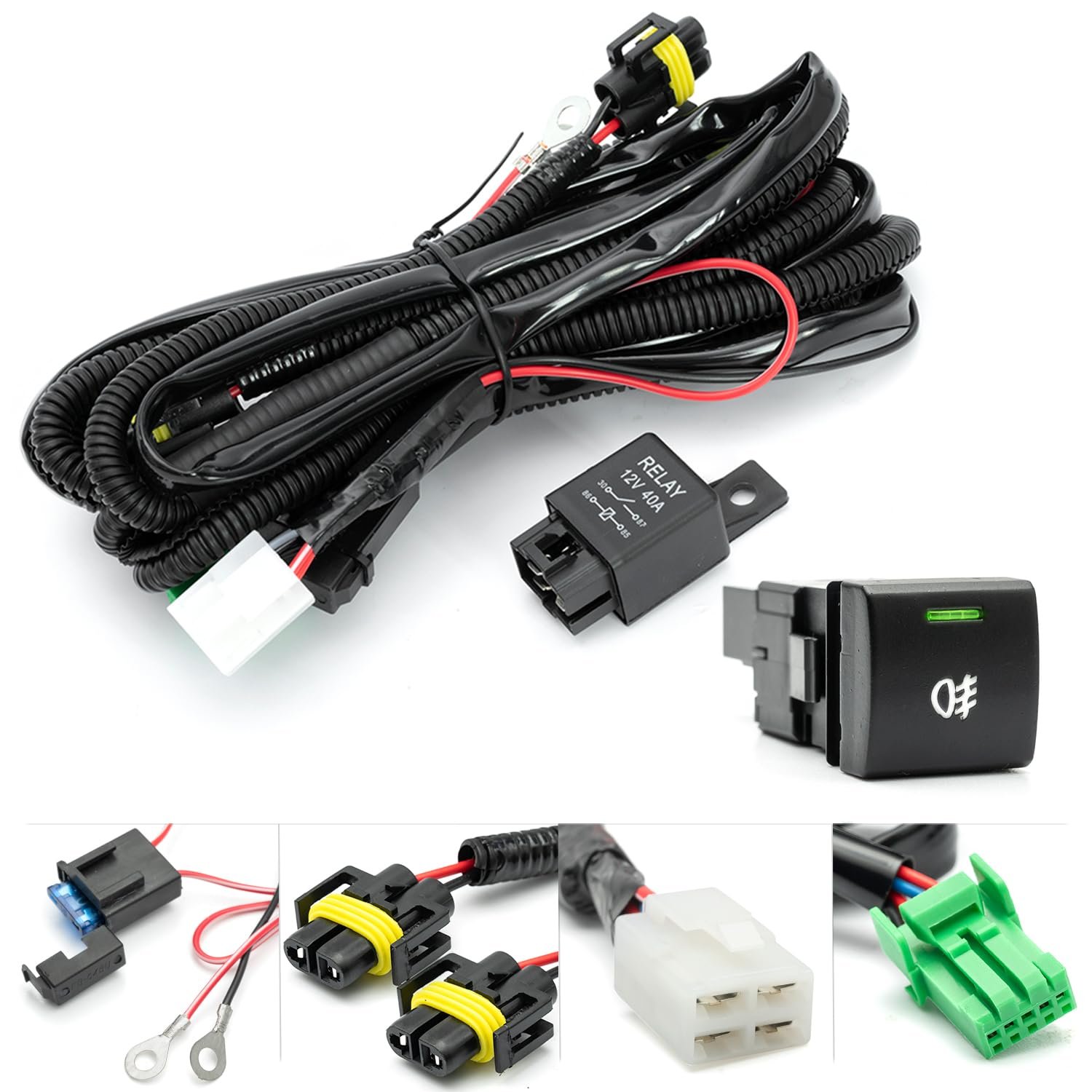

Required Wiring Components
- Fog light wiring harness designed for Jeep JK
- Relay to control power flow and protect circuits
- Inline fuse for safety and preventing electrical shorts
- Switch to turn fog lights on and off inside the vehicle
- Connectors and terminals for secure wire joining
- Grounding wire to ensure stable electrical connection
- Fog lights compatible with Jeep JK model
Preparing Your Jeep Jk
Wiring fog lights on a Jeep JK requires basic tools and a wiring kit. Start by connecting the lights to the battery and switch. Secure all wires to avoid damage while driving.
Safety Precautions
Start by disconnecting the Jeep JK’s battery. This stops any electric shock. Wear gloves to protect your hands from sharp parts. Use safety glasses to guard your eyes from debris. Work in a well-lit area to see all details clearly. Avoid loose clothes that can catch on parts. Keep a fire extinguisher nearby just in case.
Locating Wiring Points
Identify the factory wiring harness near the front bumper. Look for connectors under the hood close to the headlights. Find the fuse box inside the engine bay to access power sources. Check the steering column area for the switch wiring. Use your Jeep JK’s manual to confirm exact wire locations. Mark these points for easy access during wiring.
Credit: www.amazon.com
Wiring The Fog Lights
Wiring the fog lights on your Jeep JK requires careful steps. Proper wiring ensures your fog lights work safely and reliably. This section guides you through the key wiring parts. Follow each step to connect power, install the relay and switch, and route the wiring harness correctly.
Connecting Power And Ground
Start by finding a good power source. Use the Jeep’s battery or fuse box for a stable power supply. Connect the positive wire from the fog lights to this power source. Use a fuse to protect the circuit from overload.
Next, connect the ground wire. Attach it to a clean, metal part of the Jeep’s frame. This connection completes the electrical circuit. Make sure both connections are tight and secure. Loose wires can cause flickering or failure.

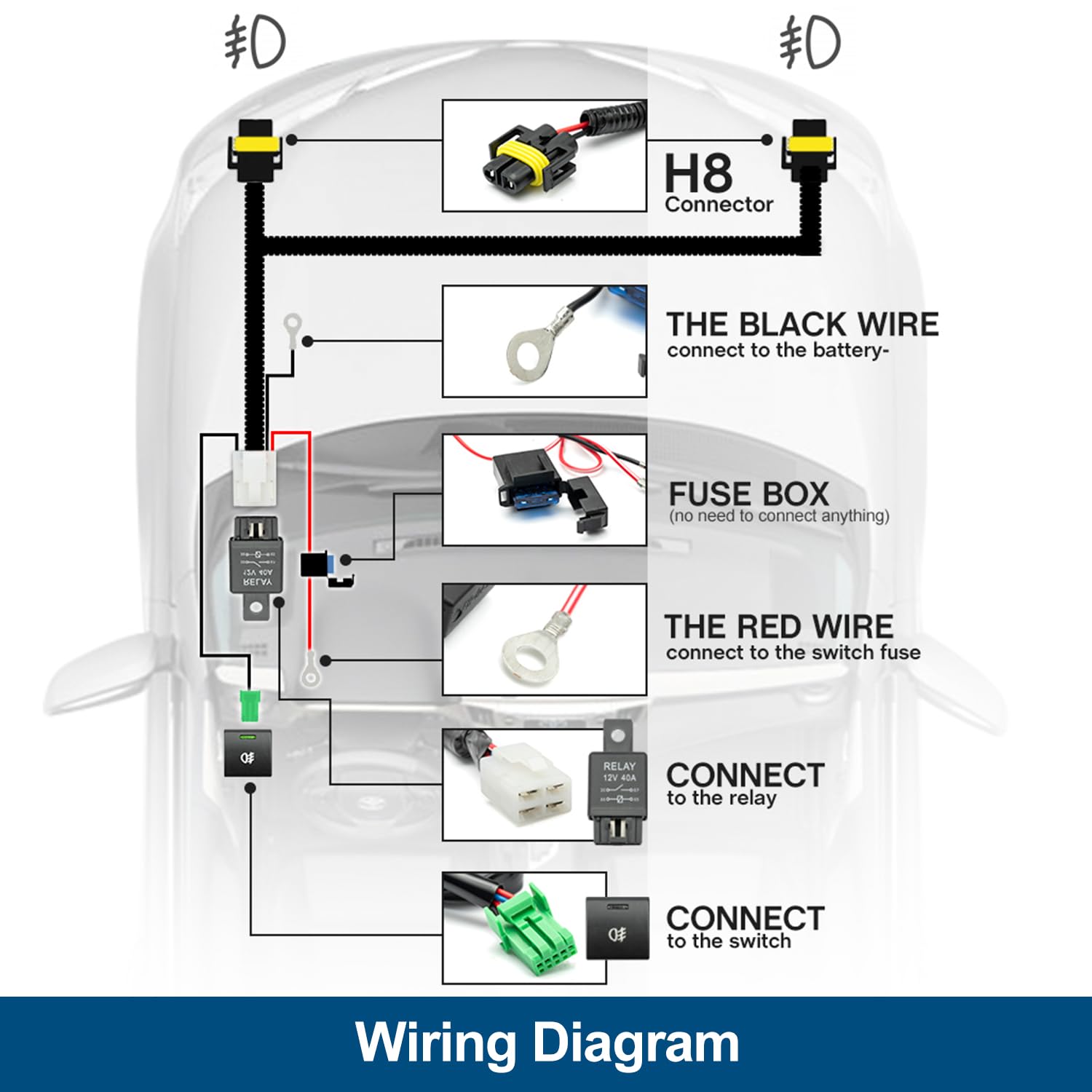

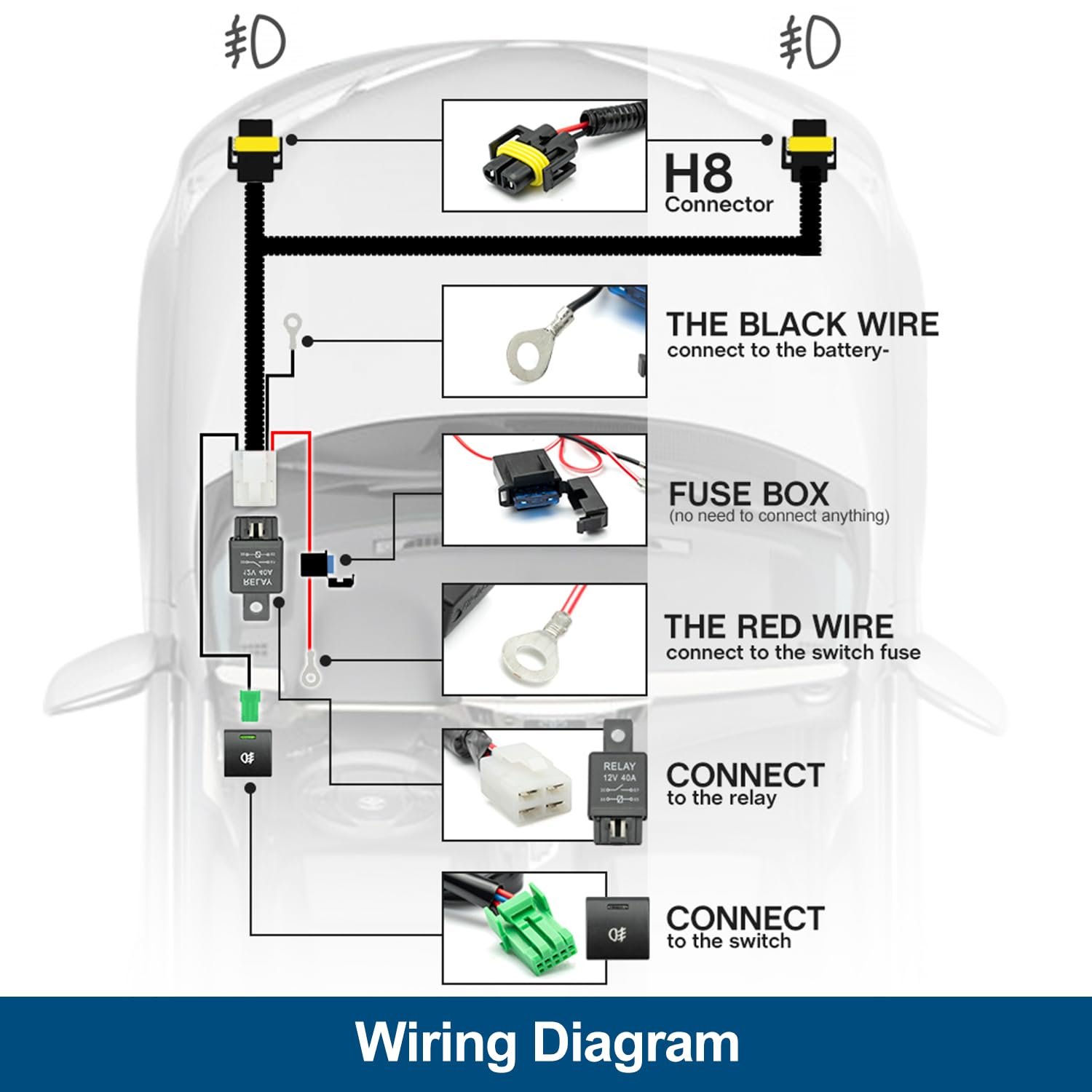

Installing The Relay And Switch
The relay controls the high current to the fog lights. Mount the relay close to the battery or fuse box. Connect the relay’s input to the power source. Then, connect the output to the fog lights’ power wire.
Install the switch inside the Jeep. Choose a spot easy to reach while driving. Connect the switch to the relay control wire. This setup allows you to turn the fog lights on and off safely.
Routing The Wiring Harness
Route the wiring harness along the Jeep’s frame. Use existing clips and openings to secure the wires. Avoid areas with sharp edges or heat sources. Protect wires with split loom tubing or electrical tape.
Keep the harness away from moving parts like suspension or steering components. Double-check all connections before finalizing the installation. A clean wiring job prevents damage and ensures long-lasting performance.
Testing And Troubleshooting
Testing and troubleshooting are key steps after wiring fog lights on your Jeep JK. These steps confirm that your installation works well and safely. Problems often happen in wiring, switches, or connections. Testing helps you find these issues fast. Fixing problems early stops bigger damage later.
Initial Power-on Test
Start by turning on your Jeep’s ignition. Switch on the fog lights. Check if both lights turn on. Watch for any flickering or dim lights. If lights don’t come on, check the fuse first. Use a tester to see if power reaches the fog lights. This simple test shows if wiring and switches work.
Common Wiring Issues
Loose connections cause many wiring problems. Wrong wire connections can stop fog lights from working. A blown fuse or bad relay can also block power. Damaged wires or corrosion reduce power flow. Check wires for cuts, burns, or rust. Make sure all wires match the wiring diagram. This stops confusion and errors.
Fixing Connection Problems
Tighten any loose wire connectors. Clean dirty or rusty terminals with a wire brush. Replace damaged wires or connectors. Use electrical tape or heat shrink to protect connections. Replace blown fuses and faulty relays. Test the lights again after each fix. Keep fixing until fog lights work perfectly.
Tips For Maintenance
Maintaining fog lights on your Jeep JK is key to safe driving. Proper care helps keep them bright and working well. Small checks can prevent big problems later.
Regular Inspection
Check your fog lights often. Look for cracks, dirt, or moisture inside the lens. Clean the lenses with a soft cloth. Make sure the wiring stays tight and free from damage. Replace any broken bulbs quickly to avoid dim lighting.
Ensuring Longevity
Use quality bulbs that fit your Jeep JK. Avoid touching bulbs with bare hands; oil can shorten their life. Keep the wiring dry and protected from water. Store your Jeep in a covered area to reduce weather damage. Regular care helps your fog lights last longer and shine brighter.
Credit: www.amazon.com
Frequently Asked Questions
How Do I Wire Fog Lights On A Jeep Jk?
To wire fog lights on a Jeep JK, connect the lights to a relay and fuse. Use the factory fog light switch or install an aftermarket switch. Ground the lights properly and connect to the battery for power. Test for correct operation before finalizing.
What Tools Are Needed To Wire Jeep Jk Fog Lights?
You need wire strippers, crimpers, a relay, fuse holder, electrical tape, connectors, and a multimeter. Also, use a switch compatible with the Jeep JK. Basic hand tools like screwdrivers and pliers are essential for installation and securing wires.
Can I Use Factory Wiring For Jeep Jk Fog Lights?
Yes, you can use factory wiring if your Jeep JK already has a fog light harness. This simplifies installation by connecting directly to the existing switch and power source. Ensure all connections are secure and check for any blown fuses before wiring.
What Is The Fuse Rating For Jeep Jk Fog Lights?
Typically, a 15-20 amp fuse is recommended for Jeep JK fog lights. This protects the wiring and components from electrical overload. Always check the fog light manufacturer’s specifications to match the fuse rating accurately.
Conclusion
Wiring fog lights on your Jeep JK is simpler than it seems. Take your time and follow each step carefully. Use the right tools and parts for safety. Test the lights after wiring to ensure they work well. A well-done job improves night driving and looks great.
Stay patient and enjoy the process. Your Jeep will shine brighter on dark roads. Keep this guide handy for future reference. You now have the basics to wire fog lights confidently.
