If your Jeep Wrangler TJ’s tail light assembly is broken or not working properly, you know how frustrating it can be. Not only does it affect your vehicle’s safety, but it can also lead to tickets or failed inspections.
The good news? Replacing the tail light assembly is easier than you might think, and you don’t need to be a mechanic to do it. In this guide, you’ll find simple, step-by-step instructions to get your Jeep’s tail light shining bright again.
Keep reading, and you’ll save time, money, and avoid unnecessary stress on your next drive.

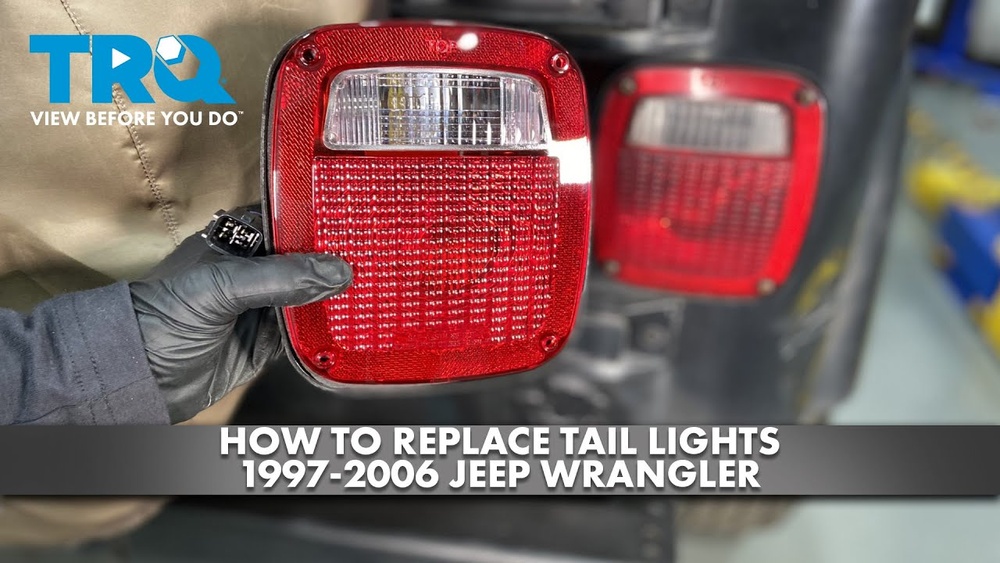

Credit: www.amazon.com
Tools And Materials Needed
Replacing the tail light assembly on a Jeep Wrangler TJ requires a few basic tools and materials. Having the right items ready makes the job easier and faster. Preparation saves time and avoids frustration during the replacement process.
This section lists everything needed to complete the tail light assembly swap safely and correctly. Each tool plays an important role. No advanced skills needed.
Basic Tools
A screwdriver set is essential. Most Jeep tail light assemblies use Phillips or flathead screws. A socket wrench with a 10mm socket helps remove bolts holding the assembly. Needle-nose pliers assist in handling small clips and connectors. A panel removal tool protects the vehicle’s paint and trim.
Replacement Parts
The new tail light assembly must match the Jeep Wrangler TJ model year. Use OEM parts or high-quality aftermarket assemblies. Check for bulbs included or buy them separately. Test bulbs before installation to avoid extra work.
Safety Equipment
Wear gloves to protect your hands from sharp edges. Safety glasses keep debris out of your eyes. Work in a well-lit area for better visibility. Keep a clean workspace free from hazards.
Additional Materials
Have a clean cloth or towel handy to wipe dirt or fingerprints. Electrical contact cleaner ensures good connection on bulb sockets. Use dielectric grease on connectors to prevent corrosion and improve electrical flow.
Safety Precautions
Safety is the first step before replacing your Jeep Wrangler TJ tail light assembly. Taking precautions keeps you safe and protects your vehicle. A small mistake can cause injury or damage. Follow the right safety steps for smooth work.
Turn Off The Vehicle And Disconnect The Battery
Always switch off the Jeep before starting. Remove the key from the ignition. Disconnect the negative battery cable. This stops electric shock and short circuits. Safety first to avoid accidents.
Wear Protective Gear
Use gloves to protect your hands from sharp parts. Safety glasses shield your eyes from dust and debris. Wear long sleeves to avoid scratches. Simple gear keeps you safe during the job.
Work In A Well-lit, Flat Area
Choose a flat surface to park your Jeep. Good lighting helps you see screws and wires clearly. Avoid working in dark or uneven spots. Clear space reduces the chance of slips or errors.
Handle Bulbs And Connectors Carefully
Bulbs can break easily. Hold them by the base, not the glass. Avoid pulling wires hard. Gently disconnect connectors to prevent damage. Careful handling saves time and parts.
Locate The Tail Light Assembly
The first step in replacing the Jeep Wrangler TJ tail light assembly is to find the part on your vehicle. The tail light assembly is easy to spot once you know where to look.
This component sits at the back of your Jeep. It includes the brake light, turn signal, and reverse light all in one unit.
Knowing the exact location helps you remove the old assembly and install the new one correctly.
Check The Rear Corners Of The Jeep
Stand behind your Jeep and look at the left and right rear corners. The tail light assemblies are mounted here on both sides.
Each assembly fits snugly against the body of the Jeep. You will see the red lens covering the lights clearly.
Open The Tailgate For Better Access
Opening the tailgate gives more room to work. You can reach screws and connectors easier this way.
The tail light assembly is attached near the edge of the tailgate area. This spot is simple to access when the tailgate is open.
Locate The Mounting Screws And Wiring
Look for screws holding the tail light assembly in place. Usually, there are two or three screws on the inside edge.
Find the wiring harness connected to the back of the assembly. This harness powers the lights and must be unplugged during replacement.
Remove The Old Tail Light
Removing the old tail light assembly on your Jeep Wrangler TJ is the first step in the replacement process. This task is simple and does not require many tools. Taking it slow helps avoid damaging the wiring or the body of your vehicle.
Start by disconnecting the wiring harness. This ensures no power flows to the tail light, making the work safe. Next, unscrew the mounting bolts that hold the assembly in place. Finally, gently detach the tail light assembly from the vehicle to avoid breaking any parts.
Disconnect The Wiring Harness
Locate the wiring harness connected to the tail light. Press the tab or clip to release the connector. Pull the harness straight out carefully. Do not pull on the wires directly. Set the harness aside to keep it safe.
Unscrew The Mounting Bolts
Use a socket wrench or screwdriver to remove the bolts. There are usually two or three bolts holding the tail light. Turn each bolt counterclockwise until it comes free. Keep the bolts in a safe place for reinstallation.
Carefully Detach The Assembly
Hold the tail light assembly firmly. Pull it gently away from the vehicle body. Wiggle it slightly if it feels stuck. Avoid using excessive force to prevent damage. Once loose, remove the assembly completely.
Prepare The New Tail Light
Preparing the new tail light assembly is an important step before installation. It ensures the part fits well and works correctly. Taking time here saves effort later. Follow these steps to get your new Jeep Wrangler TJ tail light ready.
Check Compatibility
First, confirm the tail light matches your Jeep model. Look for the exact year and version of your Wrangler TJ. Check the part number on the new assembly. Compare it with your vehicle’s manual or original part. Using the wrong part can cause problems or damage. Make sure the connectors and mounting points align perfectly.
Test The Light Functionality
Next, test the tail light’s electrical functions before installation. Connect the new assembly to a 12-volt power source. Check if the brake, turn signal, and reverse lights work. Look for any flickering or dim lights. Testing avoids having to remove the part again later. A fully working light keeps you safe on the road.

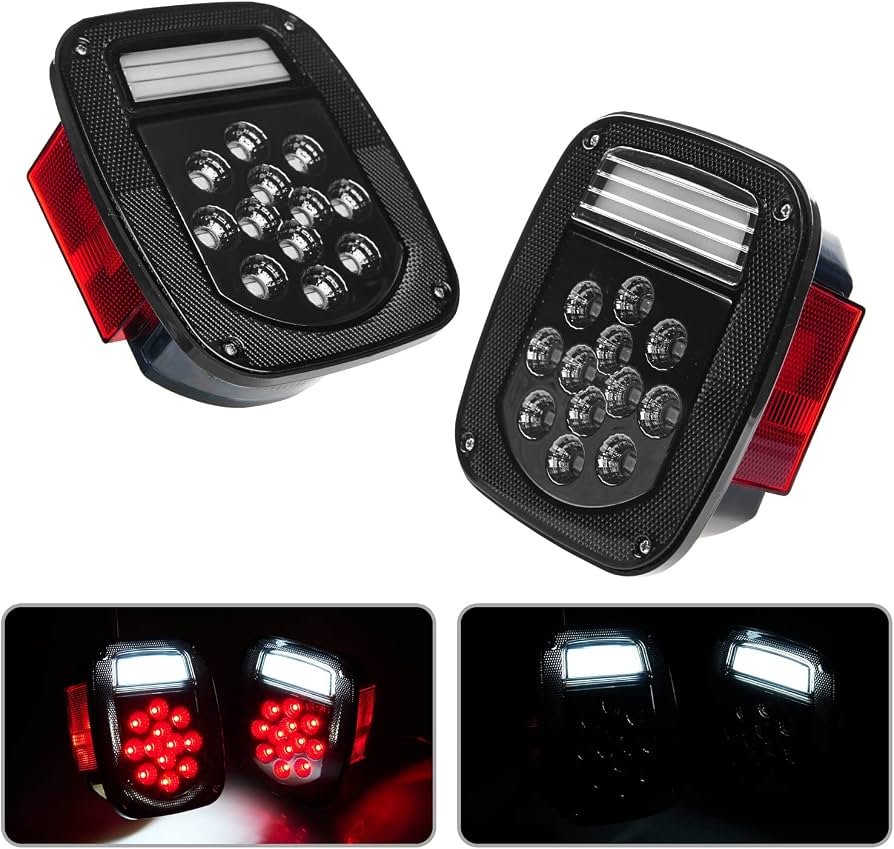

Credit: metalcloak.com
Install The New Tail Light
Installing the new tail light on your Jeep Wrangler TJ is a simple process. Follow each step carefully to ensure the light works correctly and fits securely. This part protects your wiring and keeps your vehicle safe on the road.
Attach The Assembly
Hold the new tail light assembly close to the mounting area. Align it with the holes where the old light was removed. Press it gently but firmly into place. Make sure the assembly fits snugly and sits flush against the body.
Secure With Mounting Bolts
Find the mounting bolts you removed earlier. Insert each bolt through the holes in the tail light assembly. Tighten them with a wrench or socket until secure. Avoid over-tightening to prevent cracking the plastic.
Reconnect The Wiring Harness
Locate the wiring harness from the vehicle’s body. Plug it into the new tail light’s connector. Push until you hear a click or feel it lock in place. Test the tail light by turning on your vehicle’s lights to confirm proper connection.
Test The New Tail Light
Testing the new tail light is a key step after installation. It ensures safety and proper function on the road. A quick test helps catch any wiring or bulb issues early. This saves time and avoids problems later. Follow these simple checks to confirm your Jeep Wrangler TJ tail light assembly works perfectly.
Check Brake And Signal Lights
Press the brake pedal and watch the tail light. The brake light should glow bright red. Next, turn on the left signal. The left tail light should blink clearly. Repeat with the right signal. Both lights must flash without delay. Faulty lights might mean loose wires or bad bulbs. Fix any issues before driving.
Verify Reverse Light Operation
Shift the Jeep into reverse gear. The reverse light on the tail light assembly should turn on. It should shine bright white to alert others. If the light stays off, check the wiring or bulb. Proper reverse light function is important for safety. Double-check this before finishing your tail light replacement.

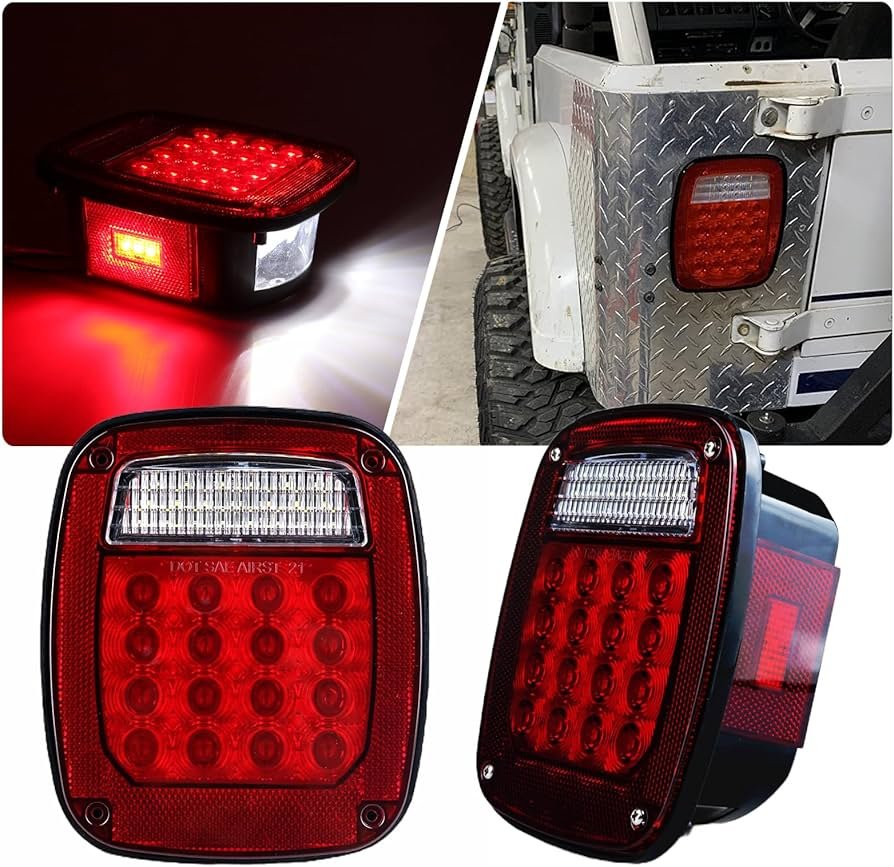

Credit: www.amazon.com
Troubleshooting Tips
Replacing the tail light assembly on a Jeep Wrangler TJ can be straightforward. Sometimes, problems arise even after installation. Troubleshooting helps find the cause and fix it fast.
Check basic issues first. Small mistakes can stop your tail lights from working. This section guides you through common problems and simple fixes.
Checking The Tail Light Bulbs
Bulbs can burn out or break during installation. Remove the bulb and look for dark spots or broken filaments. Replace any faulty bulbs with the correct type for your Jeep.
Inspecting The Wiring Connections
Loose or damaged wires cause tail lights to fail. Look at the wires behind the assembly. Make sure all plugs fit tightly. Repair or replace any frayed or cut wires.
Testing The Tail Light Fuse
A blown fuse stops the tail lights from working. Find the fuse box under the hood or dashboard. Check the fuse for the tail lights using the diagram. Swap a blown fuse with one of the same rating.
Verifying The Tail Light Ground
Poor grounding leads to flickering or dim lights. Locate the ground wire near the tail light. Clean the contact points if rusty. Tighten the ground wire securely to metal.
Using A Multimeter For Electrical Issues
A multimeter helps test power flow. Set it to check voltage. Test the wires to see if electricity reaches the tail light. No power means a wiring or fuse problem. Power present means the assembly might be faulty.
Frequently Asked Questions
How Do I Remove Jeep Wrangler Tj Tail Light Assembly?
Start by opening the rear hatch and locating the screws holding the tail light. Remove screws carefully. Disconnect the wiring harness. Pull out the tail light assembly gently to avoid damage.
What Tools Are Needed To Replace Tj Tail Light Assembly?
You only need a screwdriver, typically a Phillips head. A socket wrench may be helpful for some models. Gloves can protect your hands during removal and installation.
How Long Does It Take To Replace A Tail Light Assembly?
Replacing a Jeep Wrangler TJ tail light assembly usually takes 15 to 30 minutes. It depends on your experience and tool availability. It’s a straightforward, quick DIY task.
Can I Use Aftermarket Tail Light Assemblies For Jeep Tj?
Yes, aftermarket tail light assemblies are compatible with Jeep Wrangler TJ. Choose high-quality parts for safety and durability. Verify fitment to ensure proper installation and function.
Conclusion
Replacing your Jeep Wrangler TJ tail light assembly is simple and quick. Follow the steps carefully for a safe fix. Use the right tools and parts to avoid problems. Check the new tail light works before finishing the job. This small task improves your Jeep’s safety and looks.
Taking time to do it right saves money later. Now, your Jeep is ready for the road again. Easy, clear, and done by you.
