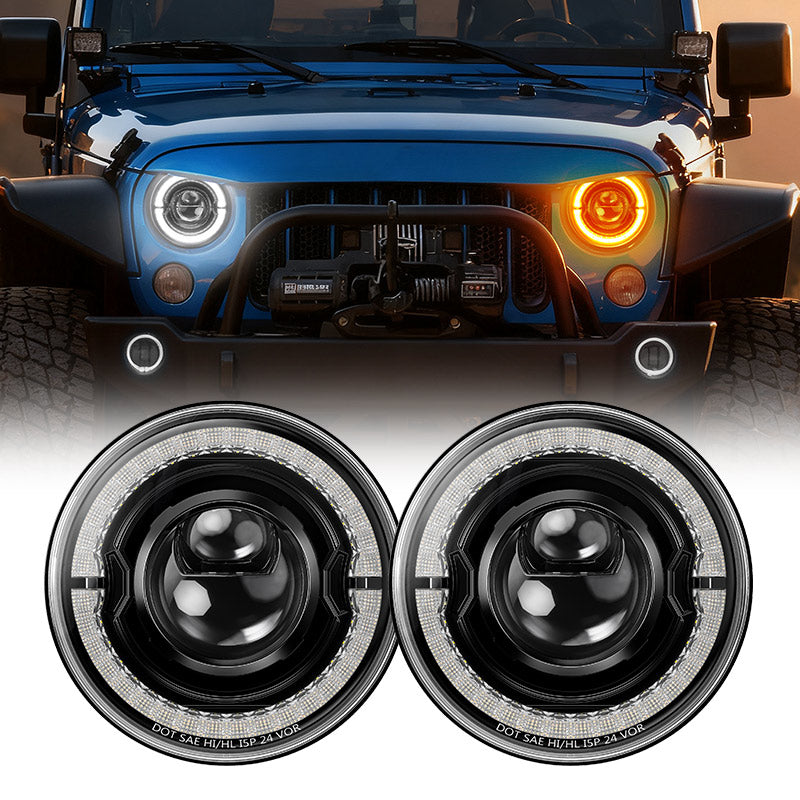

Upgrading your 2016 Jeep Wrangler with halo lights is a simple way to add a modern, aggressive look and better road visibility. These eye-catching rings of light, sometimes called “angel eyes,” have become popular among Jeep owners who want their vehicles to stand out. But installing halo lights is not just about looks—these LEDs can also make your Wrangler safer at night or in bad weather. If you’re new to car modifications, the idea of wiring and mounting new lights might feel overwhelming. Don’t worry. With the right tools and steps, you can install halo lights yourself and get great results.
This guide walks you through everything you need to know, from choosing the right halo lights to wiring and mounting them securely. You’ll find tips, common mistakes to avoid, and answers to questions many Jeep owners ask.
Whether you want to improve your Wrangler’s style or functionality, following this process will help you achieve a professional finish without paying for a shop install.
Why Install Halo Lights On A 2016 Jeep Wrangler?
Halo lights do more than just catch people’s attention. The circular LED design creates a bright, even beam that improves your road visibility. This is especially helpful on dark roads or in foggy conditions. Many halo kits also let you choose between different colors and lighting modes, giving your Jeep a custom look.
Another benefit is energy efficiency. Most halo lights use LED technology, which consumes less power than standard halogen bulbs. This means less strain on your Jeep’s battery and longer-lasting lights. LEDs can last 25,000 hours or more, compared to about 1,000 hours for halogen.
Finally, installing halo lights can increase your Jeep’s resale value. Many buyers look for upgrades that improve both style and function, and halo lights are a popular choice.
Choosing The Right Halo Lights
Not all halo lights are created equal. You’ll find dozens of options online and in stores, but it’s important to pick a set that fits your 2016 Wrangler and matches your needs.
| Feature | Basic Halo Kit | RGB Halo Kit | Premium Projector Halo |
|---|---|---|---|
| Light Color | White | Multi-color | White/Blue |
| Control Type | Switch | Bluetooth/App | Remote/Switch |
| Price Range | $80–$120 | $150–$250 | $200–$400 |
| Lifespan (Hours) | 20,000 | 25,000 | 30,000 |
When shopping for halo lights, check these features:
- Compatibility: Make sure the kit is designed for the 2016 Jeep Wrangler (JK model).
- Brightness: Look for a high lumen output (above 2000 lumens per headlight).
- Weatherproofing: Check the IP rating. IP67 or higher is best for off-road and wet conditions.
- Color Options: Decide if you want classic white or multi-color (RGB) halos.
- Warranty: Choose kits with at least a one-year warranty.
A common mistake is buying a universal kit that doesn’t fit your Wrangler’s headlight housing. Always double-check product details or ask the seller before buying.

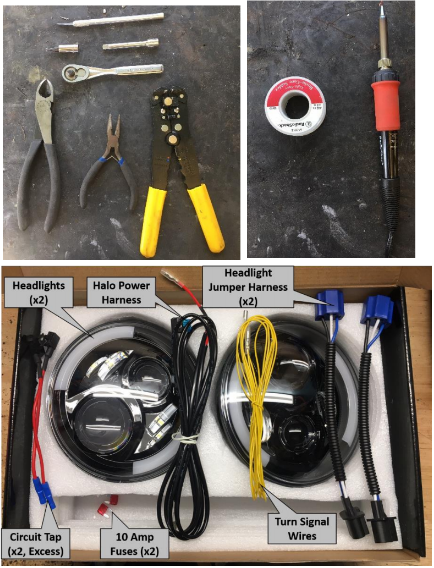

Tools And Materials Needed
Before starting your install, gather all the tools and parts you’ll need. Here’s a checklist:
- Halo light kit (compatible with 2016 Wrangler)
- Phillips and flathead screwdrivers
- Torx driver set (T15, T20, T40)
- Socket wrench set (8mm, 10mm)
- Wire stripper/crimper
- Electrical tape
- Zip ties
- Test light or multimeter
- Safety gloves and glasses
- Optional: Heat shrink tubing, soldering kit
Most kits include wiring harnesses, but if yours doesn’t, you may need extra wires and connectors.
Removing The Old Headlights
Removing the Wrangler’s headlights is a straightforward job, but working carefully helps avoid damaging the grille or wiring.
- Open the hood and secure it with the prop rod.
- Find the six plastic clips on top of the front grille. Use a flathead screwdriver to gently pop them up.
- Pull the grille forward and off. Be careful not to break the clips.
- Locate the headlight retaining ring (chrome or black metal) around the headlight.
- Use a Torx T15 driver to remove the screws (usually three per headlight). Keep these screws safe.
- Pull the headlight out slightly and disconnect the wiring harness from the back.
Tip: Some aftermarket bumpers or accessories may block the grille. Remove these first if needed.
Installing The Halo Lights
Installing halo lights can be simple or complex, depending on your kit. Most 2016 Wrangler halo kits are designed for plug-and-play installation, but some require extra wiring for color control or DRL (daytime running light) functions.
Step 1: Prepare The Halo Lights
Unpack your new halo lights. If they have a separate halo ring, attach it according to the instructions. For projector-style kits, the halo is usually built into the housing.
Test-fit the new headlights in your Wrangler’s housing to check alignment.
Step 2: Wiring The Halos
You’ll need to connect the halo wires to a power source. Common options:
- Parking lights: Halos turn on with parking lights (most popular).
- DRL circuit: Halos act as daytime running lights.
- Switch: Manual control from inside the Jeep.
To connect halos to the parking lights:
- Locate the parking light wiring harness (behind the grille, near each fender).
- Use a test light or multimeter to identify the positive (usually white or yellow) and ground (black) wires.
- Strip a small section of insulation from each wire.
- Connect the halo positive wire to the parking light positive, and the halo ground to the parking light ground. Use crimp connectors or solder and heat shrink for a secure connection.
- Wrap connections with electrical tape.
If your kit includes a Bluetooth controller for RGB halos, connect the controller to the battery or fuse box as shown in the instructions. Secure the controller away from heat and moisture.
Step 3: Mount The New Headlights
- Reconnect the main headlight harness to your new halo light.
- Slide the headlight into the housing, making sure it sits flush.
- Reinstall the retaining ring with the Torx screws.
- Repeat for the other side.
Before reattaching the grille, test the headlights and halo rings. Check for even brightness, color control (if RGB), and that all connections are solid.
Step 4: Secure The Wiring
Use zip ties to bundle and secure any extra wires behind the grille or fenders. Avoid sharp edges or hot surfaces. Make sure nothing is loose that could rattle or get damaged off-road.
Step 5: Reinstall The Grille
Line up the grille with the Jeep’s front end and press it back into place. Reinstall the plastic clips on top. If you removed any aftermarket parts, reinstall them now.
Testing And Adjustments
After installation, it’s critical to test your new halo lights:
- Turn on your parking lights and headlights. The halos should light up smoothly.
- Try switching between color modes (if available).
- Check for flickering or uneven brightness—this could mean a loose connection.
- Adjust the headlight aim if needed. Use the adjustment screws on the headlight housing to lower or raise the beam.
A common mistake is forgetting to test before reassembling everything. Save time by checking your work at each step.
Comparing Halos To Stock Lights
Curious how much better halo lights are than your stock headlights? Here’s a quick comparison:
| Feature | Stock Halogen | LED Halo |
|---|---|---|
| Brightness (Lumens) | 1,000–1,200 | 2,000–4,000 |
| Color Temperature | 3,200K (yellowish) | 6,000K (white/blue) |
| Power Draw | 55W | 25–35W |
| Lifespan | 1,000 hours | 25,000+ hours |
The improvement in brightness and lifespan is significant, especially for night driving or off-roading.
Practical Tips And Common Mistakes
Even with the right kit and instructions, there are a few things many beginners miss:
- Seal all connections well. Use heat shrink or plenty of tape to keep water out.
- Test the lights before closing up the grille. It’s easier to fix wiring errors now.
- Don’t overtighten screws on the retaining ring—you can crack the plastic housing.
- If you install RGB halos, keep the controller away from engine heat and water.
- Always disconnect the battery before working on wiring to avoid shorts or shocks.
One non-obvious trick: If your halo kit has a remote or Bluetooth controller, mount the receiver high up behind the dash or grille for better range. Many Jeep owners tuck it too low, causing signal problems.
Legal And Safety Considerations
Before using colored halo lights, check your local vehicle laws. In some states, only white and amber lights are legal on the front of a vehicle. Red, blue, or green halos may be restricted to emergency vehicles. Using illegal colors on public roads can result in fines.
Always keep your original headlights. If you run into any issues with law enforcement or inspections, you can swap them back quickly.
Maintenance And Troubleshooting
Halo lights are low-maintenance, but it’s smart to check them every few months.
- Clean the lenses with a soft cloth to keep them bright.
- Check for condensation inside the housing—this can mean a bad seal.
- If a halo stops working, check the wiring connections and fuses first.
If you notice flickering or dimming, it often means a poor ground connection. Re-crimp or re-solder the ground wire for best results.
When To Seek Professional Help
If you’re not comfortable with car wiring or you don’t have the right tools, consider hiring a professional installer. Shops usually charge $100 $200 for a halo light install, but you’ll get a warranty and peace of mind.
For complex RGB kits with app control, a pro can help avoid electrical problems or voiding your Jeep’s warranty.
For more technical guidance and Jeep community support, the JL Wrangler Forum is a great resource.
Frequently Asked Questions
How Long Does It Take To Install Halo Lights On A 2016 Jeep Wrangler?
Most DIY installs take about 2–3 hours, depending on your experience and the kit’s complexity. RGB or projector kits may take longer due to extra wiring.
Do I Need To Remove The Front Bumper To Install Halo Lights?
No, you only need to remove the front grille. The bumper can stay on unless you have aftermarket parts blocking the grille.
Are Halo Lights Legal On The Street?
White and amber halo lights are usually legal. Colored halos (red, blue, green) may be restricted on public roads. Always check your state’s laws.
Will Halo Lights Drain My Jeep’s Battery?
LED halo lights use very little power—much less than regular headlights. They won’t drain your battery unless left on for many hours with the engine off.
Can I Install Halo Lights Without Cutting Or Splicing Wires?
Some kits are 100% plug-and-play. Others require tapping into parking light or DRL wires. If you want a no-splice install, look for kits labeled “plug-and-play” for your Wrangler’s year.
Upgrading to halo lights is one of the best ways to boost both the style and safety of your 2016 Jeep Wrangler. With the right kit and careful installation, you’ll enjoy a custom look and better visibility for years to come.
