Jeep Wrangler owners often face problems with their auxiliary battery. This small battery is hidden under the main one and helps run electrical features when the engine is off. If the auxiliary battery fails, you may see warning lights, have trouble starting, or notice odd electrical issues. For some drivers, bypassing the auxiliary battery solves these problems quickly—especially if replacement isn’t possible right away. This guide will help you understand the process, risks, and safe steps for bypassing the Jeep Wrangler auxiliary battery, so you can make informed decisions and avoid common mistakes.
Understanding The Jeep Wrangler Auxiliary Battery
The auxiliary battery is found in many Jeep Wrangler models from 2018 onward, especially those with the Stop/Start system. Its main job is to keep electronics running when the engine stops, like at traffic lights. It also helps with starting the engine and powering accessories.
If this battery fails, the Stop/Start system may stop working, and you could see dashboard warnings like “Stop/Start Unavailable.” Drivers often experience:
- Slow engine cranking
- Flickering lights
- Radio or navigation glitches
Below is a comparison of symptoms between main battery and auxiliary battery failure:
| Symptom | Main Battery | Auxiliary Battery |
|---|---|---|
| Engine won’t start | Yes | Sometimes |
| Stop/Start disabled | Rare | Common |
| Electrical glitches | Possible | Frequent |
| Warning lights | Yes | Yes |
Why Bypass The Auxiliary Battery?
Many drivers bypass the auxiliary battery when:
- It fails and replacement is expensive or unavailable
- The Stop/Start system is unwanted
- They want to avoid repeated battery problems
Bypassing is not a permanent fix, but it can help restore normal function for a short time. Some drivers choose to bypass before replacing the battery, while others do it to disable the Stop/Start system.
It’s important to note that bypassing the auxiliary battery may affect some features. For example, the Stop/Start system will not work, and some warning lights may appear. However, basic driving and starting usually return to normal.
How To Bypass The Jeep Wrangler Auxiliary Battery
Before starting, make sure you have the right tools and follow safety steps. Always wear gloves and eye protection, and disconnect the main battery before working.
Step-by-step Instructions
1. Locate The Batteries
The main battery is under the hood. The auxiliary battery is usually under the main battery or in a nearby compartment.
2. Disconnect The Main Battery
Remove the negative cable first, then the positive. This prevents electrical shock and damage.
3. Access The Auxiliary Battery
Remove any covers or brackets holding the auxiliary battery in place.
4. Disconnect The Auxiliary Battery
Unbolt and remove both cables from the auxiliary battery terminals.

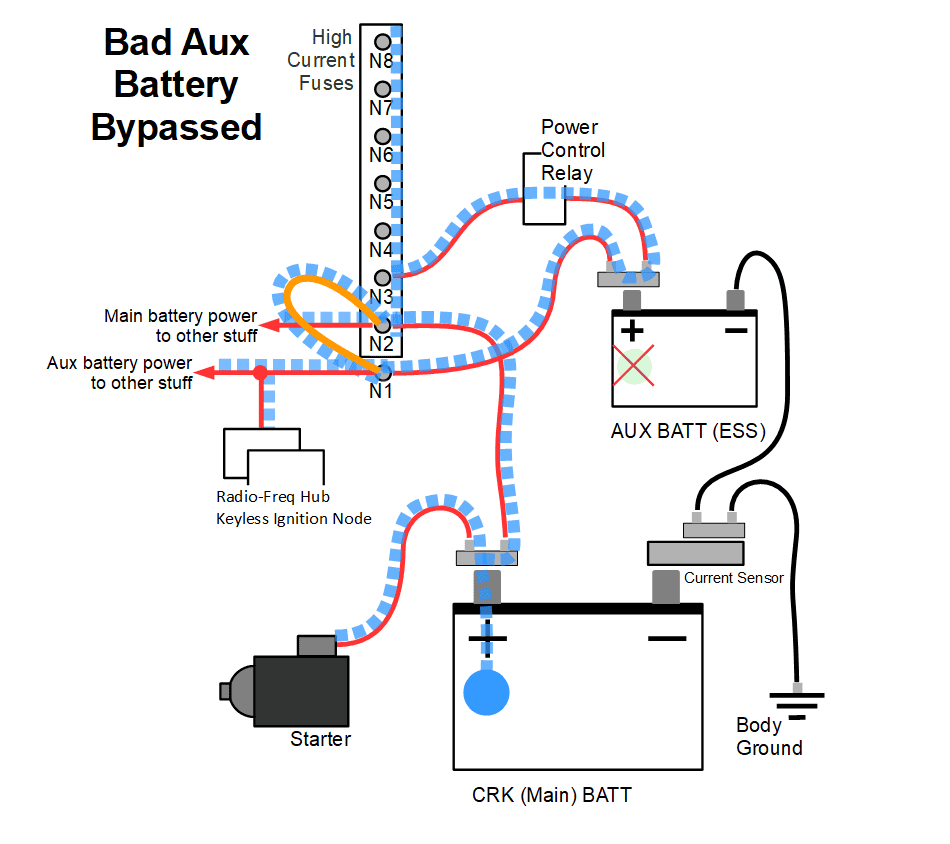

5. Install A Bypass Cable
Connect a heavy-duty jumper cable or a purpose-made bypass cable between the two battery cables that were attached to the auxiliary battery.
This allows the electrical system to run only from the main battery.
6. Secure Connections
Make sure the bypass cable is tightly attached and insulated to prevent shorts.
7. Reconnect The Main Battery
Attach the positive cable first, then the negative.
8. Test The System
Start your Jeep and check for dashboard lights or electrical issues.
If everything works, the bypass is successful. If you see error codes or unusual behavior, double-check all connections.
Practical Tips
- Use a battery terminal cleaner to ensure clean contacts.
- Avoid using thin wires for the bypass; they may overheat.
- If you plan to drive long distances, monitor electrical functions closely.
| Bypass Method | Difficulty | Cost | Risk |
|---|---|---|---|
| Jumper Cable | Easy | Low | Moderate |
| Purpose-made Bypass Kit | Medium | Moderate | Low |
| Dealer Service | Hard | High | Low |
Risks And Considerations
Bypassing the auxiliary battery is not risk-free. Common issues include:
- Dashboard warning lights: These often appear, but don’t always mean a problem.
- Loss of Stop/Start: The feature will not work after bypass.
- Electrical overload: If the main battery is weak, bypassing may cause system failure.
Some Jeep owners report that after bypassing, the main battery wears out faster. It’s wise to check battery health often and plan for future replacement.
Below is a simple comparison of battery life after bypass:
| Setup | Expected Battery Life |
|---|---|
| Main + Auxiliary | 3-5 years |
| Main Only (Bypass) | 2-3 years |
A non-obvious insight: Some aftermarket bypass kits include built-in fuses for extra safety. This can prevent electrical shorts and damage, so consider these for a safer modification.
When To Seek Professional Help
If you are unsure about electrical work, it’s best to get help from a mechanic or Jeep dealer. Professional services cost more but reduce the risk of accidental damage. Also, bypassing may affect your vehicle’s warranty.
You can find detailed official guidance on the Jeep Wrangler battery system at Jeep’s official site.
Frequently Asked Questions
What Happens If I Drive With A Bad Auxiliary Battery?
You may see warning lights and lose Stop/Start function. Other electrical features may also behave oddly.
Is Bypassing The Auxiliary Battery Safe?
It can be safe if done correctly, but improper installation may cause electrical damage or battery drain.
Will Bypassing Void My Jeep Warranty?
Modifying electrical systems can affect warranty coverage. Always check with your dealer before making changes.
How Much Does A Bypass Kit Cost?
Most bypass kits cost between $25 and $75, depending on quality and features.
Can I Bypass The Auxiliary Battery Permanently?
While possible, it’s not recommended for long-term use. The main battery will wear out faster and some features may stop working.
Bypassing the Jeep Wrangler auxiliary battery is a practical solution for many drivers facing sudden battery failure or Stop/Start issues. With careful steps and the right tools, you can restore basic function while planning for a permanent fix. Always consider the risks and monitor your vehicle’s performance after bypassing.
If in doubt, professional help is the safest option for your Jeep.
