Using the Jeep Aux Switches is a game-changer for many Jeep owners. These switches give you power and control over added accessories—like off-road lights, air compressors, or winches—without needing messy wiring or risky modifications. But for beginners, figuring out how to use and set them up can feel confusing. Let’s break it down step by step, so you can unlock the full potential of your Jeep’s auxiliary switches safely and confidently.
What Are Jeep Aux Switches?
Most modern Jeeps, especially the Wrangler JL and Gladiator JT, offer factory-installed auxiliary switches. These are physical buttons located on the dashboard, typically labeled AUX 1 to AUX 4. You can use them to control extra electrical accessories you add to your vehicle.
Unlike older setups, these switches are pre-wired directly from the factory. That means you don’t need to cut into your main wiring harness or run messy aftermarket solutions. You get a clean, professional look—and more reliable performance.
Key benefits:
- Safety: Factory wiring reduces fire risk and electrical problems.
- Convenience: Easily add and control accessories.
- Customization: Choose what each switch powers.
Where Are The Aux Switches Located?

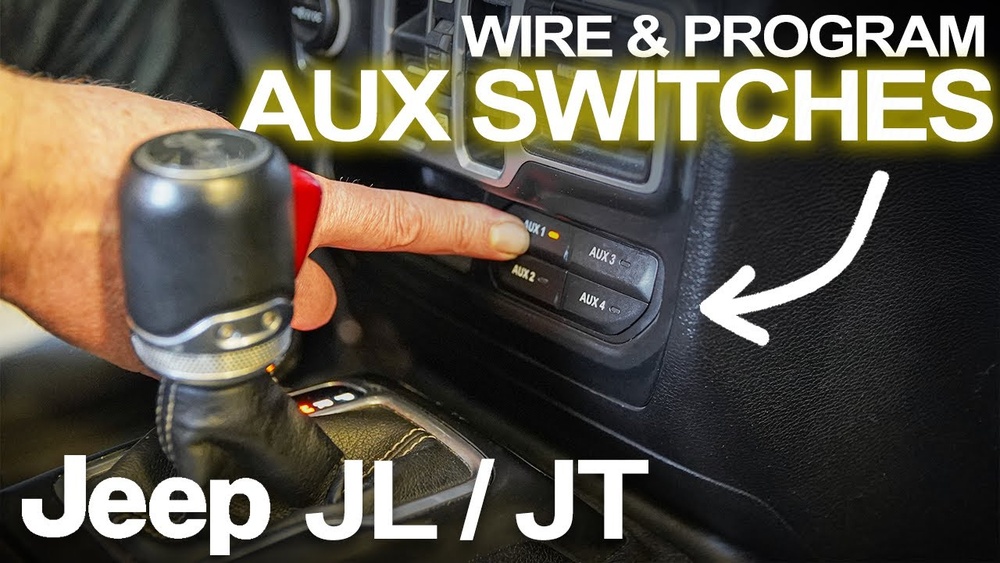

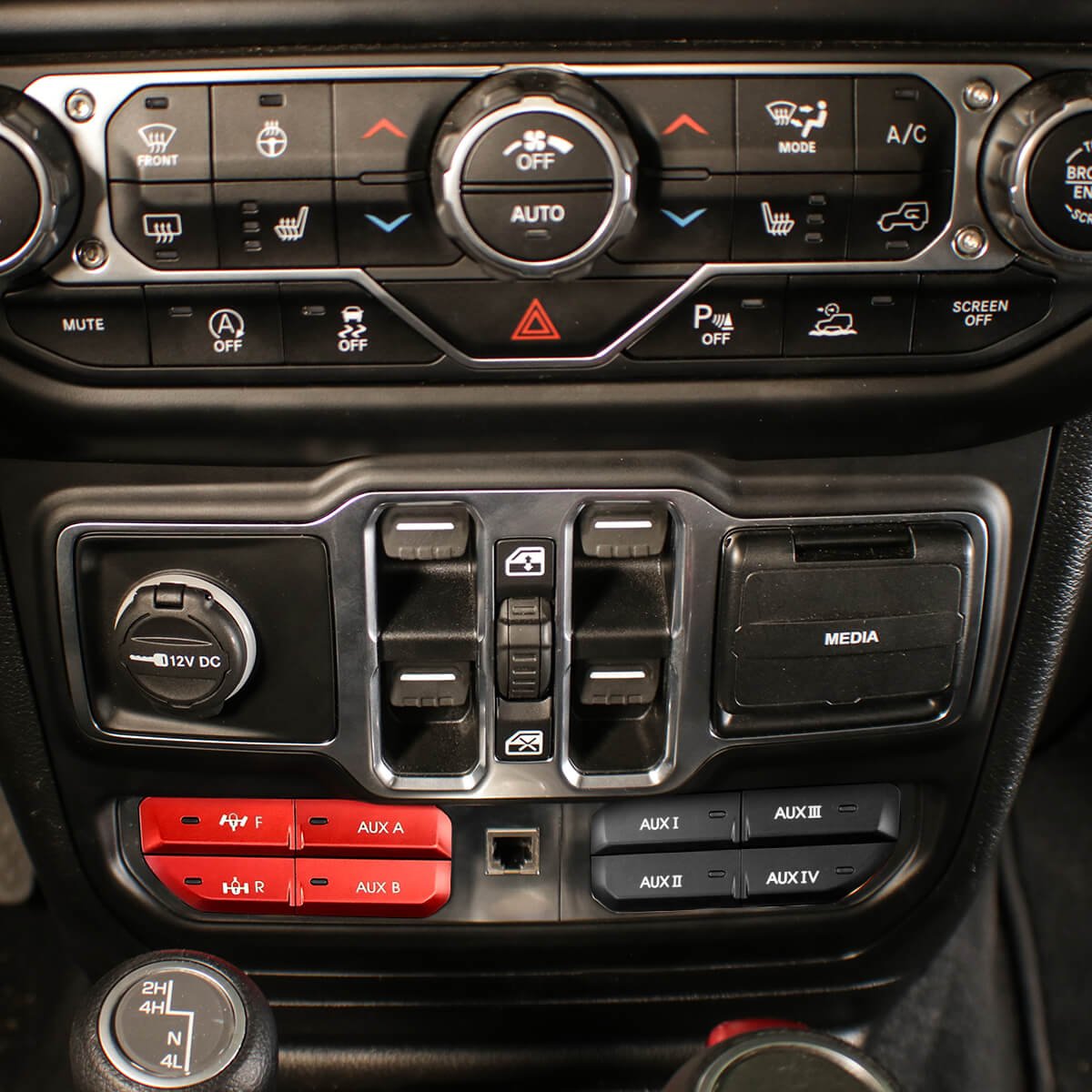

In most Jeeps with this feature, the aux switches sit just below the climate controls in the center stack. You’ll see four buttons, each with a small light to indicate if it’s on or off. Each switch is connected to a pre-wired relay and fuse in the engine bay.
Here’s a quick comparison of switch location by model:
| Jeep Model | Aux Switch Location | Number of Switches |
|---|---|---|
| Wrangler JL | Center stack, below A/C | 4 |
| Gladiator JT | Center stack, below A/C | 4 |
| Grand Cherokee L | Varies by trim | 2-4 |
How To Use Jeep Aux Switches: Step-by-step
Let’s walk through the process of using these switches—from connecting accessories to customizing their behavior.
1. Identify Your Switch Wiring

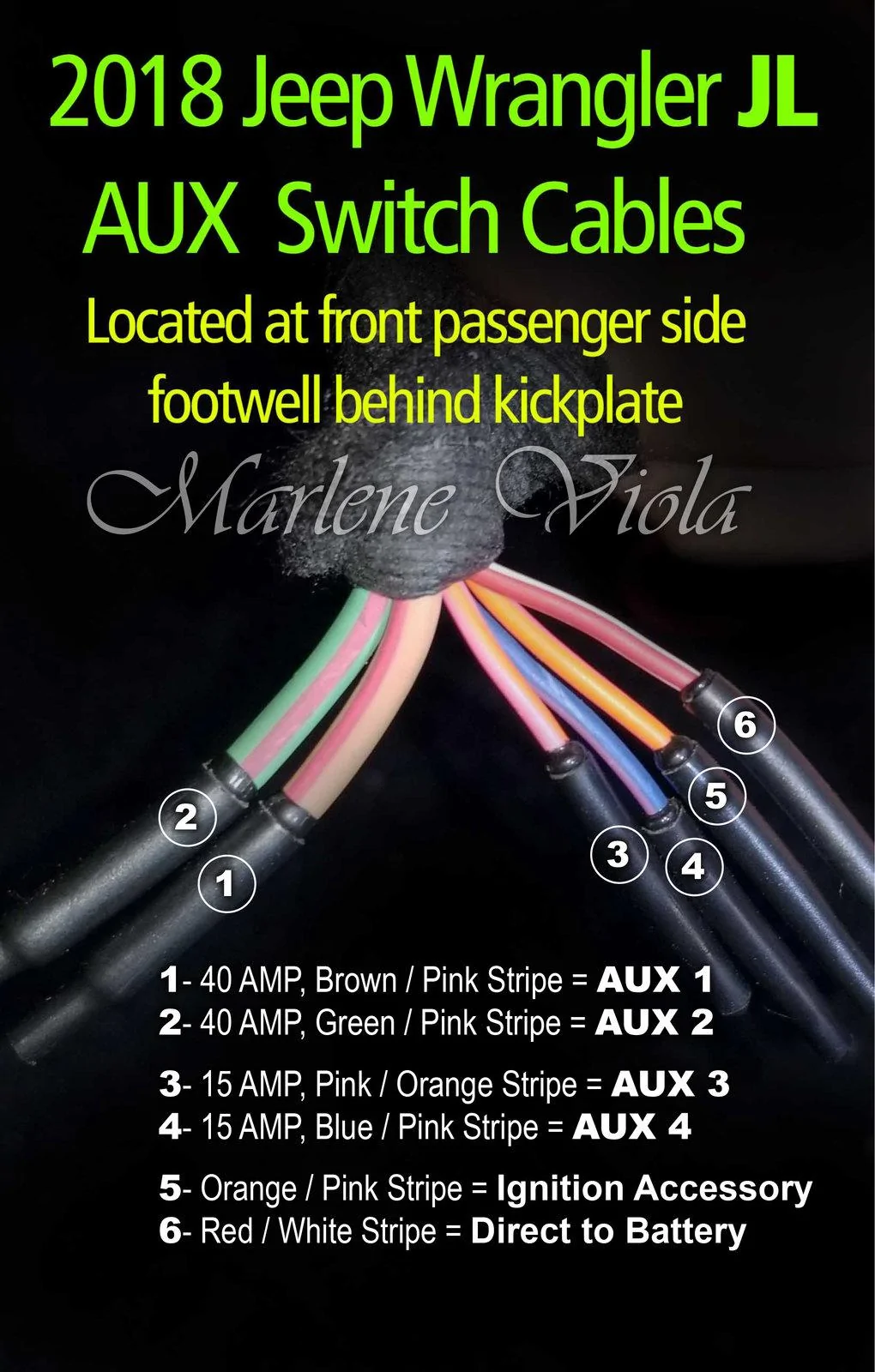

Open your Jeep’s hood and look for a bundle of wires near the fuse box. These are the pre-wired leads for each aux switch. Each wire is a different color, and the owner’s manual or a label will tell you which wire goes to which switch (AUX 1, AUX 2, etc.).
Pro tip: AUX 1 and 2 are usually rated for higher power (up to 40A), while AUX 3 and 4 are for lighter loads (up to 15A).
2. Connect Your Accessory
Let’s say you’re adding a LED light bar. Here’s what you’ll do:
- Run the positive (power) wire from your accessory to the correct aux switch wire under the hood.
- Connect the ground wire from your accessory to a solid metal point on the frame or battery ground.
- Use a weatherproof connector or solder and heat shrink for the best connection.
3. Choose The Right Switch
Not all switches are equal. Here’s a quick look:
| Switch | Wire Color | Max Amps | Best For |
|---|---|---|---|
| AUX 1 | Pink/Orange | 40A | Light bars, winches |
| AUX 2 | Red | 40A | Air compressors |
| AUX 3 | Yellow | 15A | Smaller lights |
| AUX 4 | Green | 15A | CB radios, small gear |
Beginner insight: Always check the accessory’s amp draw before wiring. Overloading can blow a fuse or damage the switch.
4. Test The Switch
Turn on your Jeep’s ignition (some switches need the key in ON or ACC mode). Press the aux switch you wired. The indicator light should come on, and your accessory should power up. If not, double-check your connections and ground.
5. Customize Switch Behavior (optional)
On many Jeeps, you can change how each switch works using the vehicle’s infotainment screen:
- Ignition control: Choose if the accessory only works when the ignition is on, or always.
- Momentary vs. latching: Pick if the switch stays on (latching) or only works while pressed (momentary).
Example: You might want your air compressor on momentary, but your light bar on latching.
Real-world Tips For Jeep Aux Switches
- Label your wires under the hood for easy future upgrades.
- Use relay harnesses for high-power accessories, even if the switch is rated for the load—this increases safety.
- For waterproofing, always seal connections with heat shrink or dielectric grease.
- If you’re not sure about wiring, ask a professional. Mistakes can damage your Jeep’s electronics.
- Test each switch after installation. A small LED tester is handy and cheap.
Common mistake: Forgetting to ground the accessory is the #1 reason things don’t work.
When To Upgrade Or Add More Switches
Some Jeep owners quickly run out of switches as they add more gear. If you need more than the factory four:
- Consider an aftermarket switch panel. Some brands offer 6- or 8-switch solutions that look factory.
- Use a combination of factory and aftermarket switches for maximum flexibility.
Advanced insight: Some advanced systems let you control switches from your phone or a touchscreen—ideal for heavy off-road builds.
Safety And Compliance
All wiring should be fused properly. Jeep’s factory aux switches include fuses and relays for safety, but if you change wiring or add more accessories, always match the fuse rating to your accessory’s amp draw. Overfusing is dangerous, but underfusing can cause accessories to fail.
Check your local laws before adding exterior lights or loud horns—some states have restrictions on what is street legal. For more details, visit the National Highway Traffic Safety Administration.
Frequently Asked Questions
How Many Aux Switches Does My Jeep Have?
Most Wranglers and Gladiators with the aux switch package include four switches. Some other models offer two or none, depending on trim and year.
Can I Install Aux Switches If My Jeep Didn’t Come With Them?
Yes, you can add aftermarket aux switch panels. Installation is more complex and may require running wires through the firewall, but many kits are available.
What Is The Max Power For Each Aux Switch?
AUX 1 and 2 usually handle up to 40 amps each; AUX 3 and 4 support up to 15 amps. Always check your owner’s manual for your specific Jeep.
Do I Need A Relay For My Accessories?
For most high-power accessories (like a winch or large lights), using a relay is smart—even if the aux switch can handle the current. Relays protect both your switch and accessory.
Can I Reprogram What Each Switch Does?
Yes, many Jeeps let you change switch settings (like momentary vs. latching, or ignition control) from the infotainment screen. Some advanced reprogramming may require a dealer or special tool.
Getting the most from your Jeep aux switches is all about understanding their power and limitations. With careful setup, you’ll have a safe, flexible way to enjoy your Jeep’s accessories—on or off the trail.
