How To Upgrade Steering Box On Jeep XJ: A Complete Guide

Upgrading the steering box on your Jeep XJ is one of the best ways to improve handling, steering response, and off-road reliability. Many Jeep XJ owners notice steering issues as their vehicle ages or after adding bigger tires and lift kits. A weak steering box can lead to wandering, poor control, and even failure on tough trails. If you want a safer, more enjoyable driving experience, upgrading your steering box is a smart move.

Why Upgrade Your Jeep Xj Steering Box?

The factory steering box on the Jeep XJ was designed for stock tires and moderate driving. When you add larger tires, wheels, and lift kits, the stress on the steering system increases. Common symptoms of a failing steering box include:

• Excessive play in the steering wheel
• Hard steering, especially at low speeds
• Clunking noises when turning
• Difficulty keeping the Jeep straight on the highway

Statistics show that nearly 70% of Jeep XJ owners with modified suspensions report some type of steering issue after 100,000 miles. Upgrading to a stronger steering box reduces these problems and extends the life of your steering components.

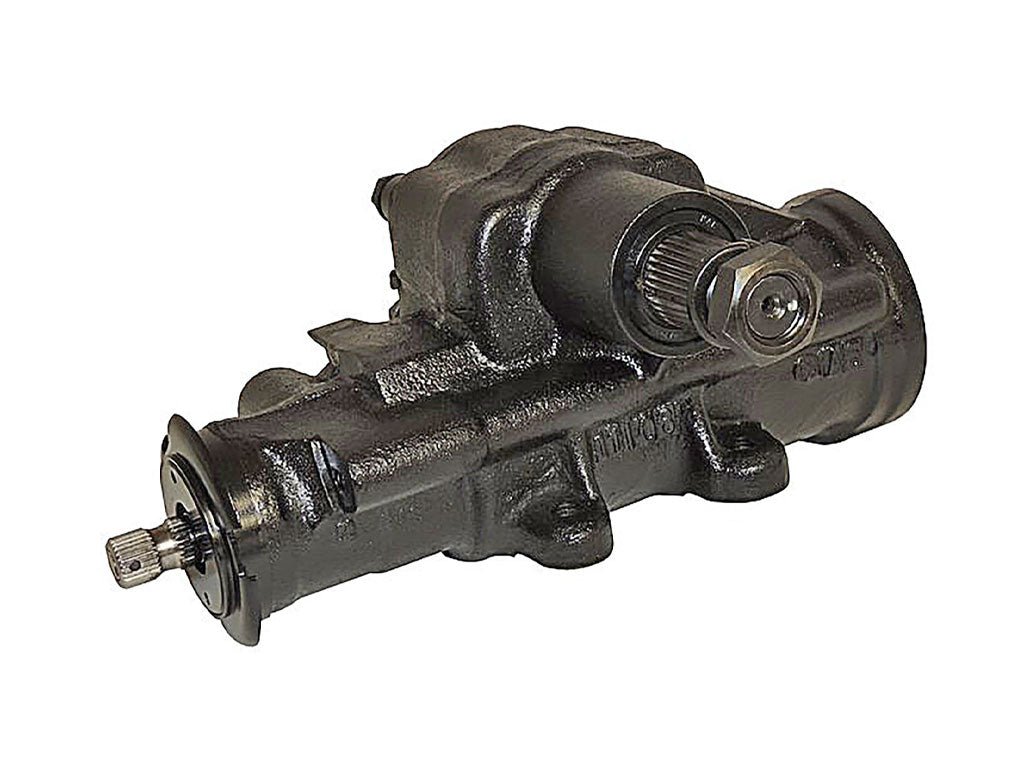

Choosing The Right Steering Box

Not all steering boxes are the same. For Jeep XJ, you have several options depending on your needs and budget. Here’s a quick comparison:

If you do mostly street driving with moderate tires, a heavy-duty upgrade is usually enough. For off-roading with oversized tires, a performance aftermarket box is the best choice.

Key Features To Look For

• Improved internal components – Look for boxes with larger bearings and stronger gears.
• Bolt-on compatibility – Make sure the new box fits your XJ without needing major changes.
• Warranty coverage – Good brands offer at least a 1-year warranty.

Tools And Parts Needed

Before starting the upgrade, gather these tools and parts:

• Socket set (metric and SAE)
• Wrench set
• Pitman arm puller
• Steering box (your chosen upgrade)
• Power steering fluid
• Torque wrench
• Jack and jack stands
• Safety goggles and gloves

Some steering boxes may require upgraded mounting braces or new pitman arms. Check the instructions for your specific model.

Step-by-step Guide To Upgrading The Steering Box

Upgrading your Jeep XJ steering box is a moderate DIY job. It takes about 3–4 hours if you have basic mechanical skills. Here’s how:

• Disconnect the battery – Prevent accidental electrical shorts.
• Lift the Jeep and secure it – Use jack stands for safety.
• Remove the steering shaft bolt – This connects the shaft to the box.
• Disconnect power steering lines – Place a drain pan underneath.
• Remove the pitman arm – Use the pitman arm puller tool.
• Unbolt the old steering box – There are usually three mounting bolts.
• Install the new steering box – Align it carefully, then torque bolts to spec.
• Reconnect pitman arm and steering shaft – Ensure tight, correct fit.
• Attach power steering lines – Replace any worn O-rings.
• Refill power steering fluid – Check for leaks after starting the engine.
• Check steering alignment – Test drive and adjust as needed.

Common Mistakes And How To Avoid Them

Many beginners rush this upgrade and make errors that lead to steering problems. Here are two mistakes you should avoid:

• Not aligning the pitman arm correctly. If the pitman arm is off by even one spline, your steering wheel will not center. Always mark the original position before removal.
• Over-tightening power steering lines. This can damage threads and cause leaks. Use a torque wrench and follow manufacturer specs.

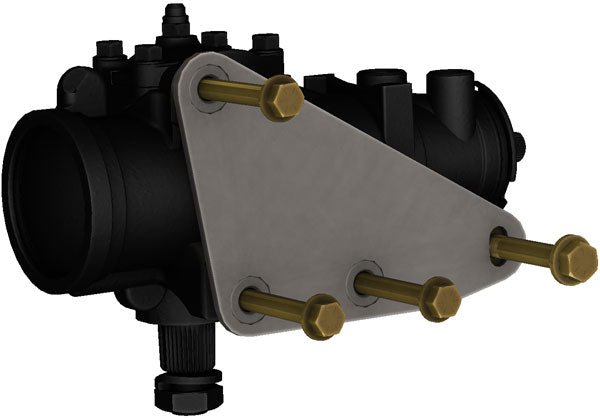

A non-obvious tip is to check the steering box brace, especially on lifted XJs. The added stress can crack the frame near the mounting points. Consider installing a steering box brace for extra strength.

Testing Your New Steering Box

After installation, it’s important to test your steering box properly:

• Start the engine and turn the wheel lock-to-lock several times.
• Check for leaks, noises, or hard spots.
• Take a short test drive, focusing on tight turns and highway speeds.
• If the Jeep pulls to one side or feels vague, recheck alignment and mounting bolts.

Upgraded steering boxes often improve steering feel right away. If not, double-check all connections and fluid levels.

Extra Tips For A Lasting Upgrade

• Use high-quality power steering fluid for better performance.
• Check your steering linkage and tie rods for wear before installing the new box.
• Consider upgrading your steering box brace at the same time.

For more detailed specs and technical guides, visit Jeep Forum.

Upgrading your Jeep XJ steering box is a worthwhile project that brings noticeable benefits. With better steering control, safer handling, and longer-lasting parts, your Jeep will feel renewed both on and off the road. Take your time, follow the steps, and enjoy the improved driving experience.

Frequently Asked Questions

What Are Signs My Jeep Xj Steering Box Needs Replacing?

Excessive play in the steering wheel, hard steering, clunking noises, and difficulty keeping your Jeep straight are key signs the steering box is worn.

Can I Upgrade The Steering Box Myself?

Yes, most Jeep XJ owners with basic tools and mechanical skills can do this upgrade in about 3–4 hours. Always follow safety steps and manufacturer instructions.

Do I Need To Upgrade The Steering Box Brace?

If your Jeep XJ is lifted or uses larger tires, upgrading the steering box brace is highly recommended to prevent frame damage and improve longevity.

Which Steering Box Upgrade Is Best For Off-roading?

A performance aftermarket steering box with heavy-duty internal components is best for off-roading and oversized tires. It provides better durability and steering response.

Will An Upgraded Steering Box Improve Highway Driving?

Yes, a stronger steering box improves steering precision and reduces wandering. This makes highway driving safer and more comfortable, especially with larger tires.
