Changing the tail light on your 2012 Jeep Liberty is a task many owners will face. Whether your tail light has burned out or the lens is cracked, replacing it yourself can save both time and money. With just a few tools and some basic steps, you can complete this job at home. This guide will walk you through the process with clear instructions, helpful tips, and answers to common questions.
Why Replace Your 2012 Jeep Liberty Tail Light?
A working tail light is more than just a legal requirement; it’s essential for safety. Functioning tail lights make sure other drivers can see your vehicle at night or in bad weather. If your tail light is out, you risk getting a ticket and, more importantly, an accident. The good news is that changing it is straightforward for most people, even if you don’t have much experience with car repairs.
Tools And Supplies You’ll Need
Before you start, gather these items:
- New tail light bulb (or assembly if the whole unit is damaged)
- Screwdriver (usually a Phillips)
- Socket wrench (8mm is common)
- Clean gloves (optional, but keeps bulbs clean)
- Microfiber cloth (for cleaning the lens area)
Having everything ready before you begin will save time and help avoid mistakes.
Step-by-step Guide: Changing The Tail Light
Follow these steps carefully to change your 2012 Jeep Liberty’s tail light.

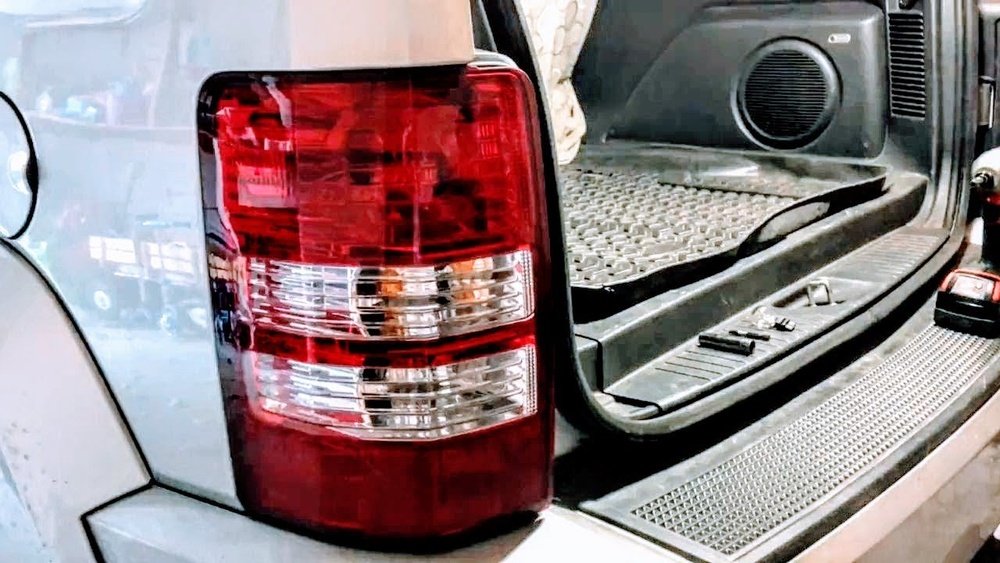

1. Access The Tail Light Assembly
Open your rear liftgate. The tail light assembly is held in place by two screws on the inside edge (visible with the hatch open). Remove these screws using your Phillips screwdriver.
2. Remove The Assembly
Gently pull the assembly straight out from the vehicle. It may feel stuck due to plastic clips, so wiggle it carefully.
Avoid using too much force, as the clips can break.
3. Disconnect The Wiring Harness
Once the assembly is out, you’ll see the wiring harness connected to the back. Press the clip and pull the connector free. Lay the assembly on a soft surface to avoid scratches.
4. Replace The Bulb
Turn the bulb socket counterclockwise and pull it out. Remove the old bulb by pulling it straight out.
Avoid touching the glass of the new bulb with your fingers use gloves or a cloth. Insert the new bulb, then place the socket back into the assembly and turn clockwise to lock.
If you’re replacing the entire assembly, skip the bulb steps and move on to installing the new unit.
5. Reconnect And Test
Reconnect the wiring harness to the tail light assembly. Before putting everything back, test the new tail light by turning on your headlights and pressing the brake pedal (ask a friend for help if needed).
6. Reinstall The Assembly
If the light works, push the assembly back into its slot, making sure the plastic clips engage. Replace the screws you removed earlier and tighten them securely.
Common Mistakes And Tips
- Forgetting to test: Always check the light before final installation. It’s frustrating to find out it doesn’t work after reassembly.
- Touching the bulb glass: Oils from your skin can cause hot spots and shorten the bulb’s life.
- Losing screws: Set them in a safe place or use a magnetic tray.
- Forcing the clips: If the assembly won’t come loose, gently pry with a plastic trim tool rather than metal tools.
Comparing Bulb Types For The 2012 Jeep Liberty
Many drivers wonder if they should stick with standard bulbs or upgrade to LEDs. Here’s a quick comparison:
| Bulb Type | Brightness | Lifespan | Cost | Compatibility |
|---|---|---|---|---|
| Halogen (Standard) | Moderate | 1-2 years | Low | Direct fit |
| LED | High | 5+ years | Higher | May need adapter |
LED bulbs are brighter and last longer but may require an additional adapter to prevent error warnings.
Estimated Time And Cost
Most people can change the tail light in about 15–30 minutes. Here’s a breakdown:
| Item | Average Cost | Time Needed |
|---|---|---|
| Bulb Replacement | $5–$15 | 15 min |
| Assembly Replacement | $50–$120 | 30 min |
Buying parts from an auto parts store or online is usually cheaper than going to the dealership.
Practical Tips For A Smooth Replacement
- Work in daylight or a well-lit garage so you can see small parts.
- Take a photo before disconnecting wires. This helps you remember how everything connects.
- Keep your owner’s manual handy. It can show you bulb sizes and more details.
- Double-check part numbers when buying bulbs or assemblies to avoid returns.
A detail many people miss: if one bulb burns out, the other may be close to failing too. Consider replacing both tail light bulbs at the same time for convenience.
How Do I Know If My Tail Light Is Out?
Look for a warning light on your dashboard or have someone check while you press the brake pedal. A police officer may also pull you over if your light is out.
Do I Need Special Tools To Change The Tail Light?
No, just a Phillips screwdriver and sometimes a socket wrench. Most people have these at home.
Can I Use Led Bulbs In My Jeep Liberty?
Yes, but you may need a CAN bus adapter to prevent warning lights or flickering. Always check compatibility before buying.
Why Does My New Tail Light Still Not Work?
Check the fuse in the fuse box, the wiring connector, and the bulb orientation. Sometimes, a bad ground or broken wire can stop the light from working.
Where Can I Find A Replacement Assembly?
You can buy genuine or aftermarket parts at auto parts stores, online retailers, or through a dealership. For more details, visit the official Mopar Parts site.
Replacing your 2012 Jeep Liberty tail light is a simple, cost-effective task that keeps you safe on the road. By following the steps above, you can handle the job with confidence even if you’re new to car maintenance.
Take your time, check your work, and you’ll be back to driving safely in no time.
