If you’ve ever seen the U1120 code pop up on your Jeep’s dashboard, you know it can be confusing and a bit worrying. This code signals a communication problem between your vehicle’s control modules, which can affect important systems like ABS and traction control.
But don’t worry—understanding what this code means and how to address it can save you time, money, and stress. You’ll learn exactly what causes the U1120 code, the symptoms to watch for, and the best steps to fix it. Keep reading to take control of your Jeep’s health and get back on the road with confidence.
What U1120 Code Means
The U1120 code in Jeep vehicles signals a communication error within the vehicle’s network. This code appears when the vehicle’s control modules fail to exchange information properly. It often relates to the loss of data from one module to another.
Understanding the U1120 code helps diagnose issues affecting your Jeep’s systems. It points to electrical or connection problems that interrupt data flow. Recognizing this code early can prevent further complications.
Role In Jeep’s System
The U1120 code indicates a communication breakdown between modules. Jeep vehicles use multiple control units that share information constantly. These include the ABS, engine control, and transmission modules. The code shows that one or more modules are not responding. This failure stops the system from working as designed.
Control modules rely on data signals to operate safely and efficiently. When communication fails, systems like traction control or ABS might not work properly. The U1120 code helps technicians find which module lost contact.
Impact On Vehicle Performance
When the U1120 code triggers, the Jeep may show warning lights on the dashboard. Systems linked to the affected module can stop functioning. This could include the ABS, traction control, or stability control. The vehicle may feel less stable during driving.
Performance problems vary from minor to serious. Some drivers notice a rough idle or delayed acceleration. Others might experience no-crank issues or trouble starting the Jeep. Ignoring the code can lead to more severe mechanical failures.
Symptoms Of U1120 Code
The U1120 code in a Jeep signals communication problems between control modules. This code often causes several noticeable symptoms. Recognizing these signs helps in early diagnosis and repair. Below are common symptoms linked to the U1120 code.
Dashboard Warning Lights
Multiple warning lights may illuminate on the dashboard. These include the ABS, Brake, Traction Control, and Check Engine lights. The lights may blink or stay on steadily. This signals a fault in the vehicle’s electronic communication network.
Speedometer And Tachometer Issues
The speedometer or tachometer may stop working or show erratic readings. Sometimes, these gauges freeze or jump unexpectedly. This happens because the modules that control these instruments lose communication.
No-crank And Starting Problems
The Jeep may fail to start or crank. Turning the key produces no engine response. This occurs when the ABS or other control modules fail to communicate correctly. Such issues often point to wiring or module faults.
Common Causes Behind U1120
The U1120 code in Jeep vehicles signals a communication problem within the vehicle’s network. This code often appears due to issues in the Anti-lock Braking System (ABS) or other related electronic systems. Understanding the common causes can help in diagnosing and fixing the problem quickly. The main reasons behind the U1120 code often involve electrical faults and communication failures between modules.
Faulty Abs Module

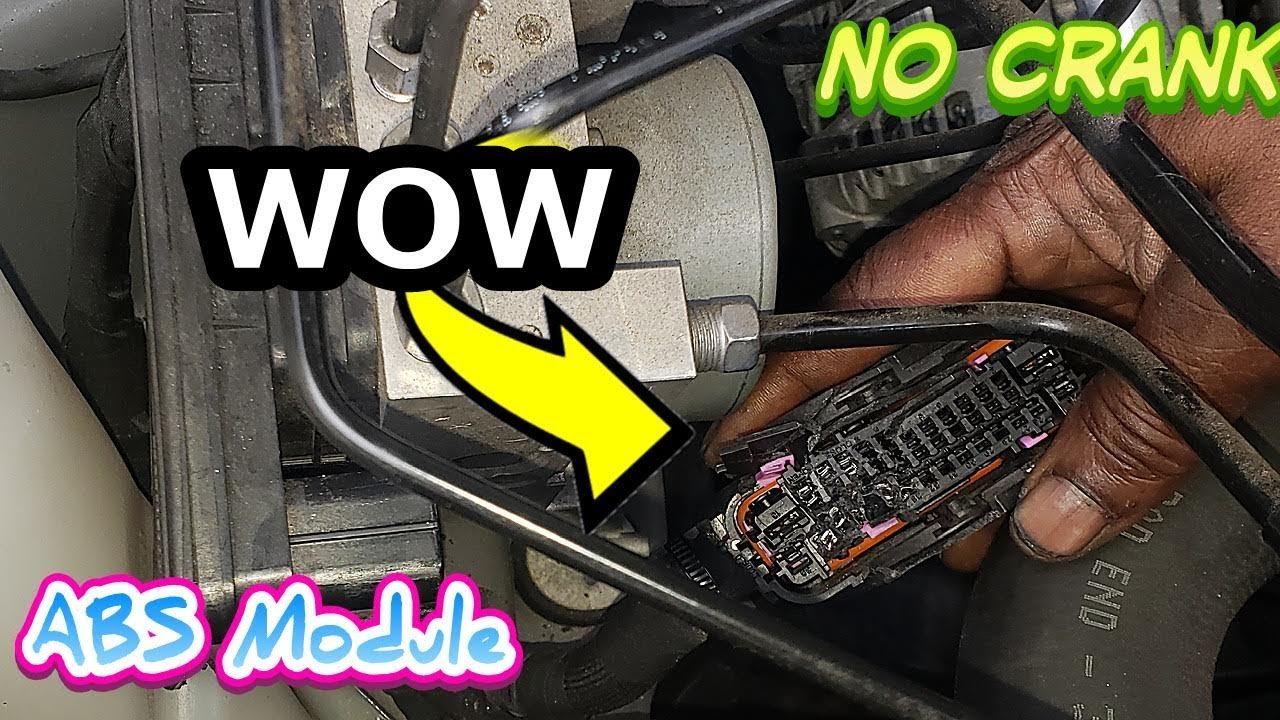

The ABS module controls the braking system and keeps the vehicle safe. A faulty ABS module can cause communication errors leading to the U1120 code. Problems include internal failures or damaged connectors on the module. This failure stops proper signals from reaching the vehicle’s computer.
Damaged Wiring And Connectors
Wiring and connectors link the ABS module to other systems. Damaged, corroded, or loose wires cause signal loss. Even small breaks or bent pins in connectors disrupt communication. These issues often lead to intermittent or complete failure in the CAN bus network.
Blown Fuses And Electrical Shorts
Fuses protect the ABS system from electrical damage. A blown fuse cuts power to the ABS module. Electrical shorts can also cause fuses to blow. Both situations cause the ABS module to lose communication with other vehicle systems, triggering the U1120 code.
Can Bus Communication Failures
The CAN bus is the main network that connects vehicle modules. Failures here cause multiple systems to stop sharing data. Faults in the CAN bus wiring or connectors lead to communication errors. The U1120 code often appears when the CAN bus cannot deliver ABS data properly.
Tools Needed For Diagnosis
Diagnosing the U1120 code on a Jeep requires the right tools. These tools help identify the exact problem quickly and accurately. Using the proper equipment saves time and prevents unnecessary repairs. Below are essential tools needed for effective diagnosis.
Obd-ii Scanner
An OBD-II scanner reads diagnostic trouble codes from the vehicle’s computer. It reveals the U1120 code and related errors. This tool helps pinpoint communication issues between modules. Many scanners offer live data, showing sensor readings in real time. A reliable scanner is vital for any Jeep diagnostic work.
Multimeter
A multimeter measures electrical values like voltage, current, and resistance. It checks wiring and connectors for faults causing the U1120 code. Testing sensor signals and power supplies is easy with this tool. A multimeter helps find broken wires or short circuits in the Jeep’s system.
Basic Hand Tools
Basic hand tools include screwdrivers, pliers, and socket sets. These tools allow access to wiring harnesses and control modules. Removing panels or connectors requires these simple tools. Having a set of quality hand tools makes diagnosing and fixing issues more efficient.
Step-by-step Fixes
The U1120 code in Jeep vehicles signals a communication issue between modules. Fixing this problem requires a clear, step-by-step approach. Below are simple methods to address the fault effectively.
Check And Replace Fuses
Start by locating the ABS and related fuses in the fuse box. Use the owner’s manual to find their exact positions. Remove each fuse one at a time and inspect for any signs of damage. Replace any blown fuses with new ones of the same rating. A blown fuse often causes the U1120 code to appear.
Inspect And Repair Wiring Harness

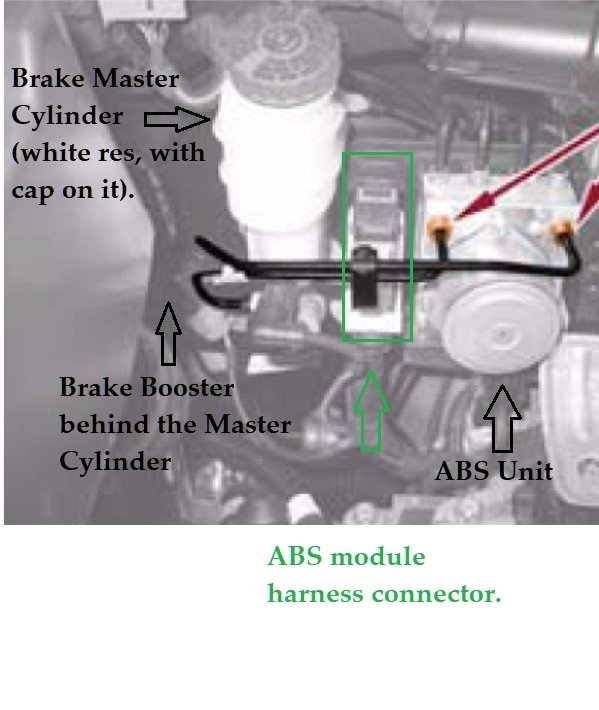

Next, examine the wiring harness connected to the ABS module. Look for frayed, pinched, or corroded wires. Pay close attention to connectors and pins for any bent or broken parts. Repair damaged wires by cutting out bad sections and reconnecting with proper connectors. Secure loose wires to prevent future damage.
Reset Or Replace Abs Module
Try resetting the ABS module by disconnecting the vehicle battery for 10 minutes. This can clear minor electronic glitches. If the code persists, the ABS module might be faulty and require replacement. Always use a compatible module designed for your Jeep model.
Clear Codes And Test Drive
After repairs, clear the fault codes using an OBD-II scanner. Start the vehicle and go for a short test drive. Monitor the dashboard for warning lights. If the U1120 code does not return, the issue is resolved. Repeat the scan to confirm the system is working properly.
Preventing Future U1120 Issues
Preventing future U1120 code issues in your Jeep saves time and costly repairs. The U1120 code signals communication loss within vehicle modules. Keeping your Jeep’s electrical and control systems healthy avoids this problem. Regular care focuses on key areas like wiring, ABS, CAN bus, and software. Small steps help maintain smooth module communication and vehicle safety.
Regular Electrical System Checks
Inspect your Jeep’s electrical system often. Look for damaged or loose wires and connectors. Check battery terminals for corrosion or wear. Clean and tighten any loose connections. Faulty wiring can cause communication errors like U1120. Early detection stops problems from growing. Use a multimeter to test voltage and continuity. Replace any frayed or broken wires immediately.
Maintaining Abs And Can Bus Components
ABS and CAN bus parts control module communication. Keep ABS sensors clean and free from dirt. Inspect ABS wheel speed sensors for damage or wear. Ensure CAN bus wiring harnesses are intact and secure. Bent pins or corroded connectors cause signal loss. Use dielectric grease to protect electrical contacts. Replace faulty ABS modules promptly to avoid code errors.
Software Updates And Module Reprogramming
Jeep manufacturers release updates to fix bugs and improve performance. Update your vehicle’s software regularly at the dealership. Reprogram modules when recommended to restore proper communication. Outdated software may trigger U1120 errors. Use official tools and software for updates. Keep your Jeep’s control modules synced with the latest firmware. This reduces the chance of future faults and warning lights.
When To Seek Professional Help
The U1120 code on a Jeep signals communication problems between modules. Sometimes, this issue can seem minor but requires expert care. Knowing when to seek professional help saves time and prevents more damage. Here are key signs that you should contact a mechanic for diagnosis and repair.
Complex Electrical Failures
The U1120 code often links to electrical system faults. These problems can involve wiring, connectors, or control modules. Complex electrical issues need specialized tools and knowledge to fix. An expert mechanic can trace hidden faults safely and effectively.
Persistent Code Reappearance
Sometimes, the U1120 code returns after clearing it. This repeat signals an ongoing problem that simple resets cannot fix. Persistent codes mean the root cause remains unresolved. Professionals can perform deeper diagnostics to find and repair the exact source of the issue.
Safety Concerns And Advanced Diagnostics
The U1120 code may affect safety features like ABS or traction control. Faults in these systems increase risk while driving. Advanced diagnostic equipment helps mechanics check all related components thoroughly. For your safety, trust professionals to handle these critical repairs.
Conclusion
The U1120 code on your Jeep signals a communication issue between modules. This can affect your ABS, traction control, and other systems. Fixing wiring problems or replacing faulty modules often resolves the issue. Regular maintenance helps prevent these errors. Staying aware of warning signs keeps your Jeep safe on the road.
Address the code quickly to avoid further damage. Understanding this code empowers you to take the right action. Keep your Jeep running smoothly and enjoy peace of mind.
