If you’ve seen the P2302 Jeep code pop up on your dashboard, you’re probably wondering what it means and how it affects your ride. This trouble code points to a problem with your ignition coil’s secondary circuit—basically, the part that helps your engine fire up smoothly.
Ignoring it could lead to rough starts, poor performance, or worse. But don’t worry, understanding what causes the P2302 code and how to fix it can save you time and money. Keep reading to learn exactly what this code means for your Jeep and what steps you can take to get back on the road with confidence.
P2302 Code Basics

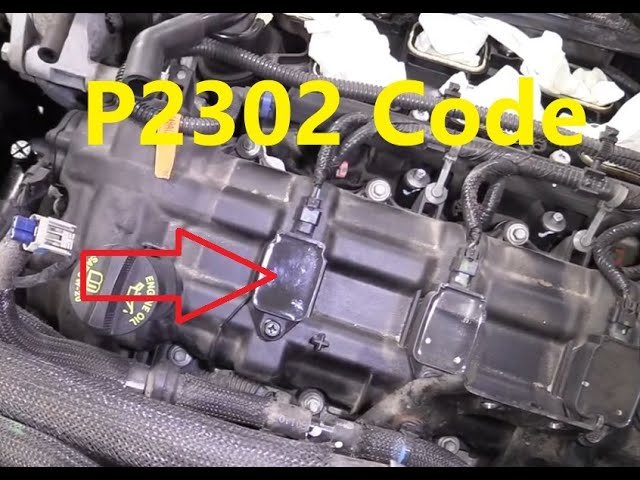

The P2302 code is a common issue in Jeep vehicles related to the ignition system. It signals a problem with the secondary circuit of ignition coil “A.” This means the engine control module (ECM) detects a fault that prevents proper spark delivery. Understanding this code is important for Jeep owners to maintain engine performance and avoid breakdowns.
The P2302 code points to electrical or component failures in the ignition coil system. Early diagnosis helps prevent engine misfires and rough running. This section explains what triggers the code, symptoms to watch for, and which Jeep models may be affected.
What Triggers The Code
The P2302 code triggers when the ECM detects no spark signal from ignition coil “A.” This usually happens due to a failed ignition coil or damaged spark plugs. Faulty wiring or loose connections in the coil harness also cause this error. Sometimes, the engine control module itself may fail to send the right signal. These issues stop the coil from firing properly, causing the code to appear.
Symptoms To Watch For
Common symptoms include engine misfires and rough idling. The vehicle may hesitate or stall during acceleration. You might notice reduced fuel efficiency and a loss of power. The check engine light will often turn on. These signs indicate the ignition coil is not working correctly and needs inspection.
Affected Jeep Models
The P2302 code commonly affects Jeep Wrangler and Jeep Liberty models. Older vehicles in these lines are more prone to this problem due to coil and wiring wear. Some Jeep Cherokee models may also experience this issue. Knowing your model helps target the right repair steps quickly.
Ignition Coil Secondary Circuit
The ignition coil secondary circuit plays a crucial role in the P2302 Jeep code. It carries high voltage from the ignition coil to the spark plugs. This high voltage creates sparks needed to ignite the fuel-air mixture in the engine cylinders.
If this circuit has problems, the engine can misfire or run poorly. Understanding this circuit helps diagnose why the P2302 code appears. It points to issues in the ignition system that need quick attention.
Role In Engine Operation
The ignition coil secondary circuit sends high voltage to spark plugs. This voltage sparks the fuel inside the engine cylinders. Proper spark timing helps the engine run smoothly and efficiently. Without this spark, the engine will stall or misfire.
Common Failures
Coil failure is a frequent cause of P2302 in Jeep models. Damaged spark plugs or worn wires also disrupt the secondary circuit. Faulty wiring or loose connections in the coil harness cause problems. Sometimes, the engine computer (PCM) fails to send signals to fire the coil.
Signs Of Coil Issues
The engine may shake or hesitate during acceleration. You might hear rough idling or experience poor fuel economy. The check engine light often turns on with code P2302. Sometimes, the engine may not start at all. These symptoms suggest trouble in the ignition coil secondary circuit.
Spark Plugs And Wiring
The spark plugs and wiring play a vital role in your P2302 Jeep’s ignition system. They deliver the spark needed to ignite the fuel-air mixture inside the engine cylinders. Faulty spark plugs or damaged wiring can cause engine misfires, rough idling, and trigger error codes like P2302. Regular checks of these components ensure smooth engine performance and prevent costly repairs.
Plug Wear And Fouling
Spark plugs wear out over time due to heat and combustion residues. Worn plugs may have eroded electrodes or buildup of carbon deposits. Fouling happens when oil, fuel, or dirt coats the plug, preventing a strong spark. This reduces engine efficiency and causes misfires. Replacing or cleaning spark plugs restores proper ignition and engine power.
Wire Damage And Corrosion
Spark plug wires carry high voltage from the ignition coil to the plugs. These wires can crack, break, or wear out due to heat and vibration. Corrosion at wire ends reduces electrical flow and weakens the spark. Damaged wires lead to misfires and poor engine running. Inspect wires regularly and replace any with visible damage or corrosion.
Connector And Harness Problems
Connectors link spark plug wires to coils and the engine harness. Over time, connectors can loosen or corrode, causing poor electrical contact. The wiring harness may also suffer from fraying or pinching. These issues disrupt signal flow and trigger error codes like P2302. Ensuring tight, clean connections and intact harnesses keeps the ignition system reliable and efficient.
Pcm And Engine Computer Faults
The P2302 code often points to problems with the Powertrain Control Module (PCM) or engine computer. These faults affect how the ignition coil fires, leading to engine misfires and rough running. Understanding the PCM’s role and how to spot failures helps maintain your Jeep’s performance.
Pcm’s Role In Ignition
The PCM controls the ignition coil’s firing by sending a ground signal. It monitors engine conditions and adjusts spark timing for efficiency. If the PCM’s internal driver stage fails, it cannot ground the coil properly. This causes the ignition coil to stop working, triggering codes like P2302. Proper PCM function is critical for smooth engine operation.
Diagnosing Pcm Failure
Diagnosing PCM failure starts with checking wiring and connectors for damage. Swap the ignition coil and spark plug with another cylinder to see if the code moves. If the code follows the part, replace the coil or plug. If not, test for pulse signals from the PCM. No pulse signal and good wiring often indicate a PCM fault. Use a scan tool to confirm PCM errors before replacement.
Older Jeep Models And Pcm Issues
Older Jeep models, like early Wranglers and Libertys, frequently face PCM problems. Heat and age can degrade the PCM’s internal circuits. This leads to intermittent or permanent ignition faults. Repair or replacement of the PCM may be necessary for these vehicles. Keeping the PCM cool and dry helps prevent failures and prolongs engine life.
Step-by-step Diagnosis
Diagnosing the P2302 code on a Jeep requires a clear, step-by-step approach. This process helps identify the exact cause of the ignition coil’s secondary circuit issue. Follow these steps carefully to avoid unnecessary part replacements and save time.
Swap-test Technique
Begin by swapping the ignition coil and spark plug from the affected cylinder to another. If the error code moves to the new cylinder, the problem lies with the coil or spark plug. Replace the faulty part to fix the issue. If the code stays, continue testing other components.
Inspecting Wiring And Connectors
Check all wiring and connectors linked to the ignition coil. Look for signs of fraying, corrosion, or loose connections. Repair or replace damaged wires and clean corroded connectors. Secure any loose plugs to ensure a stable connection.
Testing Pcm Signals
Use a scan tool to test the Powertrain Control Module (PCM) signals. The PCM sends a pulse signal to fire the coil. If no signal appears, the PCM may be faulty. This is common in older Jeep models. Consider professional testing or replacing the PCM if needed.
Repair And Replacement Options
Repairing the P2302 code in a Jeep requires a clear approach. The code signals a problem with Ignition Coil ‘A’ secondary circuit. Fixing it involves checking and replacing key parts. Simple repairs can restore engine performance quickly.
Start by focusing on the ignition coils, spark plugs, and wires. Sometimes, the issue lies in the vehicle’s Powertrain Control Module (PCM). Each option targets a specific cause of the code. Proper diagnosis helps avoid unnecessary costs.
Replacing Ignition Coils
Ignition coils send voltage to the spark plugs. A faulty coil fails to create the spark needed. Replace the bad coil to fix misfires and poor engine running. Testing coils is easy by swapping them with another cylinder. If the problem moves, the coil is the cause. Use original or high-quality replacement coils for best results.
Changing Spark Plugs And Wires
Worn or damaged spark plugs cause weak sparks. Old wires may break or lose connection. Replace spark plugs and wires together for better ignition. Check for cracks, corrosion, or carbon build-up on plugs. New parts improve fuel efficiency and engine smoothness. This repair often fixes minor ignition issues linked to P2302.
Pcm Repair Or Reflash
The PCM controls ignition timing and coil firing. A failing PCM may not send signals properly. Reflashing updates the PCM software to fix bugs or glitches. Repairing or replacing the PCM is more complex and costly. Use this option only if coils and plugs are fine. Professional diagnosis is recommended to confirm PCM faults.
Preventive Maintenance Tips
Preventive maintenance helps keep your P2302 Jeep running smoothly. It stops small problems from turning into costly repairs. Simple checks and updates protect your vehicle’s ignition system. Regular care extends the life of your Jeep and boosts performance.
Regular Coil And Plug Checks
Check ignition coils for cracks or damage often. Replace spark plugs if they look worn or dirty. Clean plug connections to ensure a strong spark. Faulty coils or plugs cause misfires and poor fuel economy. Early detection prevents engine problems and rough idling.
Protecting Wiring From Damage
Inspect wiring harnesses for frays or corrosion regularly. Secure wires away from heat and moving parts. Use protective sleeves or tape on exposed wiring. Damaged wiring leads to signal loss and engine faults. Proper wiring care avoids P2302 error codes and ignition failures.
Keeping Pcm Updated
Update the Powertrain Control Module (PCM) software as needed. Manufacturers release updates to fix bugs and improve functions. A current PCM controls ignition timing and coil firing precisely. Outdated software may cause misfires or false error codes. Visit a dealership or trusted mechanic for updates.
Expert Tools And Resources
Understanding and fixing the P2302 code on your Jeep requires the right tools and resources. Using expert equipment helps diagnose issues accurately. Reliable guides provide clear repair steps. Support from communities offers real-world advice and solutions.
Recommended Diagnostic Tools
A good OBD-II scanner is essential for reading the P2302 code. Look for scanners with live data and freeze frame capabilities. Some popular brands include Autel, BlueDriver, and Innova. These tools help identify ignition coil problems quickly. A multimeter is also useful for testing coil resistance and wiring.
Trusted Repair Guides
Repair manuals from Haynes or Chilton offer step-by-step instructions. Online guides from sites like RepairPal and AutoZone explain common fixes. These guides cover coil testing, wiring checks, and replacement tips. Clear photos and diagrams make repairs easier to follow. Manuals specific to Jeep models ensure correct procedures.
Community Forums And Support
Jeep forums like Jeep Wrangler Forum and JeepForum.com provide user experiences. Members share tips on diagnosing and fixing the P2302 code. You can ask questions and get advice from seasoned Jeep owners. These communities often discuss common causes and solutions. They help avoid costly mistakes and save time on repairs.
Conclusion
The P2302 code signals a problem with Jeep’s ignition coil circuit. Fixing it quickly helps keep your Jeep running smoothly. Regular checks of coils, spark plugs, and wiring prevent issues. Swap-testing parts can pinpoint the exact cause. Older Jeep models may face PCM problems causing this code.
Understanding these steps saves time and money on repairs. Stay alert to warning signs for safer drives. Simple care keeps your Jeep ready for any adventure.
