If you own a Jeep Patriot and recently saw the dreaded P0335 code pop up, you’re probably wondering what’s going on under the hood. This code signals an issue with your crankshaft position sensor—a small but crucial part that helps your engine run smoothly.
Ignoring it can lead to stalling, rough idling, or even a no-start condition. But don’t worry; understanding the causes and fixes for the P0335 Jeep Patriot code isn’t as complicated as it sounds. You’ll discover what triggers this problem, how to spot it early, and the steps you can take to get your Jeep back on the road without breaking the bank.
Keep reading to protect your ride and avoid costly repairs down the line.
P0335 Code And Jeep Patriot
The P0335 code is a common trouble code for Jeep Patriot owners. It signals a problem with the crankshaft position sensor circuit. This sensor plays a crucial role in engine timing and fuel injection.
When the engine control module (ECM) loses the signal from the crankshaft position sensor, it triggers the P0335 code. This disrupts engine performance and may cause the vehicle to run poorly or not start.
What Triggers The P0335 Code
The main cause is a faulty crankshaft position sensor or damaged wiring. Heat and vibration can crack or fray the sensor’s wiring harness. A broken or missing tooth on the reluctor ring can also cause signal loss. Dirt and oil buildup on the sensor may interfere with its function. Loose or corroded connectors often lead to poor electrical contact. Any of these issues stop the sensor from sending accurate signals to the ECM.
Symptoms In Jeep Patriot
Symptoms include engine stalling and rough idling. The Jeep may hesitate or jerk during acceleration. Sometimes, it will not start at all. The check engine light usually turns on with the P0335 code. You might notice poor fuel economy and reduced engine power. These signs suggest the crankshaft position sensor needs inspection or replacement.
Common Causes
The P0335 code in a Jeep Patriot points to a problem with the crankshaft position sensor circuit. This sensor tells the engine’s computer the exact position of the crankshaft. Without this data, the engine may run poorly or not start at all. Several issues can trigger this fault code.
Understanding these causes helps in diagnosing and fixing the problem faster. The most frequent reasons include sensor failure, wiring problems, and issues with the reluctor ring. Each affects the sensor’s signal in different ways.
Crankshaft Position Sensor Failure

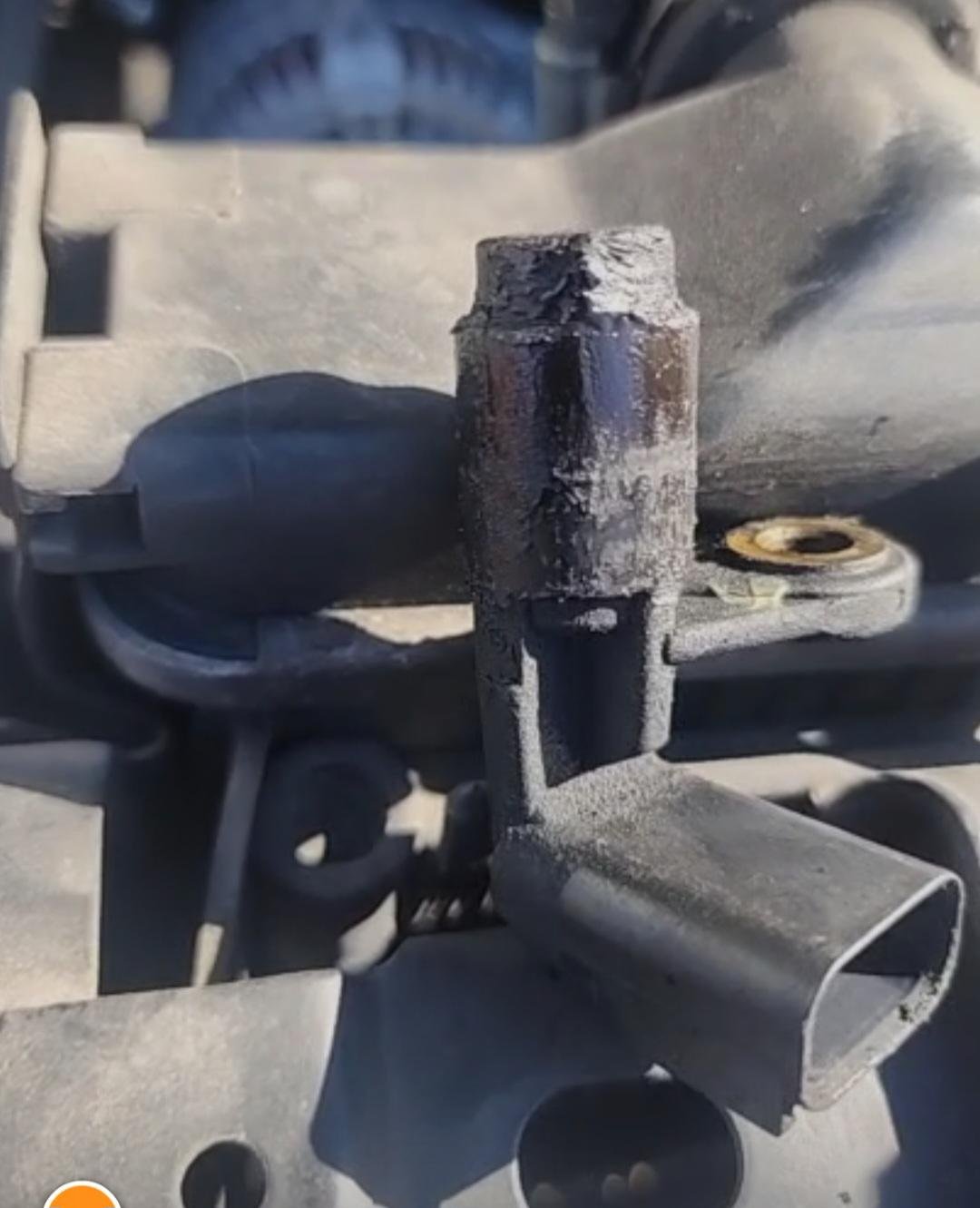

The sensor itself can stop working due to age or heat damage. It may fail internally or become worn out. A faulty sensor cannot send the correct signals to the engine control unit. This leads to the P0335 trouble code and engine performance issues.
Wiring And Connector Damage
Wires connected to the sensor are vulnerable to heat and movement. Over time, the wiring harness may crack, fray, or melt. Damaged connectors cause poor contact or signal loss. Inspecting and repairing wiring is essential to restore the sensor’s function.
Reluctor Ring Issues
The reluctor ring has teeth that the sensor reads to detect crankshaft position. Missing or broken teeth on this ring cause incorrect signals. Cracks or damage to the ring also disrupt sensor readings. This fault leads to the P0335 error and engine trouble.
Quick Inspection Tips
Quick inspection tips help identify the cause of a P0335 code on your Jeep Patriot. These simple checks can save time and money before replacing parts. Focus on key components related to the crankshaft position sensor.
Checking Wiring Harness

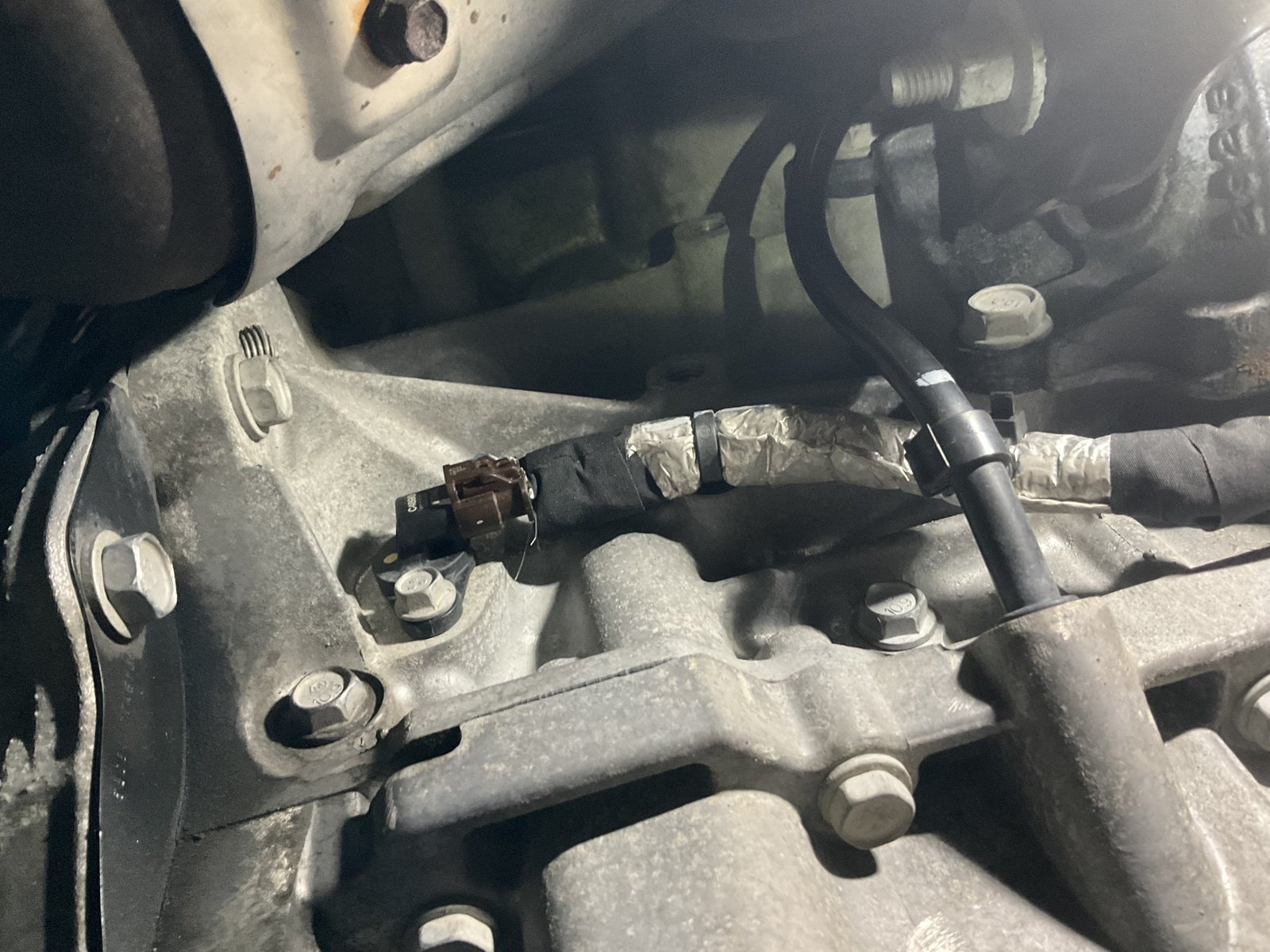

Start by examining the wiring harness connected to the crankshaft position sensor. Look for signs of damage like cracks, burns, or frayed wires. Heat from the engine can cause wires to melt or break. Make sure the wires are secure and not loose.
Inspecting Sensor Connector
Check the sensor connector for corrosion or dirt. A dirty or corroded connector can block the sensor signal. Clean the connector with electrical contact cleaner. Ensure it fits snugly and clicks into place. Loose connectors cause intermittent signal loss.
Examining Reluctor Ring
The reluctor ring sends the crankshaft’s position signal to the sensor. Look for missing or damaged teeth on the ring. Cracks or wear can stop the sensor from reading correctly. Spin the ring and watch for any wobble or looseness. A faulty ring needs replacement.
Diy Fixes
DIY fixes for the P0335 Jeep Patriot code can save time and money. This code means the engine computer lost signal from the crankshaft position sensor. You can try simple steps before visiting a mechanic. Some fixes need basic tools and a bit of care. Safety first: always disconnect the battery before working on your car’s electronics.
Resetting The Sensor
Start by resetting the sensor. This can clear minor glitches. Disconnect the negative battery terminal for about 10 minutes. This resets the engine control unit and sensor data. Reconnect the battery and start the engine. Check if the code clears. Sometimes, a reset is all the sensor needs to work properly again.
Repairing Wiring Damage
Wiring damage often causes the P0335 code. Heat from the engine can crack or melt wires near the sensor. Inspect the wiring harness carefully. Look for broken, frayed, or melted wires. Use electrical tape or heat shrink tubing to fix small damage. Replace wiring if the damage is severe. Ensure all connections are tight and clean. Good wiring restores proper signal to the sensor.
Replacing The Sensor
If resetting and wiring repair do not work, replace the sensor. First, disconnect the negative battery terminal. Locate the crankshaft position sensor near the engine’s crankshaft. Remove the sensor’s retaining bolt and unplug its connector. Pull out the old sensor carefully. Install the new sensor by reversing these steps. Tighten the bolt securely and reconnect the battery. Start the engine and check for error codes.
Replacement Guide
Replacing the P0335 crankshaft position sensor on your Jeep Patriot is a task you can handle with basic tools. This guide breaks down the process into simple steps. Follow these instructions carefully to ensure a smooth replacement.
Tools Needed
- Socket wrench set
- Torque wrench
- Flathead screwdriver
- Replacement crankshaft position sensor
- Safety gloves
- Flashlight
- Dielectric grease (optional)
Step-by-step Sensor Removal

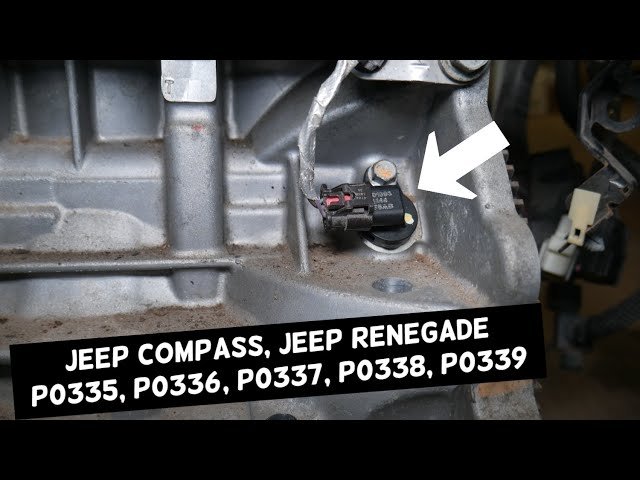

First, disconnect the negative battery terminal to prevent electrical shock. Locate the crankshaft position sensor near the engine block. Use a flashlight if needed.
Disconnect the sensor’s electrical connector carefully. Remove the retaining bolt with a socket wrench. Gently pull out the old sensor from its mounting.
Installing The New Sensor
Compare the new sensor with the old one to confirm a match. Insert the new sensor into the mounting hole. Secure it with the retaining bolt, tightening to the manufacturer’s torque specification.
Reconnect the electrical connector firmly. Optionally, apply dielectric grease to the connector for better contact. Reconnect the negative battery terminal. Start the engine to check for proper sensor function.
Preventive Maintenance
Preventive maintenance is key to avoiding the P0335 code on your Jeep Patriot. This code signals a problem with the crankshaft position sensor circuit. Keeping the sensor and related parts in good condition prevents engine issues and costly repairs. Simple checks and care extend sensor life and keep your engine running smoothly.
Protecting Wiring From Heat
Heat from the engine and exhaust can damage sensor wiring. Wiring near these hot areas may crack or melt over time. Use heat shields or protective sleeves around the wiring harness. Check wiring for signs of wear or damage regularly. Replace any worn or broken wires quickly to avoid sensor failure.
Regular Sensor Checks
Inspect the crankshaft position sensor often. Look for dirt, corrosion, or loose connections at the sensor plug. Clean the sensor area gently if dirty. Test sensor function with a multimeter if you notice engine problems. Early detection of sensor issues helps prevent the P0335 code.
Addressing Engine Grounding
Bad engine grounding affects sensor signals and causes errors. Check ground wires for tight, clean connections. Rust or loose grounds can disrupt sensor readings. Fix any grounding problems by cleaning contacts and tightening connections. Proper grounding ensures accurate sensor data and stable engine performance.
When To Seek Professional Help
Knowing when to seek professional help for the P0335 error code in your Jeep Patriot is important. This code signals a problem with the crankshaft position sensor circuit. Some fixes can be simple. Others need expert attention. Timely help can save money and avoid bigger problems.
Persistent Engine Issues
Persistent engine problems like stalling or rough idling need a mechanic. The P0335 code may return after basic repairs. Professionals can find hidden causes. They test sensors and parts more deeply. Ongoing issues mean a thorough check is necessary.
Complex Wiring Repairs
Wiring near the crankshaft sensor is often hard to reach. Damage from heat or wear may cause shorts or breaks. Fixing these wires requires skill and tools. Professionals know the right way to repair or replace wiring safely. Avoid DIY fixes that might worsen the problem.
Diagnostic Tools For Accuracy
Mechanics use advanced diagnostic tools to read error codes clearly. These tools check sensor signals and engine data in real time. Accurate diagnosis prevents wrong repairs. Professional shops have equipment not available to most car owners. This helps fix P0335 issues the first time.
Conclusion
The P0335 code in your Jeep Patriot signals a crankshaft position sensor issue. Catching this early helps avoid engine trouble and starting problems. Check the sensor, wiring, and related parts carefully. Replacing the sensor usually fixes the problem fast. Regular inspection keeps your Jeep running smoothly.
Stay alert to warning signs for safe driving. Taking action quickly saves time and money. Keep your Jeep Patriot reliable and ready for the road.
