If your Jeep Wrangler’s check engine light just popped on and you spotted the code P0203, you’re probably wondering what it means and how it affects your ride.
This code points to a problem with the fuel injector on cylinder three, which can cause your engine to misfire, hesitate, or lose power.
Ignoring this issue can lead to rough running and reduced performance, making your Wrangler less reliable and fun to drive. But don’t worry you’re in the right place.
You’ll learn the common symptoms, top causes, and simple steps you can take to fix the P0203 code and get your Jeep back to smooth cruising.
Keep reading to find out exactly what’s going on under your hood and how to solve it.
Symptoms Of P0203 Code
The P0203 code on a Jeep Wrangler points to a problem with the fuel injector circuit for cylinder 3. This issue can cause various symptoms that affect engine performance and drivability.
Recognizing these signs early helps prevent further damage and costly repairs.
Check Engine Light Alerts
The check engine light often turns on with the P0203 code. This warning signals an injector circuit fault.
Ignoring this light can lead to bigger engine problems.
Rough Idling And Hesitation
The engine may idle roughly or hesitate during acceleration. The fuel injector may not deliver fuel properly to cylinder 3.
This causes uneven engine running and poor throttle response.
Loss Of Power And Acceleration
The Jeep Wrangler might lose power or struggle to accelerate smoothly. Faulty fuel injection means the engine cannot produce full power.
This makes driving difficult and unsafe in traffic.
Common Causes Of Injector Circuit Failures
The P0203 code in a Jeep Wrangler points to a problem in the injector circuit of cylinder three. Injector circuit failures happen when the engine control unit cannot properly control the fuel injector.
This issue leads to poor engine performance, rough idling, and increased emissions.
Several factors cause injector circuit failures. Understanding these helps in diagnosing and fixing the problem quickly.
The main causes include faulty fuel injectors, wiring and connector issues, and problems with the PCM injector driver.
Faulty Fuel Injector
A fuel injector can fail due to wear, dirt, or clogging. When it stops working, it cannot deliver fuel correctly.
This causes the engine to misfire and lose power. A damaged injector coil or internal short circuit also triggers the P0203 code.
Wiring And Connector Issues
Damaged wires or loose connectors disrupt the electrical flow to the injector. Corrosion, broken wires, or poor connections cause an open or short circuit.
These faults prevent the injector from receiving the right signals, leading to circuit errors.
Pcm Injector Driver Problems
The Powertrain Control Module (PCM) controls the injector signals. If the PCM’s injector driver malfunctions, it cannot send proper pulses.
This failure causes the circuit to open or short internally. Diagnosing PCM faults requires specialized tools and testing.
Testing Injector Electrical Resistance
Testing the electrical resistance of a Jeep Wrangler fuel injector helps find faults causing the P0203 code. This code points to a problem in cylinder three’s injector circuit.
Measuring resistance confirms if the injector coil works properly or not. It also helps spot wiring issues.
Using simple tools like a multimeter, you can check the injector’s health. The process is quick and gives clear results.
Knowing the correct resistance values from factory specs guides you. It shows if the injector is open or has wrong resistance.
Both issues affect engine performance and cause rough running.
Using A Multimeter
Set the multimeter to measure resistance in ohms. Turn off the ignition and disconnect the injector connector.
Place the meter probes on the two injector pins carefully. Read the displayed resistance value on the meter screen.
Avoid touching the probes together during the test. This can cause false readings.
Comparing To Factory Specifications
Look up the Jeep Wrangler injector resistance specs in the service manual. Typical values range between 12 to 16 ohms, but check your model.
Compare your reading to these factory numbers. A value within this range means the injector coil is likely good.
A much higher or lower value signals a problem.
Identifying Open Or Incorrect Resistance
An open circuit shows infinite or very high resistance. This means the injector coil is broken inside.
Incorrect resistance means the coil has a short or damage. Both conditions prevent the injector from working correctly.
Replace injectors with open or wrong resistance to fix P0203.
Checking Injector Pulse Signal
Checking the injector pulse signal is a key step in diagnosing the P0203 code on your Jeep Wrangler. This code points to a problem with the injector circuit on cylinder three.
Confirming the injector receives the correct pulse from the powertrain control module (PCM) helps pinpoint the issue.
The pulse signal tells the injector when to open and spray fuel into the engine. Without this signal, the injector will not work, causing misfires and poor engine performance.
Testing the injector pulse requires a few simple tools and careful observation.
Using A Noid Light
A noid light is a simple tool that tests injector pulse signals. Connect the noid light to the injector’s electrical connector.
Crank the engine and watch the light. If the light flashes, the PCM sends the pulse signal correctly.
No flash means no pulse signal. This test quickly shows if the injector circuit gets power.
Verifying Pcm Pulse Output
Use a digital multimeter to check the PCM pulse output. Set the meter to measure voltage or frequency.
Backprobe the injector connector while cranking the engine. The meter should show a pulsing voltage.
No reading means the PCM may not send the pulse or has a fault. This step confirms if the PCM controls the injector properly.
Troubleshooting Signal Interruptions
Check wiring and connectors for damage or corrosion. Broken wires or loose pins can stop the pulse signal.
Inspect the injector harness for wear or burns. Repair or replace faulty wiring.
Also, test the injector driver inside the PCM. A damaged driver causes no pulse output.
Address these interruptions to restore proper injector function.
Repair Steps For Injector Circuit Problems
Injector circuit problems in a Jeep Wrangler can cause engine misfires and poor performance. Repairing these issues requires careful diagnosis and targeted fixes.
This section guides you through the key repair steps for P0203 code related to injector circuits. Follow each step to restore smooth engine operation and avoid further damage.
Replacing Faulty Injectors
Begin by testing the injector’s electrical resistance with a multimeter. Compare the reading to the Jeep’s factory specifications.
A reading that shows an open circuit or wrong resistance means the injector is faulty. Remove the bad injector carefully and install a new one.
Ensure the new injector matches the model and specifications of your Jeep Wrangler. After replacement, clear the error codes and run the engine to check for improvement.
Fixing Wiring And Connector Issues

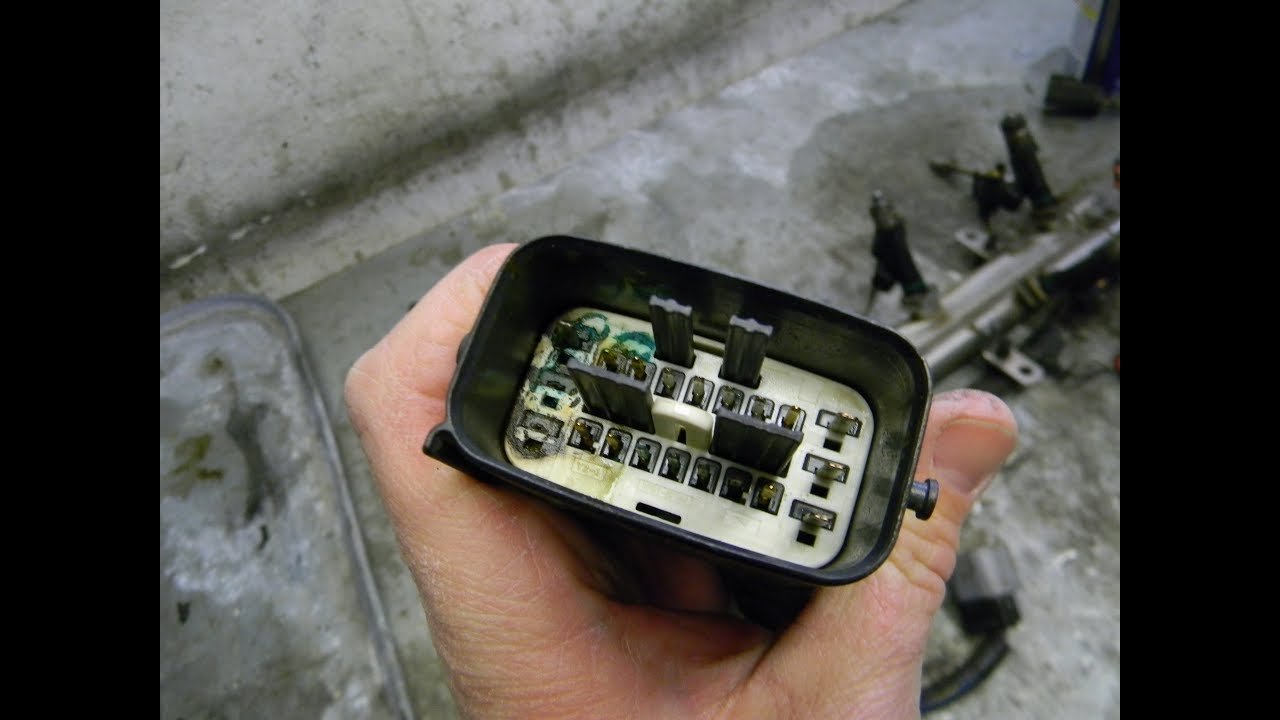

Inspect the wiring harness and connectors linked to the injector. Look for broken wires, corrosion, or loose connections.
Repair any damaged wires by splicing or replacing them. Clean the connectors thoroughly to ensure good contact.
Reconnect the wiring securely to the injector. Use a noid light to check if the injector receives pulses from the PCM.
Proper wiring and connector repair can fix many injector circuit faults.
Addressing Pcm Injector Driver Failures
The Powertrain Control Module (PCM) controls injector signals. A failed injector driver inside the PCM causes open circuit codes like P0203.
Testing the PCM injector driver requires special tools or professional help. If the PCM driver is faulty, the module may need repair or replacement.
Avoid replacing injectors or wiring repeatedly without checking the PCM. Correcting PCM failures restores proper injector operation and engine performance.
Preventing Future Injector Issues
Preventing injector issues in your Jeep Wrangler saves time and money. Regular care keeps injectors working well.
Avoiding common problems improves engine performance and fuel efficiency. Staying ahead prevents costly repairs and breakdowns.
Regular Maintenance Tips
Check your fuel injectors during routine services. Clean them to remove dirt and deposits.
Replace fuel filters regularly to stop contaminants reaching injectors. Use fuel system cleaners occasionally to keep injectors clear. Follow the Jeep Wrangler’s maintenance schedule closely.
Monitoring Electrical System Health
Inspect wiring and connectors linked to injectors. Look for corrosion, loose connections, or damaged wires.
Test injector resistance with a multimeter to find faults early. Ensure the PCM sends correct signals to the injectors.
Fix electrical issues promptly to avoid injector failure.
Using Quality Replacement Parts
Choose OEM or trusted aftermarket injectors for replacements. Cheap parts may fail quickly and harm your engine.
Use genuine seals and connectors to ensure proper fit. Quality parts maintain fuel flow and prevent leaks.
Investing in good parts protects your Jeep’s injector system.
Cost Considerations For Repairs
Repairing a P0203 code on a Jeep Wrangler involves several cost factors. Understanding these helps plan your budget better.
The expenses vary depending on parts, labor, and service choice. This section breaks down the main costs related to fixing this injector circuit issue.
Injector Replacement Expenses
Fuel injectors for a Jeep Wrangler cost between $50 and $150 each. Prices depend on brand and quality.
Some Jeep models may need OEM parts, which cost more. Replacing one injector is cheaper than replacing all.
Expect parts to range from $100 to $300 on average.
Labor And Diagnostic Fees
Labor fees for injector repairs usually run $80 to $150 per hour. Diagnosis of the P0203 code can take one to two hours.
Shops charge for scanning and testing the electrical circuit. Total labor costs may reach $150 to $300. Rates vary by location and shop reputation.
Diy Vs Professional Service
Doing the repair yourself saves money on labor costs. Basic tools and a repair manual are necessary.
Mistakes can cause more damage and higher costs later. Professional service ensures proper diagnosis and repair.
It offers warranty and reduces risk of errors. Choose based on skill level and comfort.
Frequently Asked Questions
How Do I Fix Error Code P0203?
To fix error code P0203, test the fuel injector’s resistance with a multimeter. Replace faulty injectors. Check wiring and PCM signals for issues.
How Much Does It Cost To Replace Fuel Injectors In A Jeep?
Replacing fuel injectors in a Jeep typically costs between $300 and $700, including parts and labor. Prices vary by model and location.
Can You Drive With A P0203 Code?
You can drive with a P0203 code, but expect rough idling and poor performance. Fix the injector circuit soon.
How To Fix Injector Circuit Open Cylinder 3?
To fix an injector circuit open on cylinder 3, check wiring for damage or disconnections. Test injector resistance with a multimeter.
Replace the faulty injector if resistance is incorrect. Inspect the PCM injector driver for failure and repair or replace as needed.
Conclusion
The P0203 code signals a fuel injector issue in your Jeep Wrangler. This can cause misfires and rough engine performance.
Early diagnosis helps avoid bigger problems. Testing injector resistance and checking wiring are key steps.
Fixing this code restores smooth driving and better engine response.
Keep an eye on engine lights and symptoms. Taking action quickly saves time and money.
Your Jeep will run stronger with proper injector care.
