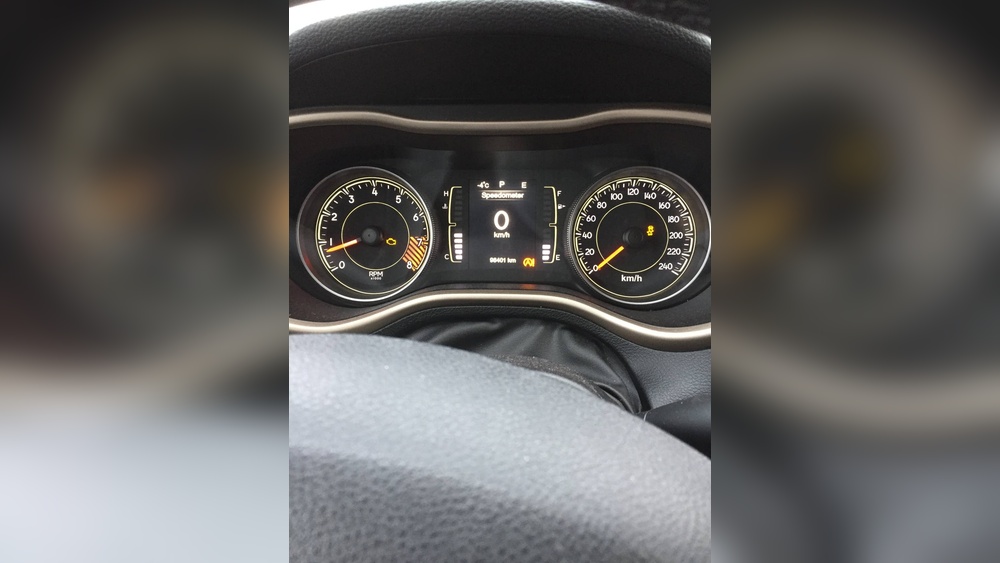

If you’ve ever seen the code Jeep P0480 pop up on your dashboard, you know it can be a bit worrying. This trouble code points to an issue with your radiator cooling fan’s control circuit—something that’s crucial for keeping your engine from overheating.
Ignoring it isn’t an option, because a malfunctioning cooling fan can lead to serious engine damage and costly repairs. But don’t panic just yet. You’ll learn what triggers the P0480 code, how to spot the common causes, and the simple steps you can take to fix it yourself or know when to call in a pro.
Keep reading to protect your Jeep and avoid unexpected breakdowns.
Code P0480 And Its Risks
The Jeep P0480 code signals a problem with the cooling fan circuit. This circuit helps control the engine temperature by running the cooling fan. Ignoring this code can lead to serious risks. The cooling fan is essential to prevent the engine from overheating. Without it, the engine faces damage and poor performance.
Impact On Engine Cooling
The cooling fan helps lower the engine temperature by drawing air through the radiator. When code P0480 appears, the fan may not work properly. This causes the engine to run hotter than normal. Hot engines reduce fuel efficiency and can trigger other warning lights. Overheating can cause the car to stall or lose power on the road. Maintaining proper cooling is critical for safe driving and engine health.
Potential Engine Damage
Constant overheating from a faulty cooling fan can damage engine parts. The cylinder head gasket may blow, leading to costly repairs. Overheated engine oil loses its ability to protect moving parts. This speeds up wear and tear inside the engine. Serious overheating can warp the engine block or head. Replacing damaged parts is expensive and time-consuming. Fixing code P0480 quickly helps avoid these costly problems.
Common Causes Of P0480
The P0480 code signals a problem with the cooling fan circuit in your Jeep. This code activates when the engine control module (ECM) detects a failure in the cooling fan relay circuit. Identifying the root cause is essential to avoid engine overheating and costly repairs. Several common issues cause the P0480 code.
Blown Fuses And Bad Relays
The cooling fan system depends on fuses and relays to function properly. A blown fuse interrupts the power supply to the fan motor. Bad relays can fail to send the correct electrical signal to the fan. These components are often housed in the Totally Integrated Power Module (TIPM). TIPM is vulnerable to water damage, which can cause fuses to blow or relays to burn out.
Corroded Or Damaged Wiring
Wiring connects the fan motor to the power source and control module. Over time, wires may corrode, fray, or get damaged by heat and engine vibrations. Damaged wiring causes poor electrical flow or shorts. This prevents the cooling fan from operating correctly and triggers the P0480 code.
Faulty Fan Control Module
The fan control module regulates the speed and operation of the cooling fan. It receives signals from the ECM and adjusts the fan speed accordingly. A faulty module can send wrong commands or fail to activate the fan. This leads to cooling system errors and causes the P0480 code to appear.
Failed Fan Motor
The electric fan motor powers the blades that cool the radiator and engine. Motors can burn out due to wear or become jammed by debris. A motor that does not run or runs intermittently causes poor engine cooling. This failure triggers the P0480 trouble code and needs prompt attention.
Diagnosing The Problem
Diagnosing the Jeep P0480 trouble code involves checking the cooling fan system carefully. This code points to a problem with the cooling fan relay or circuit. Fixing it requires a step-by-step approach. Each step helps find the exact cause of the issue.
Checking Fan Operation
Start by turning on the engine and the air conditioning. The cooling fan should start running soon after. Watch the fan blades closely. They must spin smoothly and without noise. Try spinning the fan blades by hand when the engine is off. The blades should turn freely. If the fan does not run or is stuck, the motor might be bad or blocked.
Testing Fuses And Relays
Look under the hood to find the fuse box or the Totally Integrated Power Module (TIPM). Check for any blown fuses related to the cooling fan. Also, test the cooling fan relays. Swap the relay with another one of the same type to see if the fan starts working. A faulty fuse or relay often causes the P0480 code.
Inspecting Wiring And Connectors
Check the wiring harness connected to the fan and its control module. Look for broken wires, corrosion, or loose connections. Damaged wiring can stop the fan from getting power. Make sure all connectors fit tightly and show no signs of wear. Repair or replace damaged parts as needed.
Using A Multimeter For Voltage Tests
Use a multimeter set to DC voltage to test the wiring. Probe the terminals on the harness side, not the fan motor side. Test while the engine runs and the air conditioning is on. A working circuit should show voltage at the connector. No voltage means a wiring or relay problem. This test helps pinpoint where the power stops.
Step-by-step Fixes
Fixing the Jeep P0480 code requires clear, step-by-step actions. This code points to problems with the cooling fan system. Ignoring it can lead to engine overheating and costly repairs. Follow these steps to troubleshoot and fix the issue effectively.
Removing Physical Blockages
First, check the cooling fan for any blockages. Dirt, leaves, or debris can stop the fan blades from spinning. Carefully clear any obstacles around the fan. Try spinning the fan blades by hand. They should move freely without resistance.
Replacing Blown Fuses And Relays
Next, inspect the fuses and relays connected to the cooling fan circuit. Look in the under-hood fuse box, often called the Totally Integrated Power Module (TIPM). Replace any blown fuses or relays with exact matches. This can restore power to the fan system.
Repairing Or Replacing Wiring
Check the wiring harness that connects the fan motor and control module. Look for frayed, corroded, or loose wires. Use a multimeter to test for continuity. Repair or replace damaged wiring to ensure a stable electrical connection.
Swapping Faulty Fan Control Modules
The fan control module manages fan speed and operation. Test the module to see if it responds correctly. Replace the module if it shows signs of failure. A new control module can fix erratic or non-functioning fans.
Changing The Fan Motor
If all other components work properly, the fan motor might be the problem. Test the motor by supplying direct power. Replace the motor if it does not run or runs weakly. Installing a new fan motor restores proper cooling function.
Preventive Maintenance Tips
Preventive maintenance helps avoid the Jeep P0480 error. This code often relates to cooling fan issues. Taking simple steps keeps your vehicle running smoothly. Regular care prevents costly repairs and improves safety.
Protecting The Tipm Box
The Totally Integrated Power Module (TIPM) controls many electrical parts. It is sensitive to water and dirt. Keep the engine bay dry to protect the TIPM box. Avoid spraying water directly on it during cleaning. Use covers or shields if possible. Check for cracks or damage to the box regularly. A well-protected TIPM reduces electrical faults and fan problems.
Regular Wiring Inspections
Wiring issues often cause the P0480 code. Inspect wires connected to the cooling fan and TIPM box. Look for frayed, cracked, or corroded wires. Check connectors for loose pins or corrosion. Repair or replace damaged wiring right away. Good wiring ensures steady power flow and prevents fan failure. Regular checks save time and money on repairs.
Keeping Cooling Fans Clean
Dirt and debris can block cooling fans. This limits airflow and causes overheating. Clean the fan blades and motor often. Remove leaves, dust, and bugs carefully. Avoid bending or damaging the fan blades. Clean fans run quietly and efficiently. Regular cleaning reduces stress on the motor and wiring. This helps avoid the P0480 error code.
Tools And Parts Needed
To address the Jeep P0480 code, gather the right tools and parts first. Proper equipment ensures accurate diagnosis and smooth repair. This section lists essential items to check and replace for the cooling fan system.
Multimeter And Testing Tools
A multimeter is vital for testing voltage and continuity. Use it to check fuses, relays, and wiring for faults. Other tools like test lights and circuit testers help spot electrical issues. These tools confirm if power reaches the cooling fan components.
Replacement Fuses And Relays
Cooling fans rely on specific fuses and heavy-duty relays. Inspect and replace blown fuses found in the fuse box or TIPM (Totally Integrated Power Module). Faulty relays cause fans to stop working. Keep spare fuses and relays on hand for quick swaps.
Fan Control Modules And Motors
The fan control module manages fan speed and operation. A defective module can trigger the P0480 error. Inspect the module attached to the fan assembly. The fan motor itself can fail or get jammed by debris. Replacement modules and motors restore proper cooling function.
When To Seek Professional Help
Knowing when to seek professional help for Jeep P0480 issues can save time and prevent further damage. Some problems require expert tools and knowledge. If your Jeep’s cooling fan or electrical system shows signs of trouble beyond simple fixes, a mechanic can diagnose it accurately. Ignoring complex problems might lead to costly repairs later. Understanding the signs that call for professional service helps maintain your Jeep’s reliability and safety.
Complex Electrical Issues
Electrical problems in your Jeep can be tricky and hard to find. Faulty wiring, corroded connectors, or damaged control modules need special tools to test properly. A professional mechanic has the experience and equipment to trace these issues quickly. Attempting repairs without proper knowledge may cause more damage or create safety hazards. Complex electrical faults often hide behind simple symptoms, requiring expert diagnosis.
Persistent Code After Repairs
The P0480 code may reappear even after you fix the obvious problems. This signals an underlying issue that is not yet resolved. Professionals use advanced scanners to read live data and perform detailed system checks. They can identify hidden faults like intermittent wiring shorts or failing sensors. Persistent codes need thorough inspection to prevent repeated breakdowns and ensure your Jeep runs smoothly.
Frequently Asked Questions
How Do I Fix Code P0480?
To fix code P0480, inspect cooling fan fuses and relays for damage. Check wiring for corrosion or breaks. Test the fan motor and control module for proper operation. Replace any faulty parts to restore the cooling fan circuit and prevent engine overheating.
Is It Safe To Drive On P0480 Jeep?
Driving a Jeep with a P0480 code is unsafe. It indicates a cooling fan issue that can cause engine overheating and damage. Fix the problem promptly to avoid costly repairs and maintain safe vehicle operation.
Can A Faulty Fan Cause A P0480 Code?
Yes, a faulty fan can trigger a P0480 code. The code indicates an issue with the fan control circuit. Faulty fan motors, relays, or wiring often cause this problem. Addressing fan malfunctions helps prevent engine overheating and costly damage.
How Do I Fix The Cooling Fan 1 Control Circuit Malfunction?
Check fuses and relays in the fuse box. Inspect wiring for damage or corrosion. Test the fan motor and control module. Replace faulty parts. Ensure no physical blockages prevent fan operation. Use a multimeter to verify voltage while the engine runs.
Conclusion
The Jeep P0480 code signals a problem with the cooling fan circuit. Ignoring this issue can cause the engine to overheat. Regularly check fuses, relays, and wiring for damage or corrosion. Testing the fan motor and control module helps find faults quickly.
Fixing these problems keeps your Jeep running safely and smoothly. Stay alert to early signs and act fast to avoid costly repairs. Proper maintenance ensures your Jeep’s cooling system works well every time.
