Wiring an LED light bar to your Jeep WK (the 2005–2010 Grand Cherokee) can transform your nighttime driving or off-road experience. Many Jeep owners want extra lighting, but the process can feel confusing if you’re not used to working with car electronics. The good news is, with the right steps and tools, you can safely install an LED light bar and enjoy improved visibility. Let’s walk through the full process so you can get it right the first time.
What You Need Before Starting
Installing an LED light bar on your Jeep WK requires a few tools and components. Most common kits will include the light bar and a basic wiring harness, but you might need extra parts for a cleaner or more reliable installation.

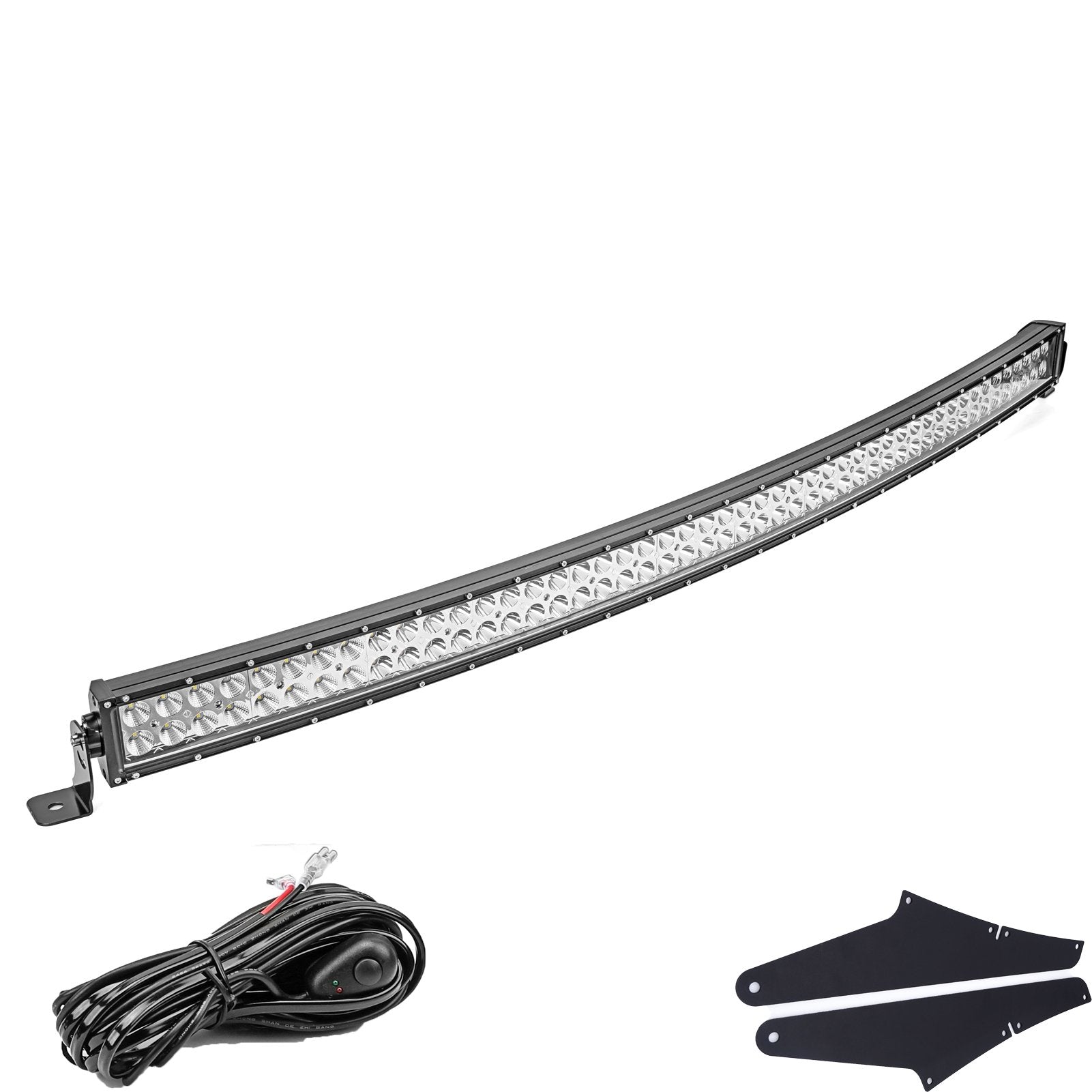

- LED light bar (make sure it fits your Jeep WK mounting spot)
- Wiring harness with relay and fuse
- Switch (on/off or rocker)
- Basic hand tools (screwdriver, wrench, pliers)
- Wire crimper and stripper
- Electrical tape and zip ties
- Multimeter (for checking voltage and continuity)
- Optional: Heat shrink tubing, soldering kit (for best connections)
Before you begin, check the wattage of your LED light bar. Most bars for Jeep WK use between 72W and 180W, drawing 6–15 amps. Always choose a fuse and relay rated for at least 20 amps to stay safe.
Planning Your Installation

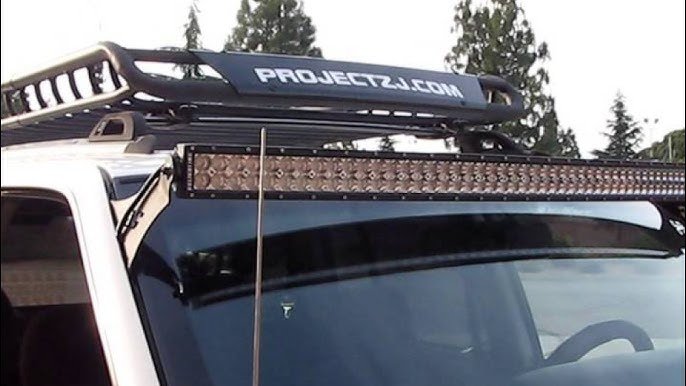

Planning is critical. Think about where you want to mount the light bar—common spots include the roof, just above the windshield, or the front bumper. Consider where the wiring will run so it stays protected and out of sight.
| Mounting Location | Difficulty | Visibility Gain |
|---|---|---|
| Roof | Medium | Wide area, far distance |
| Front Bumper | Easy | Focused low beams |
| Grille | Medium | Balanced spread |
Pro tip: Avoid running wires near hot engine parts or moving components. This prevents melted insulation and future failures.
Step-by-step Wiring Process
Let’s break down each step to make sure your wiring is safe and reliable.

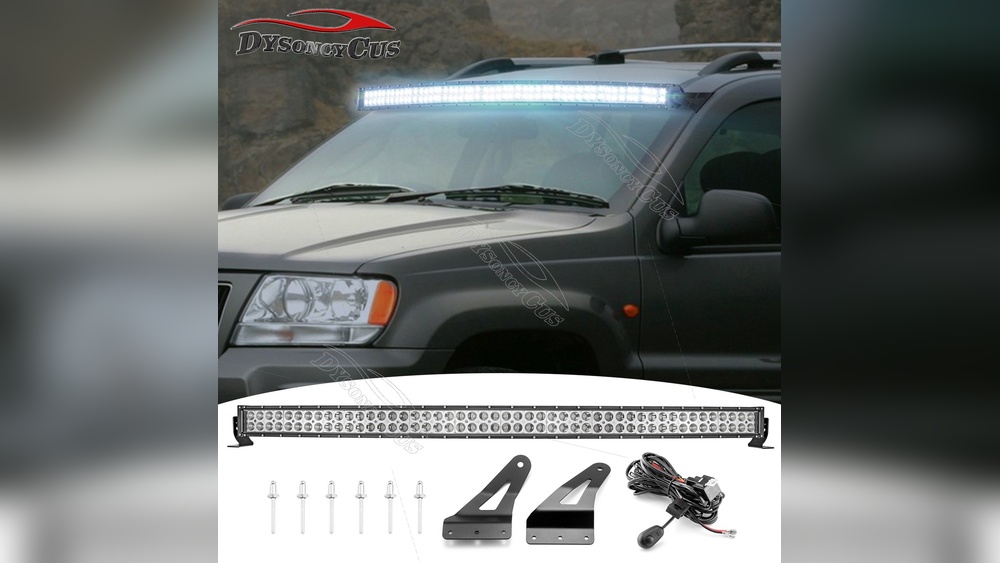

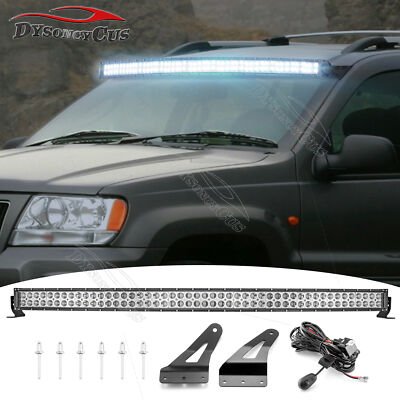

1. Position And Mount The Light Bar
Use the mounting brackets to secure the light bar in your chosen spot. Make sure it’s tight and adjusted for the best angle. Double-check clearance for your hood and windshield wipers.
2. Route The Wiring Harness
Lay out your wiring harness from the light bar to the battery, following the shortest and safest route. Keep wires away from sharp edges and hot surfaces. Use zip ties to secure the wires along existing harnesses.
3. Connect To The Battery
Most LED light bars require a direct connection to the battery for stable power.
- Attach the positive (red) wire to the battery’s positive terminal.
- Attach the negative (black) wire to a clean, bare metal ground point on the chassis or directly to the battery’s negative terminal.
Insert the inline fuse as close as possible to the battery terminal. This protects your Jeep in case of a short circuit.
4. Install The Relay
A relay is a switch that uses a small current to control a larger one. It protects your Jeep’s wiring and allows the switch to be mounted inside the cabin.
Wiring the relay usually follows this pattern:
- Pin 30: To battery positive (with fuse)
- Pin 85: To ground
- Pin 86: To switch (inside cabin)
- Pin 87: To positive wire of the light bar
Check your harness instructions, but most follow this standard.
5. Mount And Wire The Switch
Find a convenient spot inside your Jeep WK for the switch. Many owners use the panel next to the steering wheel or under the dashboard.
- Run the switch wire from the relay (Pin 86) through the firewall. Use a factory grommet if available.
- Connect the switch output to Pin 86, and the other terminal to a 12V ignition source if you want the lights to only work with the key on.
Secure the switch so it won’t move while driving.
6. Connect The Light Bar
Plug the harness connector into the light bar. If your kit requires, use heat shrink tubing or electrical tape to insulate the connection.
7. Test The System
Before finalizing, double-check all connections. Use a multimeter to verify voltage at the light bar plug.
Turn on your Jeep, flip the switch, and make sure the light bar works. If it doesn’t, check the fuse, relay, and ground connections.
| Common Issue | Possible Cause | Fix |
|---|---|---|
| Light bar won’t turn on | Bad ground or blown fuse | Check ground, replace fuse |
| Light flickers | Poor connection or relay issue | Re-crimp connections, test relay |
| Switch gets hot | Too much current through switch | Use relay, never direct wiring |
Non-obvious Tips And Common Mistakes
Many first-time installers make small errors that can cause big headaches:
- Ignoring wire gauge: Always use at least 14-gauge wire for light bars under 180W. Thinner wire can overheat.
- Skipping the relay: Never wire the light bar switch directly to the battery. Relays prevent switch overload and electrical fires.
- Bad grounding: Paint, rust, or oil under the ground connection can cause a weak or intermittent light. Sand down to bare metal.
- Routing near heat: Exhaust and engine parts can melt wiring insulation. Use high-temp wire loom if you must cross these areas.
Example: One Jeep WK owner found his light bar kept shutting off on bumpy roads. The cause? His ground wire was attached to a painted bolt. After sanding the paint off, the problem disappeared.
Legal And Safety Reminders
LED light bars are powerful. In many states, using them on the road is only allowed off-road or with a cover. Always check your local laws before wiring your light bar to come on with your high beams.
Make sure your installation does not block your Jeep’s airbag sensors or interfere with other electronics. If you are unsure, consult a professional or reference the official Jeep WK service manual.
For more about automotive wiring standards, check this Wikipedia guide.
Frequently Asked Questions
How Long Does It Take To Wire An Led Light Bar On A Jeep Wk?
Most DIYers can finish in 2–3 hours if they have all the tools and parts ready. The hardest part is often running the switch wire through the firewall.
Can I Use The Factory Fog Light Switch For The Led Bar?
It’s possible, but you’ll need to add a relay and check that the factory wiring can handle the extra current. Most owners use a dedicated switch for safety.
What Size Fuse Should I Use For My Light Bar?
Check your light bar’s wattage. For example, a 120W bar at 12V draws 10 amps. Use a 15–20 amp fuse for most setups.
Will The Light Bar Drain My Battery?
Not if wired correctly and only used with the engine running. If you leave it on with the engine off, even a large battery will drain in a few hours.
Is Soldering Better Than Crimp Connectors?
Soldering gives a stronger, more weatherproof connection, but quality crimp connectors with heat shrink tubing are usually enough for most Jeep WK installations.
Wiring an LED light bar is a practical upgrade for your Jeep WK. With careful planning and attention to detail, you’ll enjoy brighter, safer adventures—day or night.
