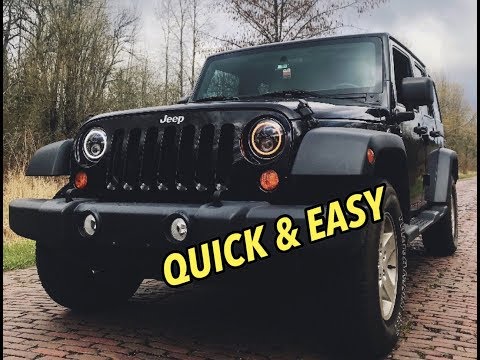

Adding halo lights to your Jeep Wrangler isn’t just about style—it also improves your visibility and road presence. Many Jeep owners love the look of those glowing rings around their headlights, but wiring them can seem intimidating if you’ve never done it before. The good news? With a bit of patience, the right tools, and this clear guide, you can confidently wire halo lights on your own.
Why Install Halo Lights On Your Jeep Wrangler?
Halo lights, also called angel eyes, are circular LED rings that mount inside or around your Jeep’s headlights. They’re popular for a few reasons:
- Better visibility: Halo lights make your Jeep more visible to other drivers, especially in bad weather or at dusk.
- Custom style: You can choose from different colors and styles to match your Jeep’s look.
- Modern upgrade: They give your Wrangler a fresh, updated appearance.
Some halo kits are just for looks, but others can function as daytime running lights (DRLs) or even turn signals. Before starting the installation, it’s important to know which kind you have.
Types Of Halo Light Kits
Choosing the right kit is the first step. There are three main types of halo light kits for Jeep Wrangler:
| Type | Main Features | Complexity |
|---|---|---|
| Plug-and-Play | Pre-wired connectors, minimal splicing | Easy |
| Hardwire Kits | Requires cutting/splicing wires | Moderate |
| Bluetooth/Remote-Controlled | Color changing, app or remote control | Advanced |
Tip: Plug-and-play kits are best for beginners, while hardwired and Bluetooth kits offer more features but need extra care during installation.
What You’ll Need
Preparation is key. Gather all necessary tools and parts before starting:
- Halo light kit (compatible with Jeep Wrangler)
- Wire strippers and crimpers
- Electrical tape
- Heat shrink tubing (for waterproof connections)
- Fuse tap or add-a-circuit adapter
- Multimeter (for testing voltage)
- Screwdriver set
- Zip ties (for tidy wiring)
- 12V relay (if your kit requires high power)
- Owner’s manual (for wiring diagrams)
Pro Insight: Many people forget a fuse tap or relay, leading to unreliable or unsafe wiring. Always protect your Jeep’s electrical system with the right fuse and connectors.
Key Steps Before You Start Wiring
Before jumping in, double-check a few things:
- Disconnect the battery. This prevents accidental shorts and shocks.
- Read the kit instructions fully. Some kits have unique steps.
- Plan your wiring route. Avoid hot or moving parts.
Common Mistake: Rushing through planning. Taking an extra 10 minutes to map out your wiring path can save hours of frustration and reduce the risk of melting wires or blown fuses.
Step-by-step Guide: Wiring Halo Lights On A Jeep Wrangler
Let’s get hands-on. The process will vary slightly depending on your kit, but the main steps are similar.
1. Remove The Headlights
You need clear access to the headlight housings:
- Use a screwdriver to remove the headlight bezel (the trim ring).
- Unscrew and gently pull out the headlight assembly.
Tip: Keep all screws and hardware in a small container so nothing gets lost.
2. Install The Halo Rings
Depending on your kit, you may need to open the headlight housing:
- For external halos, simply stick or clip the ring around the headlight.
- For internal halos, carefully open the headlight lens (usually with an oven or heat gun for softening the seal), then place the ring inside.
Be sure to follow your kit’s instructions. Some halos use double-sided adhesive, while others need brackets.
3. Route The Halo Wires
Run the wires from each halo ring out the back of the headlight housing. Make sure the wires do not pinch or rub against sharp edges.
Pro Insight: Use heat shrink tubing at any connection points inside the headlight. This adds moisture protection and prevents corrosion.
4. Find A Power Source
Halo rings need 12V power. You have a few choices:
| Power Source | When to Use | Notes |
|---|---|---|
| Parking Lights | For halos as DRLs | Halos turn on with parking lights |
| Ignition Fuse | For halos always on when driving | Use a fuse tap; halos on with engine |
| Separate Switch | Full control | Mount switch inside cabin |
Beginner Tip: Most Jeep owners tap into the parking light wire for simple operation. Use a multimeter to find the right wire (usually white with a brown stripe on JK models).
5. Connect The Wires
Follow these wiring basics:
- Red wire (positive): Connect to the chosen power source.
- Black wire (ground): Attach to a metal ground point on the Jeep’s body or chassis.
For color-changing kits:
- There may be extra wires for remote control or Bluetooth modules. Route these inside the cabin as needed.
Use crimp connectors or solder and seal with heat shrink tubing for a strong, weatherproof connection.
Common Mistake: Twisting wires together and taping them is not enough. Always use proper connectors or solder for long-term reliability.
6. Secure The Wiring
Use zip ties to keep wires away from hot parts (like the engine) and sharp edges. Leave a little slack for headlight movement but avoid dangling wires.
7. Test The Lights
Reconnect the Jeep’s battery. Turn on the power source you wired the halos to (parking lights, ignition, or switch). Check for:
- Both halo rings lighting up
- Brightness and color as expected
- No flickering
If something doesn’t work, check all connections and test with your multimeter.
8. Reinstall The Headlights
Once everything works, reinstall the headlights and bezels. Double-check that no wires are pinched and that everything sits securely.
Safety And Legal Considerations
Not all halo light colors are legal on public roads. In many US states, white and amber are allowed, but blue, red, or other colors may be reserved for emergency vehicles.
Pro Insight: Always check your local laws before installing colored halos. Using illegal colors can result in fines or failed vehicle inspections.
Troubleshooting Common Problems
If your halo lights don’t work as expected, here are some quick fixes:
- One ring won’t light up: Check for loose connections or a bad ground.
- Flickering or dim lights: This is often caused by a weak ground or low voltage. Try a better ground point or heavier gauge wire.
- Halos stay on after Jeep is off: If you tapped the wrong fuse, halos may get constant power. Move the connection to a switched source.
Pro Insight: Testing with a multimeter saves time. Always test voltage at the halo connection before taking things apart.
Comparing Popular Halo Light Brands
Not all halo kits are equal. Here’s a quick comparison of three popular brands for Jeep Wrangler:
| Brand | Key Features | Estimated Cost | Warranty |
|---|---|---|---|
| Oracle Lighting | Bluetooth control, multi-color, waterproof | $150–$250 | 2 years |
| KC HiLiTES | Simple white/amber, high quality | $120–$200 | 1 year |
| Xprite | Budget-friendly, color options, remote | $60–$130 | 1 year |
Beginner Tip: Don’t just buy the cheapest kit. Look for waterproofing and a good warranty, especially if you off-road or drive in wet conditions.
Two Non-obvious Tips For A Successful Install
- Test halos outside the Jeep first. Connect them directly to a 12V battery before installation to check color and brightness. Some kits ship with faulty LEDs.
- Seal all connections with dielectric grease. Even if you use heat shrink, a dab of dielectric grease will prevent moisture and corrosion—especially important for off-roaders.
When To Seek Professional Help
If you’re unsure about wiring or want to avoid potential mistakes, consider asking a professional. Electrical shops or Jeep customization specialists can usually install halo kits in one to two hours. This ensures safety and avoids issues like blown fuses or headlight condensation.
Extra Resources
If you want to see a visual walkthrough or need wiring diagrams, the official Jeep website offers owner’s manuals and tips.
Final Thoughts
Wiring halo lights on your Jeep Wrangler is a project you can do with some careful planning and attention to detail. Not only will your Jeep stand out, but you’ll also add an extra layer of safety and personality. Remember to use quality connectors, protect all wiring, and double-check your power source before finishing up. With patience, the right tools, and these tips, you’ll be enjoying your new halo lights in no time.
Frequently Asked Questions
How Long Does It Take To Install Halo Lights On A Jeep Wrangler?
Most DIY installs take about 2–3 hours for beginners. If you have experience with automotive wiring, it may be faster.
Are Halo Lights Legal In All States?
White and amber halos are generally legal for road use, but red and blue halos are restricted to emergency vehicles in most states. Always check local laws.
Can I Wire Halo Lights Without Cutting Factory Wires?
Yes, with a fuse tap or add-a-circuit adapter, you can avoid cutting factory wires. Some plug-and-play kits also use existing connectors.
Will Halo Lights Drain My Battery?
Halos use very little power—usually less than 5 watts per ring. However, if wired to constant power, they can slowly drain the battery if left on when the Jeep is off.
Can I Use Halo Lights As Turn Signals?
Some kits have a dual-function feature. This lets you wire the halos as turn signals or daytime running lights. Check your kit’s instructions to see if this is possible.
