Wiring halo headlights on a Jeep Wrangler is a rewarding upgrade. The sleek ring of LEDs adds style and improves visibility. Many Jeep owners want to do this themselves, but wiring can feel intimidating. With the right steps, tools, and safety checks, you can wire your halo headlights confidently—even if you’re not an electrical expert.
This guide walks you through the process, shares mistakes to avoid, and helps you understand how to get the best result without overspending or risking your Jeep’s electrical system.
Understanding Halo Headlights For Jeep Wrangler
Halo headlights use LED rings around the main bulb. The rings can be used for daytime running lights (DRL), turn signals, or simply as a stylish accent. Jeep Wranglers (especially JK and JL models) have plenty of space for halo upgrades, but wiring is different for various years.
Most halo kits come with:
- Two headlight units (with halo rings)
- Wiring harnesses
- Connectors and mounting brackets
Before starting, check that your kit matches your Jeep’s model. Some kits are plug-and-play, while others need manual wiring.
| Jeep Model | Headlight Size | Wiring Complexity |
|---|---|---|
| Wrangler JK (2007–2018) | 7-inch | Medium |
| Wrangler JL (2018–present) | 9-inch | High |
| Wrangler TJ (1997–2006) | 7-inch | Low |
Tools And Materials Needed
You’ll need the following:
- Wire stripper and crimper
- Electrical tape
- Multimeter (for testing voltage)
- Zip ties
- Screwdriver set
- Halo headlight kit
- Optional: Soldering iron for extra durability
Having a multimeter is vital. Many people skip this, but it helps you find the right wires and check connections.
Preparing For Installation
Disconnect your Jeep’s battery before starting. This prevents short circuits and keeps you safe. Remove the front grille using a screwdriver. Then, unscrew the old headlights and unplug them. Keep all screws and brackets, as you’ll reuse them.
Check your Jeep’s wiring diagram. You can find this in the owner’s manual or online forums. Look for the headlight harness—usually three wires:
- Ground (black)
- Low beam (white or yellow)
- High beam (red or green)
Halo rings usually need a 12V power source and a ground. Decide if you want the halos to run as DRLs, with parking lights, or with turn signals.
| Function | Wire Color (Common) | Connection Point |
|---|---|---|
| DRL | White | Fuse box or ACC |
| Parking Light | Brown | Parking lamp wire |
| Turn Signal | Green | Turn signal wire |

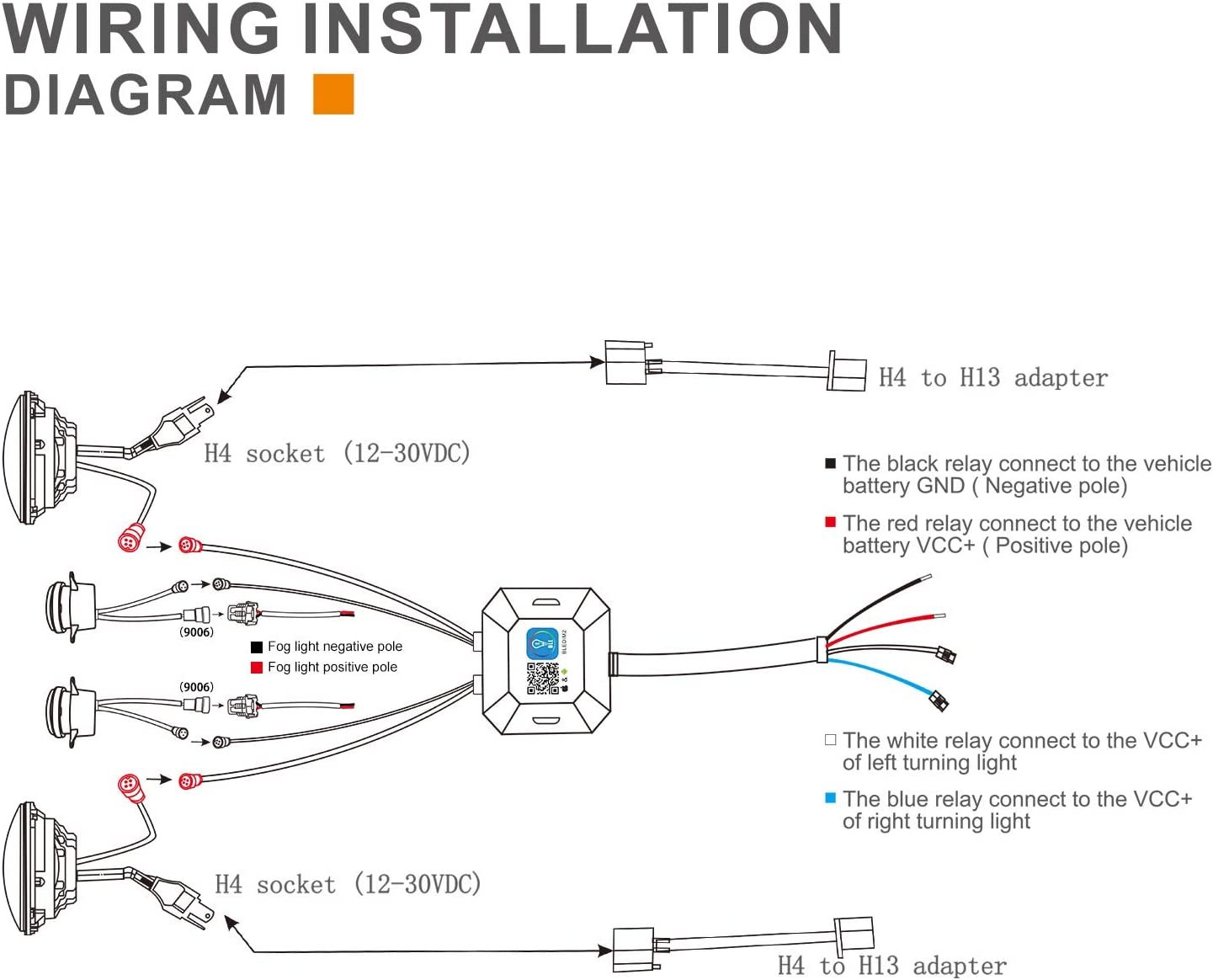

Step-by-step Wiring Guide
1. Identify Wires
Use your multimeter to confirm which wire does what. Don’t rely only on color—Jeep wiring can vary.
2. Connect Halo Rings
- For DRL, tap the halo’s positive wire to the accessory (ACC) fuse.
- For parking lights, tap into the parking lamp wire.
- For turn signals, connect to the turn signal wire.
Use wire taps or solder for secure connections. Always connect the halo’s ground wire to the vehicle’s chassis or the headlight harness ground.
3. Secure Connections
Wrap connections with electrical tape. If using solder, heat the joint until the solder flows and cover it with heat-shrink tubing.
4. Test Before Mounting
Reconnect the battery. Test each function: turn on the headlights, parking lights, and turn signals. Make sure the halo rings light up as intended. If not, recheck your connections.
5. Mount New Headlights
Fit the halo headlights into the housing. Secure with brackets and screws. Reinstall the grille.
6. Final Checks
Check for flickering or dim halos. If you notice problems, check ground connections and ensure wires are not pinched.
Common Wiring Mistakes And How To Avoid Them
Many beginners miss these points:
- Wrong wire tapping: Double-check wires with a multimeter. Jeep models can have different colors.
- Weak connections: Use soldering or quality wire taps. Loose wires can cause flickering or failure.
- Skipping fuse protection: Always use an in-line fuse if tapping into a new circuit. This prevents electrical fires.
- Poor grounding: Halo rings need a solid ground. Test with a multimeter for continuity.
Here’s a comparison of common mistakes and solutions:
| Mistake | Impact | Solution |
|---|---|---|
| Wrong wire | Halos don’t work | Use multimeter |
| No fuse | Risk of fire | Add in-line fuse |
| Loose connection | Flickering | Solder/tap properly |
| Poor ground | Dim halos | Secure chassis ground |
Practical Tips For A Clean Install
- Route wires away from moving parts and heat sources.
- Use zip ties to secure wires under the hood.
- If halos are for DRL, consider using a fuse tap for a neat connection.
- Take photos as you go—this helps if you need to troubleshoot later.
Extra insight: Many people forget to check local laws. Some states restrict certain colors for halo rings. Always use white or amber for safety and compliance.
Frequently Asked Questions
How Long Does It Take To Wire Halo Headlights?
Most installs take 1–2 hours if you have the right tools and follow the steps carefully. If you’re new to wiring, plan for extra time.
Do I Need Professional Help?
No, most Jeep owners can do this themselves. If you’re unsure about wiring, ask a friend with electrical experience or check guides from ExtremeTerrain.
Can I Wire Halos To Multiple Functions?
Yes. Many kits allow the halo ring to act as both a DRL and turn signal. You’ll need to connect the wires to both circuits, following kit instructions.
Will Adding Halo Headlights Void My Warranty?
Usually, it won’t void your warranty if you follow safe wiring methods and don’t damage the factory harness. Always check with your dealer for your model.
What If My Halo Rings Flicker Or Don’t Turn On?
Check all connections, especially ground wires. Flickering is often caused by loose wires or poor grounding. Use a multimeter to test voltage at each wire.
Wiring halo headlights for your Jeep Wrangler isn’t just about looks—it’s also about safety and smart upgrades. Take your time, double-check your wires, and enjoy the new style and visibility. With patience and careful planning, your Jeep will stand out both day and night.
