Wiring a light bar can seem difficult if you are new to automotive electronics. But with the right guidance, it is possible for anyone with basic tools and a bit of patience. Whether you want to install a light bar for off-road adventures, worksite visibility, or just to enhance your vehicle’s look, learning how to wire it safely is essential. This guide will walk you through each step, highlight important safety tips, and show you how to avoid common mistakes.
Choosing The Right Light Bar
Before wiring, you need to select a light bar that fits your needs. Light bars come in various sizes and power ratings. A 20-inch bar may use 120 watts, while a 50-inch bar could use over 300 watts. The brightness is measured in lumens; for example, a 120-watt bar can produce about 12,000 lumens.
Consider:
- Mounting location: Roof, bumper, or grille.
- Voltage compatibility: Most bars are designed for 12V systems.
- Weather resistance: Look for IP67 or higher for water and dust protection.
Here’s a quick comparison of three common types:
| Type | Watts | Length | Lumens | IP Rating |
|---|---|---|---|---|
| Spot Beam | 120 | 20″ | 12,000 | IP67 |
| Flood Beam | 180 | 30″ | 18,000 | IP68 |
| Combo Beam | 300 | 50″ | 24,000 | IP69 |
Tools And Materials Needed

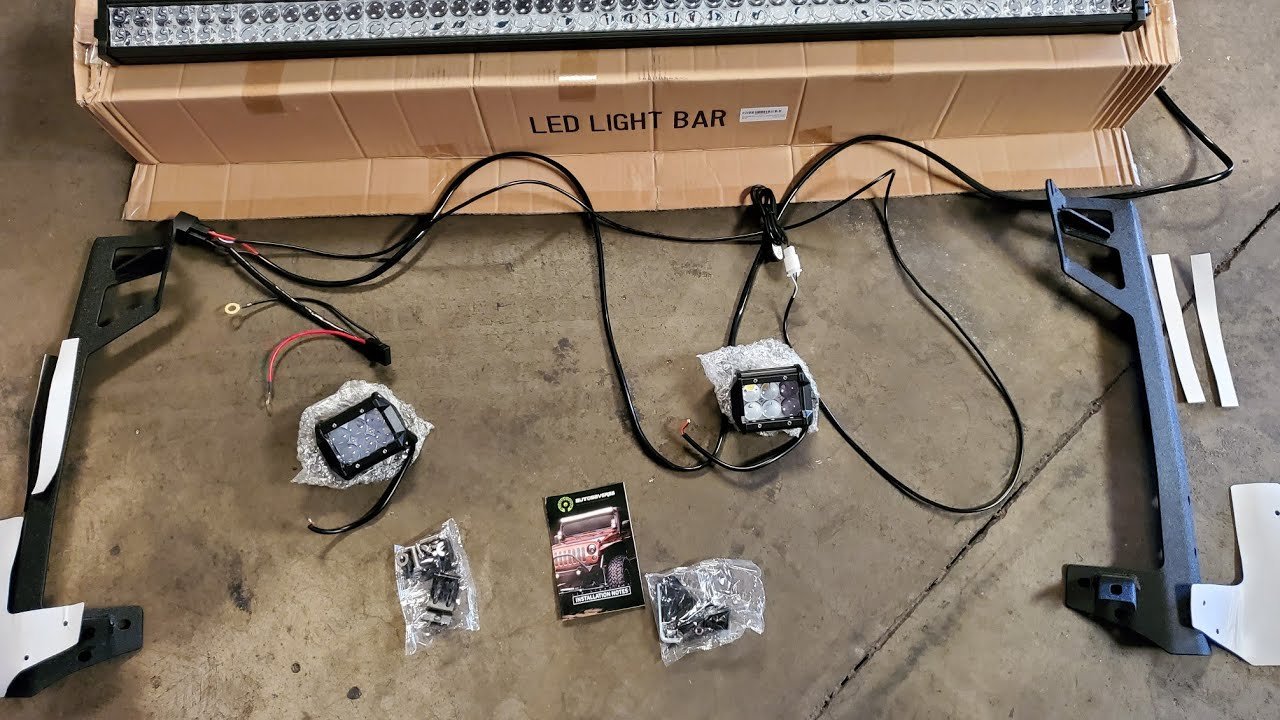

To wire a light bar, gather the following:
- Light bar
- Relay harness (usually included)
- Switch (rocker or toggle)
- Fuse (rated for your bar, e.g., 20A)
- Wiring connectors
- Electrical tape
- Wire stripper
- Drill (for mounting)
- Multimeter (for testing)
Choosing the right fuse is crucial. For example, a 120-watt bar draws 10 amps on a 12V system. Always use a fuse rated slightly higher than the draw, but never too high. A 15A fuse is safe for a 10A draw.
Step-by-step Wiring Instructions
1. Plan Your Wiring Route
Decide where you will mount the light bar and how you will run the wires. Avoid sharp edges and moving parts. Keep wires away from hot areas like the engine.
2. Mount The Light Bar
Secure the bar using the provided brackets. Make sure it is tight and aimed correctly. Test the position before final tightening.
3. Install The Relay And Fuse
Most light bars require a relay to handle the high current. Place the relay near the battery for easy access. Connect the fuse between the relay and battery.
| Component | Purpose | Location |
|---|---|---|
| Relay | Controls high current | Near battery |
| Fuse | Protects circuit | Between relay and battery |
| Switch | User control | Inside cabin |

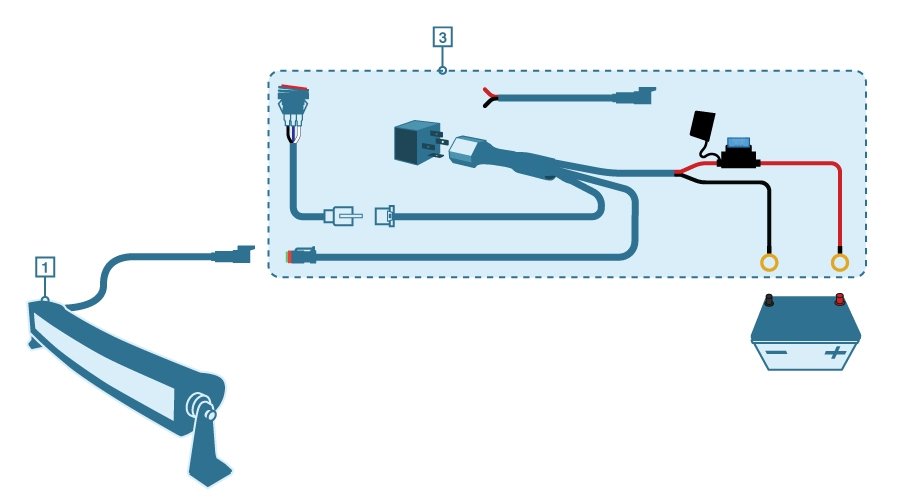

4. Connect The Wiring
Follow these steps:
- Connect power wire from the relay to the positive battery terminal.
- Connect ground wire from the relay to the chassis or negative battery terminal.
- Attach the switch wire from the relay to the switch inside your vehicle.
- Connect the light bar wires (usually red for positive, black for negative) to the relay output.
Use crimp connectors and wrap all connections with electrical tape. Check for loose connections.
5. Install The Switch
Mount the switch in a convenient spot inside your vehicle. Drill a hole if needed, but avoid areas with airbag or wiring. Connect the switch wire to the relay.
6. Test The System
Before finalizing, turn on the switch and check the light bar. If it does not light up, use a multimeter to check voltage and continuity. Common issues include reversed polarity or a blown fuse.
Safety Tips And Common Mistakes
- Always disconnect the battery before starting.
- Never use undersized wires. For a 10A draw, use at least 16 AWG wire.
- Do not skip the fuse; it protects against fire.
- Avoid grounding directly to the battery unless instructed by the manufacturer.
- Do not mount wires near moving parts or hot surfaces.
- Test all connections before securing wires permanently.
Beginner insight: Many people forget to check the IP rating, which leads to water damage in rainy conditions. Also, mounting the relay too far from the battery can cause voltage drop.
Troubleshooting Problems
If your light bar does not work:
- Check fuse and relay first.
- Use a multimeter to test voltage at the bar.
- Inspect all connections for corrosion or loose wires.
- Look for pinched wires under mounts.
Common issue: If the light bar flickers, it usually means a loose ground or a weak battery.
Real-world Example
John installed a 30-inch combo beam bar on his truck. He used a 20A fuse for his 180-watt bar and mounted the relay near the battery. His first attempt failed because he connected the ground wire to painted metal, which blocked the circuit.
After connecting to bare metal, the bar worked perfectly.
According to the Automotive Lighting Wiki, using proper relays and fuses reduces electrical fires by over 80% compared to direct wiring.
Frequently Asked Questions
How Do I Choose The Right Wire Gauge For My Light Bar?
Choose wire gauge based on current draw and length. For up to 10 amps and under 10 feet, use 16 AWG wire. For longer runs or higher power, use 14 AWG or thicker.
Can I Wire A Light Bar Without A Relay?
It is not recommended. A relay prevents overheating and protects your switch and wires. High-power bars can overload simple switches.
What Happens If I Use The Wrong Fuse Size?
A fuse that is too small will blow often; too large may not protect the circuit. Always match fuse size to your bar’s current draw plus 10–20%.
Do I Need To Use A Waterproof Connector?
Yes, if your wiring is exposed to weather. Waterproof connectors prevent corrosion and shorts, especially in off-road or rainy conditions.
Is It Legal To Use A Light Bar On Public Roads?
Laws vary by state. Many areas require light bars to be off when driving on public roads. Check your local regulations before installation.
Final Thoughts
Wiring a light bar is a straightforward project if you follow each step carefully. The right tools, proper planning, and attention to safety make the job easier and prevent problems down the road. Always use the correct gauge wire, fuse, and relay, and test your setup before finalizing.
If you are unsure, consult a professional or check your vehicle’s manual for guidance. With these tips, your vehicle will be ready for better visibility and safer adventures.
