If you drive a Jeep, knowing what transmission your vehicle has is more important than you might think. The transmission type affects your Jeep’s performance, fuel economy, and maintenance needs. Whether you want to buy parts, check fluid types, or understand towing capacity, you need to know if your Jeep uses an automatic or manual transmission, and which specific model. This guide will show you clear, practical ways to identify your Jeep’s transmission, even if you’re not a car expert.
Why Transmission Type Matters
The transmission is the system that sends power from your engine to the wheels. Jeeps have used many transmissions over the years, including different automatics and manuals. Each one handles power differently and requires unique fluids, filters, and service intervals.
Choosing the wrong part or fluid can damage your Jeep. For example, using the wrong transmission fluid can cause slipping and overheating. Many Jeep owners only discover their transmission type when something goes wrong. Learning to identify your transmission now can save you money and stress later.
Quick Ways To Identify Your Jeep Transmission
Most Jeep owners can find their transmission information using a few simple methods. Start with these steps, and you’ll likely have your answer in minutes.
1. Check The Owner’s Manual
Your owner’s manual lists the transmission type, usually in the specifications section. Look for a line that says something like “Transmission: 42RLE 4-speed automatic” or “NV3550 5-speed manual.” If you don’t have the manual, you can often download it from the Jeep website by entering your VIN.
2. Look For The Transmission Label
Nearly all Jeep transmissions have a small metal tag or sticker attached to the transmission case. This label includes codes or numbers that identify the transmission model. You may need to crawl under your Jeep and look for a tag on the side or bottom of the transmission.
Here’s where you might find the label by model:
| Jeep Model | Common Label Location |
|---|---|
| Wrangler (JK/TJ) | Passenger side of transmission case |
| Cherokee (XJ) | Driver’s side near bellhousing |
| Grand Cherokee (WJ/WK) | Lower pan, passenger side |
3. Use The Vin Decoder
Your Jeep’s Vehicle Identification Number (VIN) contains information about your vehicle’s engine, assembly plant, and sometimes the transmission. You can find the VIN on the dash near the windshield, or on the driver’s door jamb.
To decode it:
- Write down your full 17-character VIN.
- Enter it into a VIN decoder on a trusted site, like the official Jeep portal or NHTSA.
- Look for the section labeled “transmission.”
Many VIN decoders give you the exact transmission model, such as “545RFE Automatic” or “AX15 Manual. ”
4. Identify By Shift Pattern
If you have a manual transmission, the gear shift pattern often reveals the model type. For example, the AX15 has reverse to the far right and down, while the NV3550 has reverse to the far left and up.
5. Count The Gears
You can often tell your transmission by how many gears it has:
- 3-speed automatic (common on older CJs and YJs)
- 4-speed automatic (like 42RLE, common on early Wranglers)
- 5 or 6-speed manual (like NV3550, NSG370)
Just count the positions on your shifter, including reverse.
Common Jeep Transmission Types
Jeeps have used many transmissions. Here are some of the most common, with clues to help you spot them:
| Transmission | Type | Years Used | Common Models |
|---|---|---|---|
| 42RLE | Automatic, 4-speed | 2003–2011 | Wrangler TJ/JK, Liberty |
| 545RFE | Automatic, 5-speed | 1999–2012 | Grand Cherokee, Commander |
| AX15 | Manual, 5-speed | 1988–1999 | Cherokee, Wrangler YJ/TJ |
| NSG370 | Manual, 6-speed | 2005–2018 | Wrangler TJ/JK |
Knowing these models helps when cross-checking labels or ordering parts.
Visual Clues For Quick Id
If you can’t find labels or your manual, you can still make an educated guess using visual clues.
- Pan shape: Automatic transmissions often have a flat pan with bolts. The shape is unique to each model.

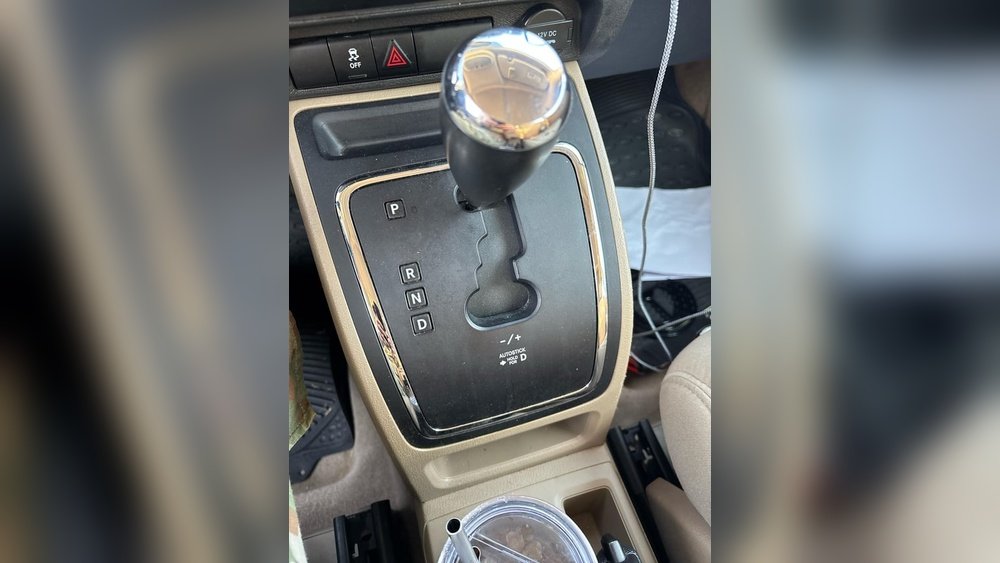

- Shift lever: Automatic shifters usually have P-R-N-D-L positions. Manual shifters have numbers and a physical clutch pedal.
- Transmission size: Automatics are bulkier and have more wiring and cooling lines.
- Color of fluid: Automatic fluid is usually red or pink; manual fluid is clear or yellowish.
Here’s a quick comparison of common Jeep transmission pan shapes:
| Transmission | Pan Shape |
|---|---|
| 42RLE | Rectangular with rounded corners |
| 545RFE | Irregular, almost square |
| AX15 | No pan (manual) |
Less Obvious Insights
Many new Jeep owners overlook the importance of transmission service records. Sometimes, previous owners swap transmissions for upgrades or repairs. That means the transmission in your Jeep could be different from what the VIN or original specs say. Always double-check by physically looking at the unit.
Another detail: software updates can change how automatic transmissions behave. If your Jeep has had a recent service or recall, the shifting pattern or performance may feel different, even if the hardware hasn’t changed. Checking your transmission model can help you explain any odd driving feel to your mechanic.
What To Do If You’re Still Unsure
If you’ve tried all these methods and still can’t identify your transmission, take a photo of the tag or transmission body and ask in a Jeep forum or a local mechanic. Many Jeep enthusiasts can ID a transmission from a picture.
Bringing your VIN to a Jeep dealer’s service desk is also a reliable option.
Frequently Asked Questions
How Do I Tell If My Jeep Has An Automatic Or Manual Transmission?

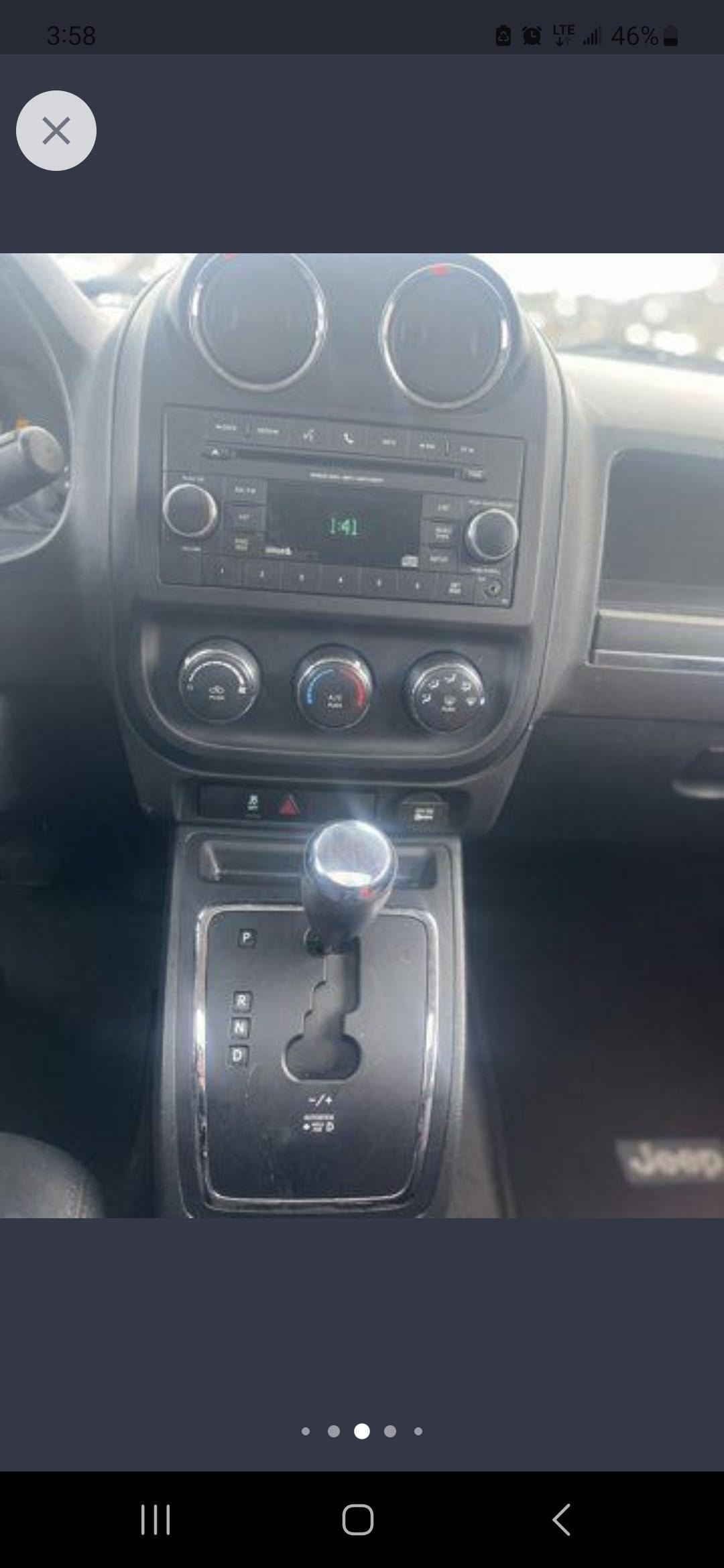

Look for the gear selector inside your Jeep. Automatic transmissions have P-R-N-D-L markings and no clutch pedal. Manual transmissions have a shift knob with gear numbers and a clutch pedal on the left.
Can I Find My Jeep’s Transmission Type From The Vin?
Yes, the VIN contains transmission data. Enter your VIN into a decoder on the Jeep website or NHTSA to get your transmission type.
Where Is The Transmission Tag On My Jeep?
Most Jeeps have a metal tag on the side or bottom of the transmission. The exact location depends on the model, but it’s usually on the passenger or driver side of the transmission case.
Do All Jeep Wranglers Use The Same Transmission?
No, Jeep Wranglers have used many different transmissions over the years, including both manual and automatic models. The transmission depends on the year, engine, and trim.
What Happens If I Use The Wrong Transmission Fluid?
Using the wrong fluid can cause damage, poor shifting, or even complete transmission failure. Always check your Jeep’s specific transmission model before adding or changing fluid.
Understanding your Jeep’s transmission is essential for proper care and upgrades. Take a few minutes to check your model—you’ll be glad you did when it’s time for service or repairs.
