Replacing the blend door actuator in a Jeep Wrangler can restore smooth climate control and solve problems like uneven heating or cooling. Many drivers notice symptoms such as clicking noises from the dashboard, or air that stays hot or cold no matter the setting. Replacing this small but important part might sound complicated, but with the right guidance, it’s a task you can tackle in your own garage. This guide walks you through the steps, tools, and tips to change the blend door actuator confidently and avoid common mistakes.
Understanding The Blend Door Actuator

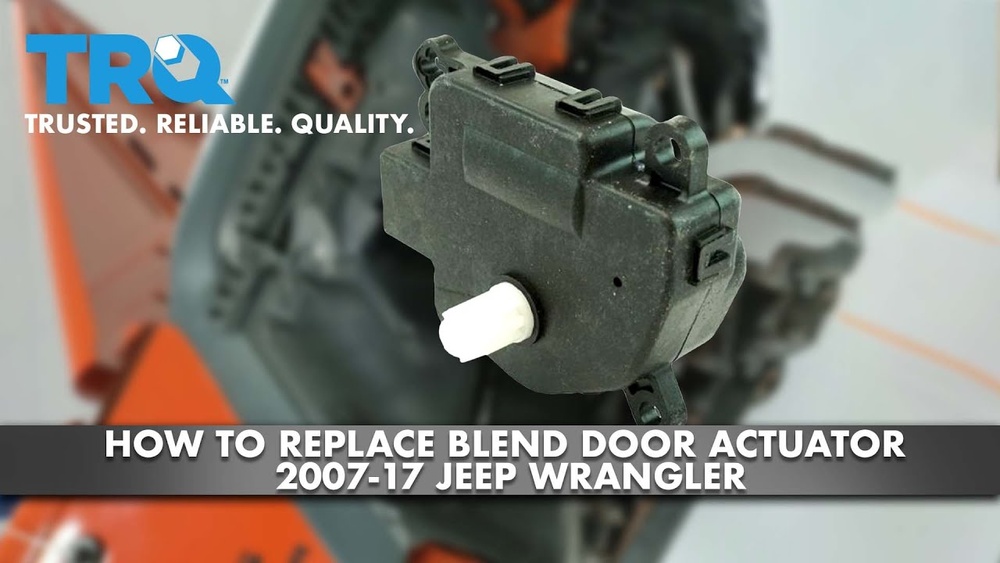

The blend door actuator is a small electric motor inside your Jeep Wrangler’s HVAC (heating, ventilation, and air conditioning) system. Its main job is to move the blend door, which mixes hot and cold air to reach your chosen temperature.
When the actuator fails, the door can get stuck or move incorrectly. That’s why you might notice the AC blows only hot air, or the heater doesn’t work on one side.
Knowing where this part sits and how it functions helps you spot symptoms early.
Common Symptoms Of Failure
- Clicking or tapping sounds from the dashboard
- Air temperature doesn’t change with controls
- Uneven heating or cooling (driver and passenger sides feel different)
- Blower works, but no air direction change
If you notice any of these, it’s likely time to check the blend door actuator.
Tools And Materials Needed
Gather these before you start to avoid mid-job frustration:
- Phillips screwdriver
- Flathead screwdriver
- 8mm socket and ratchet
- Small flashlight
- Replacement blend door actuator (compatible with your Wrangler’s year/model)
- Safety gloves
It’s smart to double-check the part number with your Jeep’s VIN or ask your local dealer. Some Wranglers use more than one actuator, so confirm which one you need.
Step-by-step Replacement Guide
Here’s a clear breakdown of the process for most Jeep Wrangler models from 2007 and up (JK, JL series). Always check your owner’s manual for any model-specific details.
1. Disconnect The Battery
Before you touch anything, disconnect the negative battery terminal. This keeps you safe from electrical shorts and prevents accidental airbag deployment.
2. Locate The Actuator

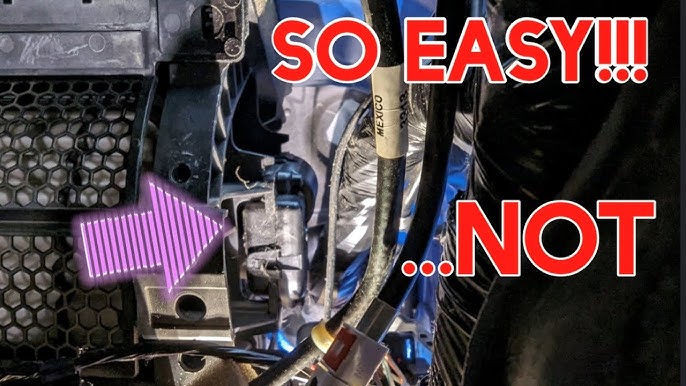

Most blend door actuators in Jeep Wranglers are behind the dashboard on the passenger side, near the HVAC box. Move the front seats back for better access. Sometimes, you’ll need to remove the glove box by pressing in the sides and lowering it down.
3. Remove Old Actuator

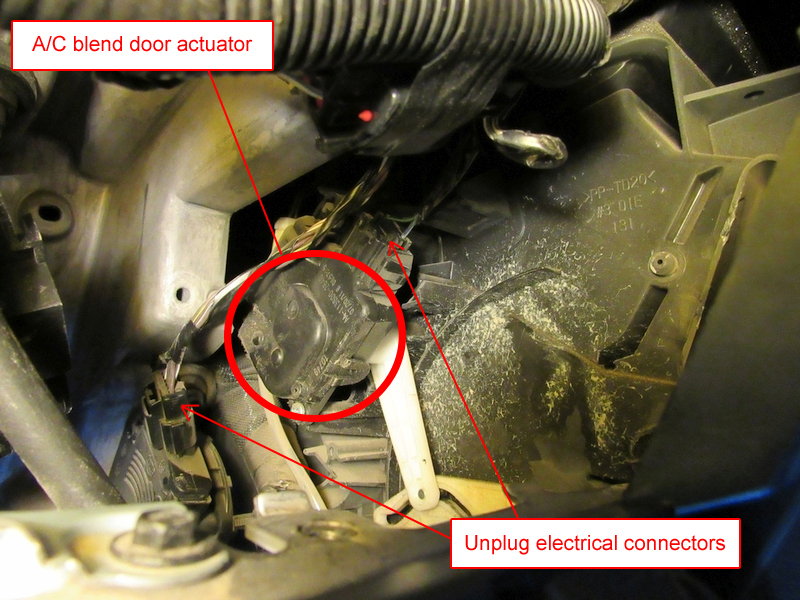

- Find the small rectangular actuator connected to the HVAC box.
- Use the 8mm socket to remove the mounting screws.
- Carefully unplug the wiring harness by pressing the clip and pulling gently.
- Take out the actuator, noting the position of the blend door shaft.
4. Install New Actuator
- Align the new actuator with the blend door shaft.
- Plug in the wiring harness securely.
- Reinstall the screws, tightening them evenly.
- If you removed the glove box, reinstall it now.
5. Reconnect The Battery And Test
Once everything is secure, reconnect the negative battery terminal. Start your Jeep, and run through all climate control settings. Listen for odd noises and check if the air temperature changes as it should.
6. Finishing Up
If everything works, you’re done! If not, double-check connections or consult a mechanic. Sometimes, the HVAC system needs a reset simply turn the ignition on and off a few times.
Practical Tips And Insights
Many first-timers miss a few important details:
- Actuator calibration: Some newer Wranglers may need the actuator to recalibrate. Turn your ignition key to “On,” adjust the climate controls through all settings, then turn it off. This can help the system learn the new actuator’s position.
- Labeling screws: The screws used for the actuator are small and easy to lose. Use a small container or magnetic tray to keep track.
- Part confusion: There are multiple actuators under the dash (mode, blend, and recirculation). Double-check which one is bad—wrong replacement means you’ll have to repeat the job.
Cost And Time Comparison
Here’s a quick look at the time and cost difference between DIY and professional replacement:
| Replacement Method | Estimated Cost | Time Needed |
|---|---|---|
| DIY | $30-$70 (for the part) | 1-2 hours |
| Professional Mechanic | $150-$300 (parts & labor) | 2-3 hours (plus scheduling) |
Most owners find the savings worth the effort, especially if you already own basic tools.
Differences By Wrangler Generation
There are a few key differences between Wrangler generations. Knowing your model helps you avoid surprises.
| Wrangler Generation | Location of Actuator | Special Tools Needed |
|---|---|---|
| JK (2007-2018) | Behind glove box | 8mm socket, Phillips screwdriver |
| JL (2018+) | Behind dashboard, lower passenger side | 8mm socket, trim tool |
| TJ (1997-2006) | Deep inside dash, harder access | Socket set, patience |
For TJ owners, the job is trickier, sometimes requiring partial dash removal.
When To Seek Professional Help
If you hear continued clicking, see warning lights, or your dashboard electronics act up, it may be more than just the actuator. Complex issues like broken blend doors or wiring faults are best handled by a trained technician.
Frequently Asked Questions
How Can I Tell If My Blend Door Actuator Is Bad?
Common signs are clicking noises, air blowing only hot or cold, or climate controls not changing temperature. If your Wrangler’s HVAC acts strangely, check the actuator first.
Can I Drive My Jeep With A Bad Blend Door Actuator?
Yes, but comfort will be reduced. You may not get heat or AC as needed. Long-term, it won’t hurt the engine, but your cabin temperature control will suffer.
Is It Hard To Replace The Actuator Myself?
For most Jeep Wranglers, it’s a moderate DIY job. The hardest part is reaching the actuator and working in tight spaces. Take your time and use the right tools.
How Long Does A New Actuator Last?
A quality replacement should last 5-10 years or more, depending on usage and climate. Cheap parts may fail sooner, so choose a reputable brand.
Where Can I Find More Technical Details?
You can find detailed diagrams and service instructions on the official Jeep website.
Swapping a blend door actuator in your Jeep Wrangler saves money and gives you better control over your comfort. With careful steps and a bit of patience, most owners can handle this repair and enjoy a well-functioning HVAC system again.
