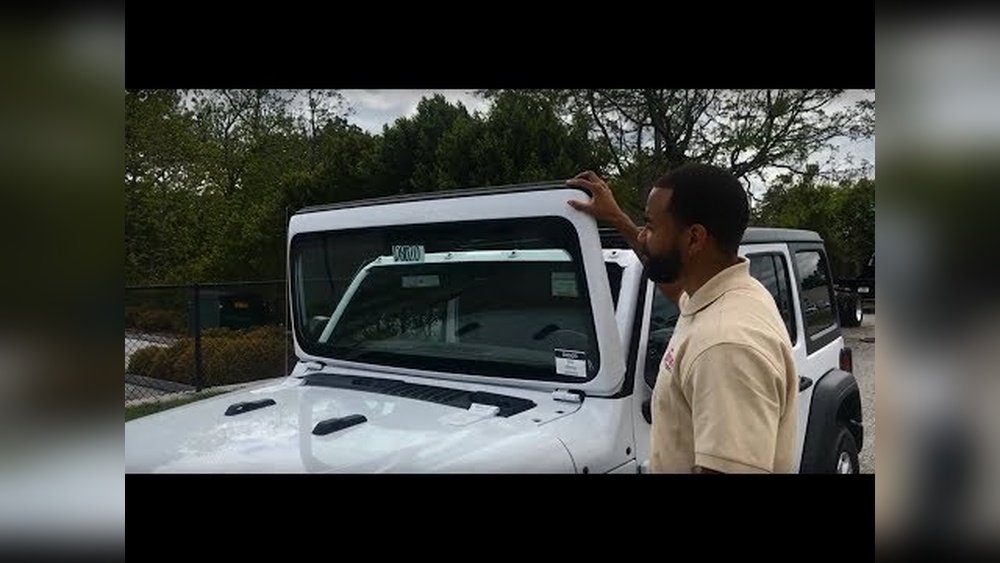

Removing the windshield from a Jeep is a task many owners face, especially those who love the open-air driving experience. Whether you’re prepping for a summer adventure or need to replace a damaged windshield, knowing how to do this safely and efficiently is important.
This guide will walk you through the steps, tools, and safety measures needed to remove a Jeep windshield, with tips that even experienced owners sometimes overlook.
Why Remove Your Jeep Windshield?
Jeep windshields are unique because they’re designed to be foldable or removable, especially in models like the Jeep Wrangler. Removing the windshield not only enhances the sense of freedom but also helps with repairs, upgrades, or deep cleaning. However, it’s more complex than it looks—there are risks of damaging the glass, frame, or seals if you don’t follow the right process.
Tools And Materials You’ll Need
Before starting, gather these essential tools:
- Socket wrench set (commonly 13mm or 15mm sockets for most Wranglers)
- Torx bit set (T40 and T50 are most used)
- Trim removal tool or flathead screwdriver
- Protective gloves and eyewear
- Soft towels or moving blankets (to protect the windshield when removed)
- Magnetic tray (for keeping bolts and screws safe)
Some Jeeps may need extra tools. Always check your model’s manual for specific requirements.
Preparing Your Jeep
- Park on a level surface with the parking brake engaged.
- Disconnect the negative battery terminal to prevent electrical issues, especially if your Jeep has powered mirrors or sensors.
- Remove any aftermarket accessories from the windshield area, such as light bars or mounted cameras.
Step-by-step: How To Remove A Jeep Windshield
Removing a Jeep windshield involves several careful steps. Here’s a clear breakdown:

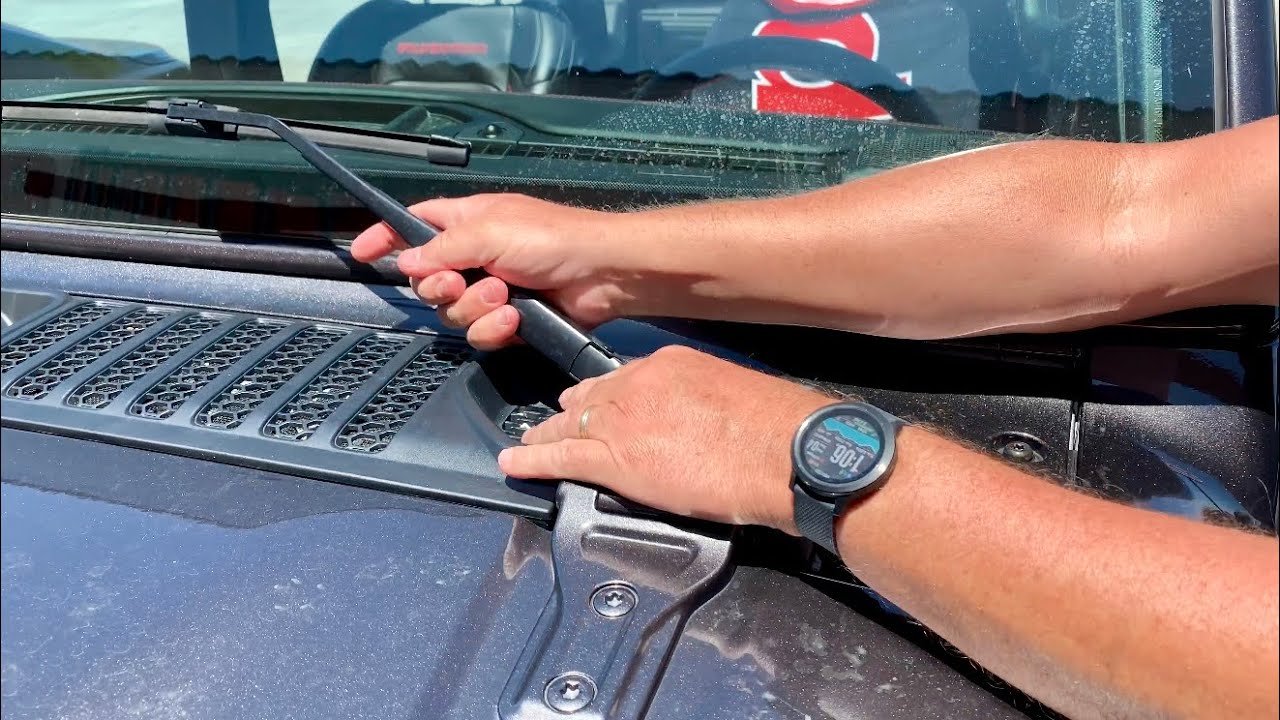

1. Remove Wipers And Accessories
Start by pulling off the windshield wipers. Most have a locking tab; press it and slide the wiper arm off. If there are light bars or external brackets, unscrew and set them aside.
2. Detach Sun Visors And Interior Trim
Open the doors and lower the sun visors. Use the trim removal tool or screwdriver to gently remove any covers hiding screws at the top of the windshield frame. Unscrew the visors and any attached interior trim.
3. Unbolt The Windshield Frame
Using your socket wrench and Torx bits, locate the hinge bolts along both sides of the windshield frame. Most Wranglers have two to four bolts on each side. Carefully remove these bolts and store them in the magnetic tray.
Example Bolt Comparison
Below is a quick look at typical bolt sizes for different Jeep models:
| Jeep Model | Windshield Bolt Size | Tools Needed |
|---|---|---|
| Wrangler JK (2007-2018) | 13mm | Socket, Torx T40 |
| Wrangler JL (2018+) | 15mm | Socket, Torx T50 |
| Gladiator JT | 15mm | Socket, Torx T50 |
4. Disconnect Electrical Connections
If your Jeep has power mirrors, defrosters, or sensors, gently unplug these connections from the windshield frame. Take care not to pull or pinch the wires.
5. Remove The Windshield Frame
With all bolts and wires detached, have a helper support the opposite side. Carefully tilt the windshield frame forward and lift it out of the hinges. Place it on a soft towel or blanket to avoid scratches or cracks.
Frame Weight And Handling
Windshield frames are heavier than they look. Here’s an idea of weights by model:
| Jeep Model | Frame Weight (lbs) | People Needed |
|---|---|---|
| Wrangler JK | 35 | 2 |
| Wrangler JL | 38 | 2 |
| Older CJ/YJ | 28 | 1-2 |
6. Inspect Seals And Hinges
Once the frame is off, check the seals and hinges for wear or rust. Replace any damaged gaskets to prevent leaks when you reinstall the windshield.
Common Mistakes To Avoid
Some owners rush the process or skip important steps. Here are two mistakes even experienced Jeep fans sometimes make:
- Forgetting to disconnect wiring: Modern Jeeps have sensors and heating elements. Pulling the frame before unplugging can cause expensive damage.
- Not marking bolt locations: Some bolts are different lengths. Mixing them up during reinstallation can lead to leaks or a loose frame.
Expert Tips For A Safe Removal
- Always have a second person help with lifting. The frame is awkward to handle alone.
- Use a magnetic tray for bolts. Jeep bolts are easy to lose, especially outdoors.
- If you plan to drive without the windshield, check your local laws—some states require eye protection or limit how long you can drive this way.
Reinstalling The Windshield
When you’re ready to reinstall, reverse the steps above. Make sure:
- All bolts are tightened to the manufacturer’s torque spec.
- Electrical connections are secure.
- Seals are properly placed to avoid leaks.
For more technical details, the official Jeep Maintenance Guide is an excellent resource.
Frequently Asked Questions
How Long Does It Take To Remove A Jeep Windshield?
For most models, it takes 30 to 60 minutes if you have the right tools and a helper. Beginners might need up to 90 minutes.
Can I Drive My Jeep Without A Windshield?
Yes, many states allow it for Jeeps, but laws vary. Some require eye protection or limit driving without a windshield on public roads.
Do I Need Special Tools To Remove The Windshield?
Most Jeeps only need basic hand tools like sockets and Torx bits. Some newer models with sensors may need extra care with wiring.
Will Removing The Windshield Damage My Jeep?
If done carefully, no permanent damage will occur. Always support the frame and avoid forcing any components.
How Do I Avoid Water Leaks After Reinstalling?
Inspect and replace worn seals. Tighten all bolts evenly. Leaks usually happen due to damaged gaskets or loose bolts.
Removing your Jeep’s windshield is a great way to enjoy the outdoors or handle repairs. With careful steps and good planning, it’s a project most Jeep owners can handle themselves. Stay safe, keep your hardware organized, and enjoy the open road!
