If you own a Jeep Wrangler JK, you know it’s built for adventure and practicality. But sometimes, you need to access the area beneath the center console—whether to fix wiring, add accessories, or clean out a stubborn spill. Removing the center console might sound tricky, but with the right approach, it’s a manageable task for most DIYers. This guide will walk you through the process, highlight common mistakes, and offer practical advice so you can get the job done smoothly.
Tools And Preparation
Before starting, it’s important to gather a few basic tools:
- Phillips screwdriver
- Flathead screwdriver or plastic trim tool
- 10mm socket and ratchet
- Needle-nose pliers (optional)
- Flashlight
Also, park your Jeep Wrangler JK on a flat surface, set the parking brake, and disconnect the negative battery terminal. This ensures safety, especially if you’ll be working near electrical connections.
Step-by-step Console Removal
Follow these steps to remove the center console on a Jeep Wrangler JK (2007–2018):
1. Empty The Console
Remove all personal items from the console and cup holders. This prevents anything from getting lost or damaged.

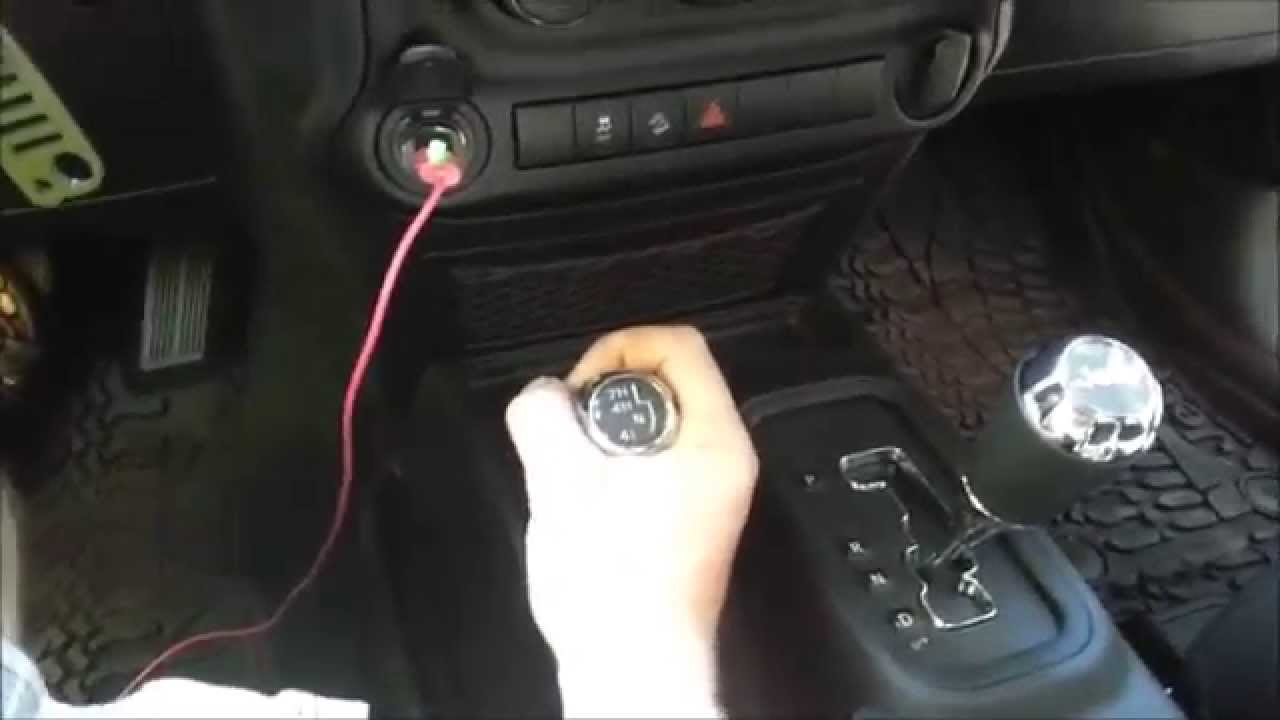

2. Remove The Shift Knob
If you have a manual transmission, unscrew the shift knob by turning it counterclockwise. For automatic transmissions, use a flathead screwdriver to gently pry off the chrome ring at the base, then pull the knob upward.
3. Take Out The Transfer Case Knob
The transfer case knob (for 4WD models) usually pulls straight up. Apply firm, even pressure, but avoid twisting as it can break the internal clip.
4. Remove Cup Holder Liner
Lift out the rubber liner from the cup holders. You’ll find screws beneath it.
5. Locate And Remove Fasteners
With your tools ready, remove the screws and bolts in this order:
- Two Phillips screws at the rear of the console (near the floor).
- Two 10mm bolts under the cup holder liner.
- If present, a bolt inside the rear storage bin.
- Unclip the Console Sides
Use a plastic trim tool or your hands to gently pull the sides of the console away from the transmission tunnel. You’ll hear small clicks as the clips release.
7. Disconnect Electrical Connectors
If your Jeep has a power outlet or window switches in the console, unplug the connectors before lifting the console out. Press the tab and pull gently.
8. Lift And Remove The Console
Tilt the front of the console upward and carefully maneuver it over the shifter(s). Take your time to avoid scratching interior trim or damaging wires.
Key Fastener Locations
To help you visualize, here’s a comparison of the main fastener positions:
| Location | Type | Number |
|---|---|---|
| Rear (near floor) | Phillips screw | 2 |
| Cup holder (under liner) | 10mm bolt | 2 |
| Rear bin (if equipped) | 10mm bolt | 1 |
Common Mistakes And How To Avoid Them
Many first-time DIYers make simple errors that can lead to frustration or even damage. Here are some pitfalls to watch out for:
- Forcing the transfer case knob: This can break the clip inside. Always pull straight up, never twist.
- Losing small screws or clips: Use a magnetic tray to keep hardware organized.
- Forgetting to disconnect electrical connectors: Pulling the console before unplugging can damage wires or connectors.
- Scratching interior trim: Always use a plastic trim tool, not a metal one.
A practical tip: Take photos during disassembly. This makes reassembly much easier, especially if it’s your first time.
Reinstallation Tips
After you finish your work under the console, it’s time to put everything back. Here’s what you should keep in mind:
- Reconnect electrical connectors before securing the console.
- Align the console over the shifters and clips before pressing down.
- Install fasteners in reverse order of removal.
- Test all functions (like the power outlet or window switches) before final tightening.
Sometimes, clips might not seat properly. If the console feels loose, double-check that all clips and bolts are secure.
Why Remove The Console?
You might wonder, “When would I need to remove the center console?” Here are a few real-world examples:
- Running wires for accessories: Upgrading your sound system, adding USB ports, or installing auxiliary switches often requires access under the console.
- Deep cleaning: Spills and debris can collect under the console over time.
- Accessing the transmission tunnel: Some repairs or upgrades for the shifter or transfer case require console removal.
Jeep enthusiasts often customize their interiors, so knowing how to remove the console can save you time and money.
Extra Insights Most Beginners Miss
- Model-year changes: Some 2011+ JKs have different fastener locations or extra wiring for heated seats. Always check your Jeep’s manual or an online forum for model-specific advice.
- Hidden debris: Removing the console can reveal coins, dirt, or even lost keys. Use the opportunity to vacuum and clean the area thoroughly.
Comparing Console Removal Effort
Jeep Wrangler JKs are built for easy maintenance, but how does console removal compare to other vehicles?
| Vehicle Model | Difficulty Level | Estimated Time |
|---|---|---|
| Jeep Wrangler JK | Easy/Moderate | 20–40 minutes |
| Honda Civic | Moderate | 30–60 minutes |
| Ford F-150 | Moderate/Hard | 40–90 minutes |
As shown, the Wrangler JK is generally easier than many mainstream vehicles.
Safety And Reassembly Checks
Before driving your Jeep, double-check these safety points:
- All wiring connectors are secure.
- No leftover screws or bolts.
- The console is firmly clipped and bolted in place.
- Shifters and switches move smoothly.
A loose console can cause rattling or even interfere with driving, so always confirm everything is tight.
Frequently Asked Questions
How Long Does It Take To Remove The Center Console On A Jeep Wrangler Jk?
Most DIYers can remove the console in 20–40 minutes. The process goes faster if you have the right tools and organize your screws.
Do I Need To Disconnect The Battery Before Starting?
Yes, disconnect the negative battery terminal for safety, especially if your console has power outlets or window switches.
Will Removing The Center Console Void My Warranty?
No, simple removal for cleaning or wiring usually doesn’t affect your warranty. However, causing damage or cutting wires can. Always check your owner’s manual or consult your dealer.
Can I Remove The Console Alone, Or Do I Need Help?
You can do it solo, but having another person can help when lifting the console over the shifters, especially if it’s your first time.
Where Can I Find A Detailed Video Guide?
For visual learners, the official Jeep YouTube channel has helpful demonstrations.
Removing the center console of your Jeep Wrangler JK is straightforward if you follow each step patiently and use the right tools. With a bit of care, you’ll save money and learn more about your vehicle. Always take your time, and soon your Jeep will be ready for your next adventure or upgrade.
