Programming a Jeep Powertrain Control Module (PCM) is a task many car owners and mechanics face, especially after replacing the PCM or making modifications. The PCM is the “brain” of your Jeep. It controls the engine, transmission, and many electronic functions.
If you get it wrong, your vehicle may not run properly. If you want to do this yourself, you need the right tools, patience, and a clear understanding of the process. This guide will help you through each step, explain what you really need, and highlight common mistakes beginners make.
Understanding Jeep Pcm Programming

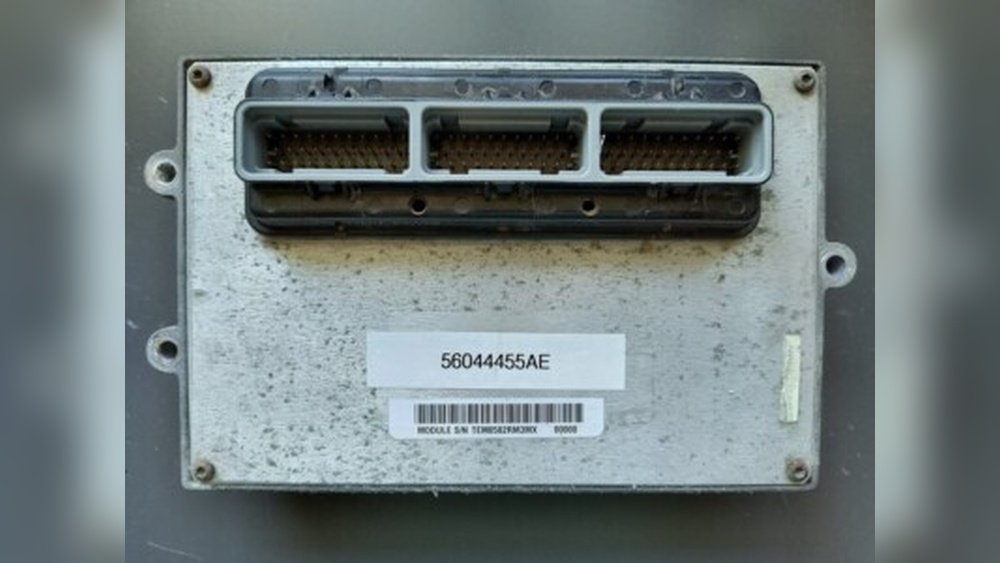

A Jeep PCM stores important information like your vehicle’s VIN, security codes, and configuration data. Programming means updating or re-writing this information. You might need to program a PCM in these situations:
- You replaced a faulty PCM.
- You added new performance parts.
- You need to fix a software issue.
Modern Jeeps (from late 1990s onward) use OBD-II systems. Most PCMs are programmed with specialized tools, but some models allow programming with basic scan tools.
| Model Year | Programming Method | Tool Needed |
|---|---|---|
| 1996-2004 | Bench or OBD-II | Scan Tool, Programmer |
| 2005-2012 | OBD-II Only | Advanced Scan Tool |
| 2013+ | Online Flash | Dealer Tool (WiTech) |
Tools And Preparation
Programming a PCM is not just plugging in a device. You need specific tools and preparation:
- Programming Device: For most Jeeps, a scan tool or dedicated PCM programmer is required. Popular tools include Autel, Snap-On, and WiTech.
- Laptop or PC: Newer models need a computer with manufacturer software.
- Stable Power Supply: PCM programming can fail if your battery voltage drops. Always use a charger or battery stabilizer.
- Reliable Internet: For online programming, a good internet connection is needed.
- Security Codes: Some Jeeps require a PIN or SKIM code for programming.
| Tool | Average Cost | Works With |
|---|---|---|
| Autel MaxiSys | $1,500 | Most Jeep models |
| WiTech | $2,500 | 2013+ Jeeps |
| Snap-On Solus | $2,000 | Older Jeeps |
Step-by-step Programming Process
If you’re ready to program your Jeep PCM, follow these steps carefully. Each step is important for a safe and successful process.
1. Connect Your Programming Tool
Plug the scan tool or programmer into the OBD-II port under the dash. For bench programming, connect directly to the PCM with special cables.
Turn the ignition to “ON. ” Open your tool’s software and select your Jeep’s make, model, and year. Find the PCM programming or “reflash” option.
3. Enter Security Codes
If required, enter the SKIM code or PIN. This step is critical for Jeeps with anti-theft systems.
4. Update Or Flash Pcm Software
Follow on-screen instructions. The tool will erase old data and upload the new software. Do not interrupt this process. It usually takes 10-20 minutes.
5. Confirm Vin And Configuration
Your PCM must match your Jeep’s VIN. Check and update if needed. Also, verify options like transmission type, tire size, and engine specs.
6. Finalize And Test
When programming finishes, turn off the ignition. Restart your Jeep. If all goes well, your engine should run normally, with no error lights.
Practical Example

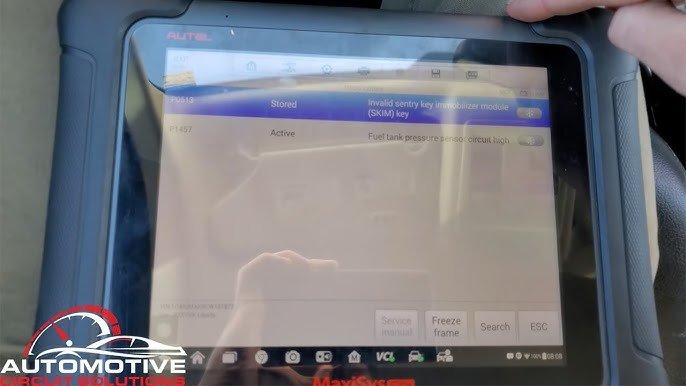

Let’s say you replaced the PCM in a 2008 Jeep Wrangler. You connect an Autel MaxiSys, select your vehicle, enter the PIN, and start the reflash. After about 15 minutes, you confirm the VIN and restart your Jeep. The engine starts, and no codes appear.
If you miss the PIN step, the PCM won’t accept programming.
Common Mistakes And How To Avoid Them
Programming a PCM is not easy, and beginners often make mistakes:
- Low Battery: Always use a charger. A weak battery can corrupt the PCM.
- Wrong Tool: Not every scan tool works for every Jeep. Check compatibility before buying.
- Skipping VIN Update: If you don’t update the VIN, your Jeep may have issues with registration or anti-theft systems.
- Interrupting the Process: Don’t turn off the ignition or unplug the tool during programming.
| Mistake | Result | Solution |
|---|---|---|
| Low battery | PCM failure | Use battery charger |
| Wrong tool | Cannot program | Check tool compatibility |
| VIN mismatch | Error codes | Update VIN |
Extra Insights Beginners Miss
- Aftermarket parts can change PCM data: If you install parts like a new throttle body or bigger tires, your PCM needs updated calibration. Otherwise, your Jeep may run poorly or show error codes.
- Some PCMs are locked: On newer Jeeps, the PCM may be locked by the manufacturer. You might need dealer access or special unlock services.
When To Seek Professional Help
If you’re not comfortable with electronics or software, it’s best to let a professional handle PCM programming. Incorrect programming can damage your PCM, costing hundreds of dollars. Many dealers and specialized shops offer this service, often for $100–$300. It may seem expensive, but it saves you from bigger problems.
You can learn more about PCM programming and Jeep electronics from Allpar.
Frequently Asked Questions
Can I Program A Jeep Pcm Without A Scan Tool?
No. A scan tool or programmer is required for almost all Jeep models. Some older vehicles allow basic setup, but full programming needs a tool.
How Long Does Pcm Programming Take?
Usually, 10–20 minutes. If you include setup and VIN checks, plan for 30 minutes. Some advanced procedures can take longer.
What Happens If Pcm Programming Fails?
Your Jeep may not start, or it could run poorly. Sometimes, error lights appear. Always check battery and tool compatibility before starting.
Can I Use A Used Pcm In My Jeep?
Yes, but you must program the VIN and security codes. Used PCMs often need extra steps to clear old data.
Do I Need To Reprogram Pcm After Installing Performance Parts?
In most cases, yes. If you change engine or transmission parts, update the PCM so it matches new specs. Otherwise, your Jeep may show error codes.
Programming a Jeep PCM is easier with the right preparation. Take your time, follow each step, and use reliable tools. If you’re unsure, ask a professional or visit a dealer. With careful work, your Jeep will run smoothly and safely.
