Installing a subwoofer in your Jeep Grand Cherokee can transform your driving experience. The deep, rich bass can make music feel alive and add excitement to every ride. For many Jeep owners, the factory sound system just isn’t enough. If you love music or want to feel every beat, a subwoofer upgrade is a smart move.
Many people worry that installing a subwoofer is too technical or will damage the car. The good news is, with the right tools and clear steps, you can do it yourself—even if you’re not a car audio expert. Here’s a simple, detailed guide to help you install subwoofers in your Jeep Grand Cherokee, avoid common mistakes, and make the most of your sound system.
Choosing The Right Subwoofer And Equipment
Before starting the installation, it’s important to pick the right subwoofer for your Jeep Grand Cherokee. The size and type of subwoofer will affect both the sound and the space in your vehicle.
| Subwoofer Size | Bass Output | Trunk Space Used |
|---|---|---|
| 8-inch | Light | Minimal |
| 10-inch | Balanced | Moderate |
| 12-inch | Deep | More |
- Powered subwoofers are easier to install and save space.
- Component subwoofers need a separate amplifier but deliver stronger bass.
Make sure your subwoofer matches your amplifier’s power (RMS watts) and impedance (ohms). For most Jeep Grand Cherokees, a 10-inch or 12-inch subwoofer gives great bass without taking too much cargo space.
Tools And Materials You’ll Need
Gather all tools and materials before starting. This makes the process smoother and avoids delays.
- Subwoofer and enclosure (box)
- Amplifier (if not using a powered subwoofer)
- Amplifier wiring kit (power cable, ground cable, RCA cables, remote wire, fuse)
- Wire stripper/crimper
- Socket wrench set
- Screwdrivers
- Panel removal tool
- Electrical tape
- Zip ties
Don’t forget safety: disconnect the battery before working on your Jeep’s electrical system.
Step-by-step Installation Guide
Follow these steps for a successful subwoofer installation.
1. Disconnect The Battery
First, disconnect the negative terminal of your Jeep’s battery. This prevents electrical shorts and keeps you safe.
2. Run Power Cable From Battery To Trunk
Route the power cable from the battery through the vehicle’s firewall. The firewall is the metal wall between the engine and the cabin.
- Find a factory grommet (rubber plug) to push the cable through.
- Run the cable along the side panels, under the carpet, toward the trunk.
- Secure the cable using zip ties.
A common mistake is to run the power cable too close to audio cables, which can cause noise. Keep them separate for the best sound.
3. Mount The Subwoofer And Amplifier

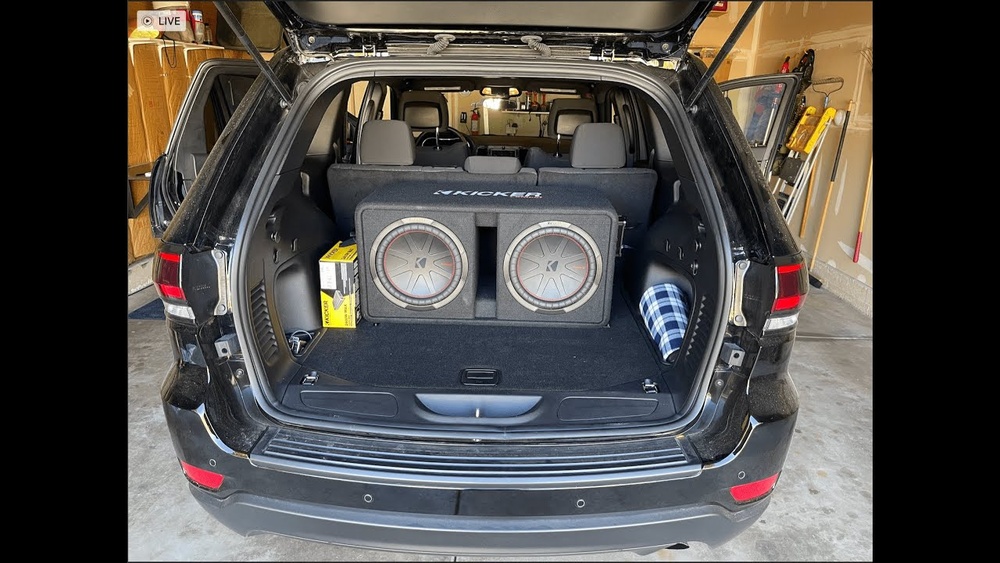

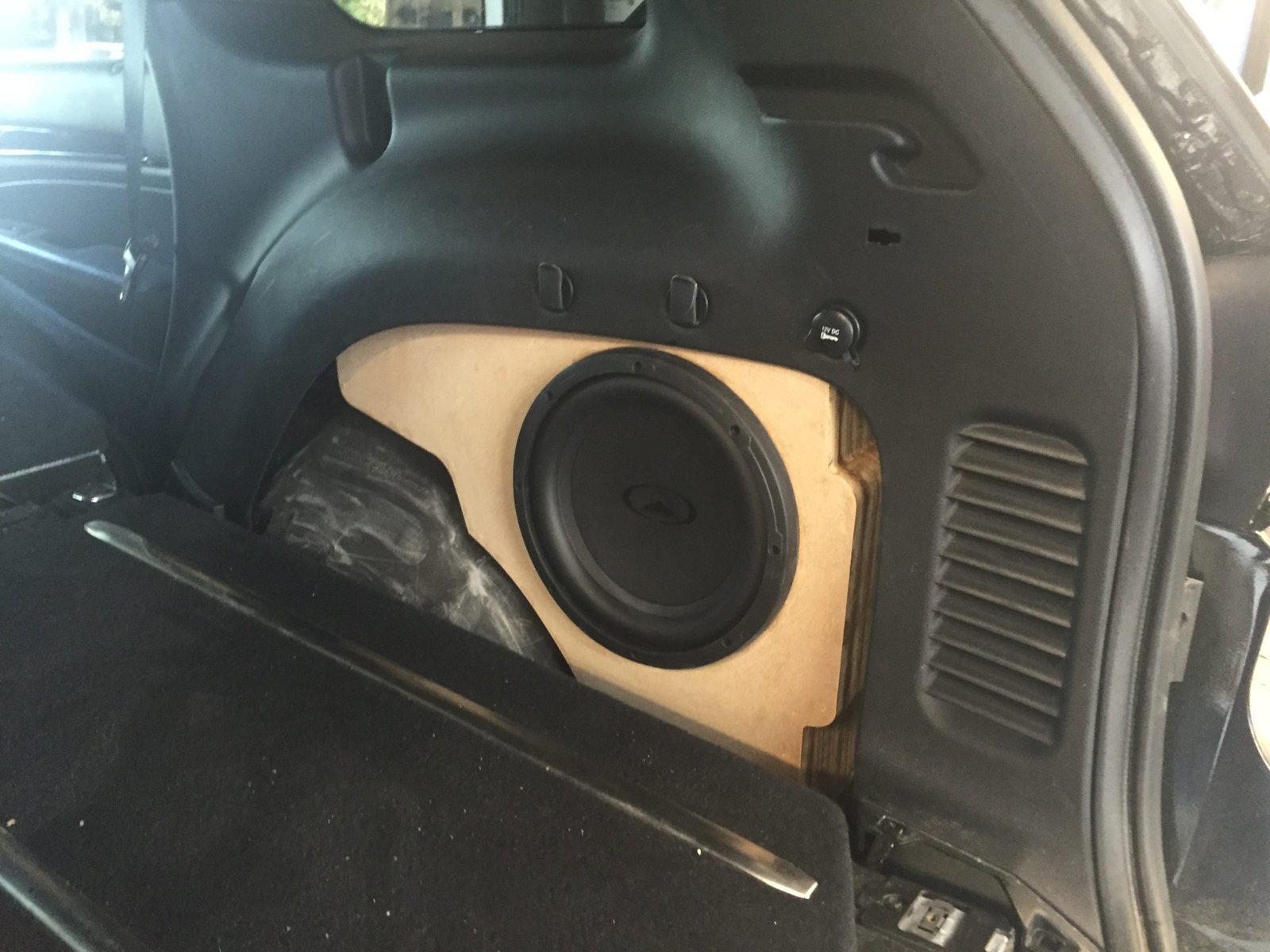

Place the subwoofer box in your trunk or cargo area. Secure it to prevent movement while driving.
Mount the amplifier on the back of a seat or the subwoofer box. Make sure there is enough airflow to prevent overheating.
4. Connect The Ground Cable
Attach the amplifier’s ground cable to a clean, unpainted metal part of your Jeep’s chassis. Shorter ground cables (under 18 inches) work best.
5. Connect Rca Cables And Remote Wire
Run RCA cables and the remote wire from the head unit (car stereo) to the amplifier. Most Jeep Grand Cherokees have factory stereos without RCA outputs. In this case, you’ll need a line output converter to convert speaker wires to RCA connections.
- Connect the remote wire to the stereo’s remote turn-on lead or fuse box.
- Hide these wires along the opposite side of the car from the power cable to avoid interference.
6. Connect The Subwoofer
Wire the subwoofer to the amplifier, matching the positive and negative terminals. For dual voice coil subs, follow the wiring diagram to get the right impedance.
7. Reconnect Battery And Test System
Reconnect the negative terminal on your battery. Turn on your Jeep and test the system with music at low volume.
- Listen for clean bass and check for any buzzing or rattles.
- Adjust gain and crossover settings on the amplifier for the best sound.
If you hear distortion, lower the amplifier’s gain. If there’s no sound, check all connections and fuses.
Tuning And Optimization
Getting the best sound from your subwoofer takes a little fine-tuning.
| Setting | Recommended Range | Purpose |
|---|---|---|
| Gain | Low to Medium | Prevents distortion |
| Low-pass filter | 60-80 Hz | Only bass plays |
| Bass boost | +0 to +6 dB | Extra punch |
Start with all settings at minimum, then slowly increase until you hear clear, strong bass. Avoid turning everything to max—this can damage your speakers or amplifier.
Expert tip: Always test with different music styles. What sounds great with rap may not work for rock or jazz.
Extra Installation Tips And Common Mistakes
- Double-check polarity: Mixing up positive and negative wires can cause weak bass.
- Secure all wiring: Loose wires can lead to rattles or electrical shorts.
- Don’t skip the fuse: Always install the power cable fuse within 18 inches of the battery.
- Test before reassembling panels: Make sure everything works before putting your Jeep back together.
- Be patient: Rushing can lead to missed steps and future problems.
Many beginners forget to check for air leaks around the subwoofer box. Even a small gap can reduce bass power. Seal all edges tightly.
Frequently Asked Questions
What Size Subwoofer Fits Best In A Jeep Grand Cherokee?
A 10-inch or 12-inch subwoofer is usually the best choice. These sizes give strong bass without taking up too much trunk space.
Do I Need A New Amplifier For A Subwoofer?
Yes, unless you buy a powered subwoofer with a built-in amp. Standard factory stereos do not have enough power for a subwoofer.
Can I Use The Factory Stereo With An Aftermarket Subwoofer?
Yes, but you’ll need a line output converter to connect your subwoofer’s amplifier to the factory stereo.
How Long Does Installation Take?
For most people, 2 to 4 hours is enough. If it’s your first time, plan for extra time to read instructions and check your work.
Where Can I Find More Help Or Wiring Diagrams?
Many car audio websites and forums offer detailed guides. You can also check the Crutchfield website for vehicle-specific information.
Upgrading your Jeep Grand Cherokee with a subwoofer is one of the best ways to enjoy music on the road. With careful planning and these simple steps, you’ll enjoy deep bass and powerful sound every time you drive.
