If you drive a Jeep Wrangler, you know the thrill of adventure. But sometimes, the factory sound system lacks powerful bass. Installing a subwoofer is one of the best upgrades for deeper sound and a more exciting drive. Many people think adding a subwoofer is hard or needs a pro, but with the right tools and steps, you can do it yourself. This guide will help you install a subwoofer in your Jeep Wrangler, avoid common mistakes, and get the most out of your music.
Choosing The Right Subwoofer For Your Wrangler
Not all subwoofers fit every Wrangler. Before buying, consider:
- Type: Powered (built-in amplifier) or passive (needs separate amp)
- Size: 8”, 10”, or 12” are most common; larger sizes give deeper bass but need more space
- Enclosure: Sealed boxes are compact with tight bass; ported boxes are bigger but play louder

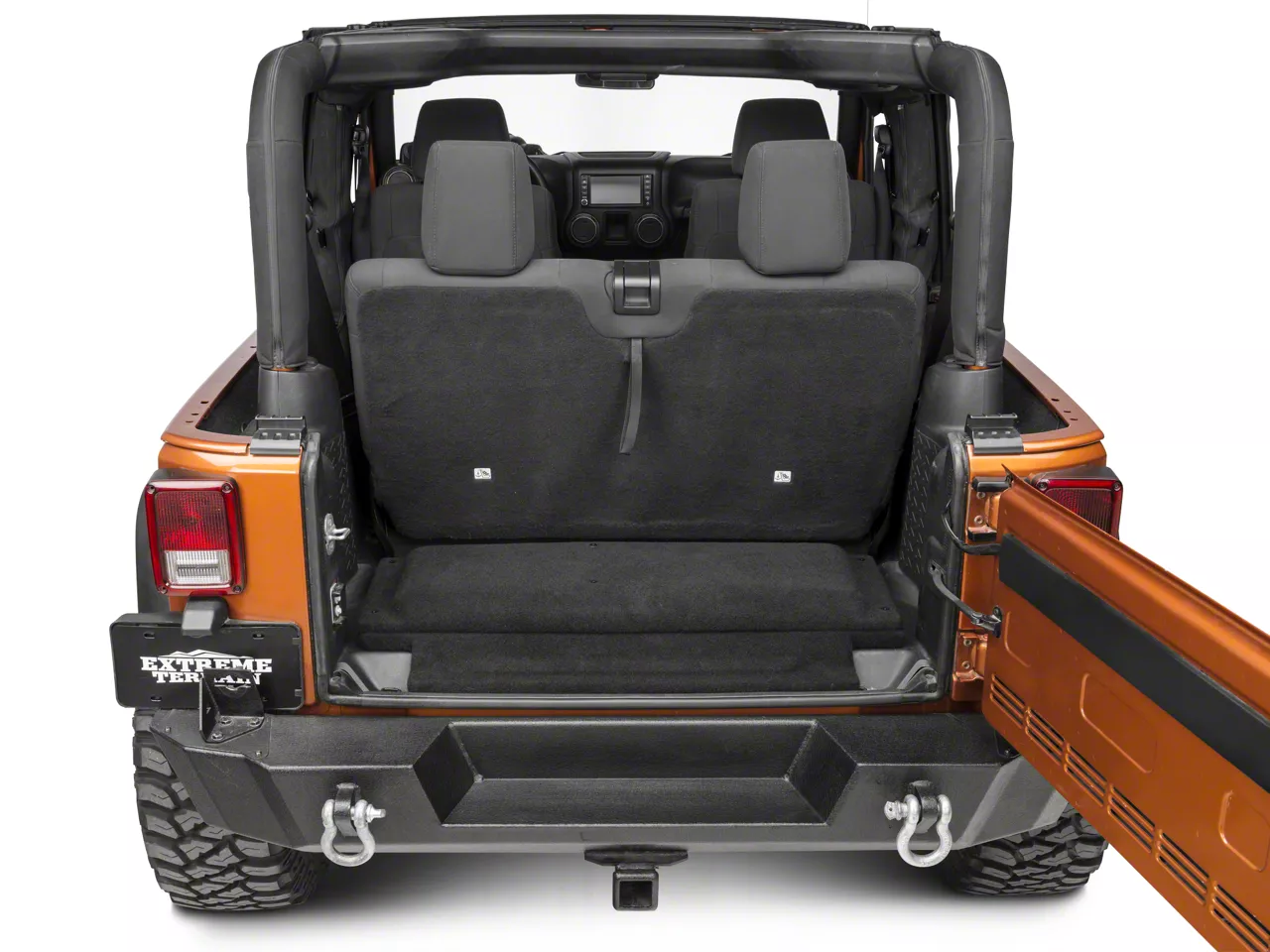

Check your Wrangler’s cargo space and measure before purchase. For most, an under-seat subwoofer or a compact enclosure in the trunk is ideal.
Key Subwoofer Specs
| Feature | What It Means | Why It Matters |
|---|---|---|
| Power (Watts RMS) | Continuous power handling | More RMS means louder, cleaner bass |
| Sensitivity (dB) | How efficiently sound is produced | Higher sensitivity needs less power |
| Impedance (Ohms) | Electrical resistance | Must match your amplifier |
A common beginner mistake is buying a subwoofer with the wrong impedance for their amplifier, causing weak or distorted sound.
Tools And Materials Needed
Before starting, gather these:
- Subwoofer and enclosure
- Amplifier (if needed)
- Amplifier wiring kit (power, ground, RCA cables, fuse)
- Wire cutters/strippers
- Socket wrench set
- Screwdrivers
- Electrical tape or heat shrink tubing
- Zip ties
Plan where you’ll place the subwoofer and amp to avoid moving them later.
Step-by-step Installation Guide
1. Disconnect The Battery
Safety first. Disconnect the negative terminal to prevent electric shock or short circuits.
2. Run Power Cable
Route the thick red power wire from the battery through the Wrangler’s firewall (usually a rubber grommet). Run it under the carpet or along the door sills to the trunk or seat area. Add the fuse holder within 18 inches of the battery.
3. Connect Ground Wire
Find a solid, unpainted metal spot close to the amp. Sand it down for a good connection. Attach the ground wire securely.
4. Attach Signal Cables
Connect RCA cables from your head unit (stereo) to the amp’s input. Most Wranglers after 2011 use a factory head unit; you may need a line output converter if there’s no RCA output.
5. Remote Turn-on Wire
Connect the remote wire to a switched 12V source (usually the blue/white wire on the stereo). This tells your amp to turn on with the car.
6. Connect Subwoofer To Amp
Use speaker wire to connect the amp’s output to the subwoofer terminals. Match polarity (+ to +, – to –) to avoid phase issues.
7. Mount And Secure Equipment
Place the subwoofer box and amp in your chosen locations. Use brackets or Velcro to keep them from moving on rough roads.
8. Reconnect Battery And Test
Reconnect the negative terminal. Turn on the stereo at low volume. Check for sound, rattling, or warning lights.
A common error is forgetting to secure wires, which can lead to shorts or rattles—use zip ties for a tidy setup.
Tuning And Adjusting For Best Sound
Installing is only half the job. Proper tuning gets you the best sound.
- Set gain on the amp to match your stereo’s output, not max volume.
- Adjust crossover to block high frequencies (set to 80Hz for bass only).
- Fine-tune bass boost—a little goes far, too much can distort.
Drive with different music styles and adjust until the bass sounds strong but not overpowering. If you hear buzzing, check for loose panels or wires.
Wrangler Installation Example
Let’s look at a real-world setup:
A Jeep Wrangler Unlimited owner adds a 10-inch powered subwoofer under the rear seat. They use an amp wiring kit, tap the speaker wires with a line output converter, and ground the amp to the rear seat bolt. The install takes about 2 hours.
After tuning, the bass is full but not overwhelming, and the space remains usable for gear.
Cost And Time Estimates
Here’s a quick look at typical costs and time needed:
| Item | Estimated Cost (USD) | Time Needed |
|---|---|---|
| Subwoofer & Enclosure | $120–$350 | — |
| Amplifier | $80–$250 | — |
| Wiring Kit | $25–$60 | — |
| Install Time (DIY) | — | 2–4 hours |
| Install Time (Shop) | $100–$250 (labor) | 1–2 hours |
If you want more details about car audio, check Crutchfield for expert advice.
Two Non-obvious Tips
- Upgrade your Jeep’s battery if adding a big subwoofer—Wranglers have limited alternator output, and bass draws lots of power. Otherwise, you may experience dimming headlights or slow starts.
- Check for water leaks in the trunk and under seats before installing. Wranglers can let in water during off-road adventures, which can damage electronics.
Wrapping Up
Upgrading your Jeep Wrangler with a subwoofer is more than just adding bass. It transforms your drives and makes every playlist more exciting. With careful planning, the right parts, and attention to detail, you can do this project in an afternoon.
Remember, safety comes first—disconnect the battery and double-check every connection. Good sound starts with a solid install.
Frequently Asked Questions
How Do I Choose The Right Size Subwoofer For My Jeep Wrangler?
Pick a subwoofer size based on your music taste and cargo space. An 8” or 10” sub fits well under seats and gives tight, punchy bass. A 12” subwoofer is larger and louder but takes up more room.
Do I Need A Separate Amplifier For My Subwoofer?
If you buy a powered subwoofer, the amplifier is built in. For passive subwoofers, you must buy a separate amp that matches the sub’s RMS power and impedance.
Will Adding A Subwoofer Drain My Battery?
A small or medium subwoofer rarely causes battery issues. Large subwoofers with strong amps can drain the battery, especially if you play music with the engine off. Upgrading your battery or alternator can help.
Can I Keep My Factory Stereo When Adding A Subwoofer?
Yes. Use a line output converter to connect a subwoofer to the factory stereo’s speaker wires. This lets you add bass without changing the head unit.
Is It Safe To Install A Subwoofer Myself?
Yes, if you follow instructions and disconnect the battery before working with wires. If you’re not sure, ask for help or have a pro check your work. Mistakes with wiring can be risky.
