Upgrading your Jeep TJ with a LED light bar is one of the best ways to improve nighttime visibility and add rugged style to your off-road vehicle. Many Jeep owners want to install a light bar themselves, but worry about wiring, mounting, or damaging their Jeep’s electrical system. The good news: with the right tools and guidance, installing a LED light bar on a Jeep TJ is a project most people can handle in a few hours.
This guide walks you through the essential steps, shares helpful tips, and highlights common mistakes to avoid. Whether you’re prepping for a weekend trail ride or just want brighter headlights for city driving, you’ll find clear, practical instructions below.
What You’ll Need
Before starting, gather these tools and parts for a smooth installation:

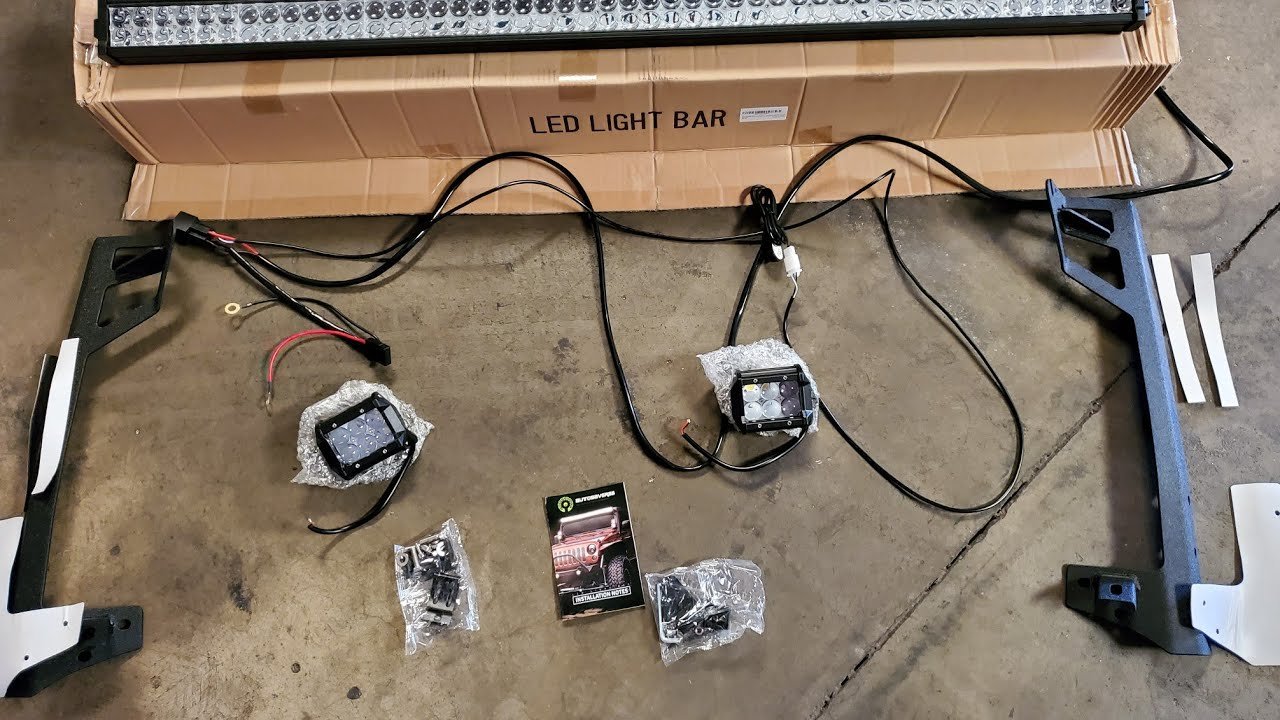

- LED light bar kit (typically includes bar, wiring harness, mounting brackets, hardware)
- Socket set and ratchet
- Wrench set
- Screwdriver (Phillips and flathead)
- Drill and bits (if your brackets require new holes)
- Wire stripper/crimper
- Electrical tape or heat-shrink tubing
- Relays and fuse (should come with your kit)
- Switch (dash or A-pillar mount)
- Zip ties
Some light bar kits include extra wiring or connectors, but verify before starting. If your Jeep TJ has a hardtop, make sure the mounting location won’t interfere with the roof or windshield.
Choosing The Right Led Light Bar
Not all light bars are the same. Here’s a simple comparison of common options:
| Type | Length | Light Output (Lumens) | Beam Pattern | Best For |
|---|---|---|---|---|
| Single Row | 20”–32” | 8,000–16,000 | Spot/Flood | Low profile, daily use |
| Double Row | 22”–52” | 16,000–32,000 | Combo | Off-roading, max brightness |
| Curved | 32”–52” | 20,000–30,000 | Wide angle | Wide illumination |
A 20- to 32-inch light bar is ideal for most Jeep TJ windshields. Double-row or curved bars give wider coverage, but single-row bars look more subtle.
Where To Mount The Led Light Bar
Jeep TJs offer several mounting options. The most common are above the windshield, on the front bumper, or on the A-pillars. Each location has pros and cons:
| Mount Location | Visibility | Installation Difficulty | Notes |
|---|---|---|---|
| Above Windshield | Excellent | Medium | May need to drill; best for off-road |
| Front Bumper | Good | Easy | Less glare, easy access |
| A-Pillar | Fair | Easy | Smaller bars or pods |
Most people prefer the above-windshield location for maximum light spread. Just check local laws—some states limit where you can install off-road lights.
Step-by-step Installation Guide
1. Test The Light Bar First
Before mounting, connect the light bar to your Jeep’s battery using the provided harness. This quick test ensures your bar works and avoids wasted installation time.
2. Attach The Mounting Brackets
- Use the included brackets or buy Jeep TJ-specific mounts.
- Hold the brackets where you want to install the bar.
- Mark holes if drilling is needed. Always double-check alignment for symmetry.
- Drill holes carefully (if required). Use rust-resistant paint on any bare metal.
3. Secure The Light Bar
- Bolt the light bar onto the mounts.
- Adjust for best angle and tighten securely.
- Check for any movement—off-road vibration can loosen hardware over time.
4. Route The Wiring Harness
- Start at the bar, running wires along the windshield or fender edge.
- Use zip ties to keep wires neat and clear of hot engine parts.
- Pass wiring through the firewall using a factory grommet or drill a new hole (seal with silicone).
5. Install The Relay, Fuse, And Switch
- Mount the relay and fuse near the battery.
- Connect the positive and negative wires as shown in your kit’s instructions.
- Run the switch wire to your preferred location (most people pick a blank switch panel or the A-pillar).
- Secure all connections with electrical tape or heat-shrink tubing for weather resistance.
6. Connect To Battery And Test
- Attach the positive and negative wires to the battery terminals.
- Flip the switch to test the light bar.
- If it doesn’t turn on, double-check all connections and fuses.
Pro tip: Avoid tapping into your factory headlight wiring. Use the dedicated harness to prevent electrical overloads.
Wiring Tips And Common Mistakes
A clean wiring job isn’t just about looks it prevents shorts and failures.
- Use a relay to handle high current (most bars pull 10–20 amps).
- Fuse the positive line within 12 inches of the battery.
- Keep wiring away from moving parts and exhaust heat.
- Label your switch if installing more lights later.
Beginners often forget to seal drilled holes (leading to rust) or route wires loosely (causing damage on the trail). Take your time with these steps for lasting results.
Maintenance And Troubleshooting
LED light bars need little care, but regular checks help:
- Inspect mounts and wiring every few months.
- Clean the light bar lens for maximum brightness.
- Check for water inside the housing after heavy rain or car washes.
If the light flickers or stops working, check the fuse first. Next, inspect wiring for loose or corroded connections.
Most issues are simple to fix if you installed everything carefully.
Legal And Safety Considerations
Some states have rules about off-road lights. For example, you may need to cover your light bar when driving on public roads. Always use a separate switch—never wire the bar to turn on with your low beams.
If you want to learn more about off-road lighting laws, check the Specialty Equipment Market Association (SEMA) for up-to-date information.
Frequently Asked Questions
How Long Does It Take To Install A Led Light Bar On A Jeep Tj?
Most DIY installations take 2 to 4 hours if you have all the tools and parts ready. Beginners should allow extra time for careful wiring and mounting.
Will Installing A Light Bar Void My Jeep’s Warranty?
Adding a light bar usually does not void your warranty, but poor wiring or damage to factory electronics might. Always use a relay and fuse for safety.
Can I Wire The Led Light Bar To My Existing Headlight Switch?
It’s not recommended. Most LED light bars draw more current than the factory switch is designed for. Use the provided switch and relay.
What Size Light Bar Fits Best On A Jeep Tj?
A 20- to 32-inch bar above the windshield fits most Jeep TJs. Measure your mounting location before buying, as brackets can change the fit.
Are Curved Or Straight Light Bars Better?
Curved bars offer a wider light spread, but straight bars have a simpler look and are easier to mount on flat surfaces. Choose based on your lighting needs and style preference.
Installing a LED light bar on your Jeep TJ isn’t just about looks—it’s about safety, performance, and enjoying your Jeep to the fullest. Take your time, follow each step carefully, and you’ll light up the trail with confidence.
