Changing the tail light on a 2009 Jeep Grand Cherokee is a practical task that many owners can handle at home. You don’t need advanced tools or special skills—just a careful approach and the right guidance. Whether your tail light is out due to a burnt bulb or damage, handling this fix yourself can save money and time. This guide will walk you through each step, explain the parts you’ll deal with, and offer tips to avoid common mistakes.
Understanding The Tail Light System

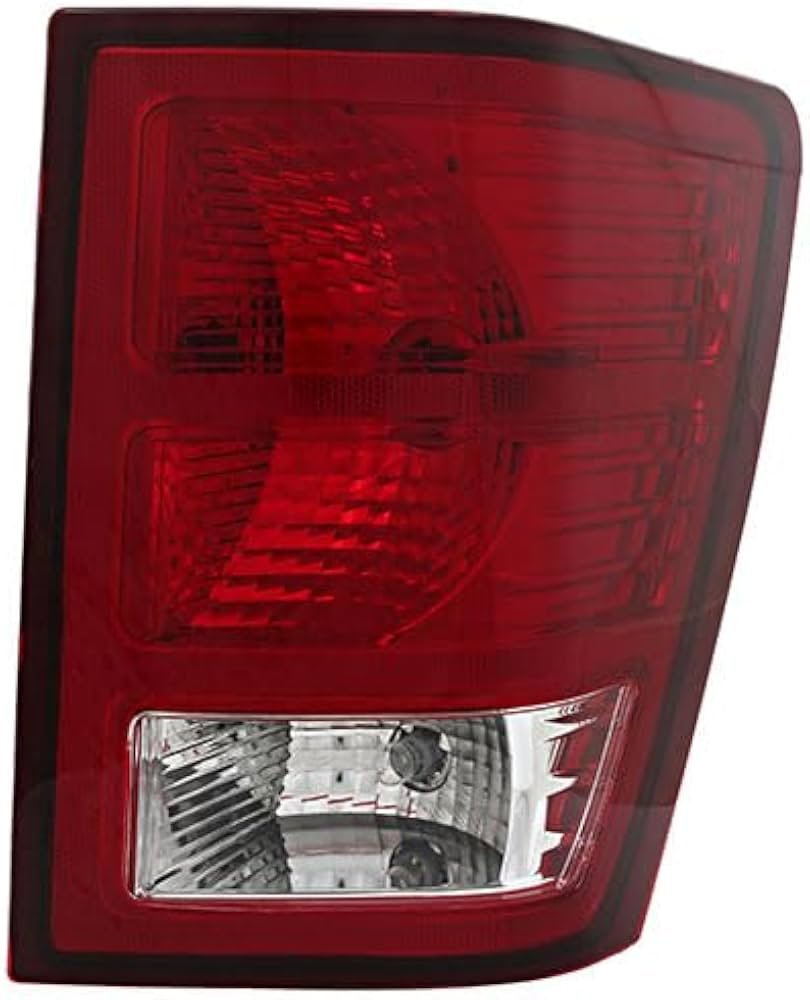

The tail light assembly on your 2009 Jeep Grand Cherokee includes more than just the red lens you see from behind. It contains bulbs for the brake light, reverse light, and turn signal. Sometimes, only one bulb is out; other times, the whole unit needs replacement.
A new tail light assembly costs between $80–$200, while a single bulb is much cheaper—usually under $10. Here’s a quick overview of the main parts:
| Component | Function | Average Cost (USD) |
|---|---|---|
| Tail light bulb | Provides rear red light | $5–$15 |
| Brake light bulb | Lights up when braking | $5–$15 |
| Turn signal bulb | Blinks to indicate turns | $5–$15 |
| Tail light assembly | Holds all bulbs & wiring | $80–$200 |
Tools And Materials Needed
Before you begin, gather these items:
- Replacement bulb or assembly (check your owner’s manual for the exact type)
- Phillips screwdriver
- Work gloves
- Clean rag
A simple tip: check both sides of your tail lights. If one bulb is burnt out, the other may soon follow.
Step-by-step Instructions
1. Open The Rear Liftgate
Start by opening the rear liftgate. This gives you easy access to the tail light area.
2. Locate And Remove Mounting Screws
Find the two screws on the inside edge of the tail light assembly. Use your Phillips screwdriver to remove them. Place the screws in a safe spot.
3. Gently Pull Out The Tail Light Assembly
Carefully pull the tail light assembly straight out. It may feel tight because of plastic clips. Wiggle gently without forcing, or you could crack the housing.
4. Disconnect The Wiring Harness
You’ll see a wiring connector at the back. Press the tab and pull to disconnect it.
5. Remove The Bulb Socket
Rotate the bulb socket counterclockwise and pull it out of the assembly. Be careful not to break the bulb.
6. Replace The Bulb
Pull the old bulb straight out. Insert the new bulb—make sure it clicks into place.
7. Reinstall The Bulb Socket
Insert the bulb socket back into the assembly and twist clockwise to secure.
8. Reconnect The Wiring Harness
Press the connector back onto the wiring harness until it clicks.
9. Reinstall The Tail Light Assembly
Align the assembly with the body of the Jeep. Push it in until the clips snap, then secure with the screws.
10. Test The Tail Light
Before closing the liftgate, check your lights. Turn on the headlights, brake, and signal to make sure all functions work.
Common Mistakes And How To Avoid Them
Many beginners rush through the steps or forget to test the light at the end. Here are two non-obvious tips:
- Check the fuse if the new bulb doesn’t work. Sometimes, the issue is electrical, not the bulb.
- Wear gloves to avoid getting oil from your fingers on the bulb. This can cause early burnout.
Another common issue: not pushing the wiring connector until it clicks. A loose connection leads to flickering or non-working lights.
Comparing Oem Vs Aftermarket Parts
Choosing between OEM (Original Equipment Manufacturer) and aftermarket parts can be confusing. Here’s a quick comparison:
| Feature | OEM | Aftermarket |
|---|---|---|
| Fit | Perfect | May need adjustment |
| Cost | Higher | Lower |
| Warranty | Yes | Sometimes |
For a 2009 Jeep Grand Cherokee, OEM parts are often recommended for best fit and performance, but quality aftermarket options are available too.
Safety And Legal Reminders
Driving with a broken tail light can be dangerous—and it’s illegal in most states. Statistics from the National Highway Traffic Safety Administration show that rear-end collisions are more likely when tail lights fail. Fixing a faulty light quickly keeps you safe and avoids tickets.
Practical Tips For A Smooth Replacement
- Always compare the new bulb or assembly with the old one before installing.
- If the tail light assembly is foggy or cracked, consider replacing the whole unit for better visibility.
- Keep spare bulbs in your glove box—especially for longer trips.
If you need a visual guide, you can find step-by-step photos on sites like wikiHow.
Frequently Asked Questions
How Do I Know Which Bulb To Buy For My 2009 Jeep Grand Cherokee?
Check your owner’s manual or look at the numbers printed on the old bulb. Most 2009 models use a 3057 or 3157 bulb for tail lights.
Can I Use Led Bulbs Instead Of Regular Bulbs?
Yes, LED bulbs are available and last longer. Just make sure they are compatible with your Jeep’s wiring and fit the socket.
What If My New Tail Light Still Doesn’t Work?
Check the fuse and wiring. Sometimes, the problem is not the bulb but an electrical issue or a blown fuse.
Do I Need To Reset Anything After Changing The Tail Light?
No reset is needed. Once installed, the light should work immediately when you test it.
Is It Legal To Drive With A Broken Tail Light?
No, it’s illegal in most places and you can get a ticket. Always fix a broken tail light as soon as possible.
Changing the tail light on your 2009 Jeep Grand Cherokee is straightforward with the right steps. Take your time, double-check your work, and you’ll stay safe and legal on the road.
