Aiming the headlights on your Jeep Wrangler might seem like a small detail, but it makes a big difference for safety. Properly aimed headlights help you see the road, avoid blinding others, and stay legal. Many Jeep owners change their suspension, add bigger tires, or lift the vehicle—this can easily throw your headlights out of alignment. Even if your Jeep is stock, rough roads can knock the beams off target over time.
The good news? You don’t need a mechanic to aim Jeep Wrangler headlights. With a few simple tools, a flat wall, and some patience, you can do it in your driveway. This guide shows you how, step by step, with practical tips and real examples.
Why Headlight Aim Matters
Badly aimed headlights are more common than you think. A 2022 IIHS study found that 60% of tested vehicles had headlights set too high or too low from the factory. That means millions of drivers are unknowingly at risk.
Here’s why aiming matters:
- Visibility: Correct aim lets you see further and spot hazards early.
- Safety: You avoid dazzling oncoming drivers, which reduces the chance of a crash.
- Legal requirements: Most states have laws about headlight height and aim.
- Vehicle changes: Lifting or lowering your Jeep changes the headlight angle.
What You’ll Need
Before you start, gather these items:
- Tape measure
- Masking tape
- Screwdriver (usually Phillips or Torx for Jeep Wrangler)
- A level surface and vertical wall (garage door works well)
- Owner’s manual (for your Jeep’s specs)
Setting Up For Headlight Alignment
Getting the setup right is half the job. Follow these steps for accuracy:
- Park your Jeep 15 to 25 feet from a wall. Make sure the ground is level.
- Fill the gas tank and check tire pressure. Have someone sit in the driver’s seat if you often drive with a passenger.
- Bounce the Jeep a few times to let the suspension settle.
- Turn on the headlights (low beam) and mark the center of each beam on the wall with masking tape.
- Measure the distance from the ground to the center of each headlight. Mark this same height on the wall with tape.
Here’s a quick comparison of headlight setup distances:
| Distance from Wall | Best For | Common Vehicles |
|---|---|---|
| 10 feet | Quick checks | Compact cars |
| 25 feet | Accurate adjustment | Jeeps, SUVs |
| 50 feet | Professional shops | All vehicles |
For a Jeep Wrangler, 25 feet is usually best.
How To Aim Jeep Wrangler Headlights
With your setup ready, here’s how to aim the headlights step by step.

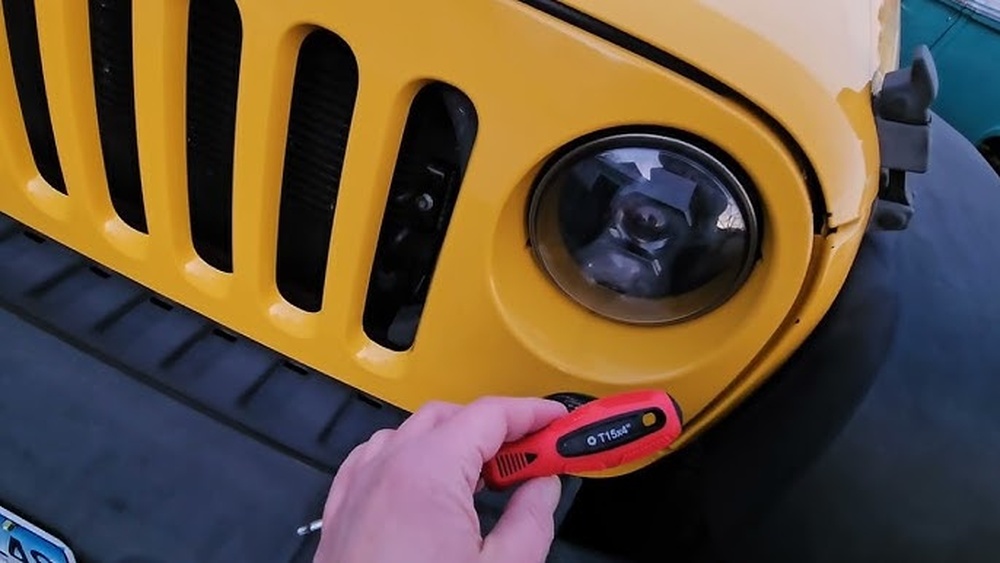

- Find the adjusters. Jeep Wrangler headlights usually have two adjuster screws per lamp—one for vertical, one for horizontal. They sit behind or beside the headlight housing.
- Vertical adjustment. Use the screwdriver to turn the vertical adjuster. The top of the brightest part of the beam should be 2 to 4 inches below the headlight centerline marked on the wall.
- Horizontal adjustment. Turn the side adjuster so the beam centers line up with the marks directly in front of each headlight.
Below is a simple table showing common adjustment screws by Jeep Wrangler model year:
| Wrangler Generation | Vertical Adjuster Location | Horizontal Adjuster Location |
|---|---|---|
| JK (2007–2018) | Top of housing | Side of housing |
| JL (2018+) | Top right of housing | Bottom left of housing |
| TJ (1997–2006) | Rear of housing | Side of housing |
Tip: Turn the screws slowly, and check the beam pattern after every half turn.
Common Mistakes To Avoid
Many owners make these errors:
- Aiming too high. This blinds others and may get you pulled over.
- Uneven beams. Both headlights should point to the same height and centerline.
- Ignoring load and tire changes. Extra weight or larger tires affect aim.
- Rushing the process. Take your time for safety.
Real-world Example
Suppose you just installed a 2-inch lift and 33-inch tires on your 2019 Wrangler JL. After the upgrade, you notice your headlights seem to shine higher than before. You set up your Jeep 25 feet from your garage wall, measure from the ground to the headlight center (say, 42 inches), and mark that height on the wall with tape.
You turn on your low beams. The center of the beam is now about 2 inches above your tape line—not below it. Using a Phillips screwdriver, you slowly adjust the vertical screw until the top of the beam sits 2 inches below the tape line. Now your headlights are aimed safely for the road.
When To Re-aim Headlights
You should check and re-aim your Jeep Wrangler headlights:
- After installing a lift kit or heavy bumpers
- When changing headlight bulbs or housing
- After hitting a large pothole or off-roading
- Once a year as part of regular maintenance
Most drivers don’t realize that even new bulbs can have a slightly different beam pattern, which can shift the aim. That’s why regular checks matter.
Legal And Safety Considerations
Each state has specific rules for headlight height and aim. For example, many require the top cut-off of the low beam to be a certain distance below the headlight center when projected 25 feet ahead. Some states inspect this during annual vehicle checks.
It’s smart to check your state’s Department of Motor Vehicles (DMV) website for exact requirements. For more on vehicle lighting laws, see the National Highway Traffic Safety Administration.
Frequently Asked Questions
How Often Should I Check My Jeep Wrangler Headlight Aim?
Check your headlight aim at least once a year and after any suspension or tire changes. If you drive off-road often or notice less visibility at night, check more frequently.
Do I Need Special Tools To Aim Jeep Wrangler Headlights?
No special tools are required for most models—a tape measure, masking tape, and a standard screwdriver are enough. Some aftermarket headlights may need an Allen key.
Can I Aim Jeep Wrangler Headlights With Led Or Aftermarket Lights?
Yes. The same process applies, but aftermarket LEDs sometimes have sharper cutoff lines. Always follow the specific instructions from the light manufacturer for best results.
How Do I Know If My Headlights Are Aimed Too High Or Too Low?
If oncoming drivers flash their lights at you, your headlights may be too high. If you struggle to see road signs or the road ahead seems dark, they may be too low. The wall and tape method gives the most accurate check.
Is Headlight Aiming Different For Lifted Jeeps?
Yes. Lifting changes the angle of the headlights, often making them point higher. It’s important to re-aim after any lift or suspension change to avoid blinding others and to keep your Jeep road-legal.
Aiming your Jeep Wrangler headlights isn’t complicated, but it is critical for safe driving. With a careful setup and regular checks, you’ll drive with confidence, see better at night, and keep everyone safer on the road.
