If you own a Jeep Grand Cherokee, you might have come across the dreaded C2212 00 code. This code signals a problem with your vehicle’s air suspension system—something that can seriously affect your ride comfort and safety.
You’re probably wondering what causes this issue and how to fix it without spending a fortune or endless hours troubleshooting. You’ll discover clear, straightforward steps to understand the C2212 00 Jeep code, why it happens, and what you can do to get your suspension back to perfect working order.
Keep reading to take control of your Jeep’s performance and avoid costly repairs down the road.
Jeep C2212 00 Code Basics
The air suspension system in the C2212 00 Jeep offers a smooth and adaptable ride. This system replaces traditional springs with air springs. It adjusts the vehicle’s height based on driving conditions and load.
Understanding the air suspension details helps with maintenance and troubleshooting. The system improves comfort and stability on different terrains. It also helps protect the vehicle from damage by keeping the right ride height.
How Air Suspension Works
The air suspension uses airbags filled with compressed air. These airbags replace the coil springs found in regular suspension. Sensors detect the vehicle’s height and road conditions.
An air compressor pumps air into the airbags. This adjusts the pressure to raise or lower the vehicle. The system keeps the ride smooth by adapting to bumps and turns.
Key Components Involved
The main parts include airbags, an air compressor, and height sensors. The airbags support the vehicle’s weight and absorb shocks. The compressor supplies air to these bags through valves.

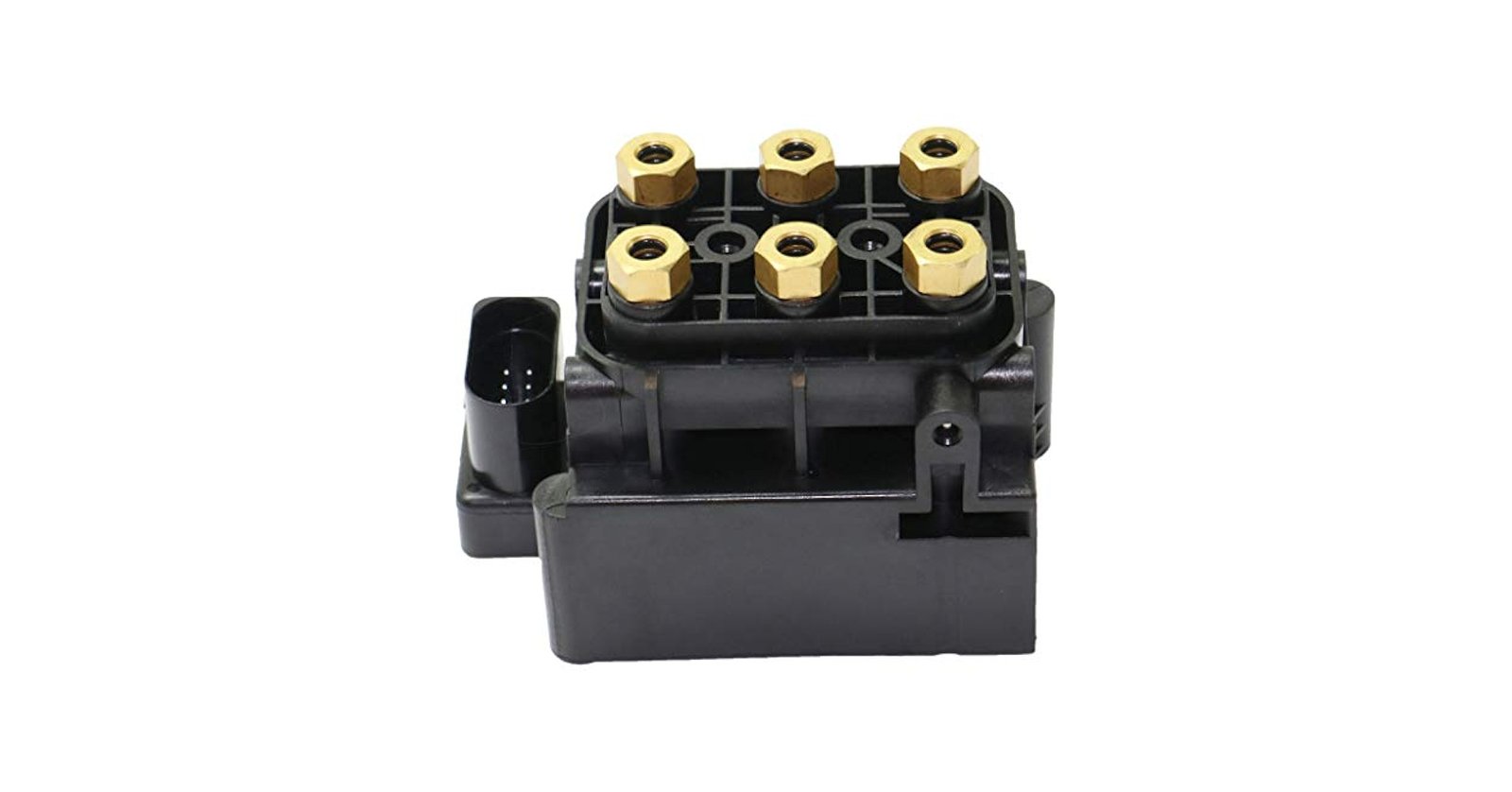

Height sensors measure how high the vehicle sits above the wheels. They send data to the control module to maintain the correct height. Valves control the airflow to each airbag, adjusting pressure as needed.
Role Of Air Suspension Control Module
The control module acts as the system’s brain. It receives signals from height sensors and other inputs. Then, it controls the compressor and valves to adjust air pressure.
This module ensures the vehicle stays level and comfortable. It also runs self-checks to find any system faults. If issues arise, the module can alert the driver via warning lights.
Air Suspension System Details
Diagnosing the C2212 00 error code on a Jeep involves understanding the air suspension system. This error indicates the vehicle’s Air Suspension Control Module is stuck in Plant Mode. Plant Mode is a factory setting used during assembly. The system needs to exit this mode for proper function. Several diagnostic steps help identify and fix the issue. These include using an OBD-II scanner, performing air mass calculation, and running height sensor calibration.
Using Obd-ii Scanners
Start diagnosis with a professional OBD-II scanner. Connect the scanner to the Jeep’s diagnostic port. Use tools like Autel, WiTech, or AlfaOBD for advanced features. Check for stored codes and live data from the air suspension module. The scanner can force the ECU to exit Plant Mode. It also helps clear false codes that cause errors. This step provides a clear view of system status and faults.
Performing Air Mass Calculation
Air mass calculation is crucial for resetting the suspension system. The scanner triggers the compressor and valves to cycle air through the system. This process checks for leaks and ensures correct pressure. The system relearns the proper air volume and ride height. Running this routine corrects errors caused by improper air mass data. It stabilizes the suspension for smooth operation.
Running Height Sensor Calibration
Height sensors measure vehicle stance and adjust suspension height. Calibration ensures sensors read accurate distances. Use the scan tool to start the height sensor routine. Measure the distance from the wheel center to the fender flare. Refer to the vehicle’s service manual for exact specs. Input these values into the scanner. Calibration aligns sensor data with actual vehicle height. This step prevents incorrect suspension adjustments and error codes.
Diagnosing C2212 00
Fixing air suspension issues in a C2212 00 Jeep requires a clear approach. The air suspension system controls the ride height and comfort. Problems can cause a rough ride or uneven height. Understanding how to troubleshoot key parts helps restore smooth driving quickly.
Resetting The System
Resetting the air suspension system can clear error codes and restore function. Use a professional OBD-II scanner to connect to the Jeep’s control module. Run the “Air Mass Calculation” or “Refill Routine” to reset the system. This process recalibrates sensors and relearns proper ride heights. It also helps the system exit Plant Mode if stuck. Follow the scanner’s instructions carefully for best results.
Checking For Air Leaks
Air leaks are common causes of suspension problems. Inspect all air lines and connections for damage or cracks. Listen for hissing sounds while the system is pressurizing. Use soapy water spray on fittings to spot bubbles indicating leaks. Replace any damaged hoses or seals promptly. Even small leaks can cause the compressor to overwork and reduce ride quality.
Compressor Inspection And Repair
The air suspension compressor pumps air into the system. Check the compressor for unusual noise or failure to build pressure. Test the compressor’s electrical connections and fuse. Clean or replace the air filter to maintain airflow. If the compressor fails, replace it with a compatible unit. Proper compressor function is crucial for maintaining correct air pressure and smooth suspension performance.
Fixing Air Suspension Issues
Upgrading the air suspension on your C2212 00 Jeep enhances ride quality and off-road ability. This upgrade offers better control over vehicle height and smoother handling on rough terrain. Improved suspension means a safer, more comfortable driving experience both on and off the road.
Performance Benefits
An upgraded air suspension improves stability and handling. It adjusts ride height for better ground clearance on trails. This reduces body roll during turns and improves traction. You gain better shock absorption, which softens bumps and rough roads. Your Jeep feels more responsive and controlled at various speeds.
Best Aftermarket Kits
Choose kits with durable air springs and reliable compressors. Look for options that include adjustable height controls. Brands like Air Lift and Firestone offer popular kits for Jeep models. These kits provide easy tuning and strong components built to last. Ensure compatibility with your C2212 00 Jeep model before purchasing.
Installation Tips
Begin by lifting the Jeep securely with jack stands. Remove existing suspension parts carefully to avoid damage. Follow the kit’s manual step-by-step for proper air line and sensor connections. Double-check all fittings for leaks before lowering the vehicle. Test the system by adjusting the ride height several times. Seek professional help if unsure about any step.
Plant Mode And Its Impact
Maintaining your C2212 00 Jeep ensures it runs smoothly and lasts longer. Regular care keeps the vehicle safe and reliable. Simple habits help avoid costly repairs and breakdowns. Focus on key areas to protect your Jeep’s performance.
Regular Inspection Practices
Check your Jeep’s tires for wear and proper pressure. Look under the vehicle for leaks or damage. Inspect brake pads and rotors for signs of wear. Test all lights and signals to ensure they work. Keep an eye on fluid levels like oil, coolant, and brake fluid. Clean the air filter regularly for better engine health. Small checks prevent bigger problems down the road.
Preventive Maintenance For Suspension
Inspect suspension parts for cracks or rust. Make sure shocks and struts absorb bumps well. Tighten any loose bolts or components. Lubricate joints and bushings to reduce wear. Watch for uneven tire wear, which signals suspension issues. Keep the air suspension system free of leaks if your Jeep has one. Proper suspension care improves ride comfort and vehicle control.
When To Seek Professional Help
Visit a mechanic if you hear strange noises from suspension. Seek help if the Jeep pulls to one side while driving. Get professional diagnosis when warning lights appear on the dashboard. Take your Jeep in for service if you notice leaking fluids or poor braking. Complex issues like air suspension recalibration require expert tools. Early professional care saves money and ensures safety.
Conclusion
The C2212 00 code on a Jeep signals an air suspension issue. Fixing it requires proper tools and steps. Checking sensors and pressures helps identify problems. Resetting the system often restores normal function. Regular maintenance keeps your Jeep running smoothly.
Stay attentive to warning signs to avoid bigger repairs. Understanding this code makes troubleshooting easier. Your Jeep will ride better with a healthy suspension. Keep your vehicle safe and comfortable on every drive.
