The Jeep 4xe, Jeep’s plug-in hybrid electric vehicle (PHEV), has changed how people think about off-roading and eco-friendly driving.
With a growing interest in electric and hybrid vehicles, many drivers want to know what type of plug the Jeep 4xe uses, and how charging fits into daily life.
If you’re considering a 4xe, understanding its charging compatibility is key to making the most of your investment.
The Type Of Plug Used By Jeep 4xe
The Jeep 4xe uses the J1772 plug, also known as the SAE J1772 connector. This is the standard plug type for most electric and plug-in hybrid vehicles in North America. You’ll find it at nearly all public and home Level 1 and Level 2 charging stations.
Key facts about the J1772 plug:
- It supports both Level 1 (120V) and Level 2 (240V) charging.
- It is not compatible with fast DC charging (like Tesla Superchargers or CHAdeMO).
- The plug design is sturdy and easy to handle, making home charging simple.
Below is a quick look at common charging plug types and their compatibility with the Jeep 4xe:
| Plug Type | Compatible with Jeep 4xe? | Typical Use |
|---|---|---|
| J1772 | Yes | Level 1 & Level 2 Charging |
| CCS (Combined Charging System) | No | DC Fast Charging |
| CHAdeMO | No | DC Fast Charging (Nissan, etc.) |
| Tesla Connector | No (without adapter) | Tesla vehicles & Superchargers |
Home Charging: What You Need To Know

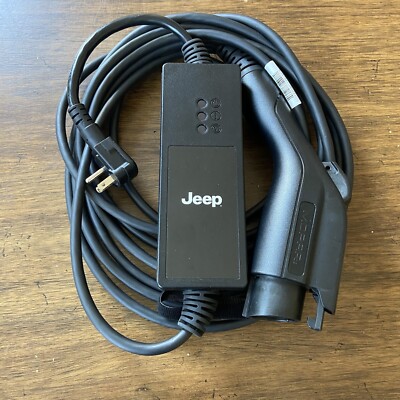

Charging your Jeep 4xe at home is convenient and cost-effective. The vehicle comes with a Level 1 charging cable that plugs into a standard 120V wall outlet. For faster charging, you can use a Level 2 home charger, which requires a 240V outlet.
Charging Speed Comparison
Here’s how long it takes to charge the Jeep 4xe using different charging setups:
| Charger Type | Voltage | Charging Time (0–100%) |
|---|---|---|
| Level 1 (Standard Outlet) | 120V | ~12–14 hours |
| Level 2 (Home/Commercial) | 240V | ~2–3 hours |
Most owners install a Level 2 charger at home for daily use. It’s a bigger investment up front but saves hours of charging time each week.
Public Charging: Where And How
Public charging stations are becoming more common in cities, shopping malls, and along highways. The J1772 plug ensures you can use most public Level 2 chargers in the US.
Tips For Public Charging
- Check station compatibility. Always confirm the station supports J1772 plugs.
- Bring your charging cable. Not all stations provide a cable.
- Use apps like PlugShare or ChargePoint to find nearby stations.
- Be aware of costs. Some public chargers are free, while others charge per hour or per kilowatt-hour (kWh).
Jeep 4xe And Fast Charging
The Jeep 4xe does not support DC fast charging. This means you cannot use CHAdeMO or CCS fast chargers for rapid charging. The 4xe’s battery size and design do not require ultra-fast charging; it was built for overnight home charging or a few hours at a public station.
For many drivers, this is not a problem. The 4xe’s all-electric range is about 21 miles (EPA estimate), enough for short commutes or errands, after which the gasoline engine takes over. This hybrid setup gives you flexibility, even if you can’t find a charging station.
Plug Safety And Weather Considerations
The J1772 plug is designed for safe charging in all weather conditions. The connector and port are weather-sealed, so you can charge in the rain or snow without worry. Always check that both the plug and your hands are dry for added safety, but the risk of electric shock is extremely low thanks to built-in safeguards.
One insight many owners miss: If you plan to park outdoors in freezing temperatures, some Level 2 chargers offer delayed start features. This allows you to pre-set charging to begin just before your morning drive, ensuring a warmer battery and full charge.
Adapters And Compatibility With Other Networks
Some EV owners wonder if they can use Tesla Superchargers or other fast charging networks. The answer is no at least, not without an adapter, and even then, only for Level 2 Tesla Destination Chargers, not Superchargers.
Important: Using adapters can sometimes void warranties or cause compatibility issues. Always use approved charging equipment for your Jeep 4xe.
Key Takeaways For Jeep 4xe Owners
- The J1772 plug is the only plug type you need for Jeep 4xe charging in North America.
- Level 2 chargers are the best mix of speed and convenience.
- There’s no support for DC fast charging; plan longer trips accordingly.
- Charging is safe in all weather, but always use proper equipment.
- Consider installing a home Level 2 charger to maximize convenience.
If you want to see official guidance, the US Department of Energy provides a detailed overview of plug types and compatibility at Alternative Fuels Data Center.
Frequently Asked Questions
What Plug Does The Jeep 4xe Use?
The Jeep 4xe uses the J1772 plug for both Level 1 and Level 2 charging in North America.
Can I Use Tesla Superchargers With My Jeep 4xe?
No, the Jeep 4xe is not compatible with Tesla Superchargers. It can use some Tesla Destination Chargers with an adapter, but only for Level 2 charging.
How Long Does It Take To Charge The Jeep 4xe At Home?
Using a Level 1 charger (standard wall outlet), it takes about 12–14 hours. With a Level 2 charger, charging takes about 2–3 hours.
Can I Charge My Jeep 4xe In The Rain?
Yes, the J1772 plug and the Jeep 4xe’s charging port are weather-sealed for safe charging in rain or snow.
Do I Need A Special Outlet For Home Charging?
For faster charging, a 240V outlet is recommended for Level 2 chargers. You can use a standard 120V outlet, but charging will be much slower.
By understanding the plug type and charging options for your Jeep 4xe, you’ll enjoy a smoother ownership experience and get the best performance from your vehicle.
