If you own a Jeep Grand Cherokee, you know how important every part is to your driving experience. One part that often gets overlooked is the door wiring harness.
This bundle of wires connects the electronics inside your door—like power windows, locks, and speakers—to the main electrical system. Understanding the Jeep Grand Cherokee door wiring harness diagram can save you both time and money when you’re troubleshooting issues or planning upgrades.
What Is A Door Wiring Harness?
A door wiring harness is a group of wires bound together with connectors and protective sleeves. In the Jeep Grand Cherokee, this harness runs from the door into the vehicle body, passing through a flexible rubber boot. It carries signals and power for features like:
- Power windows
- Door locks
- Speakers
- Side mirror controls
- Courtesy lights
- Keyless entry sensors
These wires are color-coded and follow a logical pattern, but they can be confusing without a proper diagram.
Why The Wiring Harness Diagram Matters
A wiring harness diagram is not just a technical map; it’s a troubleshooting tool. It shows the route and connections for each wire, helping you:
- Locate faults when an electrical feature fails
- Identify wire colors for repairs or upgrades
- Avoid mistakes that can lead to short circuits
For example, if your window stops working, the diagram helps you check the right wire for voltage before you replace expensive parts.
Common Door Wiring Harness Problems
The Grand Cherokee is reliable, but door wiring can fail over time. Here are the most common issues:

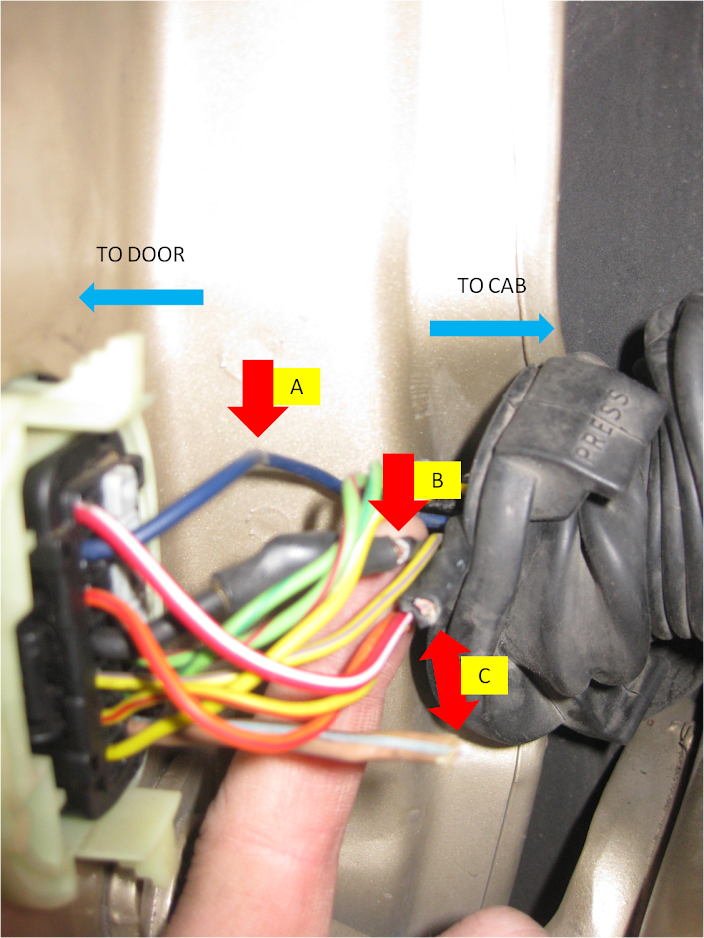

- Broken wires: Frequent opening and closing of doors can cause wires to break inside the rubber boot.
- Corroded connectors: Moisture can get into connectors, leading to poor contact or corrosion.
- Short circuits: Pinched wires or poor insulation may cause shorting, blowing fuses or damaging modules.
- Loose terminals: Connectors can loosen with age, causing intermittent problems.
Symptoms include non-working windows, locks, or speakers on a single door.
Reading A Jeep Grand Cherokee Door Wiring Harness Diagram
A typical wiring diagram includes wire colors, connector locations, and pin numbers. Here’s a simplified example for the driver’s door:
| Wire Color | Function | Connector Pin |
|---|---|---|
| White/Black | Power Window Up | Pin 1 |
| White/Red | Power Window Down | Pin 2 |
| Green/Black | Door Lock | Pin 5 |
| Purple/Yellow | Speaker (+) | Pin 7 |
| Purple/Light Blue | Speaker (-) | Pin 8 |
Note: Actual colors and pin numbers can change between model years. Always check the diagram specific to your Jeep.
How To Use The Diagram For Troubleshooting
When you face a problem with a door feature, the diagram helps you trace the issue. For example:
- Window won’t go down: Use the diagram to find the wire for “Power Window Down.” Test it with a multimeter at the door connector.
- Speaker silent: Check the two speaker wires. If there’s no signal, the problem may be in the harness or head unit.
- Lock not working: Test the door lock wire at the correct pin.
Being systematic saves time and prevents unnecessary part replacements.
Comparing Common Jeep Grand Cherokee Door Harnesses
Wiring harnesses differ by model year and trim. Here’s a comparison of two common harnesses:
| Model Year | Number of Wires | Main Features Supported |
|---|---|---|
| 2011-2015 | 18 | Windows, Locks, Mirrors, Speakers |
| 2016-2026 | 22 | Same as above + Blind Spot Sensors, Memory Seats |
If you upgrade your vehicle, make sure the harness matches your features. Some wires may be unused in base models.
Steps For Inspecting And Replacing The Door Wiring Harness
If you suspect a problem, follow these steps:
- Disconnect the battery to prevent shorts.
- Remove the door panel using a trim tool.
- Locate the harness and unplug it from both ends.
- Inspect wires for breaks, pinches, or corrosion.
- Repair or replace damaged wires using solder and heat-shrink tubing, or install a new harness.
- Reassemble and test all functions before finishing.
Don’t forget to check for updates or recalls related to wiring issues on the official Jeep website.
Upgrades And Custom Wiring
If you want to add features like aftermarket speakers or puddle lights, the wiring diagram is your guide. You can tap into existing wires or run new ones through the harness path. But always use proper connectors and avoid overloading circuits.
Here’s a quick look at added features and what you’ll need:
| Feature | Extra Wire Needed? | Special Tools |
|---|---|---|
| Puddle Lights | Yes | Crimp Tool, Test Light |
| Aftermarket Speakers | No (reuse existing) | Wire Stripper, Soldering Iron |
| Power Mirrors | Yes (if not factory-equipped) | Multimeter, Splice Connectors |
Two Insights You Shouldn’t Miss
- Harnesses are modular: Most Jeep Grand Cherokee models use modular connectors. You can replace just the door harness without removing the entire dashboard wiring. This makes repairs much easier.
- Wire repair kits exist: Jeep dealers and aftermarket suppliers sell wire repair kits with pre-crimped terminals. This can save you time compared to splicing individual wires.
One Useful Resource
For more technical details and images, you can check the official Jeep Grand Cherokee manuals or the Wikipedia page on the Grand Cherokee.
Frequently Asked Questions
What Tools Do I Need To Fix A Jeep Grand Cherokee Door Wiring Harness?
You’ll need a multimeter, trim removal tools, wire strippers, and sometimes a soldering iron or crimp tool. Always disconnect the battery before working on wiring.
Can I Use A Wiring Diagram For A Different Jeep Model?
It’s best to use the exact diagram for your model year and trim. Wire colors and connector layouts can change. Using the wrong diagram can lead to mistakes.
Why Do Wires Break Inside The Door Boot?
Repeated opening and closing of the door flexes the wires, which can cause them to break or fatigue over time, especially in cold climates.
Are Aftermarket Harnesses As Good As Oem?
Some aftermarket harnesses are high-quality, but others may not fit perfectly or match wire colors. OEM harnesses usually provide the best fit and reliability.
Where Can I Find The Diagram For My Jeep Grand Cherokee?
Check the official Jeep service manual, online forums, or trusted auto repair websites. Many diagrams are available as free PDFs or images.
Understanding your Jeep Grand Cherokee door wiring harness diagram helps you keep your vehicle’s features working smoothly. With the right knowledge and tools, you can tackle repairs or upgrades with confidence.
