The 1998 Jeep Grand Cherokee is a classic SUV, beloved for its rugged capability and comfortable ride. Like any vehicle, its headlights are crucial for safe driving, especially at night or in poor weather.
Over time, headlight bulbs can dim, flicker, or burn out completely, affecting visibility and potentially leading to safety hazards.
Knowing how to identify the correct headlight bulb for your ’98 Grand Cherokee and understanding the replacement process is a valuable skill for any owner. This guide will walk you through everything you need to know about ’98 Jeep Grand Cherokee headlight bulbs, from choosing the right type to replacing them.
Understanding Your ’98 Jeep Grand Cherokee Headlight Bulb Needs
The 1998 Jeep Grand Cherokee typically uses a H4 dual-filament bulb for its low and high beams. This means one bulb contains two filaments: one for the lower brightness beam used in normal driving conditions and another for the brighter, high-beam setting used when you need maximum illumination. This design simplifies the headlight assembly compared to systems that use separate bulbs for low and high beams.
It’s important to note that while H4 is the most common type, variations can exist based on specific trim levels or aftermarket modifications. Always double-check your owner’s manual or consult a reliable parts catalog to confirm the exact bulb type for your vehicle.
This ensures you purchase the correct replacement, saving you time and frustration.
Why Replacing Headlight Bulbs Matters
Headlight bulbs don’t last forever. Their lifespan is affected by several factors, including usage, vibration, and the quality of the bulb itself. As bulbs age, their light output diminishes, a phenomenon known as lumen depreciation. This means even if the bulb is still working, it’s not illuminating the road as effectively as it should.
Dim headlights can be dangerous. They reduce your ability to see potential hazards, pedestrians, and other vehicles, and they make it harder for other drivers to see you.
Furthermore, a burnt-out headlight bulb is a traffic violation in most places, which can result in fines.
Replacing your headlight bulbs proactively, especially when you notice a decrease in brightness or a flicker, is a critical safety measure.
Choosing The Right ’98 Jeep Grand Cherokee Headlight Bulb
When selecting a replacement bulb, you have several options, each with its pros and cons:
Halogen Bulbs
These are the standard type of headlight bulbs and are what likely came with your ’98 Grand Cherokee from the factory. They are affordable, readily available, and offer decent performance. If one of your halogen bulbs burns out, replacing it with another standard halogen bulb is the most straightforward and cost-effective solution.
Performance Halogen Bulbs
These are upgraded versions of standard halogen bulbs. They are designed to produce brighter light, a whiter beam, or a longer beam pattern.
Brands like Sylvania (SilverStar, Ultra) and Philips offer these performance options. They can be a good choice if you frequently drive at night or on unlit roads, as they significantly improve visibility.
However, they tend to be more expensive than standard halogens and may have a slightly shorter lifespan due to their higher operating temperature.
Led And Hid Retrofit Bulbs
While not a direct replacement for the H4 halogen socket, some enthusiasts opt for LED (Light Emitting Diode) or HID (High-Intensity Discharge) conversion kits. These kits aim to provide much brighter and more modern lighting. However, installing these in a vehicle designed for halogen bulbs can be problematic.
- Beam Pattern Issues: Headlight housings are designed for the specific filament placement of a halogen bulb. LEDs and HIDs have different light sources, which can lead to an improper beam pattern, causing glare for oncoming drivers or creating dark spots on the road.
- Legality: In many regions, using LED or HID bulbs in housings designed for halogen bulbs is illegal because they can blind other drivers.
- Complexity: Installation can be more complex, often requiring modifications to the wiring or housing.
For a ’98 Jeep Grand Cherokee, sticking with a quality H4 halogen bulb is generally the safest and most legally compliant option for a direct replacement. If you desire significantly improved lighting, consider professionally installed projector-style headlights designed for LED or HID, rather than retrofitting bulbs into your existing housings.
Identifying The Correct Bulb Type: A Step-by-step Approach
To ensure you get the right bulb, follow these steps:
- Check Your Owner’s Manual: This is the most reliable source. The manual will specify the exact bulb type, usually listed in a section about maintenance or lighting.
- Inspect the Existing Bulb: If you can safely access your headlight assembly, remove the old bulb. The bulb type (e.g., H4) is usually printed directly on the glass or the metal base.
- Consult an Online Parts Catalog: Many auto parts websites (like AutoZone, Advance Auto Parts, O’Reilly Auto Parts) have a “Parts Finder” tool. Enter your vehicle’s year, make, model, and engine size to get a list of compatible parts, including headlight bulbs.
- Visit a Local Auto Parts Store: Staff at a reputable auto parts store can help you identify the correct bulb by looking up your vehicle in their system.
Understanding Bulb Specifications
When buying bulbs, you’ll see a few key specifications:
- Wattage (W): This indicates power consumption. For H4 bulbs, the low beam is typically 60W, and the high beam is 55W. Using a wattage higher than specified can potentially damage your wiring or headlight housing due to excessive heat.
- Voltage (V): Standard automotive systems are 12V.
- Color Temperature (Kelvin – K): This refers to the color of the light. Standard halogen bulbs have a yellowish-white light (around 3000K). Whiter light (4000K-5000K) is often preferred for better visibility but can appear bluer at higher Kelvin ratings. Performance halogens often aim for a whiter light without going too blue.
- Lumen Output (lm): This measures brightness. Higher lumens mean a brighter light. However, a brighter bulb isn’t always better if it causes glare.
The 98 Jeep Grand Cherokee Headlight Bulb Replacement Process
Replacing the headlight bulbs on a ’98 Jeep Grand Cherokee is a relatively straightforward DIY task that most people can accomplish with basic tools.
Tools You’ll Need:
- New H4 headlight bulbs (ensure you have two, one for each side)
- Gloves (to avoid transferring oils from your skin to the bulb glass)
- Flathead screwdriver or trim removal tool (optional, for prying clips)
- Socket wrench set (optional, if battery terminal needs disconnecting for safety)
Safety First!
- Turn off the engine and remove the key.
- Allow the headlights to cool down if they were recently on, as they can get very hot.
- Consider disconnecting the negative battery terminal for added safety, especially if you’re working in a tight space or are unsure about electrical connections.
Step-by-step Replacement Guide:
- Open the Hood: Ensure you have good access to the back of the headlight assembly.

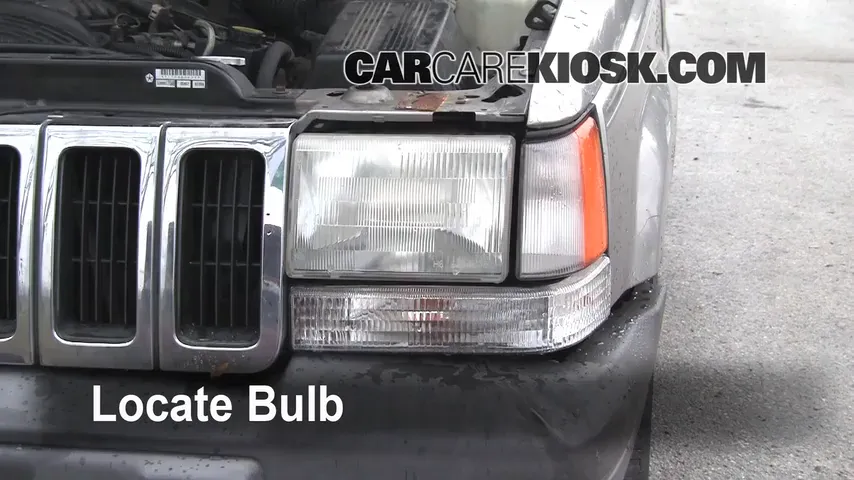

- Locate the Headlight Assembly: The headlight assembly is at the front of the vehicle. You’ll be working from behind it.
- Access the Bulb Connector: On the back of the headlight housing, you’ll find a wiring harness connector plugged into the bulb. This connector usually has a tab you need to press to release it. Gently pull the connector straight back.
- Remove the Dust Cover: There’s typically a rubber or plastic dust cover behind the bulb. Remove this by pulling it off. This protects the housing from dirt and moisture.
- Release the Bulb Retaining Clip: The H4 bulb is held in place by a metal spring clip. This clip usually pivots. You’ll need to push down on the clip and then pivot it out of the way. It might hook onto a small tab on the headlight housing. Pay close attention to how it’s seated so you can put it back correctly.
- Remove the Old Bulb: Once the clip is released, carefully pull the old bulb straight out of the housing.
- Prepare the New Bulb: Crucially, do not touch the glass part of the new bulb with your bare fingers. Fingerprints contain oils that can cause the bulb to overheat and burn out prematurely. If you accidentally touch it, clean it thoroughly with rubbing alcohol and a lint-free cloth.
- Install the New Bulb: Insert the new H4 bulb into the housing. It has specific notches to ensure it only fits one way. Make sure it’s seated firmly and correctly aligned. The prongs on the bulb should fit into the corresponding slots in the headlight housing.
- Secure the Retaining Clip: Pivot the metal spring clip back into place and ensure it securely holds the bulb. You should feel a distinct click or secure seating.
- Replace the Dust Cover: Put the rubber or plastic dust cover back on, ensuring it creates a good seal to keep out moisture and dust.
- Reconnect the Wiring Harness: Plug the wiring connector back into the new bulb. It should click into place.
- Test the New Bulb: Before closing the hood, turn on your headlights (both low and high beams) to confirm the new bulb is working correctly.
- Repeat for the Other Side: It’s highly recommended to replace headlight bulbs in pairs. Even if the other bulb still works, new bulbs often have slightly different brightness and color. Replacing them together ensures consistent illumination and performance.
Common Headlight Bulb Issues And Troubleshooting
- Bulb Flickering: This can be a sign of a loose connection, a failing bulb, or a problem with the vehicle’s electrical system. Check the connector and the bulb seating first. If the problem persists, it might indicate a more serious electrical issue.
- Bulb Burns Out Quickly: This is often caused by touching the glass of the new bulb, using a bulb with a wattage higher than recommended, or a voltage issue in the vehicle’s electrical system. Ensure you’re using the correct wattage and handling the bulb properly.
- Dim Headlights: Besides aging bulbs, dim headlights can also be caused by dirty headlight lenses, corroded electrical connections, or a weak alternator. Clean your lenses regularly. If the issue persists after replacing bulbs, inspect the wiring and consider checking your alternator.
- Headlight Won’t Turn On: Check the fuse for the headlights. If the fuse is good, then the issue is likely the bulb itself, the connector, or the headlight switch.
Enhancing Your Jeep Grand Cherokee’s Lighting
While replacing bulbs is essential, there are other ways to improve your ’98 Grand Cherokee’s lighting:
Cleaning Headlight Lenses
Over time, the plastic lenses of your headlights can become yellowed and cloudy due to UV exposure and oxidation. This significantly reduces light output. You can restore them using a headlight restoration kit, which typically involves sanding, polishing, and applying a protective coating. This is a cost-effective way to make a noticeable difference in visibility.
Upgrading Headlight Housings
For a more significant upgrade, consider replacing the entire headlight assemblies. Aftermarket housings often feature clearer lenses and improved reflectors, designed to work optimally with modern bulbs. Some even offer projector-style lenses for a more focused and efficient beam. Ensure any replacement housing is DOT-approved to meet legal standards.
Auxiliary Lighting
For off-road use or very challenging driving conditions, you might consider auxiliary lighting, such as fog lights or a light bar. These are separate from your main headlights and should be used only when appropriate and legal. Ensure any auxiliary lights are properly installed and wired to avoid electrical issues.
Comparing Popular H4 Bulb Options
Here’s a look at some common H4 bulb types you might consider for your ’98 Grand Cherokee:
| Bulb Type | Key Features | Pros | Cons | Typical Price Range (Pair) |
|---|---|---|---|---|
| **Standard Halogen** | OEM-quality, reliable | Affordable, widely available, correct beam pattern | Standard brightness, yellowish tint | $15 – $30 |
| **Performance Halogen** | Brighter, whiter light, extended beam | Improved visibility, better night driving | More expensive, potentially shorter lifespan, can still have yellowish tint | $30 – $60 |
| **”Night Vision” Halogen** | Often marketed for extreme brightness and whiteness, sometimes blue tint | Can offer superior visibility in specific conditions | Higher heat, can be illegal in some areas if beam pattern is altered, expensive | $40 – $70 |
*Note: Prices are approximate and can vary based on brand and retailer.*
Frequently Asked Questions About ’98 Jeep Grand Cherokee Headlight Bulbs
What Is The Exact Bulb Size For A 1998 Jeep Grand Cherokee?
The most common headlight bulb size for the 1998 Jeep Grand Cherokee is the H4 (also known as 9003). This is a dual-filament bulb, meaning it contains both the low beam and high beam filaments within a single bulb. Always confirm with your owner’s manual or a parts lookup tool to be absolutely sure.
Can I Put Led Or Hid Bulbs In My 1998 Grand Cherokee?
While technically possible with conversion kits, it’s generally not recommended to put LED or HID bulbs into housings designed for H4 halogen bulbs. The reflector and lens are engineered for the specific light source of a halogen bulb. Using LEDs or HIDs can result in an improper beam pattern, causing glare for other drivers and creating dark spots on the road. It can also be illegal in many jurisdictions. For optimal performance and legality, stick with H4 halogen bulbs or consider a complete headlight assembly designed for LED/HID.
How Often Should I Replace My Headlight Bulbs?
Headlight bulbs don’t have a fixed replacement interval. They should be replaced when they burn out, dim significantly, or start flickering. On average, a halogen headlight bulb lasts between 500 to 1,000 hours of use. It’s a good practice to check your headlights periodically, especially before long trips or during seasons with less daylight.
Why Do My New Headlight Bulbs Burn Out So Quickly?
Several factors can cause new bulbs to fail prematurely. The most common reason is touching the glass of the bulb with bare hands during installation. Oils from your skin can create hot spots on the glass, leading to premature failure. Ensure you’re using gloves or a clean cloth. Other causes include incorrect wattage bulbs, loose electrical connections, or voltage irregularities in your vehicle’s electrical system.
