If you hear grinding noises or feel vibrations from the rear of your TJ Jeep Wrangler, you might be facing worn rear wheel bearings. Bad bearings can make driving unsafe, affect handling, and even damage other parts. Replacing them yourself can save money and keep your Jeep running smoothly. This guide walks you through the process, explains when replacement is necessary, and shares tips to avoid common mistakes.
Why Rear Wheel Bearings Matter
Rear wheel bearings are small but important parts. They let your wheels spin with little friction.
In a TJ Jeep Wrangler, they also handle the weight of the vehicle and the stress from off-road driving. When bearings wear out, wheels may wobble, and braking can become less effective.
If left unchecked, a bad bearing can cause a wheel to seize or come off a serious safety risk.
Signs Your Rear Wheel Bearings Need Changing
- Humming or grinding noise from the rear wheels, especially when turning
- Wheel play—the wheel moves side to side if you shake it by hand
- ABS light turning on (in some models)
- Uneven tire wear
- Vibrations that get worse with speed
If you notice any of these, inspect your bearings soon. Off-road driving or deep water crossings can make bearings fail faster.
Tools And Parts You’ll Need
Changing rear wheel bearings on a TJ Wrangler needs some preparation. Here’s a list of what you’ll need:
- Jack and jack stands (for safety)
- Lug wrench
- Socket set and ratchet (including 13mm, 18mm sockets)
- Breaker bar
- Hammer and drift or punch
- Pry bar
- Bearing puller (optional, but helpful)
- Seal driver or large socket (to install new seals)
- Replacement wheel bearings (specific to TJ Wrangler)
- Axle seals
- Gear oil (for the differential)
- Shop towels/rags
- Torque wrench
- Drain pan
You may also want gloves and safety glasses. Having all your tools ready can save time and reduce frustration.
Step-by-step: How To Change Rear Wheel Bearings On A Tj Jeep Wrangler
Changing rear wheel bearings is a moderate DIY job. Expect to spend about 2 4 hours if you have basic mechanical skills.
1. Preparation And Safety
Park your Jeep on a level surface. Put it in gear (manual) or park (automatic), and set the parking brake.
Block the front wheels. Loosen rear lug nuts before lifting the vehicle.
Use a jack to lift the rear, then secure it with jack stands under the axle.
Remove the wheels.
2. Remove The Brake Components
Take off the brake caliper by removing its bolts (usually 13mm). Hang it from the frame using wire don’t let it dangle from the brake hose. Remove the brake rotor. If it’s stuck, tap gently with a rubber mallet.
3. Remove The Differential Cover
Place a drain pan under the differential. Remove the bolts holding the diff cover (usually 13mm or 1/2-inch), then gently pry off the cover to drain the gear oil. This step is needed to access the axle shafts.
4. Remove The Axle Shafts
Inside the differential, you’ll see a cross pin held by a small bolt (8mm). Remove the bolt and slide out the cross pin. Push the axle shaft inward; you’ll see a C-clip at the end of the shaft inside the differential.
Use a magnet or needle-nose pliers to remove the C-clip. Carefully pull the axle shaft out from the wheel side.
Repeat for the other side if changing both bearings.
5. Remove The Old Wheel Bearing And Seal
You’ll see the bearing and seal at the end of the axle tube. Pry out the axle seal with a seal puller or large screwdriver. Use a bearing puller (or a slide hammer with an attachment) to remove the bearing.
If you don’t have these tools, you can rent them from an auto parts store.

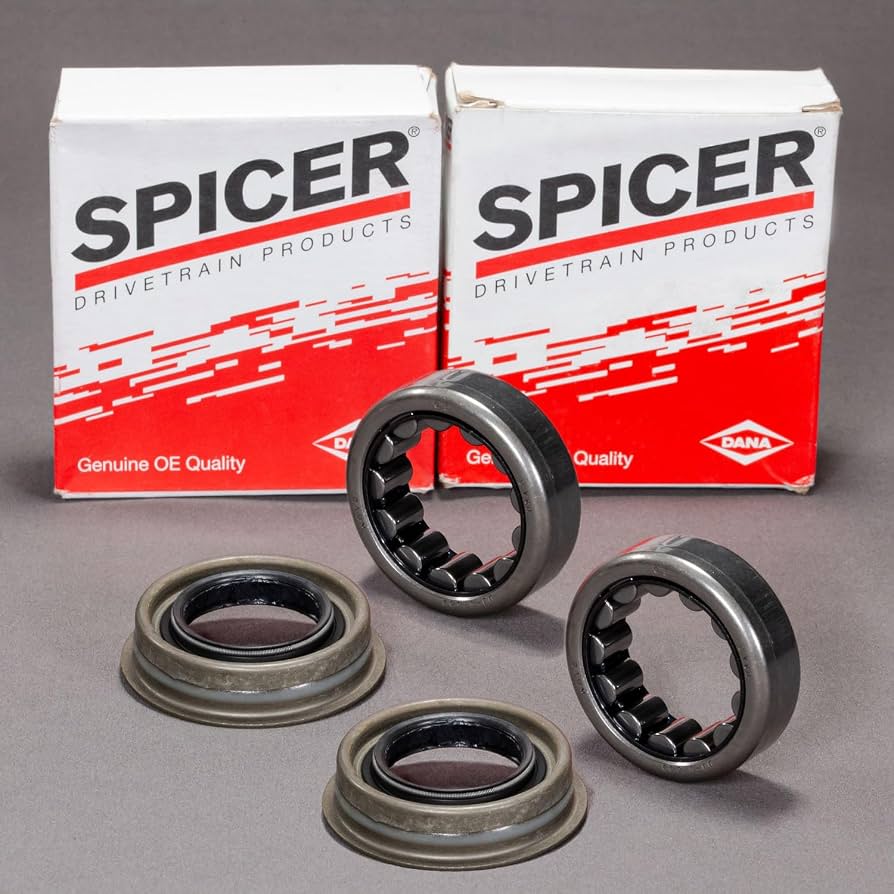

6. Install The New Bearing And Seal
Clean the inside of the axle tube. Lightly oil the new bearing.
Tap it in with a bearing driver or a large socket of the same diameter. Make sure it seats fully.
Next, install the new axle seal. Tap it in carefully if it goes in crooked, it may leak.
7. Reinstall The Axle Shaft
Carefully slide the axle shaft back into the tube, making sure not to damage the seal. Push the shaft inward, reinstall the C-clip, and pull the shaft outward to seat the C-clip. Reinstall the cross pin and bolt.
8. Reassemble And Refill
Clean the differential cover and mating surface. Apply a bead of RTV silicone or use a new gasket. Bolt the cover back on evenly. Fill the differential with fresh gear oil (about 2 quarts of 75W-90 for most TJ Wranglers).
Reinstall the brake rotor and caliper. Put the wheels back on, lower the Jeep, and tighten the lug nuts to spec.
9. Test Drive
Start with a short, slow drive. Listen for unusual noises and check for leaks. After a few miles, check the differential for leaks and recheck the gear oil level.
Comparing Oem Vs Aftermarket Wheel Bearings
Choosing between OEM (original equipment manufacturer) and aftermarket wheel bearings can affect both cost and longevity. Here’s a quick comparison:
| Factor | OEM Bearings | Aftermarket Bearings |
|---|---|---|
| Price | Higher | Lower |
| Quality | Consistent, reliable | Varies by brand |
| Warranty | Usually longer | Sometimes short or limited |
| Availability | Dealer or authorized sellers | Online, auto parts stores |
OEM bearings cost more but offer peace of mind. Some aftermarket brands are excellent, but always check reviews and specs before buying.
Gear Oil Types And Capacity
The type of gear oil you use matters for bearing life. Most TJ Wranglers use 75W-90 GL-5 gear oil. If you have a limited-slip differential, you might need a friction modifier.
| Differential Type | Recommended Oil | Capacity | Friction Modifier Needed? |
|---|---|---|---|
| Standard (open) | 75W-90 GL-5 | ~2 quarts | No |
| Limited-slip | 75W-90 GL-5 | ~2 quarts | Yes |
Always check your owner’s manual or the tag on the differential for the right oil.
Common Mistakes To Avoid
It’s easy to overlook small details during this job. Here are mistakes many beginners make:
- Forgetting to replace the axle seal: Always change the seal with the bearing. Old seals can leak after being disturbed.
- Not cleaning the axle tube: Dirt left inside can damage new bearings quickly.
- Over-tightening differential bolts: This can crack the cover or strip threads. Use a torque wrench.
- Using the wrong gear oil: The wrong oil can shorten bearing life or affect limited-slip function.
- Damaging the new seal during axle installation: Take care when sliding the shaft back in. A nicked seal will leak.
Many people also skip checking the C-clip position. If it’s not seated, the axle can slide out a serious risk.
When To Replace Both Sides
If one bearing fails, the other might not be far behind. Bearings often wear at similar rates.
If your Jeep has high miles (over 100,000) or sees tough conditions, replacing both rear bearings together is wise. This can save time and prevents repeating the process soon after.
How Often Should Wheel Bearings Be Changed?
There’s no set interval, but most last 100,000 miles or more if not exposed to water or mud. Off-roaders may need to replace them sooner. Listen for noises after deep water crossings—water can wash away grease and cause fast failure.
Practical Tips For A Smoother Job
- Soak stubborn bolts with penetrating oil an hour before starting.
- Mark your brake caliper bolts and cross pin bolt—these are often lost during the job.
- Use a magnet to help remove C-clips inside the differential.
- Lay out removed parts in order. Take photos for reference if needed.
- Have extra shop rags ready. Gear oil is messy.
- Renting a bearing puller from an auto parts store is usually free with a deposit.
These small tricks can save time and frustration, especially if this is your first bearing job.
Professional Vs Diy: When To Seek Help
While many Jeep owners do this repair themselves, some situations call for a pro:
- You lack the necessary tools (bearing puller, torque wrench)
- The axle is damaged or pitted
- Bearing is stuck, and you risk damaging the axle tube
- You’re not comfortable working with differentials
A shop will charge $300 $600 for both sides, including parts and labor. Doing it yourself usually costs $50 $150 in parts, plus your time.
Real-world Example: Bearing Failure On The Trail
Imagine you’re off-roading and hear a sudden grinding noise from the back. You pull over and see gear oil leaking from the axle tube.
This is a classic sign of seal and bearing failure. Continuing to drive could cause the axle to overheat or even break.
In this case, the only fix is to tow the Jeep home or to a shop. Catching the problem early can prevent being stranded.
Useful Resources
For more technical details, or to see diagrams, the Jeep TJ Factory Service Manual is a trusted source. There are also video tutorials and forums like WranglerForum.com where owners share tips and experiences.
You can also check out the official Jeep Wrangler Wikipedia page for history and technical specs.
Frequently Asked Questions
How Do I Know If My Rear Wheel Bearings Are Bad On My Tj Wrangler?
The most common signs are a humming or grinding noise from the rear wheels, vibrations, and sometimes the ABS light. You may also notice uneven tire wear or movement in the wheel when shaking it by hand.
Can I Drive My Jeep With A Bad Rear Wheel Bearing?
It’s not safe to drive with a bad bearing. It can get worse quickly, leading to wheel lock-up or even the wheel coming off. Driving also risks damaging the axle and differential.
How Much Does It Cost To Change Rear Wheel Bearings On A Tj Wrangler?
DIY costs are usually $50 $150 in parts. A shop may charge $300 $600 for both sides, including labor. Prices depend on the brand of parts and your location.
Do I Need Any Special Tools To Change The Rear Wheel Bearings?
A bearing puller and a seal driver make the job easier, but you can sometimes get by with a hammer, punch, and large socket. Most auto parts stores rent these tools for free with a deposit.
Should I Replace Both Rear Wheel Bearings At The Same Time?
If your Jeep has high miles or sees tough use, it’s a good idea to replace both. Bearings wear at similar rates, and doing both saves time and prevents repeating the repair soon.
Changing rear wheel bearings on your TJ Jeep Wrangler is a smart skill for any Jeep owner. With the right tools, good preparation, and attention to detail, you’ll keep your Jeep reliable on and off the road.
Remember, always double-check your work, use quality parts, and don’t hesitate to ask for help if you’re unsure.
Your Jeep and your safety are worth the effort.
