If you’re a Jeep owner or thinking about upgrading your wheels, you’ve probably come across the term Jeep wheel bolt pattern. This small detail can make a big difference when buying new rims or tires.
Yet, many people overlook it until they face fitment problems. Let’s break down what the Jeep wheel bolt pattern is, why it matters, and how to measure or find the right pattern for your Jeep.
What Is A Wheel Bolt Pattern?

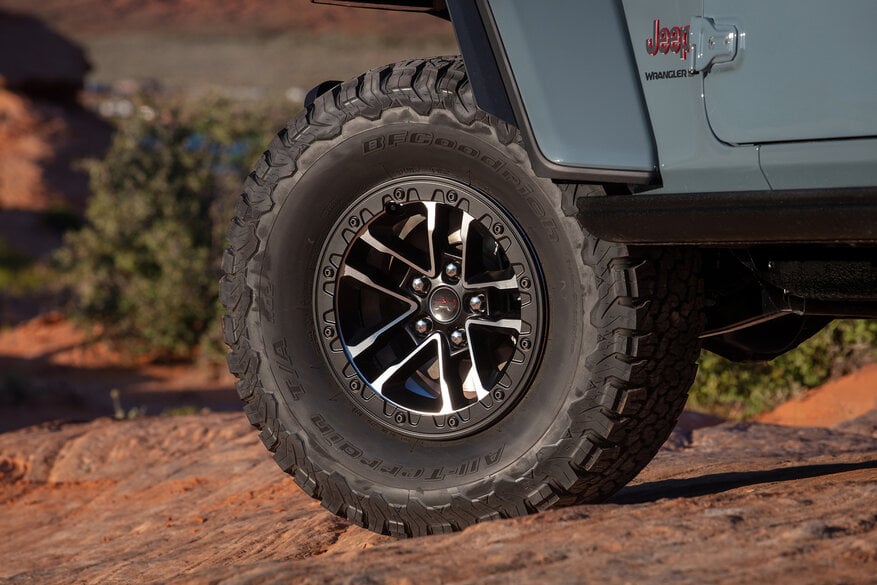

The bolt pattern is the arrangement of the lug holes on your wheel. It shows how many bolts (or lugs) hold the wheel onto the hub, and the diameter of the circle those bolts form. For example, a common pattern is 5×127. This means the wheel has 5 lug holes, and they make a circle 127 millimeters across.
Key Elements Of A Bolt Pattern
- Number of lugs: How many bolts secure the wheel (often 5 or 6 for Jeeps).
- Bolt circle diameter: The distance across the circle the bolts form, measured in millimeters or inches.
Both numbers are critical. Even one millimeter off can mean the wheel won’t fit or could be unsafe.
Why Jeep Wheel Bolt Pattern Matters
The bolt pattern is not just a random detail. It’s essential for safety and performance:
- Proper Fit: The wheel must sit firmly on the hub. The wrong pattern means the wheel won’t attach correctly.
- Safety: A mismatched bolt pattern can cause vibration, loose wheels, or even accidents.
- Customization: When upgrading wheels, the right pattern ensures you have many options without risking your Jeep’s health.
Many Jeep owners learn the hard way that not all Jeep wheels fit every model. For example, wheels from a Jeep Wrangler JK may not fit a CJ or TJ.
Common Jeep Bolt Patterns
Jeep vehicles have used different bolt patterns over the years. Here are some of the most common:
| Jeep Model | Years | Bolt Pattern |
|---|---|---|
| Wrangler JL/JLU | 2018–present | 5×127 mm (5×5″) |
| Wrangler JK | 2007–2018 | 5×127 mm (5×5″) |
| Wrangler TJ/YJ | 1987–2006 | 5×114.3 mm (5×4.5″) |
| Cherokee XJ | 1984–2001 | 5×114.3 mm (5×4.5″) |
| Grand Cherokee WK2 | 2011–2021 | 5×127 mm (5×5″) |
As you see, even similar models can have different patterns. Always check your specific Jeep’s year and model.
How To Measure Your Jeep’s Wheel Bolt Pattern
Measuring the bolt pattern is simple with the right steps. Here’s how to do it:
- Count the lug holes on the wheel. Most Jeeps have 5, but check to be sure.
- Measure the bolt circle diameter.
- For 5-lug wheels: Measure from the center of one bolt hole to the far edge of the hole directly across.
- For 4, 6, or 8 lugs: Measure from the center of one hole straight across to the center of the opposite hole.
Here’s a quick comparison of how to measure different lug patterns:
| Lug Pattern | Measurement Method |
|---|---|
| 5-lug | Center of one lug to outer edge of opposite lug |
| 6-lug | Center of one lug to center of directly opposite lug |
| 4-lug | Center to center of opposite lugs |
| 8-lug | Center to center of opposite lugs |
Tip: Use a millimeter ruler for best accuracy, since most patterns are in millimeters.
Jeep Wheel Bolt Pattern Vs. Other Vehicles
If you’re considering swapping wheels from another vehicle, compare the bolt patterns first. Jeep’s patterns are unique compared to many other brands. For example:
| Vehicle | Bolt Pattern |
|---|---|
| Jeep Wrangler JK | 5×127 mm (5×5″) |
| Ford F-150 | 6×135 mm |
| Toyota Tacoma | 6×139.7 mm |
| Chevy Silverado | 6×139.7 mm |
As you can see, most trucks and SUVs use six lugs, while many Jeeps use five. Even the 5-lug patterns are rarely interchangeable due to different diameters.
Two Insights Most Jeep Owners Miss
- Hub size matters: Even if the bolt pattern matches, the center hole (hub bore) must fit your Jeep. Some wheels need hub-centric rings for a perfect fit.
- Wheel offset affects clearance: The bolt pattern ensures the wheel fits, but the offset decides how far the wheel sits from your suspension and fenders. Picking the wrong offset can cause rubbing or handling problems.
Common Mistakes When Choosing Wheels
Many Jeep owners make these errors:
- Ignoring the bolt pattern: Always check before buying new or used wheels.
- Not considering brake clearance: Larger brakes need wheels with enough space inside.
- Forgetting about load rating: Off-road driving puts extra stress on wheels. Make sure your new wheels are rated for your Jeep’s weight and use.
Where To Find Jeep Wheel Bolt Pattern Information
The easiest ways to find your Jeep’s bolt pattern are:
- Owner’s manual: Most list the correct pattern.
- Inside the door jamb: Some Jeeps have a sticker with wheel specs.
- Official Jeep websites: Reliable for the latest models.
- Online forums: Many Jeep communities share detailed guides and charts.
For further reading, the Wikipedia Wheel Sizing page gives a thorough overview of wheel measurements.
