Wiring a subwoofer into your 2015 Jeep Wrangler can transform your driving experience. The deep bass brings music to life and makes every ride more enjoyable.
Many Jeep owners want better sound, but the process can look complicated. With the right tools and guidance, you can complete this project in a few hours.
This guide explains every step clearly, offering practical tips and real-world advice.
What You Need Before Starting
Gather everything you need to avoid delays. For a typical 2015 Jeep Wrangler, you will require:
- Subwoofer (powered or passive)
- Amplifier (if using a passive sub)
- Subwoofer wiring kit (includes power, ground, RCA, and speaker wires)
- Wire crimpers and strippers
- Socket set and screwdrivers
- Panel removal tool
- Electrical tape or heat shrink tubing
- Zip ties for neat cables
Check that your subwoofer matches your amp’s power output. For example, a sub rated at 300 watts RMS pairs best with an amp that delivers 250 350 watts RMS.
Planning Your Install
Before touching any wires, decide where you’ll mount the subwoofer. Many Jeep owners choose the cargo area, but some prefer under-seat boxes.
Make sure the spot is dry, secure, and does not block the rear seats or cargo.
Think about wire routing. The power wire should go from the battery, through the firewall, and along one side of the Jeep. The signal cables (RCA or speaker wire) run from the head unit to the amp, preferably along the opposite side to reduce noise.

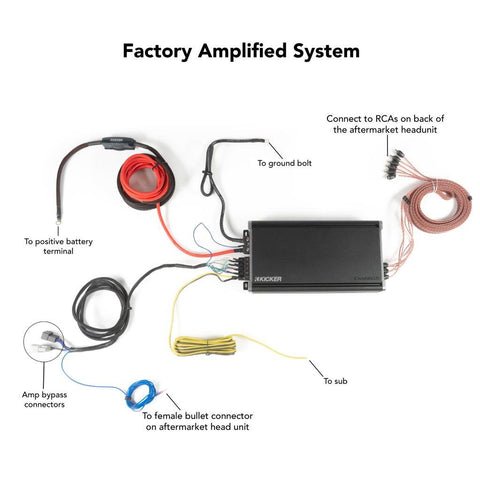

Step-by-step Wiring Process
1. Disconnect The Battery
Always disconnect the negative battery terminal before working on your Jeep’s electrical system. This protects you and your Jeep from short circuits.
2. Run The Power Wire
Find a grommet in the firewall (usually near the driver’s footwell). Push the power wire through, sealing the hole afterward. Route it under the carpet or trim panels toward the rear, securing it with zip ties.
Connect the power wire to the positive battery terminal only after all other steps are finished.
3. Install The Ground Wire
A poor ground is a common problem for subwoofer installs. Bolt the ground wire to bare metal near where you’ll mount the amp.
Remove any paint or rust from the contact point.
4. Connect The Signal Wires
If your Jeep has an aftermarket head unit, use RCA cables from the sub output to the amp’s input. For factory radios, you may need a line output converter to convert speaker-level signal to RCA. Tap into the rear speaker wires behind the radio or in the sound bar.
5. Hook Up The Remote Turn-on Wire
The remote turn-on wire tells the amp when to power on. Tap this wire into a switched 12V source, often found at the radio harness. This prevents the amp from draining your battery when the Jeep is off.
6. Connect The Subwoofer
Wire the subwoofer to the amplifier’s output terminals. Follow the sub’s wiring diagram for correct polarity.
If you have a dual voice coil sub, follow series or parallel wiring as needed for your amp’s specs.
7. Secure And Test Everything
Double-check all connections. Reconnect the battery, then turn on your Jeep.
Play music and adjust the amp’s gain and crossover settings for clean, powerful bass.
Example Wiring Paths And Mounting Options
Selecting the best wire routing and sub placement can affect both sound and installation time. Here’s a quick comparison:
| Location | Pros | Cons |
|---|---|---|
| Cargo area | Easy access, more space for bigger subs | Reduces cargo space |
| Under seat | Hidden, protected from damage | Limited subwoofer size |
| Sound bar | Closer to ear level, better sound stage | Requires custom enclosures |
Key Insights For A Smooth Install
Many beginners miss a few important details:
- Fuse Placement: Always install the fuse within 18 inches of the battery. This protects your Jeep if the power wire shorts out.
- Wire Gauge: Use at least 8-gauge wire for most subwoofer setups. If your amp draws over 500 watts RMS, upgrade to 4-gauge wire.
- Amp Settings: Start with the gain at minimum. Increase slowly until the bass sounds full but not distorted.
- Weather Protection: If you drive with the top off, use waterproof connectors and keep the amp and sub elevated.
Common Mistakes To Avoid
Wiring mistakes can damage your Jeep’s electronics or create noise problems:
- Skipping the fuse, risking fire if there’s a short
- Using the seat bolt as a ground without sanding off paint
- Running power and RCA cables together, causing engine noise
- Not securing wires, which can lead to rattles or damage
Take your time and check each step. If you’re unsure, watch a video for your exact Jeep model or consult a professional.
Cost And Time Estimate
Installing a subwoofer usually takes 2 4 hours for most Jeep owners with basic tools. Expect to spend $150 $400 on parts, depending on whether you use a powered sub or separate amp and subwoofer.
Here’s a breakdown:
| Item | Estimated Cost |
|---|---|
| Subwoofer | $70–$200 |
| Amplifier | $60–$150 |
| Wiring kit | $30–$60 |
| Line output converter | $20–$50 |
Tuning Your Subwoofer For Best Sound
After wiring, you’ll want the best bass. Set your amp’s low-pass filter to around 80Hz. Keep the gain low to avoid distortion. Fine-tune the settings with different music types.
If you hear rattles, add foam tape or insulation. The Jeep Wrangler’s plastic panels and tailgate are known to buzz with strong bass.
Safety And Final Checks
Before hitting the road, check for:
- No loose wires or tools left behind
- The subwoofer box is secure
- No warning lights on your dashboard
A safe and clean install will last for years and make every drive more enjoyable.
Frequently Asked Questions
How Do I Connect A Subwoofer To A Factory Jeep Radio?
You’ll need a line output converter to change speaker-level signal to RCA. Tap into the rear speaker wires and connect the output to your amp’s RCA input.
What Size Subwoofer Fits In A 2015 Jeep Wrangler?
Most owners use a 10-inch or 12-inch sub in the cargo area. Under-seat enclosures may need smaller subs, like 8-inch models.
Is A Separate Amplifier Necessary?
If your subwoofer is passive, you need an external amp. Some powered subs have a built-in amp, making wiring simpler.
Can I Install A Sub Without Cutting Factory Wires?
Yes, use T-harness adapters or Posi-Taps for a no-cut install. These connect to factory wiring without permanent changes.
Where Can I Find More Jeep Wrangler Audio Tips?
Check out the Crutchfield Jeep Wrangler audio guide for more details and step-by-step photos.
Adding a subwoofer to your 2015 Jeep Wrangler is a rewarding project. With careful planning, the right tools, and attention to detail, you’ll enjoy deep, rich bass on every drive.
Take your time, follow each step, and don’t hesitate to ask for help if you need it.
Enjoy the ride and the music!
