Adding an LED light bar to your Jeep Wrangler can make night driving and off-road adventures much safer and more exciting. The extra light lets you see obstacles earlier, helps during bad weather, and gives your Jeep a bold, modern look. But many drivers feel nervous about the wiring process, worried they might damage their vehicle or create electrical problems. The good news? Wiring an LED light bar on a Jeep Wrangler is simpler than most people think, especially when you follow clear steps and avoid common mistakes. This guide will walk you through the process from start to finish, so you can enjoy brighter, safer journeys.
What You Need Before You Start
Having the right tools and materials makes the job much easier. Here’s what you’ll need:

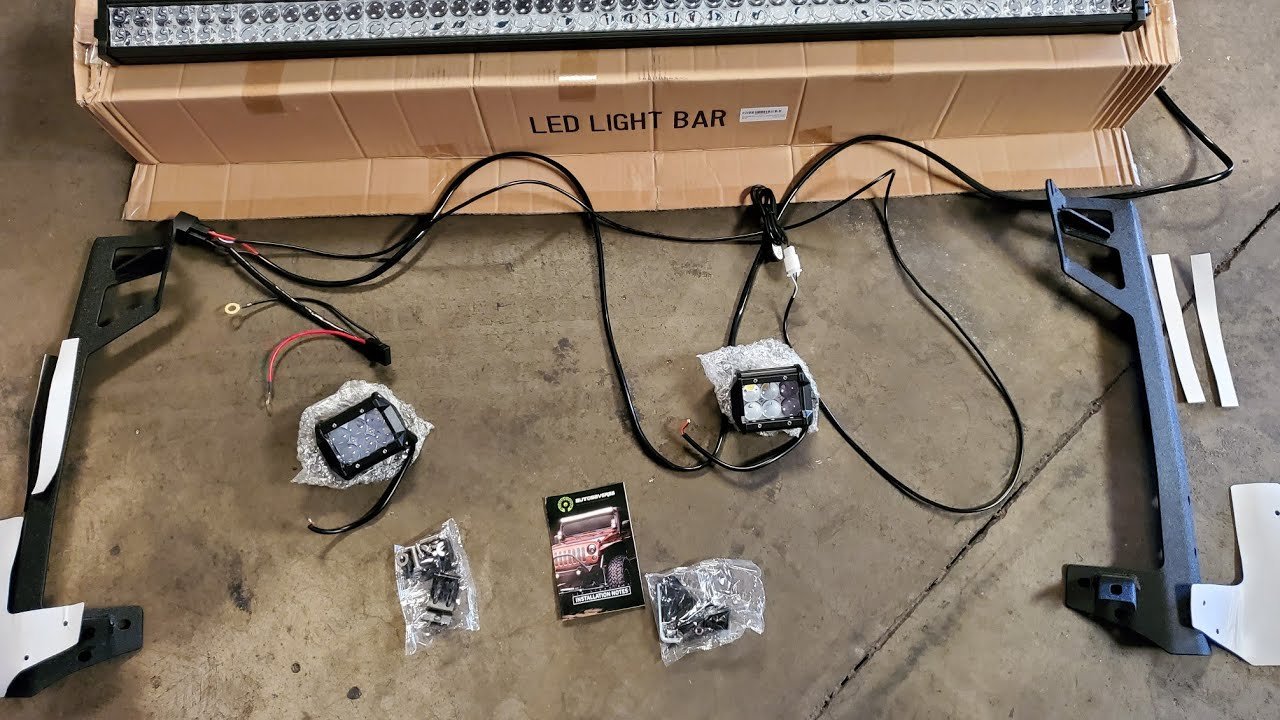

- LED light bar kit (includes brackets, wiring harness, relay, and switch)
- Basic hand tools: Screwdrivers, wrenches, socket set
- Wire stripper and crimper
- Electrical tape or heat shrink tubing
- Zip ties
- Multimeter (for checking voltage)
- Protective gloves
Always check that your LED light bar kit is compatible with your Jeep Wrangler model.
Planning The Installation
Before you start cutting wires or mounting anything, plan where everything will go. Decide if you want to mount the light bar on the roof, bumper, or hood. Each position affects how you run the wires. Roof mounting usually requires running wires down the windshield, while bumper mounting is easier but less dramatic in appearance.
Here’s a quick comparison of mounting positions:
| Position | Visibility | Ease of Wiring | Common Use |
|---|---|---|---|
| Roof | Wide, far reach | Moderate | Off-road trails |
| Bumper | Focused, lower | Easy | Road & off-road |
| Hood | Medium height | Easy | General use |
Step-by-step Guide To Wiring An Led Light Bar
1. Mount The Light Bar
Attach the brackets to your chosen spot and secure the light bar. Make sure it is straight and tight. Check your state’s laws about light bar placement—some places have restrictions.
2. Route The Wires
Lay out the wiring harness from the light bar to the engine bay. Try to follow factory wiring paths and avoid sharp edges or moving parts. Use zip ties to keep wires neat and prevent them from dangling or getting caught.
3. Connect To Power
Most LED light bar kits come with a relay and fuse for safety. Here’s how to connect:
- Connect the red power wire (with inline fuse) to the positive battery terminal.
- Connect the black ground wire to a clean metal surface on the chassis or the negative battery terminal.
Be sure the fuse is close to the battery. This protects your Jeep if a short circuit happens.
4. Install The Relay And Switch
The relay acts as a safety gate, letting your small dashboard switch control the large current needed for the light bar. Mount the relay in the engine bay, away from heat and water. Route the switch wire through the firewall into the cabin. Most Jeeps have rubber grommets you can pass wires through—never drill new holes unless you must.
5. Connect The Switch
Mount the switch in a spot that’s easy to reach. Most switches have three wires:
- Power in (from battery)
- Power out (to relay)
- Ground
Double-check your kit’s diagram. Connect these carefully, using crimp connectors or solder for strong, safe connections.
6. Test The Setup
Before you tidy everything, test the light bar. Turn on your Jeep, press the switch, and see if the light bar works.
If not, check all connections and the fuse.
7. Secure And Protect The Wires
Once you confirm everything works, wrap exposed wire connections with electrical tape or heat shrink tubing. Use zip ties to bundle wires safely out of the way. This prevents wear and keeps your engine bay neat.
Common Mistakes To Avoid
Many first-time installers make the same errors. Here are the most frequent ones:
- Skipping the relay: This can overload your dashboard switch and wiring.
- Not using a fuse: A missing fuse can cause electrical fires if there’s a short.
- Loose ground connection: A bad ground stops the light bar from working.
- Routing wires over hot or moving parts: This leads to wire damage and shorts.
Here’s a quick comparison of safe and risky wiring practices:
| Practice | Risk Level | Result |
|---|---|---|
| Using relay & fuse | Low | Safe, protected system |
| Direct to battery, no fuse | High | Fire hazard |
| Proper wire routing | Low | Long-lasting setup |
| Wires near heat/moving parts | High | Possible shorts/failure |
Pro Tips For A Professional Result
Many beginners forget about weatherproofing. Always use heat shrink tubing or waterproof connectors, especially in the engine bay. This protects your wiring from water, dust, and mud. Also, label your wires if you plan to add more accessories later—this makes future upgrades much easier.
Another tip: Use a multimeter to check voltage at each step. This helps you catch wiring mistakes early, before you finish the job.
If you’re not confident, consider reading a wiring diagram for your Jeep model or visiting the official Jeep website for more technical details.
Frequently Asked Questions
How Long Does It Take To Wire An Led Light Bar On A Jeep Wrangler?
Most people finish the job in 1-2 hours. It may take longer if you run wires to the roof or want a very clean install.
Do I Need To Disconnect The Battery Before Wiring?
It’s safer to disconnect the negative battery terminal before working. This reduces the chance of accidental shorts or sparks.
Can I Wire Multiple Led Light Bars To One Switch?
Yes, but you must use a relay and fuse rated for the total current. Overloading a relay or switch can cause failures.
Will Wiring A Light Bar Void My Jeep Warranty?
If you use a proper harness and avoid cutting factory wires, your warranty is usually safe. Always check your warranty terms to be sure.
What Gauge Wire Should I Use For An Led Light Bar?
Most kits include 14 or 16 gauge wire, which is enough for most 20–50 inch light bars. For longer runs or bigger bars, use thicker (lower gauge) wire.
Adding an LED light bar to your Jeep Wrangler is a smart upgrade for night driving and off-roading. With some planning and careful wiring, you can get a safe, clean result even as a beginner.
Remember to use a relay, fuse, and good wire protection these small steps make a big difference.
Get ready to light up the trail and enjoy your Jeep like never before.
