Wiring KC lights on your Jeep YJ can make night driving safer and off-road trips more exciting. The process is not as hard as it seems, but it does require attention to detail and some planning.
Many Jeep owners want to add extra lighting but worry about electrical problems or damaging their vehicle.
This guide will walk you through each step, show what tools you need, and give you helpful tips to avoid common mistakes.
Whether you’re installing spotlights for dark trails or fog lights for better vision in bad weather, you’ll find the information you need here.
What You Need Before Starting
Before you grab your tools, check that you have everything ready. Missing even a small part can delay your project.
- KC lights (spot, flood, or fog type)
- Wiring harness (usually included with KC lights)
- Relay (typically 40A)
- Inline fuse (usually 15-30A, depending on your lights)
- Switch (on/off, weatherproof preferred)
- Wire strippers/cutters
- Crimp connectors or soldering kit
- Drill with bits (for mounting switch or running wires)
- Screwdrivers
- Electrical tape and heat shrink tubing
- Zip ties
- Multimeter (for checking connections)
Using a harness made for off-road lights saves time and reduces mistakes. If your KC lights didn’t include one, universal harness kits are available online and in auto parts stores.
Planning The Wiring Route
Before you start connecting wires, plan your wiring path. The Jeep YJ’s engine bay is tight, and wires can easily touch hot or moving parts.
- Mount the lights first. Place KC lights on your bumper, windshield frame, or roof, and secure them tightly.
- Choose the shortest, safest route from lights to the battery and inside to the switch. Avoid sharp edges and heat sources.
- Keep wires away from the exhaust manifold, radiator fan, and steering components.
A smart tip: Use zip ties to loosely hold wires in place until you finish wiring. This way, you can adjust if needed.
Here’s a quick comparison of wiring routes for Jeep YJ:
| Route | Pros | Cons |
|---|---|---|
| Along fender wall | Safe from heat, easy to access | May be exposed to water/mud |
| Under radiator support | Hidden, protected | Harder to reach, tight space |
| Through grille | Shortest distance | Wires exposed to debris |
Step-by-step Wiring Process
1. Mount The Kc Lights
- Bolt the lights onto the chosen mounting points.
- Adjust their aim but don’t tighten fully yet—you’ll do final aiming after wiring.
2. Connect Ground Wires
- Find a solid metal surface on the Jeep’s frame near each light.
- Scrape off any paint or rust for a clean ground.
- Secure the ground wire with a ring terminal and bolt.
3. Run Power Wires
- Route the positive (usually red) wire from each light toward the battery area.
- Combine wires from both lights into a single wire using a crimp connector.
- Use heat shrink tubing for a strong, weather-resistant join.
4. Install The Relay And Fuse
- Mount the relay close to the battery but away from engine heat.
- Connect the combined positive wire from the lights to the relay output terminal (usually marked 87).
- Run a fused wire from the battery’s positive terminal to the relay input (terminal 30).
- Place the inline fuse as close to the battery as possible.
5. Wire The Switch
- Run a wire from the relay’s trigger terminal (86) into the Jeep’s cabin.
- Connect to one side of your on/off switch.
- The other side of the switch connects to a 12V source (like the accessory power).
- Ground the relay (terminal 85) to a clean chassis point.
6. Test The System
- Double-check all connections.
- Insert the fuse.
- Turn on the ignition and flip the switch. The KC lights should turn on.
- If not, use a multimeter to check for power at each connection.

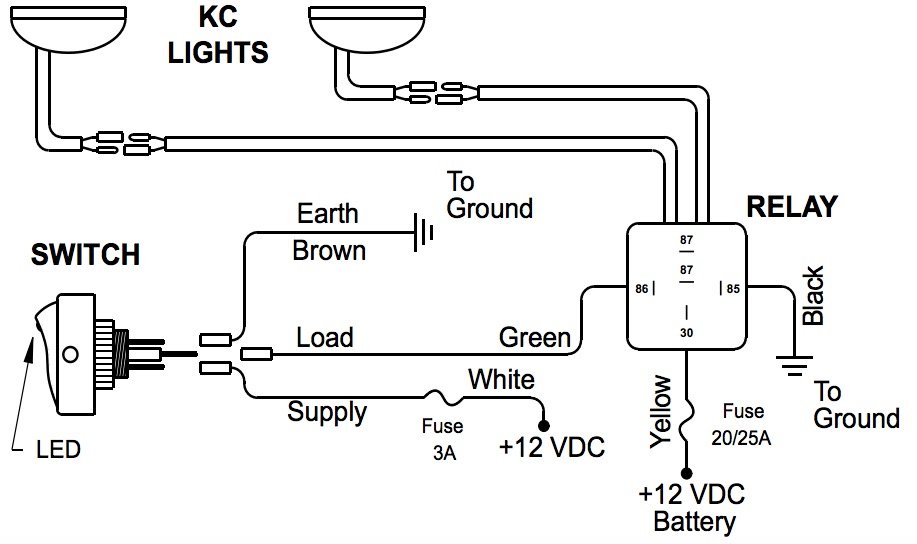

A wiring diagram helps visualize connections:
| Component | Connection |
|---|---|
| KC Lights | Relay Output (87) & Ground |
| Relay Input (30) | Battery Positive (+) with Fuse |
| Relay Trigger (86) | Switch in Cabin |
| Switch | 12V Accessory Power |
| Relay Ground (85) | Chassis Ground |
Practical Tips And Common Mistakes
- Use a relay: KC lights draw a lot of current. Direct wiring to the switch can melt wires or cause failure.
- Don’t skip the fuse: A missing fuse is dangerous and can cause a fire if wires short.
- Weatherproof connections: Use heat shrink or weatherproof connectors to prevent corrosion, especially if you off-road often.
- Test before final mounting: Check that all lights work before tightening mounts and finishing wire routing.
A common mistake is grounding to painted or rusty surfaces. This leads to weak or flickering lights.
Always clean the metal for a solid ground.
Most beginners forget to plan for future upgrades. If you think you’ll add more lights later, run slightly thicker wires and use a larger relay/fuse now. This saves time and money.
Legal And Safety Notes
Check your local laws about auxiliary lights. Some states require covers on off-road lights when driving on public roads.
Always aim your KC lights carefully to avoid blinding other drivers.
For more about off-road lighting standards, see the NHTSA Lighting Requirements.
Frequently Asked Questions
How Many Kc Lights Can I Wire To One Switch?
You can safely connect two standard KC lights (up to 100W each) to one relay and switch. For more lights, use a larger relay, thicker wires, and possibly a second switch for safety.
Do I Need A Relay If My Switch Is Rated For High Current?
Even with a heavy-duty switch, a relay is recommended. It protects your switch, reduces voltage drop, and allows for shorter high-current wire runs.
Where Should I Mount The Switch Inside My Jeep Yj?
Mount the switch within easy reach, like near the dashboard or center console. Avoid places where it can get wet or bumped accidentally.
Can I Connect Kc Lights Directly To The Battery?
Direct connection is not safe. Always use a fuse and relay to protect your Jeep’s electrical system and prevent fire hazards.
Why Are My Kc Lights Dim Or Flickering?
Dim or flickering lights usually mean a bad ground, weak power connection, or undersized wires. Double-check all connections and use a multimeter to find voltage drops.
Wiring KC lights on your Jeep YJ is a rewarding project that boosts both style and safety. With careful planning and these clear steps, you can enjoy brighter nights and safer off-roading.
Take your time, follow safe wiring practices, and your KC lights will serve you well for years.
