Wiring KC lights on your Jeep Cherokee is one of the most rewarding upgrades you can do for better visibility and a tougher look. Whether you love night trail rides or just want safer highway driving, extra lights make a big difference. But wiring them safely is essential—poor installation can cause electrical issues, flickering lights, or even fires. This guide walks you through the process step by step, so you can wire your KC lights confidently, even if you’re not an expert. You’ll learn the tools you need, how to plan the wiring, and how to avoid common mistakes many beginners make.
Choosing The Right Kc Lights For Your Jeep Cherokee
Before you start wiring, you need to pick the right KC lights. KC offers many models, but not all are ideal for your Cherokee. Think about:
- Light type: Spot, flood, or combo beam.
- Mounting location: Roof, bumper, or grille.
- Wattage and amp draw: Higher wattage means brighter lights but bigger power demands.

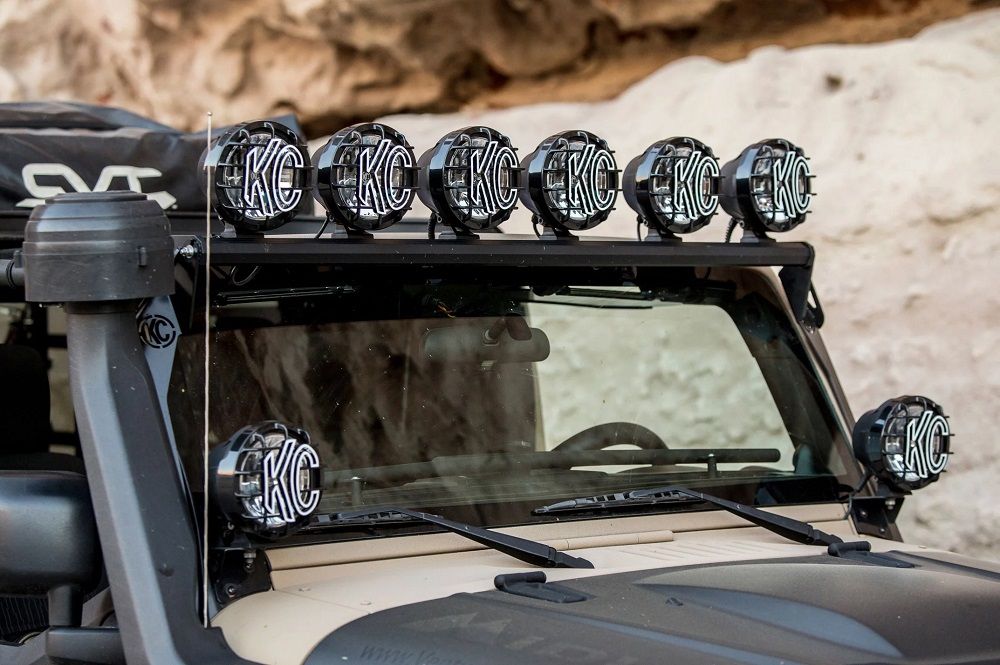

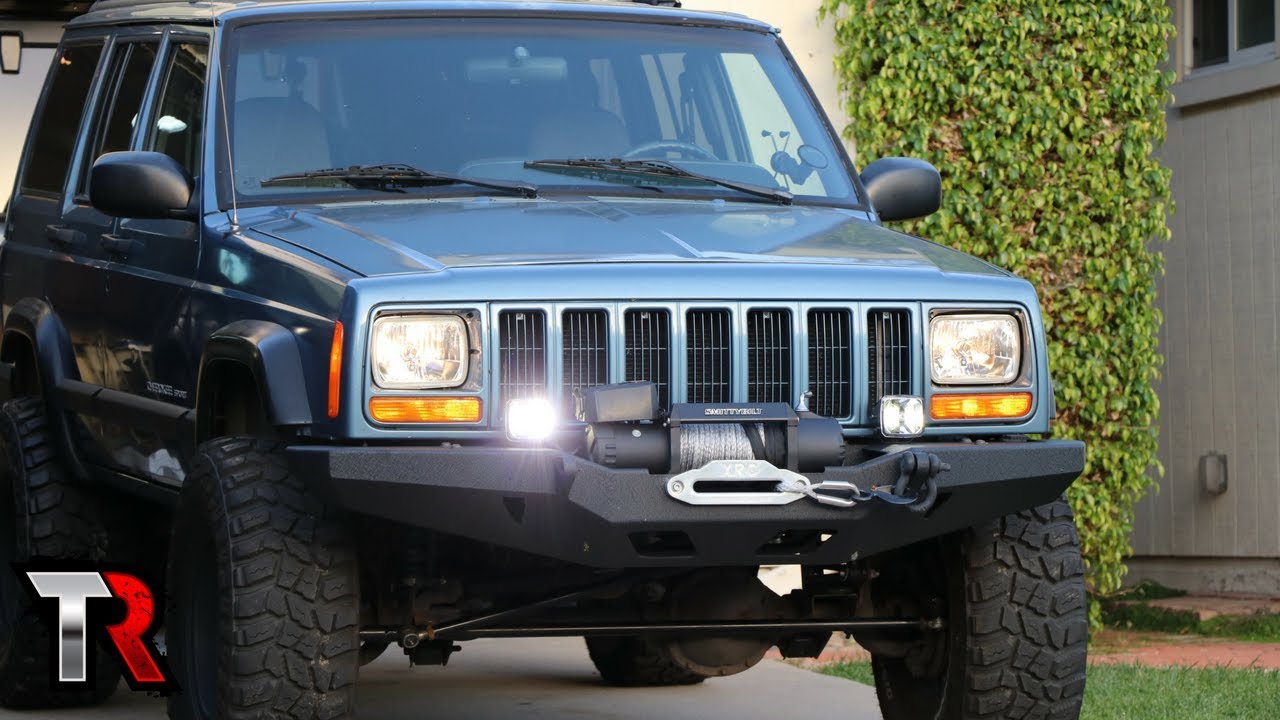

A pair of KC Hilites 6” spots typically draw about 55 watts each, so you’ll need wiring and relays that can handle 110 watts total. For most Cherokees, bumper-mounted lights are easiest to install and wire.
Popular Kc Lights For Jeep Cherokee
| Model | Beam Type | Wattage | Best Use |
|---|---|---|---|
| KC SlimLite | Spot | 50W | Long-range |
| KC Gravity LED | Combo | 40W | General off-road |
| KC Daylighter | Flood | 100W | Wide area |
Non-obvious insight: Always check the amp draw and make sure your Cherokee’s alternator can handle the extra load. Older alternators might struggle with high-wattage lights.
Tools And Materials You Will Need
Gather all tools and supplies before starting. This saves time and prevents mistakes.
- KC light kit (lights, wiring, relay, switch)
- Wire stripper/cutter
- Electrical tape
- Crimp connectors
- Relay (40A recommended)
- Inline fuse holder and fuse (15-20A)
- Drill (for mounting switch)
- Multimeter (for checking voltage)
- Zip ties (for tidy wiring)
- Screwdrivers
- Socket set
Example Wiring Kit Components
| Component | Purpose | Recommended Specs |
|---|---|---|
| Relay | Handles high current | 40A |
| Switch | Controls lights | 12V, waterproof |
| Wire | Connects components | 14 AWG minimum |
| Fuse | Protects circuit | 15-20A |
Practical tip: Use wire with thicker insulation for off-road vehicles. Thin insulation can rub through and cause shorts.
Planning Your Wiring Route
A good wiring plan prevents problems later. KC lights need direct wiring to the battery (not to the fuse box), using a relay for safety.
Steps For Planning
- Mounting location: Decide where the lights, relay, and switch will go.
- Wire length: Measure from battery to relay, relay to lights, relay to switch.
- Avoiding heat and moving parts: Route wires away from the exhaust, sharp edges, and moving engine parts.
- Weather protection: Plan for waterproof connectors and route wires inside loom if possible.
Non-obvious insight: Many beginners route wires through the firewall at random spots. Find the factory grommet—this keeps wiring safe and dry.
Step-by-step Wiring Process
This section walks you through wiring KC lights on your Jeep Cherokee, from mounting to final checks.
1. Mount The Kc Lights
- Attach lights to bumper or roof rack using supplied brackets.
- Tighten bolts securely.
- Adjust aim before wiring.
2. Install The Relay
- Find a spot near the battery for the relay.
- Secure it with a screw or zip tie.
3. Connect The Wiring
Battery To Relay
- Cut a length of 14 AWG wire.
- Attach one end to battery positive (+), using a ring terminal.
- Add a fuse holder within 6 inches of the battery terminal.
- Connect the other end to relay pin 30.
Relay To Kc Lights
- Run a wire from relay pin 87 to the lights’ positive wire.
- Use crimp connectors for secure joints.
Relay To Switch
- Run a wire from relay pin 86 to your dashboard switch.
- Use the factory firewall grommet to pass the wire through safely.
Ground Connections
- Connect relay pin 85 to a solid chassis ground (bare metal on the frame).
- Ground the KC lights’ negative wire to the nearest metal point.
4. Mount The Switch
- Drill a small hole in the dash, near your left knee.
- Insert switch and tighten nut.
- Connect switch wire to relay pin 86, and another wire to a 12V accessory power source (so lights only work when ignition is on).
5. Check All Connections
- Use a multimeter to check for voltage at each point.
- Confirm ground connections are tight and free of paint/rust.
6. Test The Lights
- Turn on ignition and flip switch.
- Lights should come on instantly. If not, check fuse, relay, and grounds.
Common mistake: Skipping the fuse. Always use a fuse to protect your wiring and Jeep.
Wiring Diagram For Kc Lights
A simple diagram helps you visualize the wiring.
| Component | Connection |
|---|---|
| Battery (+) | Relay pin 30 (via fuse) |
| Relay pin 87 | KC lights (+) |
| Relay pin 85 | Chassis ground |
| Relay pin 86 | Switch |
| Switch | Accessory power (optional) |
| KC lights (-) | Chassis ground |
Pro tip: If wiring multiple pairs of lights, use a relay for each set. This prevents overload.
Practical Safety Tips
Wiring KC lights is simple, but safety is crucial. Always disconnect your battery before starting.
- Fuse every circuit: If a wire gets pinched, the fuse will blow instead of starting a fire.
- Waterproof everything: Use silicone sealant for connectors and heat-shrink tubing.
- Check for loose wires: Vibrations on Jeep Cherokees can shake wires loose; inspect often.
Non-obvious insight: After heavy off-roading, re-check all wiring. Mud and rocks can damage wires you can’t see.
Troubleshooting Common Wiring Problems
Even with careful work, problems can happen. Here’s how to fix them:
- Lights flicker: Check ground connections and relay.
- Lights don’t turn on: Check fuse, switch, and battery voltage.
- Burning smell: Immediately disconnect battery and check for shorts.
- Relay clicks but lights don’t work: Relay may be faulty, or the light bulbs are burned out.
Practical example: If your KC lights come on but then turn off after a few minutes, the wiring may be too thin and overheating. Use thicker wire (12 AWG) for long runs.
Upgrading Your Setup: Advanced Wiring Options
Once you master basic wiring, you can improve your setup:
- Add a second relay for extra light sets.
- Install a multi-switch panel for controlling lights, winch, and other accessories.
- Use a power distribution block to keep wiring organized.
If you want to learn more about advanced automotive wiring, check out Auto Electric.
Comparing Diy Vs Professional Installation
Should you wire KC lights yourself or hire a pro? Here’s a quick comparison.
| Aspect | DIY | Professional |
|---|---|---|
| Cost | $60-$200 | $250-$600 |
| Time | 2-4 hours | 1-2 hours |
| Skill Needed | Basic | None |
| Warranty | None | 1 year (usually) |
| Customization | Flexible | Limited |
Pro tip: If you’re unsure, start with DIY. You’ll gain skills and confidence, and can always ask a pro for final checks.
Can I Wire Kc Lights Without A Relay?
No. Relays protect your switches and wiring from high currents. Without a relay, your switch may melt or cause a short.
How Many Kc Lights Can I Wire To My Cherokee’s Battery?
You can usually wire up to four 55-watt lights safely. If adding more, upgrade your alternator and battery to handle the extra load.
What Gauge Wire Should I Use For Kc Lights?
Use at least 14 AWG wire for up to two lights. For longer runs or more lights, use 12 AWG to prevent overheating.
Where Should I Mount The Switch Inside My Cherokee?
Mount the switch on the dashboard, close to the driver’s seat. Avoid areas where knees or gear might hit it.
Do Kc Lights Drain The Battery When Not In Use?
No, if wired correctly with a relay and switched power. If you wire them directly to the battery without a relay or switch, they may drain the battery.
Wiring KC lights on your Jeep Cherokee isn’t just about looks it’s about safety, visibility, and enjoying the outdoors. With careful planning, the right tools, and good wiring habits, you can install KC lights that work reliably for years.
Remember, the fuse and relay are your best friends.
Double-check every connection, and don’t rush. Your Cherokee will be ready for any adventure, day or night.
