Replacing a tail light on a 2005 Jeep Liberty is one of those DIY car tasks that can save time and money. Many owners think it’s complicated, but with the right guidance, it’s simple and takes about 20 minutes. Whether your tail light is cracked, faded, or the bulb is out, knowing how to handle the fix yourself can help you avoid a ticket and improve your vehicle’s safety.
Understanding The 2005 Jeep Liberty Tail Light

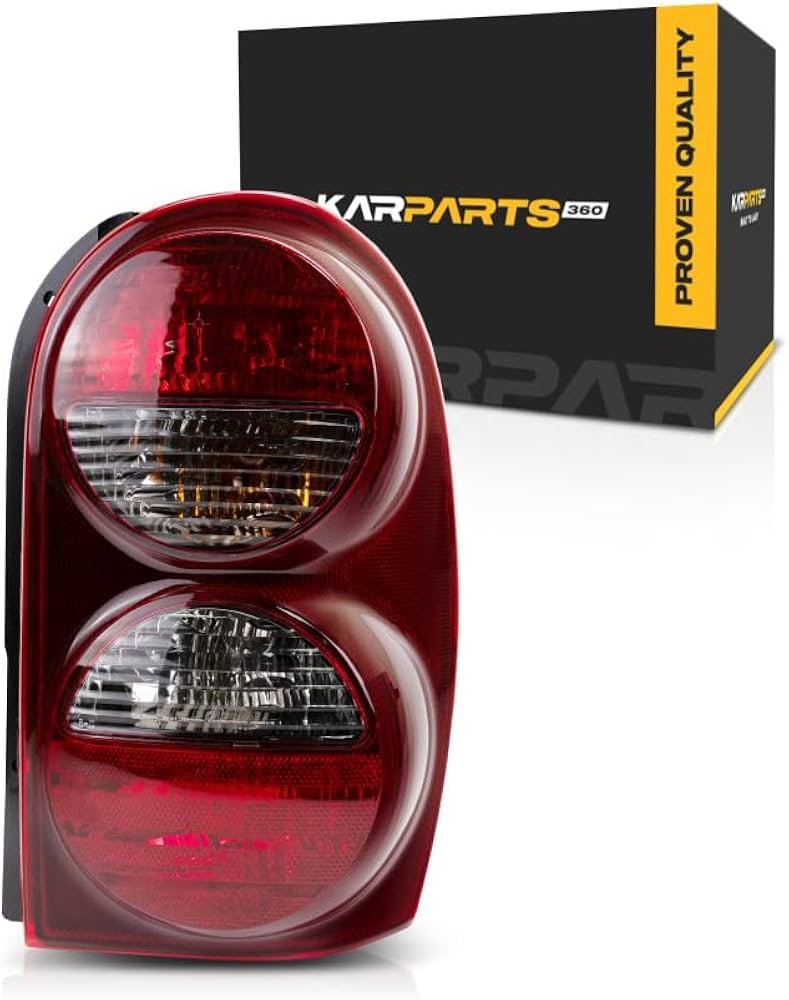

The 2005 Jeep Liberty uses a combination tail light assembly. Each assembly includes bulbs for brake, reverse, and turn signals inside a single plastic housing. If just one bulb is out, you can replace it individually. However, sometimes the entire housing may need replacement due to cracks or water inside.
A new tail light assembly costs around $40 $80, while individual bulbs are about $3 $8 each. These parts are available at auto parts stores and online.
Tools And Materials Needed
Before starting, gather these basic items:
- Phillips screwdriver
- Replacement bulb or tail light assembly (double-check fit for 2005 Jeep Liberty)
- Gloves (optional, for handling bulbs)
- Clean cloth
Most tail light repairs do not require special tools. However, if you notice stubborn screws or corrosion, a small flathead screwdriver and some WD-40 may help.
Step-by-step: How To Replace The Tail Light
1. Open The Rear Hatch
Start by opening the Jeep’s rear hatch. This gives you full access to the tail light assembly screws on the inside edge.

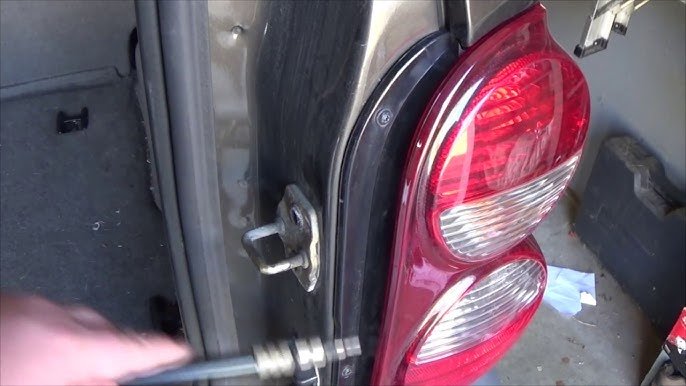

2. Locate And Remove Screws
Find the two Phillips head screws securing the tail light assembly. These are visible when the hatch is open. Carefully remove them and set them aside where they won’t get lost.
3. Pull Out The Tail Light Assembly
Gently pull the tail light assembly straight out. It may feel tight due to small retention clips, but a firm, even pull will release it.
Avoid twisting or using excessive force to prevent damage.
4. Disconnect Wiring Harness
Behind the assembly, you’ll see the wiring harness connected to the bulbs. Press the tab and pull the connector out. Now, you can move the tail light to a flat surface.
5. Replace The Bulb Or Assembly
If only a bulb is out:
- Twist the bulb socket counterclockwise to remove it.
- Pull out the old bulb and insert the new one. Make sure not to touch the glass with bare hands.
- Insert the socket back and twist clockwise to secure.
If replacing the entire assembly:
- Transfer the bulbs from your old assembly to the new one, or install new bulbs as needed.
- Reconnect the wiring harness.
6. Reinstall The Tail Light Assembly
Align the assembly with the Jeep’s body and press it into place. Make sure it sits flush.
Reinstall the screws and tighten them snugly, but don’t overtighten.
7. Test Your Work
Have someone press the brake pedal, turn on the lights, and activate the turn signal while you check the new tail light. Make sure all bulbs work properly.
Comparing Bulb Types
Choosing the right bulb is important for safety and durability. Here is a comparison of common bulb types for the 2005 Jeep Liberty:
| Bulb Type | Lifespan (hours) | Brightness (lumens) | Cost per bulb |
|---|---|---|---|
| Incandescent | 1,000 | 400 | $3 |
| Halogen | 2,000 | 700 | $5 |
| LED | 30,000 | 1,000 | $10 |
LED bulbs are more expensive but last much longer and are brighter. They’re a good choice if you want to avoid frequent replacements.
Common Mistakes And How To Avoid Them
- Forgetting to test: Always test the lights before finishing. A simple test can prevent driving with a non-working tail light.
- Using the wrong bulb: Check your owner’s manual for the exact bulb type.
- Touching the glass: Oils from your skin can shorten bulb life. Use gloves or a clean cloth.
- Not tightening screws: Loose assemblies can let in water, leading to electrical issues.
Table: Symptoms Of Tail Light Problems
Here’s a summary of symptoms and likely causes:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Only one side out | Burnt bulb | Replace bulb |
| Both sides out | Blown fuse | Check and replace fuse |
| Condensation inside | Cracked housing | Replace assembly |
| Light dim or flickering | Loose connection | Check wiring |
Pro Tips For A Smooth Replacement
- Park your Jeep on a flat, safe area and switch off the ignition.
- If working at night, use a flashlight to see small connectors and screws.
- Take a quick photo of the wiring before disconnecting, so you remember how to reattach it.
- Keep spare bulbs in your glove box for emergencies.
When To Replace The Whole Assembly
Replace the whole tail light assembly if you see cracks, heavy fogging, or water inside the lens. Water can damage the electrical system and lead to a ticket. If only the bulb is out and the lens is clear, you only need a new bulb.
Cost And Time Comparison
Here’s a quick look at the typical time and cost:
| Repair Type | Estimated Cost | Time Needed | Difficulty |
|---|---|---|---|
| Bulb Only | $3–$8 | 10 min | Easy |
| Full Assembly | $40–$80 | 20 min | Moderate |
If you’re unsure about any steps, your Jeep’s owner’s manual provides diagrams and part numbers. For more technical details, refer to the official Jeep Liberty site.
Replacing your 2005 Jeep Liberty’s tail light doesn’t require a mechanic. With a little care and the right parts, you can keep your vehicle safe and legal on the road.
Frequently Asked Questions
How Do I Know Which Tail Light Bulb To Buy?
Check your owner’s manual for the bulb type and number. Most 2005 Jeep Liberty models use a 3157 bulb for tail and brake lights.
Can I Replace Just The Bulb Or Do I Need The Whole Assembly?
You can replace just the bulb if the lens is undamaged. Only replace the assembly if the housing is cracked, foggy, or letting in water.
What Should I Do If The New Bulb Doesn’t Work?
Double-check that the bulb is installed correctly and the wiring harness is connected. If it still doesn’t work, check the fuse box for a blown fuse.
Is It Safe To Drive With A Broken Tail Light?
It’s not safe and may be illegal. A broken tail light reduces your visibility to other drivers and can lead to a ticket.
Where Can I Buy Tail Light Parts For A 2005 Jeep Liberty?
You can find parts at auto parts stores, online retailers, and the official Jeep website. Always match the part number to your vehicle.
Replacing a tail light is an easy way to keep your 2005 Jeep Liberty safe and avoid trouble on the road. With these steps, you’ll be ready for a quick, successful repair.
