Replacing the dash lights in a Jeep Wrangler is a project many owners face as their vehicle ages. Dim, flickering, or dead dashboard lights can make nighttime driving unsafe and uncomfortable. If you want your gauges to shine clearly again, it’s possible to replace these bulbs yourself with basic tools and a little patience. This guide walks you through every step, including smart tips and common mistakes to avoid. Whether you’re new to DIY car maintenance or have some experience, you’ll find practical advice to help you work confidently and safely.
Understanding Jeep Wrangler Dash Lights
Before grabbing a screwdriver, it helps to know what you’re dealing with. Dash lights illuminate the speedometer, fuel gauge, warning indicators, and sometimes even the HVAC controls. In Jeep Wranglers—especially the popular TJ (1997–2006) and JK (2007–2018) models—the dash lights are small bulbs mounted behind the instrument cluster. These bulbs can burn out over time, causing parts of your dashboard to go dark.
Why do dash lights fail? Most often, it’s simple wear and tear. The tiny bulbs have a limited life, especially if you drive with headlights on often. Sometimes, wiring problems or a blown fuse are to blame, but burned-out bulbs are the most common cause.
Tools And Parts You’ll Need
Gather everything before you begin. Having all the tools and replacement parts ready saves time and prevents frustration.
Essential tools:
- Phillips screwdriver
- Flathead screwdriver or trim removal tool
- 7mm or 10mm socket and ratchet (model dependent)
- Needle-nose pliers (optional)
- Flashlight or headlamp
Replacement parts:
- Dash light bulbs (usually type 194 or 74 for most Wranglers—check your manual)
- Gloves (to avoid getting oils on new bulbs)
- Optional: LED bulbs for brighter, longer-lasting light
Pro Tip: Some Wrangler owners upgrade to LED bulbs. These last longer and use less energy, but can sometimes cause dimming or flicker if not compatible. Always verify your model year and bulb size before buying.
Safety First: Preparing Your Wrangler
Safety is easy to overlook, but it’s critical when working with electronics.
- Disconnect the battery. Loosen the negative terminal and move it aside. This prevents shorts or accidental airbag deployment.
- Park on a flat surface and set the parking brake.
- Allow your vehicle to cool. If you’ve been driving, give your Jeep time to cool down, especially if you’ll be near wiring or plastic parts.
Extra Tip: If you skip the battery step, you risk triggering an airbag light or even setting off the airbag. Don’t rush—take the extra minute for safety.
Removing The Dash Trim And Instrument Cluster
Accessing the dash lights means taking out part of your dashboard. It sounds tricky, but with patience, it’s straightforward.
- Remove dash trim. Start by removing screws around the dash bezel (the plastic trim surrounding the gauges). Some screws are hidden—check near the steering column and air vents.
- Gently pry the bezel away. Use a trim removal tool or a flathead screwdriver wrapped in tape to avoid scratches.
- Unscrew the instrument cluster. Usually, there are 4 screws holding it in place.
- Tilt the cluster forward. Carefully pull the cluster out just enough to access the rear. Don’t yank it—wiring harnesses are attached.
- Disconnect wiring harnesses. Most have a pinch tab; press and gently wiggle them free.
Common Mistake: Rushing this step often cracks the plastic or damages clips. Take your time, and keep track of all screws.
Identifying And Removing Dash Bulbs
With the cluster removed, you’ll see several small bulb holders on the back.
- Locate the bulb sockets. These are small round or rectangular holders spaced evenly behind the gauges.
- Remove the old bulbs. Twist the holder counterclockwise to release it, then pull the bulb straight out.
- Check the bulb size. Most Wranglers use standard sizes, but always compare the new bulb with the old one.
Not-so-obvious Insight: Some bulbs light up the gauges, while others are for warning lights. If only one part of your dash is dark, you may only need to change a few bulbs.
Installing New Dash Lights
Now it’s time to brighten your dash again.
- Insert the new bulb into the socket. If you’re using LEDs, make sure the polarity is correct. If the light doesn’t work, flip the bulb and try again.
- Reinstall the bulb holder by twisting clockwise until it locks.
- Repeat for all dark or weak bulbs. It’s smart to replace all bulbs in one go, even if only one is out. This prevents you from repeating the job soon.
Here’s a quick comparison between standard and LED dash bulbs for Wranglers:
| Bulb Type | Brightness | Lifespan | Energy Use | Cost (per bulb) |
|---|---|---|---|---|
| Halogen (stock) | Moderate | ~1,000 hours | Higher | $1–$2 |
| LED | High | ~30,000 hours | Very Low | $3–$5 |
Extra Insight: Not all LEDs dim smoothly with the Wrangler’s factory dimmer switch. If you want adjustable brightness, research compatible LEDs for your year.
Reassembling The Dash
Once all bulbs are replaced:
- Reconnect the wiring harnesses to the back of the cluster. Make sure each connector clicks into place.
- Set the cluster back in position. Align it carefully and reinstall the screws.
- Snap the dash bezel back on and replace all screws.
- Reconnect the battery and check your work before fully finishing. Turn the ignition to “on” (without starting the engine) and test the dash lights and indicators.
Practical Tip: If any lights don’t work, double-check bulb polarity (for LEDs) and connections. Do not force any parts if they don’t fit—realignment may be needed.
Troubleshooting Common Problems
Sometimes, things don’t go as planned. Here’s how to handle the most frequent issues:
- No lights after replacement: Ensure the bulbs are seated correctly and the wiring harness is fully connected.
- Some lights are still dim: Clean the contacts inside the bulb sockets with electrical contact cleaner and a cotton swab.
- Warning lights stay on: If the battery was disconnected, some warning lights may need a drive cycle to reset. If they persist, check connections.
- LED bulbs flicker: This can happen with cheap LEDs or incompatible types. Try a different brand or consult Wrangler forums for tested solutions.
Cost, Time, And Difficulty Level
Replacing dash lights yourself is a moderate DIY task.
| Factor | Details |
|---|---|
| Skill Level | Beginner–Intermediate |
| Estimated Time | 1–2 hours (first time) |
| Tools Needed | Common hand tools |
| Parts Cost | $5–$20 (full set) |
| Shop Cost | $100–$200 (labor + bulbs) |
Saving tip: Doing it yourself saves a lot of money. Most of the cost at a shop is labor, not parts.
Upgrading Your Dash Lighting: Is It Worth It?

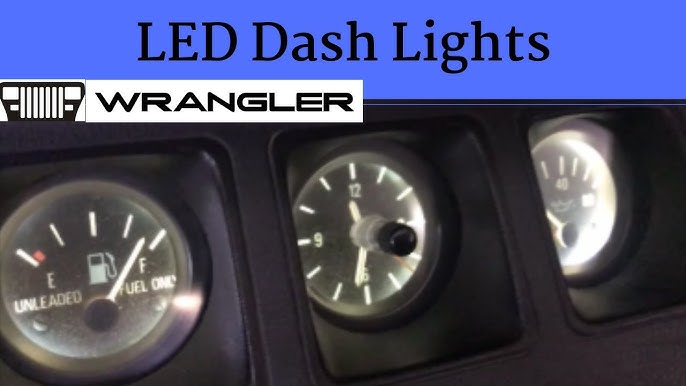

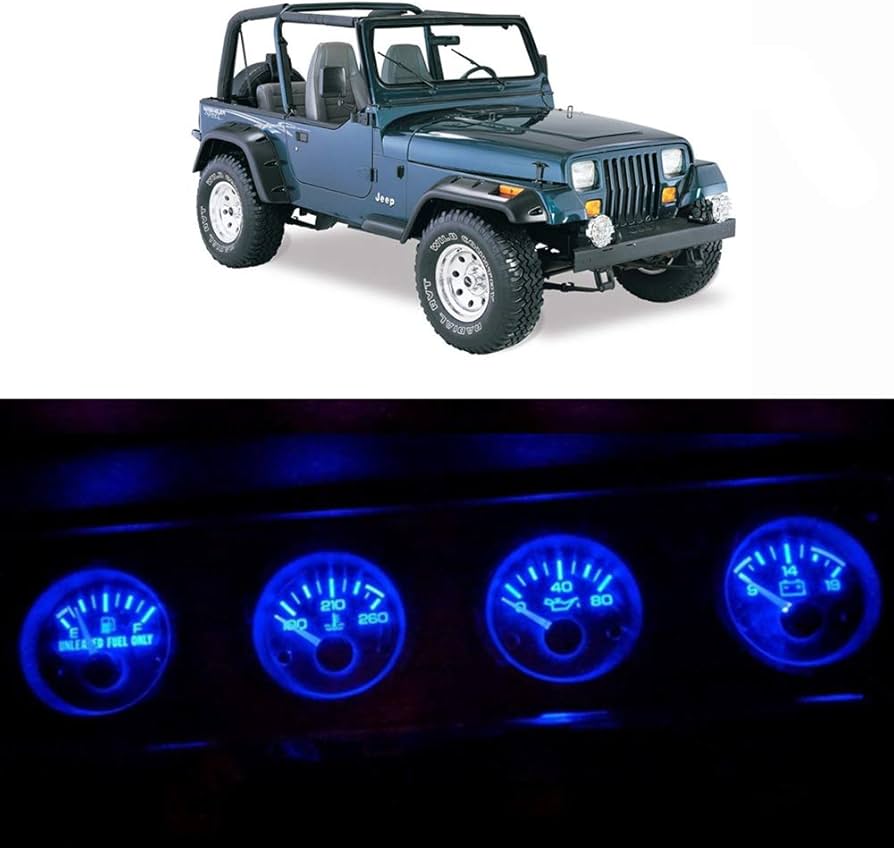

Many owners consider LED upgrades for style, brightness, and longer life. LEDs come in colors like white, blue, or red—customizing your Wrangler’s interior look. However, upgrades can bring challenges:
- Compatibility issues: Some LEDs cause flicker or won’t dim.
- Install complexity: Some aftermarket kits require extra wiring or resistors.
If you drive often at night or want a modern look, LEDs make sense. For purists or those wanting factory-correct style, standard bulbs are best.
Always check local laws colored dash lights may not be legal everywhere.
Maintenance Tips For Longer-lasting Dash Lights
To avoid early bulb failure:
- Use the dimmer switch: Running dash lights at full brightness shortens bulb life.
- Keep your dash clean: Dust and debris can block light and heat up bulbs.
- Inspect bulbs during other repairs: If you have the dash open for radio or HVAC work, check and replace bulbs as needed.
- Buy quality bulbs: Cheap bulbs burn out faster and may cause electrical issues.
Often missed: New bulbs can fail early if touched with bare fingers. Oil from your skin creates hot spots—always wear gloves or handle with a tissue.
Environmental And Accessibility Considerations
When you replace dash bulbs, don’t throw the old ones in the trash. Bulbs contain small amounts of metals and glass.
Many auto parts stores recycle them safely. Also, if you have large hands or limited mobility, the process can be fiddly.
Consider asking a friend for help or using needle-nose pliers for hard-to-reach bulbs.
When To Seek Professional Help
DIY isn’t for everyone. If your Jeep has advanced electronics (like the JL’s digital dash) or you feel unsure, it’s smart to visit a qualified mechanic.
They’ll have the right tools and expertise to avoid damage.
If you run into wiring issues, blown fuses that keep coming back, or warning lights that won’t clear, don’t guess electrical issues can be tricky and sometimes dangerous.
For more detailed technical background, you can consult the official Jeep Wrangler page on Wikipedia.
How Do I Know What Bulb Type My Jeep Wrangler Needs?
Most Jeep Wranglers use 194 or 74 bulbs for the dash, but it can vary. The owner’s manual lists the correct type, or you can check the old bulb’s markings.
Can I Upgrade To Led Dash Lights In My Wrangler?
Yes, most Wranglers can use LED replacement bulbs. Make sure to buy LEDs compatible with your model year to avoid flicker and dimming issues.
What If My New Dash Lights Don’t Work After Installation?
Check the bulb polarity (especially for LEDs), wiring harness connections, and fuses. If none of the lights work, the battery may need a reset or the fuse may be blown.
Is It Safe To Drive With Some Dash Lights Out?
It’s not recommended. Missing dash lights make it hard to see your speed or warning indicators at night, which can be dangerous.
How Long Do Replacement Dash Lights Usually Last?
Standard bulbs last 1,000–2,000 hours. Quality LEDs can last up to 30,000 hours if installed properly.
Replacing your Jeep Wrangler’s dash lights is a rewarding project. With the right tools and a careful approach, you can bring your dashboard back to life and enjoy safer, more comfortable night driving.
Even if you’re new to car repairs, following these steps makes the job clear and manageable.
