Replacing dashboard lights in your Jeep Grand Cherokee can seem intimidating, but it’s a task many owners can handle with some patience and basic tools. If your dash lights are flickering, dim, or have gone out completely, it’s more than an annoyance—it can be a safety issue, especially at night. Restoring your dashboard lights not only keeps your vehicle looking sharp but also ensures you can see vital information while driving. This guide will walk you through every step, provide helpful tips, and highlight what beginners often miss, so you can approach the job with confidence.
Why Dashboard Lights Matter
Your dashboard lights do more than just illuminate your gauges. They help you read your speed, fuel level, temperature, and warning indicators when driving in low-light conditions. A faulty dashboard light might mean you miss a warning sign, which could lead to costly repairs or unsafe situations. In some states, driving with non-functioning dash lights can even get you a ticket. That’s why knowing how to replace these lights is a handy skill for any Jeep Grand Cherokee owner.
Tools And Parts You’ll Need
Having the right tools and parts ready will make the process smoother. Here’s what you’ll typically need:
- Replacement bulbs (check your owner’s manual or old bulbs for the correct type)
- Phillips and flathead screwdrivers
- Trim removal tool (plastic preferred to avoid scratches)
- Needle-nose pliers
- Socket wrench set
- Flashlight or headlamp
- Clean gloves (optional, prevents skin oils on bulbs)
It’s smart to buy a few extra bulbs in case one breaks or you want to replace all the lights at once for consistent brightness.
Understanding Bulb Types And Compatibility
Not all Jeep Grand Cherokees use the same dashboard bulbs. The bulb type can vary by model year and trim. Here’s a quick comparison for popular years:
| Model Year | Common Bulb Type | Notes |
|---|---|---|

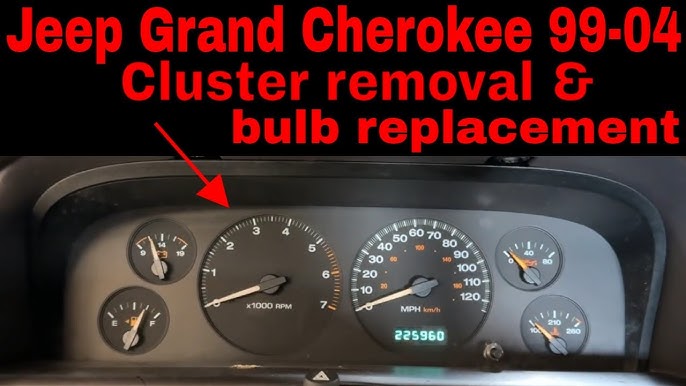

| 1999-2004 (WJ) | PC74, PC194 | Most gauge clusters use these |
| 2005-2010 (WK) | T5, PC74 | Some clusters use LEDs (not user-replaceable) |

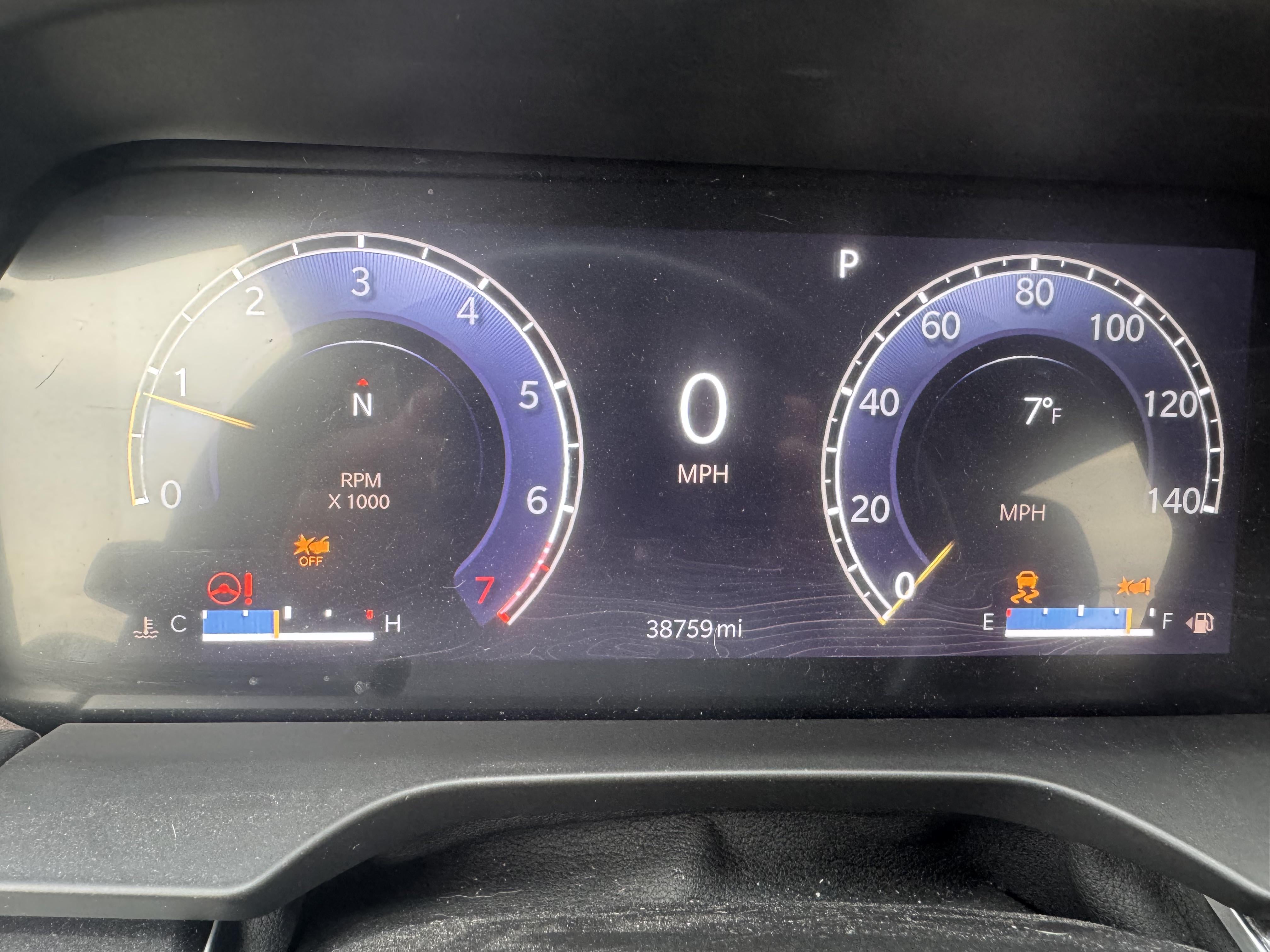

| 2011-present (WK2) | LED modules | Usually soldered, not easily replaced |
Important: If your Grand Cherokee uses soldered LEDs, replacing them is much harder and might need professional help. For standard twist-lock bulbs, DIY is straightforward.
Step-by-step Guide To Replacing Dashboard Lights
Let’s break down the process for most Grand Cherokee models with replaceable bulbs. Always disconnect your battery before working with electronics to avoid shocks or accidental airbag deployment.
1. Disconnect The Battery
Safety first. Locate your battery (usually under the hood), and use a wrench to loosen the negative (-) terminal. Tuck it away from the post to prevent accidental contact.
2. Remove Dashboard Trim
Use your trim removal tool to gently pry around the dashboard bezel. Most Grand Cherokees have plastic clips holding the trim. Start at a corner and work your way around. Be patient—force can break clips.
3. Unscrew The Gauge Cluster
Once the trim is off, you’ll see screws holding the instrument cluster. Remove these with a Phillips screwdriver. Keep the screws in a cup or tray so you don’t lose them.
4. Disconnect Wiring Harness
Carefully pull the cluster forward. On the back, you’ll see 1 3 wiring harnesses. Press the tab and pull each connector out. Do not yank the wires.
5. Remove And Inspect Bulbs
Turn the cluster over. You’ll see small twist-lock bulb holders. Use your fingers or needle-nose pliers to twist each one counterclockwise and pull out. Inspect the bulbs if the filaments are broken or the glass is darkened, they’re bad.
6. Install New Bulbs
Insert your new bulbs into the holders. Handle them with gloves or a clean cloth. Twist them back into place clockwise until snug.
7. Reinstall The Cluster And Trim
Reconnect the wiring harnesses, line up the cluster, and screw it back in. Snap the trim back on gently. Make sure all clips are seated.
8. Reconnect The Battery And Test
Reconnect the negative battery terminal. Turn the ignition key and turn on the headlights. Check if all dashboard lights work and are evenly bright.
Tips For A Smooth Replacement
- Replace all bulbs at once if possible. If one has failed, others may soon follow.
- When removing trim, work slowly and use plastic tools to avoid scratches.
- If a bulb still doesn’t work after replacement, check for a blown fuse or corroded socket.
- On some models, you may need to move the steering wheel (using the tilt function) for better access.
Common Mistakes To Avoid
Many first-timers make small errors that can lead to frustration or extra work. Here are common pitfalls:
- Forgetting to disconnect the battery: This can trigger airbag lights or short circuits.
- Using the wrong bulb type: Always double-check your manual or bring the old bulb to the parts store.
- Touching bulbs with bare hands: Oils from your skin can shorten bulb life.
- Breaking trim clips: Rushing the removal process can snap fragile plastic.
- Not testing before full reassembly: If a light doesn’t work, you’ll have to take everything apart again.
Here’s a quick reference table to avoid these issues:
| Mistake | How to Avoid |
|---|---|
| Battery not disconnected | Unhook negative terminal before starting |
| Wrong bulb installed | Check model/year and bulb number |
| Bulb touched by hand | Use gloves or tissue |
| Trim clip broken | Use plastic trim tools, take it slow |
| No test before reassembly | Power up after bulb install, before replacing trim |
Led Upgrades: Should You Switch?
Some owners consider LED bulbs to replace old incandescent ones. LEDs last longer, use less power, and can be brighter. However, not all LEDs are compatible, and some can cause dimming or flickering due to the Jeep’s voltage system.
Before upgrading:
- Check that the LED bulbs are “CAN bus compatible” for your model.
- Test a single bulb first to see if your cluster works well with LEDs.
- Remember that LED color temperature can affect how your gauges look—some are very cool (blue-white), while factory bulbs are warm (yellow-white).
Pro insight: Sometimes, cheap LED bulbs don’t fit tightly or cause errors. Investing in quality, vehicle-specific LEDs reduces hassle.
How Long Does The Job Take?
For most DIYers, replacing dashboard lights on a Jeep Grand Cherokee takes about 1–2 hours. If you’re careful, you won’t need special skills. If it’s your first time, plan for extra time to avoid feeling rushed.
Cost Breakdown
The total cost depends on your model and bulb choice. Here’s an example:
| Item | Average Cost |
|---|---|
| Incandescent bulbs (pack of 5) | $8–$15 |
| LED bulbs (pack of 5) | $15–$35 |
| Trim tool set | $8–$20 |
| Professional labor | $90–$150 |
Doing it yourself usually costs under $40, unless you need special LEDs.
When To Call A Professional
While replacing dashboard lights is a manageable task for most, you should get help if:
- Your cluster uses soldered LEDs (common in 2011+ models)
- You’re uncomfortable disconnecting electronics
- The cluster doesn’t light up after replacement (may signal wiring issues)
Some shops specialize in cluster repairs and can also fix dim screens or dead pixels.
What Beginners Often Miss
- Cluster connectors can be tricky: Some harnesses have hidden tabs or locks—don’t force them.
- Not all dash lights are bulbs: Some indicator lights, like “Check Engine,” are built-in LEDs and can’t be replaced without advanced soldering.
- Dash dimmer switch issues: Sometimes, a bad dimmer switch or fuse is the real culprit, not the bulbs.
Extra Tips For A Clean Finish
- Use a can of compressed air to gently blow dust out of your cluster before reinstalling.
- Check that your dash lights dim and brighten smoothly with the dimmer control.
- If you hear rattles after reassembly, check that all clips and screws are tight.
Where To Find Reliable Bulb Information
Always check your Jeep Grand Cherokee owner’s manual for bulb type and cluster diagrams. Online forums like JeepGarage and the official Jeep site offer model-specific guidance. For more general vehicle lighting info, Wikipedia: Automotive Lighting is a helpful resource.
What Bulb Type Does My Jeep Grand Cherokee Use For The Dashboard?
Most 1999–2010 models use PC74, PC194, or T5 bulbs. Newer models (2011 and up) often use LED modules that are not easily replaced. Always check your manual or pull an old bulb to match.
Can I Upgrade My Dashboard Lights To Leds?
Yes, for most older models, you can use compatible LED bulbs. Make sure they fit your cluster and are CAN bus compatible. Some cheap LEDs can flicker or cause error lights, so test before replacing all bulbs.
Do I Need To Remove The Steering Wheel To Replace The Dash Lights?
No. On most Grand Cherokee models, you do not need to remove the steering wheel. Lowering or tilting it usually gives enough space to remove the trim and cluster.
Why Do My New Bulbs Not Light Up After Installation?
Possible reasons include a blown fuse, incorrect bulb type, a bad socket, or a wiring issue. Double-check the fuse box and ensure connectors are seated firmly.
Is It Safe To Drive Without Dashboard Lights?
It’s not recommended. Driving at night without dash lights can be dangerous and may be illegal in some areas. You won’t see your speed, fuel, or warning lights. Replace faulty bulbs as soon as possible.
Replacing your Jeep Grand Cherokee dashboard lights can seem like a big job, but with the right tools and a careful approach, it’s a satisfying DIY project. By following the steps above, avoiding common mistakes, and taking your time, you’ll restore your dash’s glow and improve your driving safety. If you run into unexpected issues, don’t hesitate to seek advice from Jeep forums or a trusted mechanic. Your dashboard will look (and work) as good as new—so you can hit the road with confidence.
