If your 2005 Jeep Grand Cherokee’s dash lights are dim, flickering, or not working at all, it can make driving at night difficult and unsafe. Dash lights help you see speed, fuel, and warning indicators, so fixing them quickly is important.
The good news is, with a little patience and the right tools, you can replace the dash lights yourself. This guide shows you exactly how, even if you’ve never done car repairs before.
Understanding Dash Lights In The 2005 Jeep Grand Cherokee

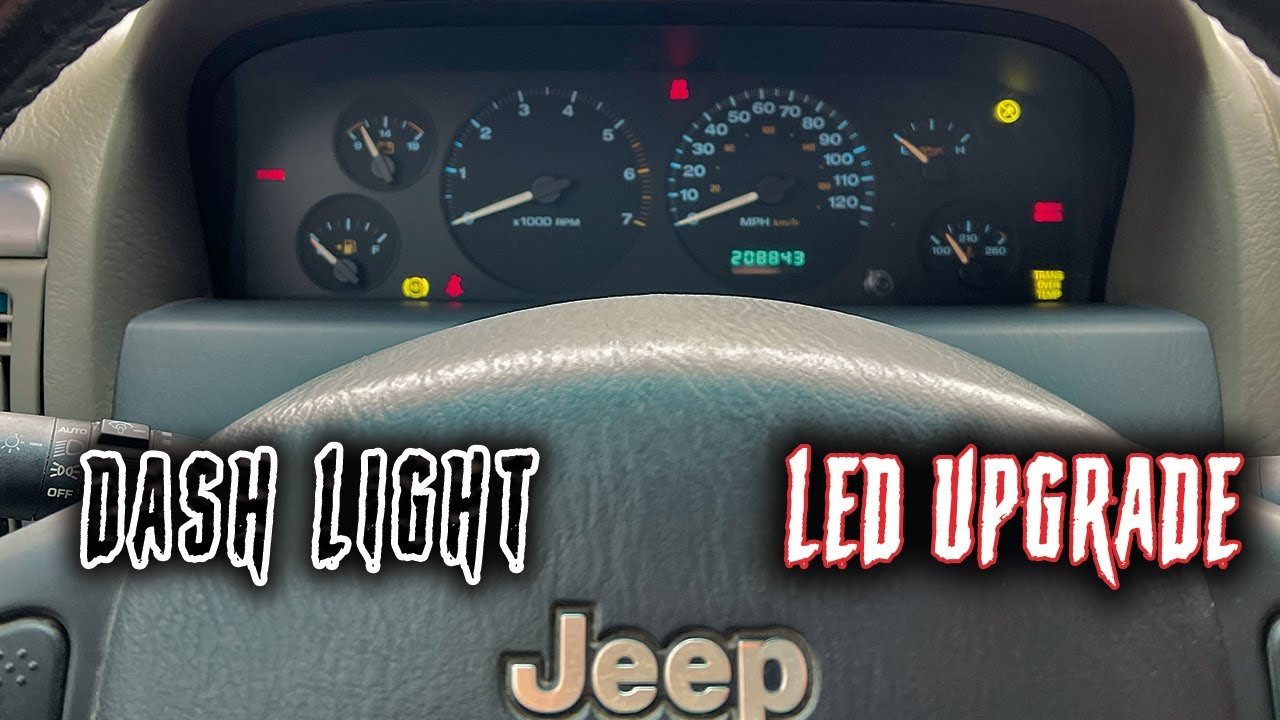

The dash lights sit behind your instrument cluster and illuminate your gauges. In the 2005 Grand Cherokee, these are small bulbs mounted on a circuit board. Over time, bulbs burn out or connections loosen, causing the dash to go dark or uneven. Replacing these bulbs is a straightforward process, but it requires careful disassembly of the dash.
Tools And Supplies You Need
Before you start, gather these items:
- Phillips and flathead screwdrivers
- 7mm and 10mm socket wrenches
- Plastic trim removal tool (optional, but prevents scratches)
- Needle-nose pliers
- Replacement dash bulbs (typically #74 or #194 bulbs—check your manual)
- Flashlight
- Small magnetic tray (to hold screws)
Having everything ready will save time and help prevent losing parts.
Step-by-step Guide To Replacing Dash Lights
Replacing the dash lights involves removing panels, disconnecting wiring, and swapping bulbs. Follow these steps for a smooth process.
1. Disconnect The Battery
Safety comes first. Disconnect the negative terminal of your battery using a 10mm wrench.
This prevents electrical shorts or airbag issues while you work.
2. Remove Dashboard Trim
Start by moving the steering wheel to its lowest position. Use a plastic trim tool to carefully pry off the dashboard bezel surrounding the instrument cluster.
Take your time and work around the edges to avoid cracking the plastic. Set the trim piece aside.
3. Unscrew And Remove The Instrument Cluster
You’ll see 4 screws holding the instrument cluster in place. Remove them with a Phillips screwdriver.
Gently pull the cluster toward you be careful, there are electrical connectors behind it.
4. Disconnect Electrical Connectors
Reach behind the cluster and press the locking tabs on the wiring harnesses. Disconnect all connectors before fully removing the cluster.
Lay it face-down on a soft towel to avoid scratches.
5. Locate And Remove Dash Bulbs
Flip the instrument cluster over. You’ll see several small twist-in bulb holders on the back.
Use needle-nose pliers or your fingers to turn each holder counterclockwise and pull it out. Remove the old bulbs and compare them to your replacements to ensure the size matches.
6. Install New Bulbs
Insert the new bulbs into the holders. Push them in firmly, but do not force them.
Reinstall each holder into the cluster and twist clockwise to lock.
7. Reinstall The Instrument Cluster
Reconnect all wiring harnesses to the back of the cluster. Align the cluster with the dash and reinstall the four screws.
Be sure not to overtighten this can crack the plastic.
8. Replace The Dashboard Trim
Snap the dashboard bezel back into place, starting from one corner and working around. Make sure all clips are secure.
9. Reconnect The Battery And Test
Reconnect the negative battery terminal. Turn your ignition key to the “On” position but do not start the engine.
Check that all dash lights are working. If one is still out, you may need to reseat a bulb or check the fuse.
Types Of Bulbs For The 2005 Grand Cherokee
The 2005 model typically uses #74 or #194 bulbs for dash lighting. Some clusters may use a mix of types for different sections. LED replacements are available, offering longer life and brighter light. However, LEDs can sometimes cause “hot spots” or uneven lighting in older clusters. It’s best to use high-quality bulbs for consistent results.
| Bulb Type | Brightness | Expected Lifespan | Color Options |
|---|---|---|---|
| #74 (Halogen) | Standard | 1-2 years | White, Amber |
| #194 (Halogen) | Standard | 1-3 years | White, Amber |
| #74 LED | Brighter | 5+ years | White, Blue, Red, Green |
| #194 LED | Brighter | 5+ years | White, Blue, Red, Green |
Comparing Halogen And Led Dash Bulbs
Choosing between halogen and LED bulbs is a common question. Halogen bulbs are original equipment and provide even lighting, while LEDs last longer and use less power.
| Feature | Halogen Bulbs | LED Bulbs |
|---|---|---|
| Lifespan | Shorter | Longer |
| Brightness | Moderate | Very Bright |
| Cost | Lower | Higher |
| Compatibility | Guaranteed | May need resistor |
| Ease of Installation | Easy | Easy |
Insight: Many beginners choose the brightest LED bulbs, but this can cause glare or uneven light. Choose bulbs with a “diffused” or “frosted” lens for smoother results.
Common Mistakes And How To Avoid Them
Replacing dash lights is simple, but these mistakes are easy to make:
- Forgetting to disconnect the battery – This can cause short circuits or airbag light errors.
- Breaking dash trim clips – Use gentle pressure and a plastic tool; old plastic is fragile.
- Using the wrong bulb type – Always compare old and new bulbs before installation.
- Overtightening screws – This can crack the cluster housing.
- Not testing before reassembly – Always test lights before putting everything back together.
Tip: If a bulb still doesn’t work, check the fuse panel under the dashboard. The “Instrument Cluster” fuse may be blown.
When To Seek Professional Help
If you notice other issues—like flickering gauges, warning lights, or if the dash stays dark after bulb replacement—there may be a deeper electrical problem. Sometimes the circuit board in the cluster has a loose connection. If you’re not comfortable with wiring, let a trusted mechanic diagnose these issues.
Extra Tips For First-time Diyers
- Use a magnetic tray to avoid losing screws.
- Take pictures as you go. This helps you remember how to reassemble the dash.
- Work in a well-lit area or use a headlamp.
- Label any connectors if you feel unsure.
Non-obvious insight: The 2005 Grand Cherokee’s cluster has a thin plastic “light pipe” that channels light. If you see dark spots after replacing bulbs, the light pipe may be dirty. Carefully wipe it with a microfiber cloth before reassembly.
Estimated Time And Difficulty
Replacing dash lights in a 2005 Jeep Grand Cherokee takes about 60 to 90 minutes for most DIYers. The difficulty is moderate. No special skills are required, just patience and care.
Cost Breakdown
Expect to pay $1–$3 per halogen bulb or $5–$10 per LED bulb. If you hire a mechanic, labor could cost $100–$200. Doing it yourself saves money and helps you learn more about your vehicle.
Environmental Note
If you upgrade to LED bulbs, they use less power and last longer, reducing waste. Recycle old bulbs at an auto parts store if possible.
For more details on vehicle lighting and safety, check the Automotive Lighting page on Wikipedia.
Frequently Asked Questions
What Bulb Size Does The 2005 Jeep Grand Cherokee Use For Dash Lights?
Most 2005 Grand Cherokees use #74 or #194 bulbs for the instrument cluster. Check your owner’s manual or compare your old bulbs to be sure before buying replacements.
Can I Upgrade To Led Bulbs For My Dash Lights?
Yes, you can use LED bulbs as long as they are the correct size. LEDs are brighter and last longer, but make sure to choose bulbs designed for dash use to avoid uneven lighting.
My New Bulbs Don’t Light Up. What Should I Check?
First, ensure the bulbs are installed correctly and the holders are twisted in fully. Check the instrument cluster fuse under the dash. Also, make sure you reconnected all wiring harnesses securely.
Is It Safe To Drive If Some Dash Lights Are Out?
It’s best not to drive at night with non-working dash lights. You might miss important information like low fuel, speed, or warning lights. Fixing them improves safety.
Do I Need To Remove The Steering Wheel To Replace Dash Lights?
No, you do not need to remove the steering wheel. Lower it to its lowest position to gain more space, but all work can be done from the front of the dash.
Replacing dash lights in your 2005 Jeep Grand Cherokee is a rewarding DIY project. With the right tools and a step-by-step approach, you can restore night-time visibility and enjoy a safer driving experience.
Take your time, stay organized, and you’ll have your dash glowing like new.
