Replacing the brake light bulb on a 2004 Jeep Grand Cherokee might sound tricky if you haven’t done it before, but it’s actually a simple task you can finish in less than 30 minutes.
Many people worry about car wiring or breaking plastic parts, but with the right steps and tools, you can save both time and money by handling this job yourself.
Keeping your brake lights working is not just about avoiding tickets it's about safety for you and everyone else on the road. Let’s walk through the process in clear steps, share some useful tips, and discuss mistakes to avoid.
Why Replacing Your Brake Light Bulb Matters
The brake lights on your 2004 Jeep Grand Cherokee signal to other drivers that you are slowing down or stopping. If a bulb is out, drivers behind you might not react in time, increasing the risk of an accident. In the US, you can also get a ticket for a non-working brake light. According to the National Highway Traffic Safety Administration, faulty lights cause thousands of rear-end accidents each year. Replacing a bulb is a small action that can have a big impact on your safety.
What You Need Before You Start
Before you start, gather these items to make the process smooth:
- Replacement bulb: For the 2004 Jeep Grand Cherokee, you need a 3157 type bulb.
- Phillips screwdriver: To remove screws from the tail light assembly.
- Gloves (optional): To keep oil from your skin off the bulb.
- Clean cloth: To wipe any dirt from the assembly.
Having everything ready prevents interruptions and saves time. Double-check your vehicle manual if you’re unsure about the bulb type.
Step-by-step Guide To Replace The Brake Light Bulb
1. Locate The Brake Light Assembly

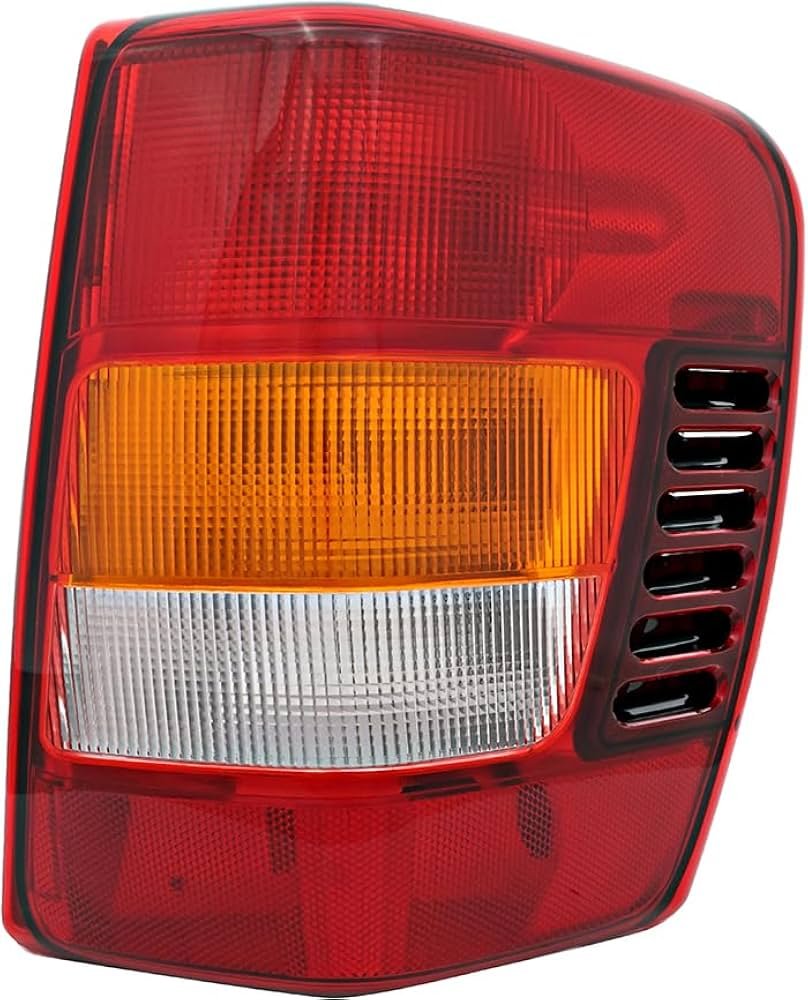

Stand behind your Jeep and look at the tail lights. The brake light is part of the main tail light assembly, which is attached to the rear quarter panel on each side.
2. Open The Tailgate
Open the rear liftgate. This exposes the screws that hold the tail light assembly in place.
You won’t be able to remove the assembly without opening the tailgate.

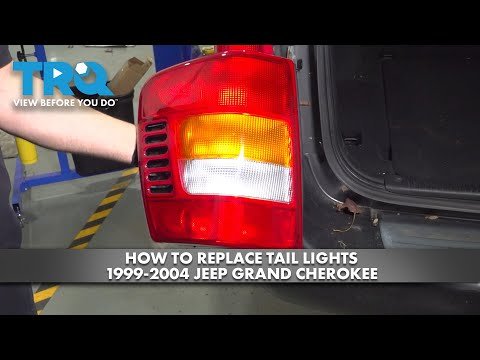

3. Remove The Tail Light Assembly
Use your Phillips screwdriver to remove the two screws you see along the inside edge of the tail light. Place the screws somewhere safe so they don’t get lost. Gently pull the tail light assembly straight back. It may feel stuck, but don’t twist or pry it too hard—there are plastic pins holding it, and they will pop free with gentle pulling.
4. Find The Brake Light Bulb Socket
Look at the back of the assembly. You’ll see several bulbs and sockets.
The brake light bulb is usually the middle one. It’s in a twist-lock socket.
Turn the socket counterclockwise (about a quarter turn) and pull it out.
5. Remove The Old Bulb
Pull the old bulb straight out from the socket. Sometimes it helps to wiggle it gently.
If the bulb is broken, wear gloves or use a cloth to avoid cuts.
6. Install The New Bulb
Take your new 3157 bulb and push it firmly into the socket. Make sure it’s seated evenly—if it’s not fully in, it may not work.
7. Test The New Bulb
Before reassembling, turn on your car and press the brake pedal (ask a friend to help, or use a heavy object to hold the pedal). Check if the new bulb lights up.
If it doesn’t, remove the bulb and check the orientation or try a different bulb.
8. Reinstall The Tail Light Assembly
Once the new bulb works, insert the socket back into the assembly and turn it clockwise to lock it in place. Line up the assembly’s pins with the holes in the body.
Push the assembly back into position, then reinstall the two screws.
9. Final Check
Close the tailgate and test your brake lights again. Make sure both sides work and the assembly is secure.
Comparison Of Bulb Types
It’s helpful to know the differences between bulbs you might use:
| Bulb Type | Brightness (Lumens) | Average Lifespan (Hours) | Cost (USD) |
|---|---|---|---|
| Standard Halogen (3157) | 400 | 1,000 | 2-4 |
| LED Replacement (3157) | 800 | 30,000 | 10-20 |
LED bulbs are brighter and last much longer but cost more. For most drivers, the standard halogen bulb is enough, but if you want to upgrade, LED is a good choice.
Mistakes To Avoid
Some common errors can make the process harder or cause problems later:
- Touching the bulb glass: Oils from your fingers can make halogen bulbs burn out faster. Use gloves or hold the base.
- Forcing the assembly: If the tail light doesn’t come out, check for missed screws. Forcing it can break the plastic clips.
- Wrong bulb type: Double-check the bulb number before buying. The wrong bulb won’t fit or may not work correctly.
- Skipping the test: Always test before putting everything back. It saves time if you need to adjust something.
How To Know If Your Brake Light Bulb Is Bad
It’s not always obvious when a brake light bulb fails. Here are signs you may need a new one:
- Brake warning light: Some Grand Cherokees show a warning on the dash.
- Rapid blink: If your turn signal blinks faster than normal, a bulb may be out.
- Police stop: Many drivers only find out after being pulled over.
- Regular checks: Walk around your car and check all lights at least once a month.
When To Replace Both Bulbs
If one brake light bulb is out, the other may fail soon. Many drivers replace both at the same time.
It’s a simple way to avoid another repair soon. Also, bulbs tend to age at the same rate.
Cost And Time Estimates
Replacing a brake light bulb yourself is very affordable. Most 3157 bulbs cost between $2 and $4 each, while LED versions can be $10 or more. At a repair shop, you might pay $25-$50 for parts and labor. Doing it yourself can save up to 90% of that cost. The job usually takes 15-30 minutes.
2004 Jeep Grand Cherokee Brake Light Bulb Locations
The 2004 Jeep Grand Cherokee has three brake light bulbs—one in each rear tail light assembly and one high-mounted center light (often called the “third brake light”). The process for the center light is different and may require removing screws and a trim panel inside the rear window. For regular brake light bulbs, follow the steps above.
Tips For A Smooth Replacement
- Work in daylight so you can see clearly.
- Keep parts organized: Place screws and small parts in a cup or on a magnetic tray.
- Check wiring: If your new bulb doesn’t work, inspect the socket for corrosion or broken wires.
- Upgrade wisely: If you switch to LED bulbs, check if you need a resistor to avoid hyper-flashing.
- Use a small mirror to check the bulb and socket alignment if you have trouble seeing inside the assembly.
Diy Vs. Professional Replacement
While replacing a brake light bulb is easy for most people, some prefer to let a mechanic handle it. If you have trouble reaching the assembly or if the socket is stuck, a professional can help.
But for most, doing it yourself saves money and is a good way to learn more about your vehicle.
Comparison: Diy Vs. Mechanic Service
Here’s a side-by-side look at doing it yourself versus hiring a professional:
| Factor | DIY | Mechanic |
|---|---|---|
| Cost | $2–$20 (bulb only) | $25–$50 (parts & labor) |
| Time | 15–30 minutes | 1–2 hours (with wait time) |
| Skill Needed | Basic | None |
| Learning Experience | Yes | No |
Most Jeep owners with basic tools can handle this job at home. If you face any difficulty, there are step-by-step videos and guides online. The official Jeep forums and resources like Jeep Official Site can also help.
Two Key Insights Many Beginners Miss
- Bulb orientation matters: The 3157 bulb has offset pins, so it only fits one way. Forcing it can break the socket.
- Socket condition is important: If your new bulb doesn’t light up, check for corrosion or dirt in the socket. Cleaning it with electrical contact cleaner can restore function.
Frequently Asked Questions
How Do I Know Which Bulb To Buy For My 2004 Jeep Grand Cherokee Brake Light?
You need a 3157 bulb, which is a dual-filament bulb used for brake and tail lights. You can find this at auto parts stores or online. Check your owner’s manual if you’re unsure.
Can I Use An Led Bulb Instead Of A Standard Bulb?
Yes, LED bulbs can replace standard 3157 bulbs. They are brighter and last longer.
Sometimes, you may need a resistor to prevent rapid blinking or error messages.
What Should I Do If The New Bulb Doesn’t Work?
First, check that the bulb is seated correctly. If it still doesn’t work, inspect the socket for dirt or corrosion.
Clean it with a contact cleaner. If that doesn’t help, check the fuse or wiring.
Do I Have To Replace Both Brake Light Bulbs At The Same Time?
It’s not required, but it’s a good idea. If one bulb is out, the other is likely close to failing. Replacing both saves time and effort.
How Often Should I Check My Brake Lights?
A quick check every month is wise. Many drivers don’t notice a brake light is out until someone tells them or they are stopped by police.
Regular checks help keep you safe and legal.
Taking care of your 2004 Jeep Grand Cherokee’s brake lights is simple, affordable, and crucial for road safety. With these clear steps, you can confidently replace the bulb yourself.
Remember, a few minutes of effort can prevent accidents and keep you out of trouble with the law.
