Replacing a brake light on a 2002 Jeep Grand Cherokee can seem challenging if you’ve never done it before. However, this is a simple repair that you can do at home with basic tools. A working brake light is crucial for your safety and is required by law. This guide will show you step-by-step how to replace your brake light, along with tips that will make the job faster and easier—even if you’re not an experienced mechanic.
Why Replacing A Faulty Brake Light Matters
When a brake light goes out, other drivers may not see when you are stopping. This small detail can lead to accidents, especially at night or in poor weather.
Police can also ticket you for a burned-out brake light. Fixing it yourself can save both time and money, as most auto shops charge for both the bulb and labor.
Tools And Materials Needed
Before you start, gather these items:
- Replacement bulb (for 2002 Jeep Grand Cherokee: 3157 or 3157LL)
- Phillips screwdriver
- Small flathead screwdriver (optional, helps with prying)
- Gloves (to protect the bulb from oil on your fingers)
- Clean cloth
Having the correct bulb is essential. The 3157 or 3157LL bulbs are readily available at auto parts stores.
Double-check your owner’s manual or the old bulb for the exact number.
Step-by-step: How To Replace The Brake Light
Let’s break down the process so you can finish the job confidently.
1. Open The Rear Hatch
Start by opening the Jeep’s rear hatch. This gives you access to the tail light assembly.

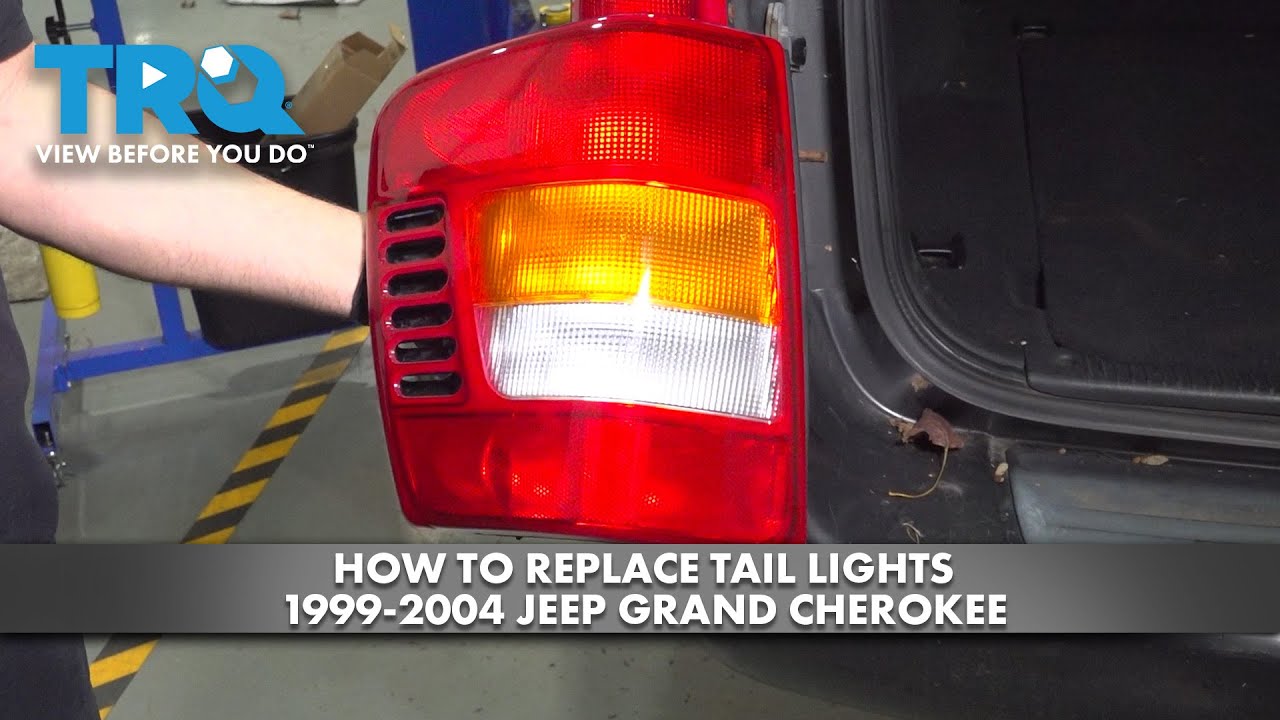

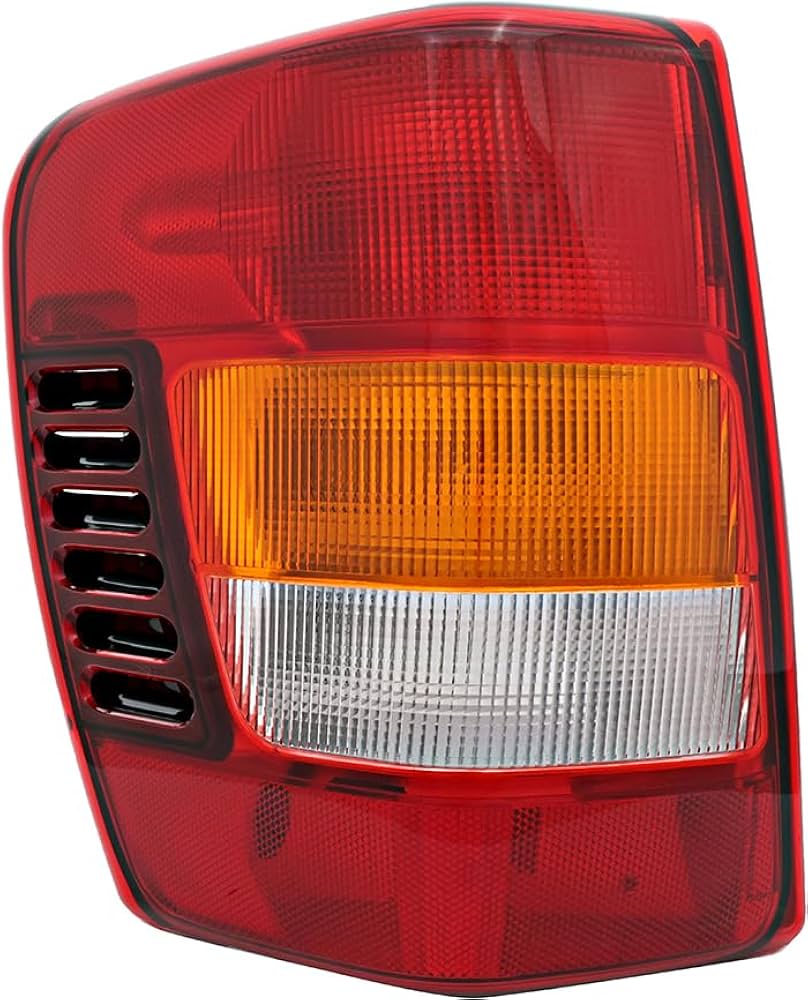

2. Locate The Tail Light Assembly
On the 2002 Grand Cherokee, the brake lights are part of the tail light assembly, which is mounted on the rear quarter panel, just beside the liftgate.
3. Remove The Tail Light Assembly
There are two screws holding the tail light in place, located on the inside edge of the tail light, visible when the hatch is open. Use your Phillips screwdriver to remove these screws. Set them aside in a safe place.
4. Gently Pull Out The Assembly
After removing the screws, grip the edges of the tail light and pull it straight out. It may feel snug; wiggle gently if needed.
Be careful not to break the plastic clips or scratch your Jeep’s paint.
5. Identify The Brake Light Bulb
On the back of the assembly, you’ll see several bulb sockets. The brake light is usually the middle one. You can confirm by pressing the brake pedal (have someone help) and seeing which bulb lights up.
6. Remove The Bulb Socket
Turn the socket counterclockwise (about a quarter turn) to release it from the assembly. Pull the socket out with the bulb attached.
7. Replace The Old Bulb
Pull the old bulb straight out from the socket. If it’s stuck, wiggle gently don’t twist, as this could break the bulb.
Insert the new bulb into the socket. If you’re using gloves, you’ll avoid getting oil from your hands on the bulb, which can cause hot spots and shorten its life.
8. Test The New Bulb
Before reassembling everything, ask someone to press the brake pedal and check if the new bulb lights up. If it doesn’t, check the bulb’s orientation or try a different bulb.
9. Reinstall The Socket And Assembly
Insert the socket back into the assembly, turning it clockwise to lock it. Align the assembly with its clips and screw holes, then gently push it back into place.
Replace the screws and tighten them until snug, but don’t overtighten to avoid cracking the plastic.
10. Close The Hatch And Final Check
Close the rear hatch. Test the brake light again to ensure it works. You’re done!
Comparison: Diy Vs. Auto Shop Replacement
Here’s how doing it yourself compares to having a shop do it:
| Factor | DIY Replacement | Auto Shop Replacement |
|---|---|---|
| Cost | $3–$8 (bulb only) | $20–$50 (parts + labor) |
| Time Required | 15–20 minutes | 1–2 hours (with wait) |
| Skill Needed | Beginner | Not required |
| Satisfaction | High—DIY success | Low—no new skill |
Common Mistakes And How To Avoid Them
Even simple jobs can go wrong. Here’s what to watch out for:
1. Using The Wrong Bulb
The 3157 and 3157LL bulbs are similar, but double-check the code. A wrong bulb can fit but not work.
2. Touching The Bulb Glass
Oil from your skin can cause the bulb to burn out quickly. Always handle with clean gloves or cloth.
3. Forgetting To Test Before Reassembly
Always check the light before putting everything back. This saves you from repeating the work.
4. Overtightening Screws
Excess force can crack the plastic housing. Tighten until just snug.
5. Damaging Clips Or Wires
If you pull too hard, you might break plastic clips or damage wiring. Work slowly.
When To Replace Both Brake Lights
If one brake light is out, the other may also be close to failure. It’s smart to replace both bulbs at the same time for reliability.
This way, you’re less likely to have another brake light go out soon.
How To Choose The Right Bulb
Two main types fit the 2002 Grand Cherokee:
- 3157: Standard bulb. Good for normal driving.
- 3157LL (Long Life): Lasts longer, costs a little more.
LED bulbs are also available and last even longer, but may require a resistor for correct function. Always check your owner’s manual or the packaging for compatibility.
Here’s a simple comparison:
| Bulb Type | Lifespan | Cost (approx.) | Brightness |
|---|---|---|---|
| 3157 | ~1 year | $3–$4 | Standard |
| 3157LL | ~2 years | $5–$6 | Standard |
| LED | ~5+ years | $15–$25 | Very bright |
Extra Tips For A Smooth Replacement
- Bring your old bulb to the store. This ensures you buy the right one.
- Check all rear lights. If one is out, others might be too.
- Keep a spare bulb in your glove box for emergencies.
- If you live in a wet or snowy climate, check the tail light gasket for leaks. Water inside can cause bulbs to fail early.
- If the light still doesn’t work after replacement, check the fuse box. A blown fuse can also cause brake lights to fail.
How To Check The Fuse
If your new bulb doesn’t light up, the fuse might be the problem. The fuse box is under the hood, near the battery.
Look for the diagram on the fuse box cover. The brake light fuse is usually marked as “STOP LAMP” or similar.
Use the fuse puller or needle-nose pliers to remove and inspect it. If the wire inside is broken, replace with the same type and rating.
Environmental And Legal Considerations
Proper brake lights are a basic requirement for road safety. In many states, you can be fined if your brake lights aren’t working.
This repair also helps reduce the chance of rear-end collisions. Old bulbs can be recycled at most auto parts stores don’t throw them in the trash.
Real-life Example
Imagine you’re driving home at night and a police officer stops you. Your brake light is out.
A ticket can cost $100 or more. But if you spent just 20 minutes and $5 for a new bulb, you could avoid the hassle and cost.
Troubleshooting: If The Light Still Doesn’t Work
- Double-check the bulb orientation. Some bulbs only work one way.
- Inspect the wiring. Look for corrosion or broken wires at the socket.
- Test the socket. Sometimes, the socket itself is bad. If other bulbs work but not the brake light, the socket may need replacing.
- Check brake pedal switch. If none of your brake lights work, the pedal switch may have failed.
Cost Over Time: Diy Vs. Shop
Let’s see how much you could save over 5 years:
| Year | DIY Cost (per bulb) | Shop Cost (per bulb) | Savings (per bulb) |
|---|---|---|---|
| 1 | $5 | $25 | $20 |
| 3 | $10 | $50 | $40 |
| 5 | $15 | $75 | $60 |
DIY saves money, especially if you own your Jeep for several years.
Safety Reminder
Always work with the engine off and the key removed to avoid electric shock or unwanted movement. Make sure the vehicle is in “Park” and on a flat surface.
Where To Find More Information
For more details, you can check the official Jeep owner’s manual or visit trusted resources like the Jeep Grand Cherokee Wikipedia page.
How Do I Know Which Bulb To Buy For My 2002 Grand Cherokee?
Check your owner’s manual or remove the old bulb and look for the number (usually 3157 or 3157LL). Most auto parts stores can also help if you tell them your vehicle’s year and model.
Can I Use An Led Bulb Instead Of A Regular One?
Yes, but make sure the LED is compatible with your Jeep. Some LEDs require a special resistor to avoid “hyper-flashing” or warning lights.
Do I Need Any Special Tools To Change The Brake Light?
No special tools are needed. A standard Phillips screwdriver is usually enough. A small flathead screwdriver can help if the assembly is stuck.
How Long Does It Take To Change The Brake Light Bulb?
For most people, it takes 15–20 minutes. If it’s your first time, allow a little extra time to go slowly.
What If The New Bulb Doesn’t Work After Installation?
Check that the bulb is seated correctly, inspect the fuse, and look for any wiring issues. If everything looks good but it still doesn’t work, the socket may need replacing.
Replacing the brake light on your 2002 Jeep Grand Cherokee is a quick and affordable fix that you can do yourself. With the right bulb and a little care, you’ll keep your Jeep safe and legal on the road.
