Replacing the dash lights on your 2001 Jeep Wrangler is one of those projects that might sound tricky, but with some patience and the right guidance, you can do it yourself and save money.
Dash lights are important for night driving they help you see your speed, gas level, and warning indicators.
If they go out, you can’t ignore them for long. This guide explains how to change these dash bulbs, which tools you’ll need, and what to watch out for along the way.
You’ll also find answers to common questions, and some insider tips you won’t get from the owner's manual.
Understanding Dash Lights In The 2001 Jeep Wrangler
The 2001 Jeep Wrangler uses small incandescent bulbs behind the instrument cluster to illuminate the speedometer, fuel gauge, and other dashboard elements. Over time, these bulbs burn out, leading to dim or completely dark gauges. Many owners don’t realize how simple these bulbs are to replace compared to modern LED setups, but you do need to remove parts of your dash to reach them.
Why Dash Lights Matter
If you drive at night, working dash lights are essential for safety. They help you spot problems like overheating or low oil pressure early. Replacing them when they go out prevents more costly issues down the line.
What You Need Before You Start
You’ll want to gather all tools and parts first. This saves frustration and makes the job quicker.
- Phillips screwdriver (medium size)
- Flathead screwdriver (optional, for trim)
- Small socket set (7mm and 10mm sockets)
- Replacement bulbs (usually type 194 or 161 wedge bulbs—check your manual)
- Work gloves (optional, keeps oil off bulbs)
- Flashlight (for seeing inside the dash)
- Trim removal tool (prevents scratches)
Buying the correct bulbs matters. While most 2001 Jeep Wranglers use type 194 bulbs, some clusters use a different size. Pull one old bulb first and compare if you’re unsure.
Step-by-step: How To Replace 2001 Jeep Wrangler Dash Lights
Let’s walk through the process with clear steps. Plan for about 1 2 hours if it’s your first time.
1. Disconnect The Battery
Safety first—always disconnect your Jeep’s battery before working with electrical components. This prevents accidental shorts and protects your electronics.
- Open the hood and locate the battery.
- Use a wrench to loosen the negative cable clamp.
- Remove and secure the cable away from the battery terminal.
2. Remove The Dash Bezel
The bezel is the large plastic frame around your gauges and radio.
- Use a Phillips screwdriver to remove the screws along the top and bottom of the bezel.
- Gently pry the bezel off. If it’s stuck, use a trim tool or flathead screwdriver, but be careful not to crack the plastic.
- Set the bezel aside.
3. Take Out The Instrument Cluster
The cluster is the part with all the gauges.
- Remove the screws securing the cluster to the dash.
- Carefully pull the cluster forward. There are wiring connectors at the back—don’t yank!
- Squeeze the tabs to unplug the connectors. You may need to rock the cluster gently to reach them.
4. Find And Replace Burned Out Bulbs
With the cluster removed, you’ll see several small bulb holders on the back.
- Turn each bulb holder counterclockwise to remove it.
- Pull out the old bulb. Some may need a gentle wiggle.
- Insert the new bulb (don’t touch the glass with bare fingers—oil can cause hot spots).
- Test fit before moving to the next.
The 2001 Wrangler typically uses 4 6 bulbs for backlighting, and a few for warning indicators. It’s smart to replace all backlight bulbs at once, even if only one is out.
5. Reinstall The Cluster And Dash
- Plug the wiring connectors back into the cluster.
- Line up the cluster with the dash and secure with screws.
- Snap the bezel back into place and reinstall its screws.
6. Reconnect The Battery And Test
- Reconnect the negative battery cable.
- Turn your key to “on” (don’t start the engine).
- Check that all dash lights work. If one is still out, you may have a bad new bulb or a loose connection.
Data Table: Common Bulb Types For 2001 Jeep Wrangler Dash
Here’s a quick comparison of the most common bulbs used:
| Bulb Type | Wattage | Base Type | Typical Use |
|---|---|---|---|
| 194 | 3.8W | Wedge | Backlighting |
| 161 | 2.7W | Wedge | Warning indicators |
| 37 | 1.4W | Miniature | Minor indicators |
Many guides skip these details, but they make the job smoother:
- Cluster Wiring Can Be Stiff: After 20+ years, the wiring harness may be less flexible. Work slowly to avoid damaging wires.
- Test Bulbs Before Full Reassembly: After plugging in the cluster, reconnect the battery and check the lights before screwing everything back together. That way, you don’t have to open it all up again.

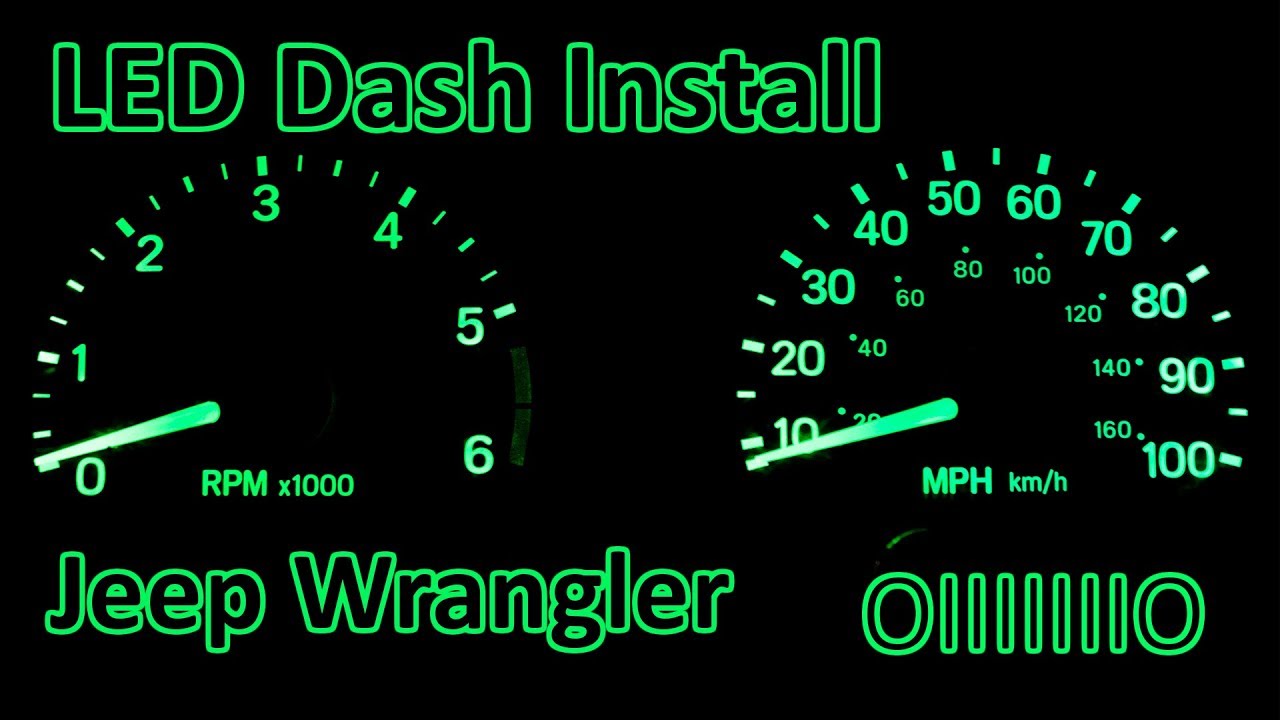

- Upgrade to LEDs: If you want brighter or colored dash lights, consider LED replacements. Make sure they’re CANbus-compatible to avoid error messages or flicker.
- Label Screws and Parts: Use small containers or tape to keep track of each screw. Some are different lengths, and mixing them up can cause fitting issues.
- Avoid Fingerprints: Oils from your fingers can reduce bulb life. Use gloves or a clean tissue when handling new bulbs.
Comparison: Incandescent Vs. Led Dash Bulbs
Upgrading to LEDs is popular, but is it right for you? Here’s a side-by-side look:
| Feature | Incandescent | LED |
|---|---|---|
| Brightness | Standard | Brighter |
| Color Options | White/Yellow | Many colors |
| Lifespan | ~1,000 hours | ~50,000 hours |
| Compatibility | Always fits | Check CANbus |
| Cost | Low | Medium |
If you choose LEDs, buy from a reliable brand and double-check fitment.
Common Mistakes To Avoid
Even careful DIYers slip up. Here are mistakes people often make:
- Forgetting to disconnect the battery: This can blow fuses or damage electronics.
- Mixing up bulb sizes: Always check what’s installed before buying replacements.
- Forcing connectors: If a plug won’t move, double-check for locking tabs—don’t pull hard.
- Losing screws: Jeep dashboards have multiple screw types. Mixing them up can cause rattles.
- Not testing before reassembly: Always check your work before putting everything back together.
Cost Breakdown For Diy Dash Light Replacement
Replacing the dash bulbs yourself is affordable. Here’s an estimate:
| Item | Cost (Approx.) | Notes |
|---|---|---|
| Replacement Bulbs (6 pcs) | $8–$15 | Standard Incandescent |
| LED Bulbs (6 pcs) | $15–$30 | Quality Brand |
| Basic Tools | $0–$20 | If you don’t already own them |
| Labor (if done by mechanic) | $60–$120 | 1–2 hours shop time |
Doing it yourself saves on labor, and you’ll understand your Jeep better.
When To Seek Professional Help
Most people can change dash bulbs with basic tools and patience. However, you may want a mechanic if:
- You notice melted connectors or damaged wiring.
- The cluster doesn’t light up after new bulbs.
- You’re uncomfortable removing dash trim.
These situations may need electrical diagnosis. Don’t risk further damage if you’re unsure.
Extra Resources
For more technical details, the official Jeep Wrangler service manual offers step-by-step diagrams. You can find an overview at the Jeep Wrangler Wikipedia page.
How Many Dash Lights Does A 2001 Jeep Wrangler Have?
Most 2001 Wranglers have 4–6 main backlight bulbs for the instrument cluster, plus several smaller bulbs for warning indicators. The exact number can vary by trim level.
Can I Change Dash Lights To A Different Color?
Yes, you can use colored LED replacements to customize your dash. Make sure the bulbs are the right size and compatible with your Jeep’s wiring.
Do I Need To Remove The Steering Wheel To Change Dash Bulbs?
No, you do not need to remove the steering wheel. All bulbs can be accessed by removing the dash bezel and instrument cluster.
What If New Bulbs Don’t Light Up?
Check that the bulbs are seated properly and the wiring connectors are secure. If they still don’t work, you may have a blown fuse or a wiring issue.
Is It Safe To Drive With Some Dash Lights Out?
It’s not recommended. Non-working dash lights can hide critical warnings like overheating or low oil, increasing your risk of expensive damage or accidents.
Replacing your 2001 Jeep Wrangler’s dash lights is a great beginner DIY project. Take your time, use the right tools, and double-check each step.
Not only will your gauges be easy to read again, but you’ll also gain confidence working on your Jeep.
