Removing the headrest from your Jeep Patriot may seem simple, but there are a few steps to follow to avoid damage and ensure safety. Whether you want to install seat covers, improve comfort, or replace a broken headrest, knowing the right technique is important. Many Patriot owners struggle with this task, as the headrest design is not always intuitive. This guide explains the process in clear steps, shares practical advice, and helps you avoid common mistakes.
Why Remove The Jeep Patriot Headrest?
People remove their Jeep Patriot headrest for several reasons. Some want to add aftermarket seat covers, which require the headrest to be taken off first. Others may need to replace a damaged headrest or adjust the seat for tall items. Occasionally, owners remove it for cleaning or to improve rear visibility.
A key insight: the Patriot’s headrest is designed for safety, so removal is not as straightforward as in older cars. The headrest locks in place and uses hidden mechanisms to prevent accidental detachment during a crash.
Understanding Your Jeep Patriot Headrest

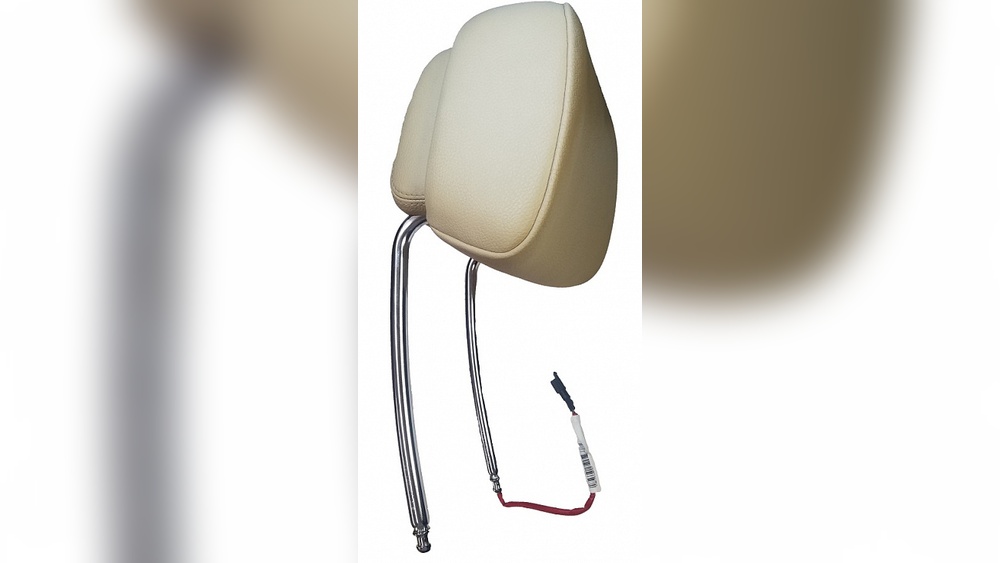

Before you start, know the parts involved. The headrest consists of two metal rods (posts) inserted into the seat. There are plastic sleeves at the base, and one or both may have a release button. Some models also include a small locking clip, especially on the passenger side.
Here’s a comparison table showing differences between Patriot model years:
| Model Year | Headrest Release Button | Locking Clip | Ease of Removal |
|---|---|---|---|
| 2007-2010 | One side | No | Easy |
| 2011-2014 | Both sides | Yes (some trims) | Moderate |
| 2015-2017 | Both sides | Yes (all trims) | Moderate |
If your Jeep Patriot is from 2015 or later, expect a locking clip under the sleeve that requires extra care.
Step-by-step Guide To Remove Jeep Patriot Headrest
Follow these steps for safe and effective removal:
1. Move Seat Forward
Slide the seat forward to gain better access to the back. This helps you see the headrest posts and release mechanisms.
Look for small buttons at the base of each headrest post. On most Patriots, you’ll find them on both sides.
Push and hold both buttons at the same time. If your model has only one, press that. You may need to use two hands.
4. Lift Headrest Up

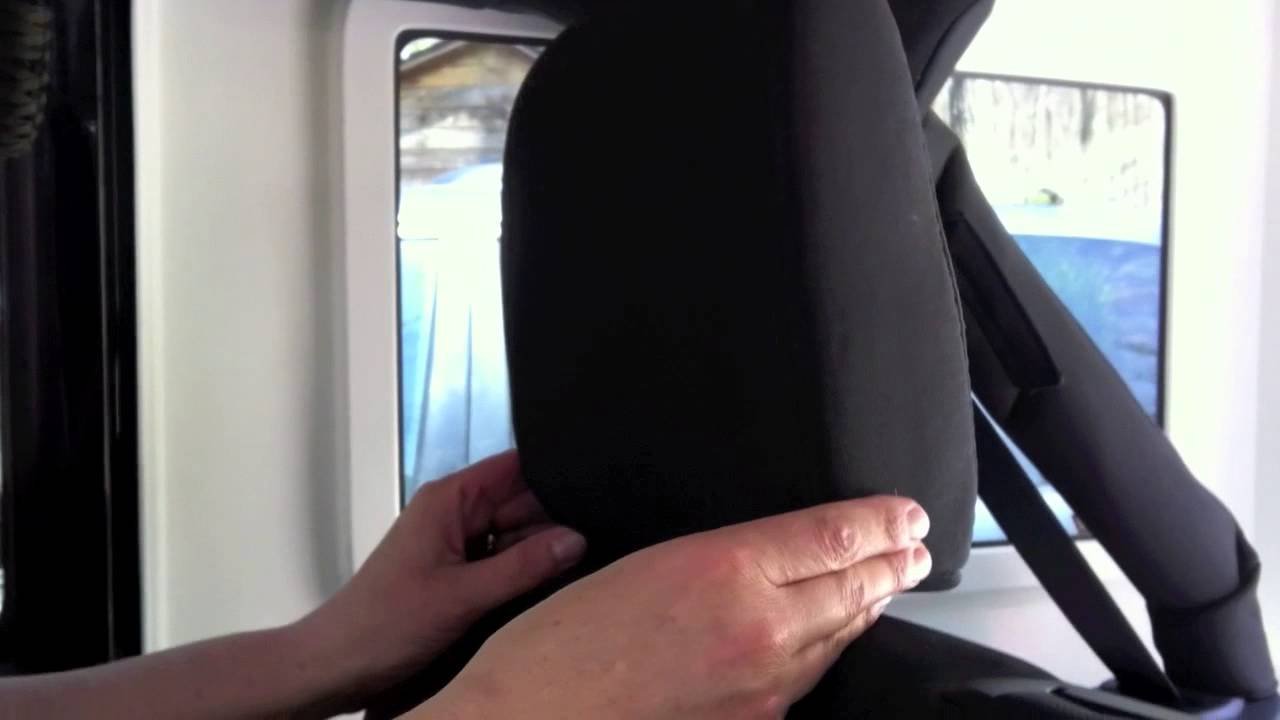

While holding the buttons, gently pull the headrest upward. If it doesn’t move, double-check that both buttons are fully depressed.
5. Check For Locking Clips
Some Patriots have a small clip under the plastic sleeve. If the headrest won’t come out, feel around the sleeve for a tab. Use a flathead screwdriver to gently pry the clip away.
6. Remove Headrest Completely
Once the headrest is free, pull it out. Avoid twisting or forcing it, as this can bend the metal posts.
7. Store Safely
Place the headrest in a safe spot to avoid scratching or damaging it.
Here is a practical table summarizing the removal steps and required tools:
| Step | Action | Tool Needed |
|---|---|---|
| 1 | Move seat forward | None |
| 2 | Inspect buttons | None |
| 3 | Press buttons | None |
| 4 | Lift headrest | None |
| 5 | Check locking clips | Flathead screwdriver |
| 6 | Remove headrest | None |
| 7 | Store safely | None |
Common Mistakes And How To Avoid Them
Many Jeep owners make these errors:
- Forcing the headrest without unlocking both buttons can break the sleeve.
- Not checking for hidden locking clips results in frustration and damage.
- Using too much force bends the metal posts or cracks the plastic sleeve.
A non-obvious tip: if the headrest feels stuck, wiggle it gently while pressing the buttons. This often helps release a stubborn mechanism.
Practical Tips For Easy Removal
- Use a flashlight if you can’t see the release buttons clearly.
- If the headrest is still stuck, spray a small amount of silicone lubricant around the posts.
- Always keep the headrest nearby. Driving without it is unsafe and may violate local laws.
- When reinstalling, align the posts carefully and push until you hear a click.
When Headrest Removal Is Not Recommended
There are times when you should avoid removing the headrest. If your Jeep Patriot is equipped with active headrests (safety feature in some trims), removal can affect crash protection. Consult your owner’s manual or check with your dealer.
Another important insight: the headrest is part of the overall seat safety system. Removing it for long periods increases risk in case of rear-end collisions. Always reinstall after cleaning or adjustments.
Frequently Asked Questions
How Do I Know If My Jeep Patriot Headrest Has A Locking Clip?
Check under the plastic sleeve at the base of the post. If you see or feel a small tab or metal clip, your headrest has a locking clip. This is common in 2011–2017 models.
Can I Drive Without The Headrest Installed?
No, it’s not safe. The headrest protects against whiplash injuries. Driving without it can increase injury risk in a crash and may be illegal in some states.
Try wiggling the headrest gently while holding the buttons. If it still won’t move, check for hidden clips and use a flathead screwdriver to release them.
Will Removing The Headrest Affect Airbags Or Other Safety Features?
Most Jeep Patriot models do not have headrest airbags. However, some trims use active headrests as part of the seat safety system. Removing them can reduce protection. Always reinstall after maintenance.
Where Can I Find Official Instructions For My Jeep Patriot Headrest?
You can find official guidance in your owner’s manual or visit the manufacturer’s site: Jeep Owner Manuals.
Removing the headrest on your Jeep Patriot is quick if you know where to look and what to press. Take your time, avoid forcing parts, and always reinstall the headrest for safety. With these steps and tips, you’ll get the job done easily and avoid common mistakes.
